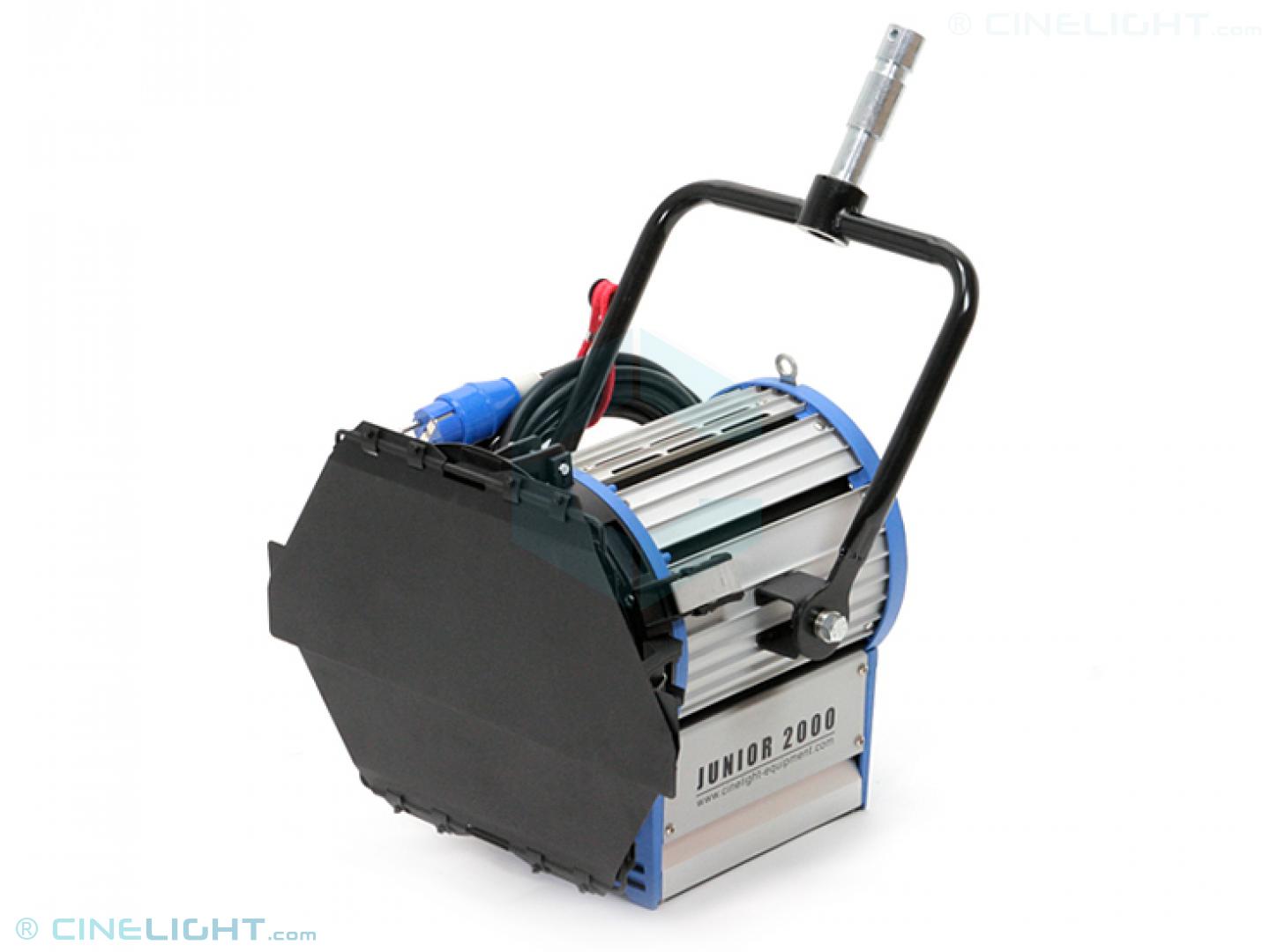

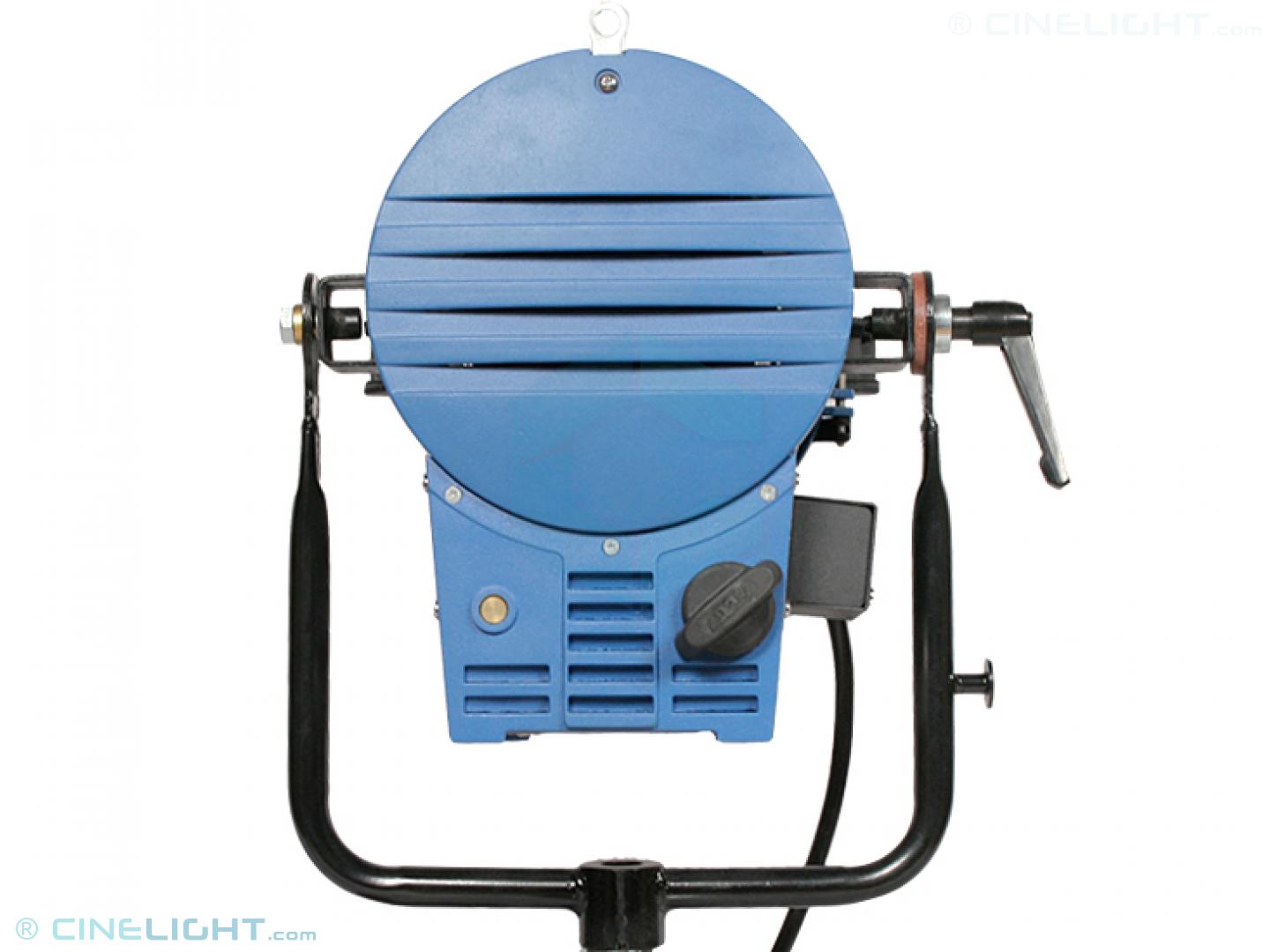

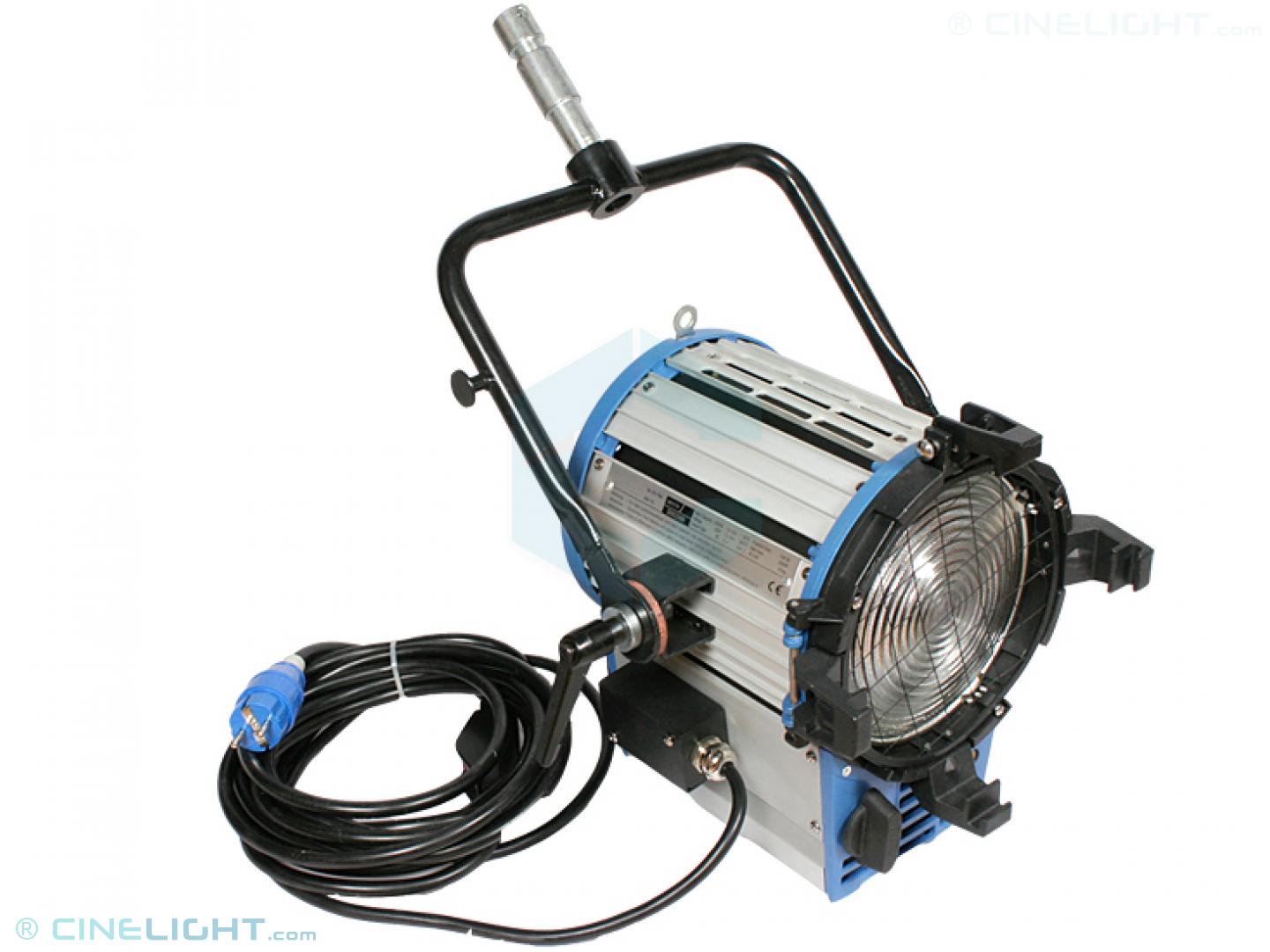

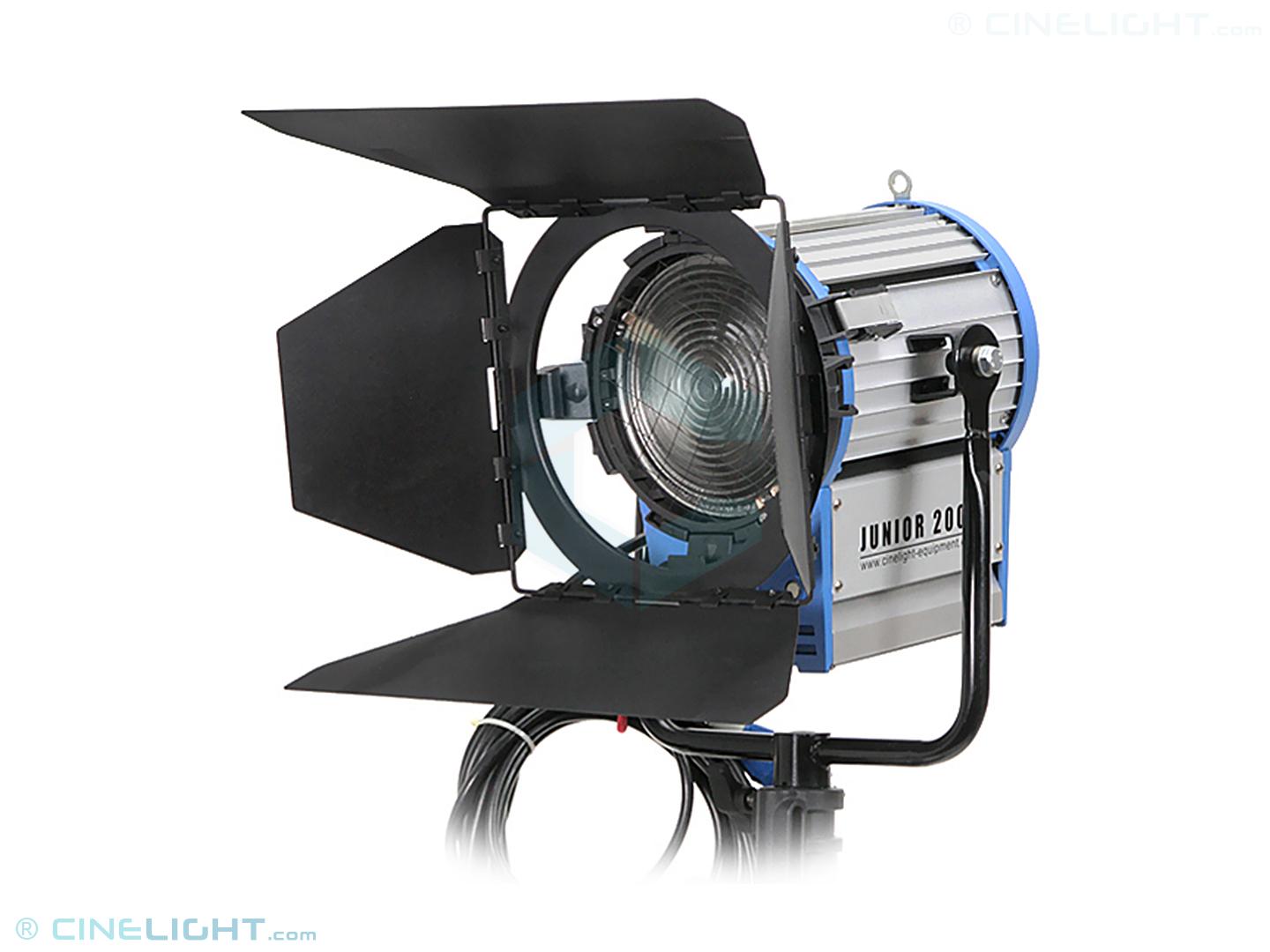

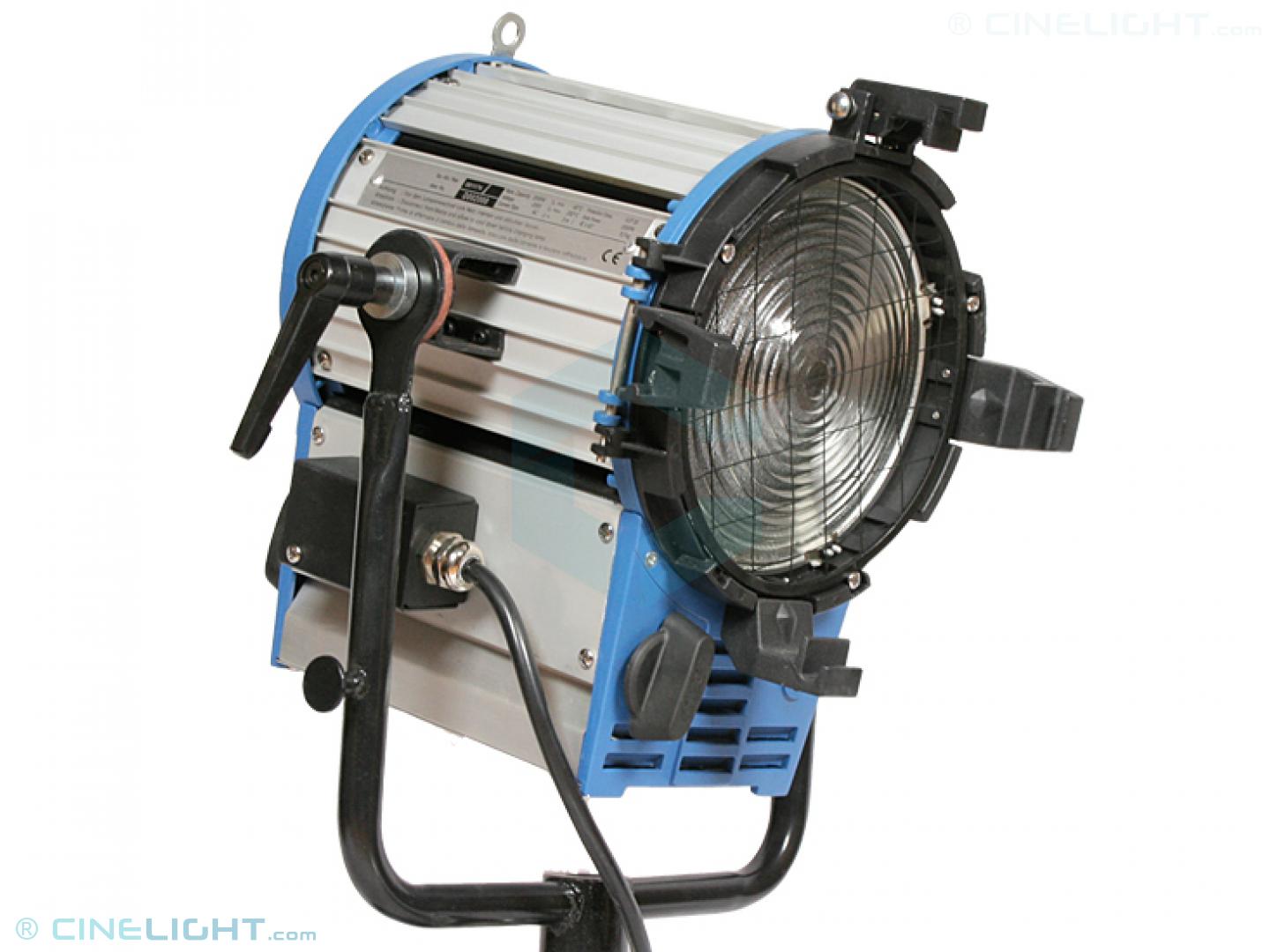

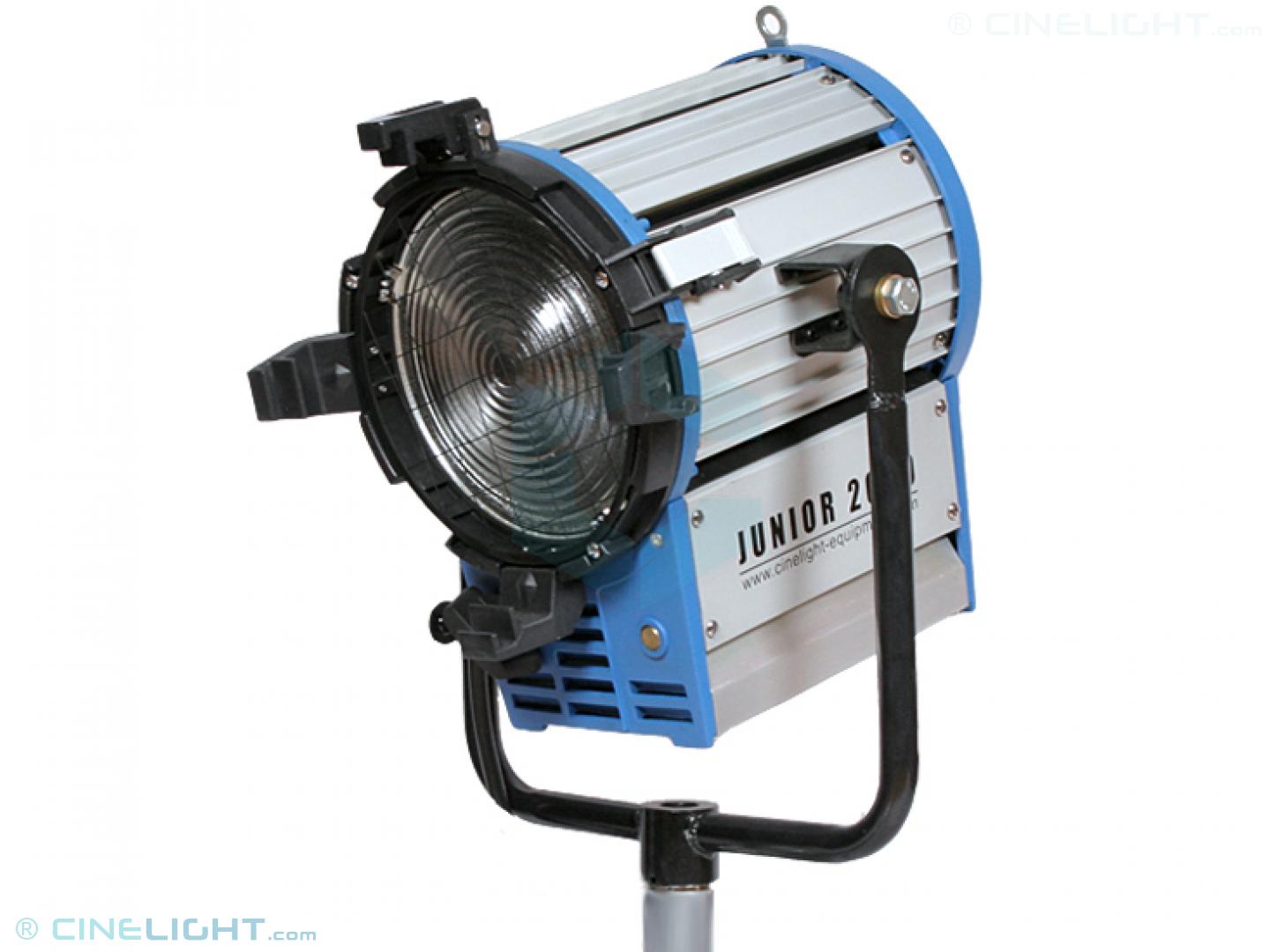

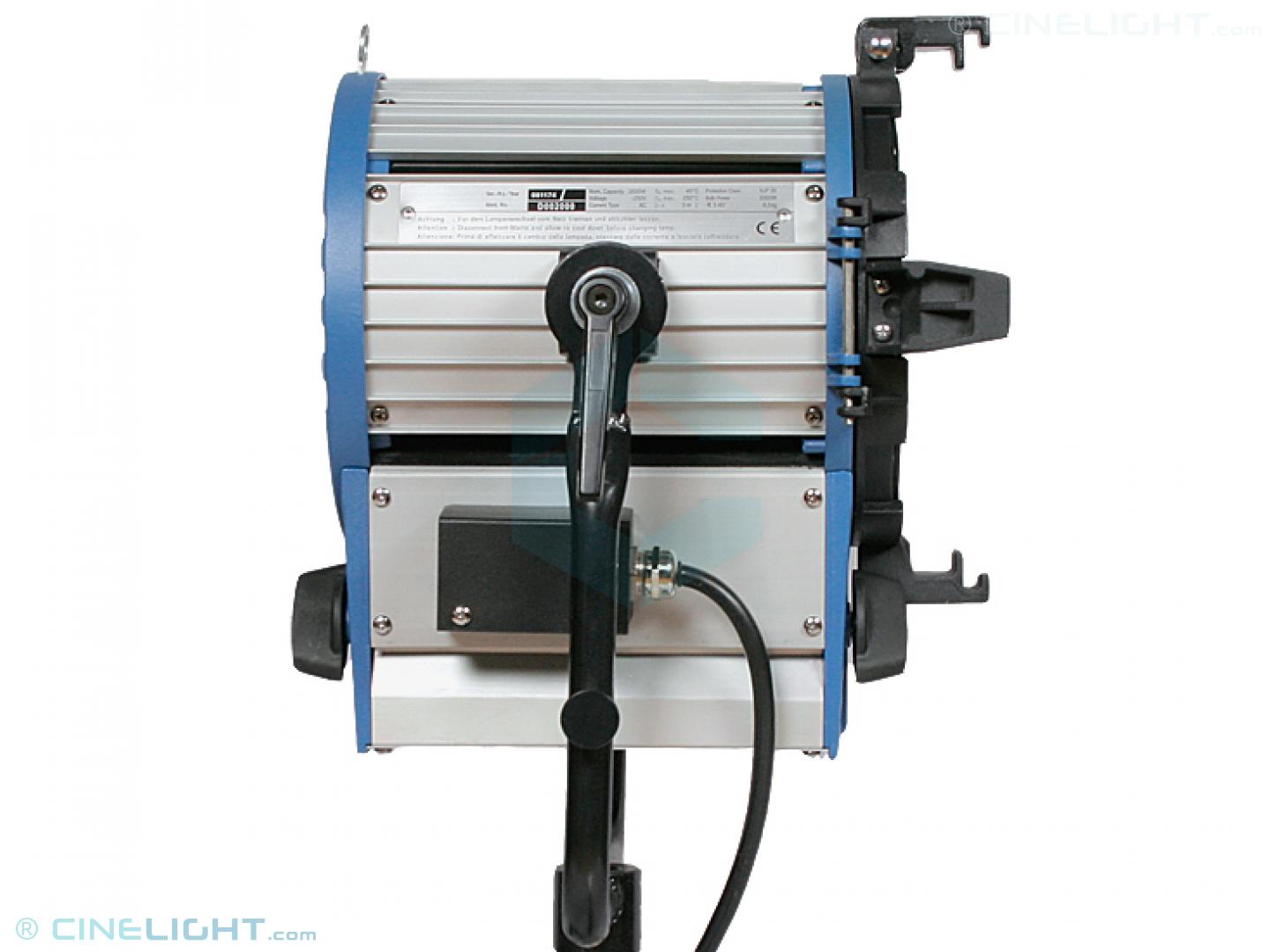

Junior Fresnel 2000 watts
- Power: 2000W
- Light output: 16900lx (spot) / 3000lx (flood) @ 3m
- Size: 60 x 36 x 29 cm | 8.7 Kg
- Adjustable beam angle from spot 13° to flood 60°
- High quality Fresnel lens with short focal length
- Sturdy die cast aluminum construction
- Optional: softbox, scrim kit, filter frame, dimmer
€29900
Maximum quantity available in stock for reached
Dedicated accessories


- For Junior Fresnel 2000W /Studio Fresnel 2000W
- Product code: 64789
- ANSI code: FKK
- Lamp socket: G38
- Power: 2000 watts
- Voltage: 230V
- Output: 52000 lm
- Color temperature: 3400K


- Circular frame for holding filters / gels
- Inserted on the accessory holder of Fresnel 2000W
- Filters are cut and sandwiched into frame
- Material: steel
- Diameter: 229 mm


- Stainless steel wire screen
- Full single | full double | half single | half double
- Green scrim reduces the light by a 1/2F-stop
- Red scrim reduces the light by a 1F-stop
- Half scrim covers half of the lightface
- Includes transport pouch
- Diameter: 229 mm


- Speed ring for Junior Fresnel 2000W
- Universal design, fully metal construction
- Suitable for rectangular and octagonal softboxes
- Compatible with Cinelight, ARRI, Filmgear fixtures
- Mounting diameter: 24.2 cm


- 6 poles mounting system
- Front soft louver & smaller inner diffusion
- Includes softbox connector for up to 8 poles
- Heat resistant tent fabric
- Silver interior for increased light intensity
- Softbox connector mounting diameter: 24.2 cm
- Softbox size (W x H): 120 x 120 cm


- Adjusts light output 100% to 0% seamlessly
- Micro-controller ensures flicker-free operation
- Works with incandescent lamps 200W to 2000W
- Random flicker generator with speed control
- 220 - 240V AC compatible
- Rugged aluminum housing
- Illuminated switches
Add stands


- Payload: 20 kg
- Maximum height: 240 cm
- Minimum height: 105 cm
- Folded length: 105 cm
- Mounting: combo 5/8" pin & 1-1/8" receiver
- Material: steel


- Max Payload: 20 kg
- Maximum height: 350 cm
- Minimum height: 142 cm
- Folded length: 142 cm
- Mounting: combo 5/8" pin & 1-1/8" receiver
- Material: steel
Add Filters


- 201 - Full C.T. Blue
- 202 - Half C.T. Blue
- 203 - Quarter C.T. Blue
- 218 - Eight C.T. Blue
- 204 - Full C.T. Orange
- 205 - Half C.T. Orange
- 206 - Quarter C.T. Orange
- 223 - Eight C.T. Orange
- 217 - Blue Diffusion
- 221 - Blue Frost
- 207 - Full C.T.O. + .3ND


- 103 - Straw
- 110 - Middle Rose
- 205 - Halft C.T. Orange
- 192 - Flesh Pink
- 134 - Golden Amber
- 162 - Bastard Amber
- 122 - Fern Green
- 115 - Peackock Blue
- 245 - Half Plus Green
- 202 - Half C.T. Blue
- 117 - Steel Blue
- 136 - Pale Lavender


- 129 - Heavy Frost
- 216 - White Diffusion
- 220 - White Frost
- 216 - White Diffusion
- 250 - 1/2 White Diffusion
- 251 - 1/4 White Diffusion
- 252 - 1/8 White Diffusion
- 253 - Hampton Frost
- 228 - Brushed Silk
- F1 - Opal Frost
- F2 - Light Frost
- F3 - Rolux


- 129 - Heavy Frost
- 216 - White Diffusion
- 253 - Hampton Frost
- 201 - Full C.T. Blue
- 204 - Full C.T. Orange
- 209 - 0.3 ND
- 101 - Yellow
- 106 - Primary Red
- 139 - Primary Green
- 181 - Congo Blue
- 136 - Pale Lavender
- 162 - Bastard Amber


- 101 - Yellow
- 106 - Primary Red
- 139 - Primary Green
- 119 - Dark Blue
- 158 - Deep Orange
- 128 - Bright Pink
- 104 - Deep Amber
- 111 - Dark Pink
- 116 - Medium Blue Green
- 197 - Alice Blue
- 147 - Apricot
- 148 - Bright Rose
Superior quality built in and increased performance
The Cinelight Junior Fresnel 2000W has a robust die cast aluminum construction, fully compatible with third parties accessories (ARRI, Filmgear). The product is designed for the European market and includes high quality components that truly stand out among all the variety of tungsten Fresnel lights available.

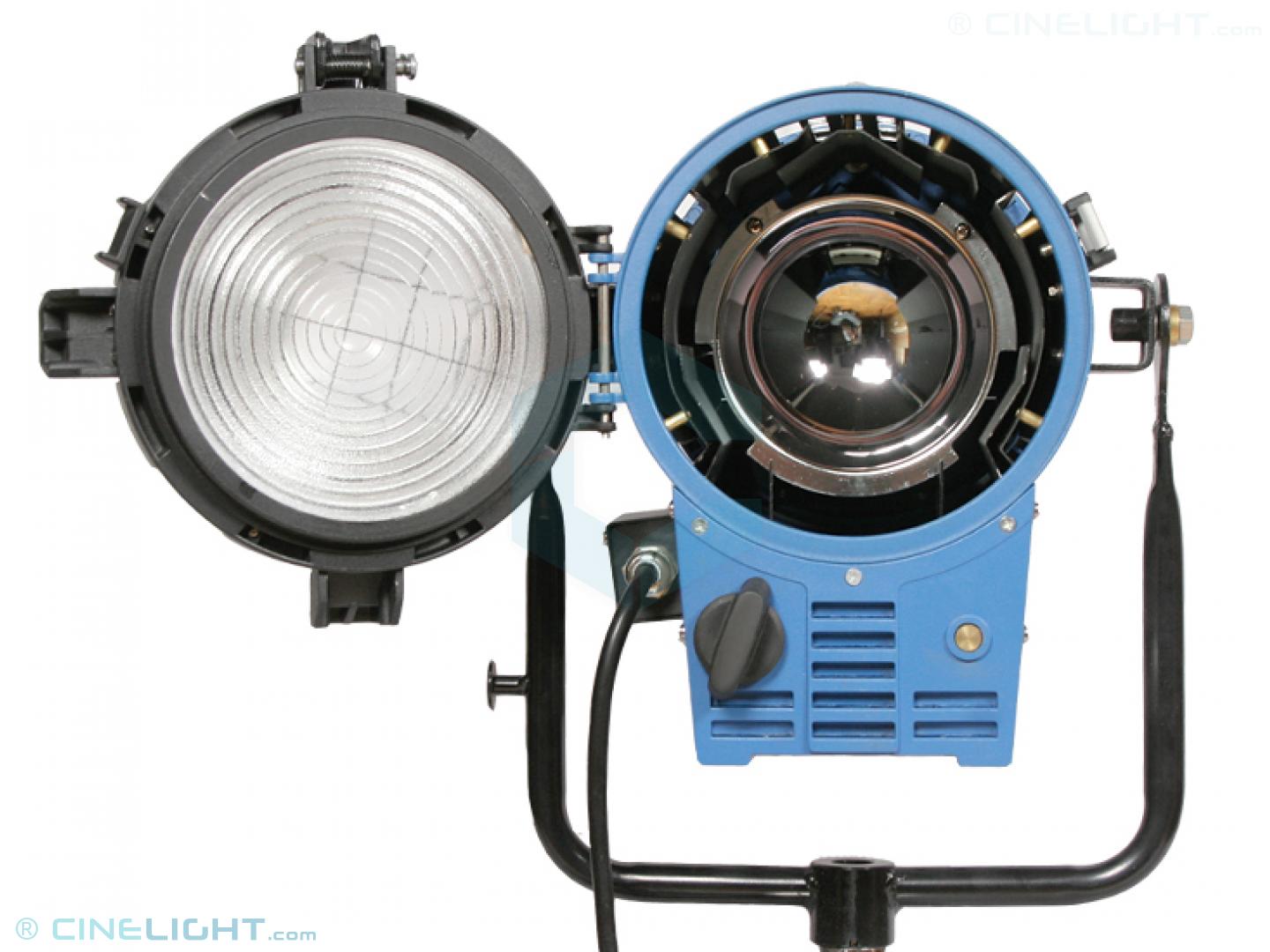

True Fresnel lens and smooth focusing mechanism
The high quality Fresnel lens with short focal length and wide angles increases the light output and delivers superior optical performance. The adjustable focus from spot (13°) to flood (60°) makes it easy to obtain the desired intensity or beam width.

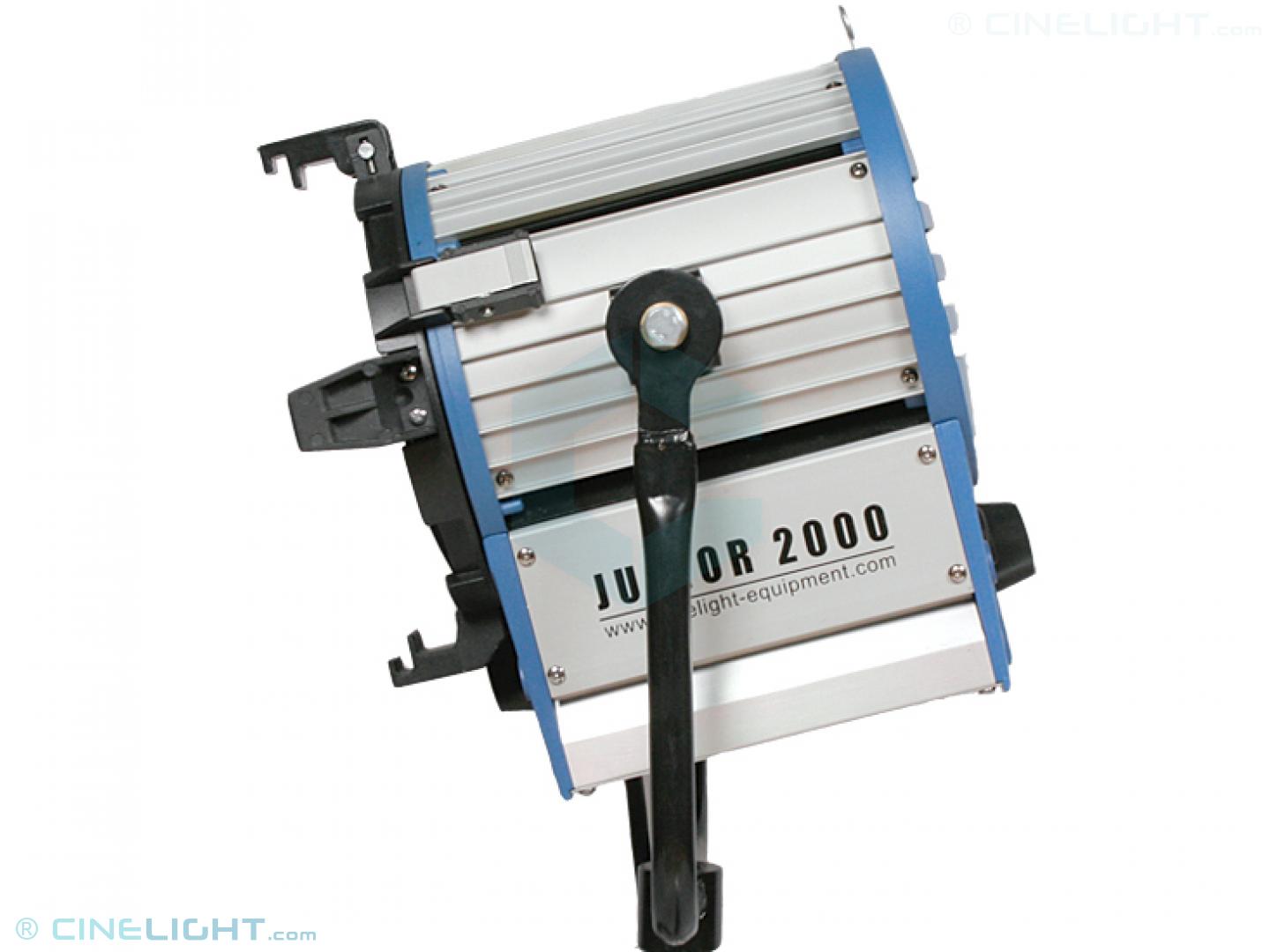

Fully die cast aluminum housing
The Cinelight Junior Fresnel 2000W is using a series of aluminum extrusions and aluminum corrosion castings for the housing to quickly dissipate the heat that comes from the light bulb therefore increasing the lamp's life. The amount of time needed for the fixture to cool down is reduced so it's easier to handle.
European safety regulations compliant
The Junior Fresnel 2000W complies with the European CE safety standards. The fixture is provided with a 3 core power cable with earthing wire. Also, the ceramic lamp socket features insulated wiring to protect against the heat generated by the light bulb.
Wide range of applications
Being one of the workhorses of the industry, the Fresnel Junior 2000W can be used for music videos and movie productions, interviews, studio lighting. The fixture can act as main subject light, background light, accent light, contour / rim light and can be placed anywhere a powerful lamphead is required. This Fresnel light is commonly used on TV and film production sets. The Fresnel Junior 2000W can be equipped with a Chimera speed-ring adapter and softbox to obtain a diffused fill light.
Key Features:
- true Fresnel lens increases light output
- adjustable focus from spot 13° to flood 60° beam angle
- sturdy die cast aluminum construction, corrosion resistant
- aluminum extrusions ensure proper heat dissipation form the lighting bulb
- ceramic lamp socket with insulated wiring
- solid metal yoke bar with spigot 28 mm (1-18" pin)
- compatible with third parties accessories (ARRI, Filmgear)
Specifications
Tungsten - Fresnel
Beam type | spot |
Rated power | 2000 watts |
Voltage input | 100-240V 50 / 60 Hz |
Lamp type | CP/73 2000W ; CP/41 2000W |
Lamp socket | G38 |
Color temperature | 3200K |
Beam angle | 13°-60° |

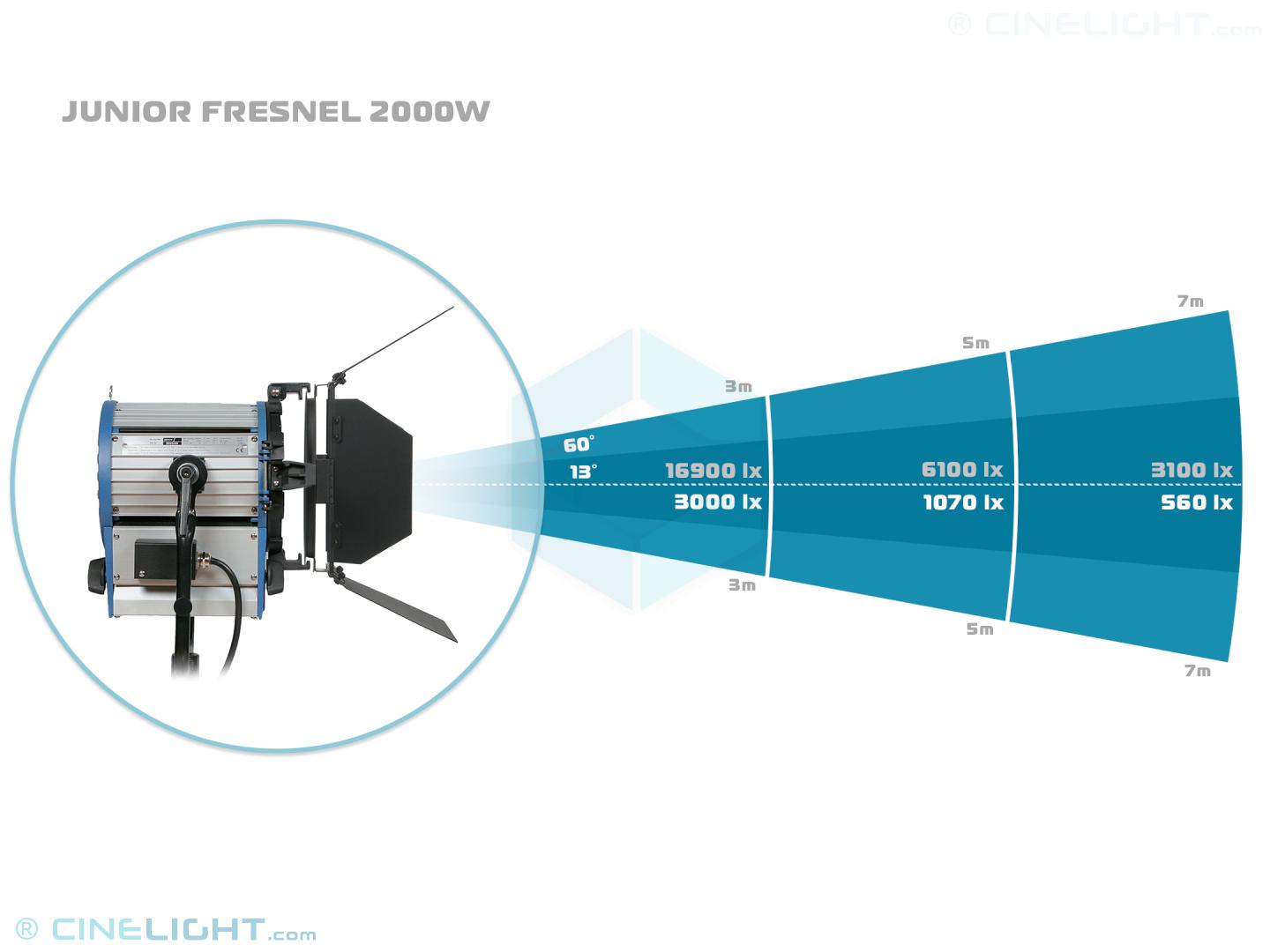

Photometrics spot mode | 3m: 16900lx | 5m: 6100lx | 7m: 3100lx |
Photometrics flood mode | 3m: 3000lx | 5m: 1070lx | 7m: 560lx |
Lens type | Fresnel |
Lens size | 175 mm |
Filter slot size | 229 mm |
Barndoors slot size | 245 mm |
Spot-Flood selector type | Mechanical |
Yoke mount | Spigot 16mm receiver |
Housing color | Gray & blue |
Housing material | Aluminum |
Power cord total length | 7.0 m |
Power connector type | CEE 7/4 - Schuko |
IP rating | 23 |
Lamp head dimensions | 60 x 36 x 29 cm |
Lamp head weight | 8.7 kg |
Accessories & Bundles
- Adjusts light output 100% to 0% seamlessly
- Micro-controller ensures flicker-free operation
- Works with incandescent lamps 200W to 2000W
- Random flicker generator with speed control
- 220 - 240V AC compatible
- Rugged aluminum housing
- Illuminated switches
- Speed ring for Junior Fresnel 2000W
- Universal design, fully metal construction
- Suitable for rectangular and octagonal softboxes
- Compatible with Cinelight, ARRI, Filmgear fixtures
- Mounting diameter: 24.2 cm
- 6 poles mounting system
- Front soft louver & smaller inner diffusion
- Includes softbox connector for up to 8 poles
- Heat resistant tent fabric
- Silver interior for increased light intensity
- Softbox connector mounting diameter: 24.2 cm
- Softbox size (W x H): 120 x 120 cm
- Stainless steel wire screen
- Full single | full double | half single | half double
- Green scrim reduces the light by a 1/2F-stop
- Red scrim reduces the light by a 1F-stop
- Half scrim covers half of the lightface
- Includes transport pouch
- Diameter: 229 mm
- Circular frame for holding filters / gels
- Inserted on the accessory holder of Fresnel 2000W
- Filters are cut and sandwiched into frame
- Material: steel
- Diameter: 229 mm
- Fits on 28 to 78 mm diameters
- For hanging on pipes or truss systems
- Easy pan fixtures by swivel function
- Combo mount: 28 mm & 16 mm
- Baby 5/8" pin (16 mm spigot & receiver)
- Junior 1 1/8" (28 mm) receiver
- Size: 32 x 20 x 7.5 cm | 1.90 Kg
- Payload: 50 Kg
- As: C150, KCP-150
- For Junior Fresnel 2000W /Studio Fresnel 2000W
- Product code: 64789
- ANSI code: FKK
- Lamp socket: G38
- Power: 2000 watts
- Voltage: 230V
- Output: 52000 lm
- Color temperature: 3400K
- Fits on 16 to 55 mm diameters
- Studio hanging C-Clamp for pipe grids
- Junior spigot receiver 28m ( 1-1/8")
- Safety pin against accidental extraction
- Tommy bar for improved gripping
- As: C100, KCP-100B, 429619, LC.1000.A
- Payload: 20 kg
- Maximum height: 240 cm
- Minimum height: 105 cm
- Folded length: 105 cm
- Mounting: combo 5/8" pin & 1-1/8" receiver
- Material: steel
- Max Payload: 20 kg
- Maximum height: 350 cm
- Minimum height: 142 cm
- Folded length: 142 cm
- Mounting: combo 5/8" pin & 1-1/8" receiver
- Material: steel
- Mount lights or accessories on walls & ceiling
- Receiver for spigot 28mm (1-1/8")
- Receiver length: 125 mm
- 8 pre-drilled M6 holes
- Made of chromed-plated steel
- Size: 15 x 9 x 13 cm | 0.64 kg
- As: F300, KS-048, KG003712, LF.3000.A, 429582, SRP-122P
Q & A ( 1 )
KN
02/16/2025
Dears,
Is Junior Fresnel 2000W lamp equipped with the bulb or I need also to add 2000W osram bulb to the pack ?
KN/
Hi Krzysztof,
The lamp is not included in the package content and you can purchase it as optional.
Regards,
Alex - customer support
Ask a question
Reviews ( 2 reviews )
RD
From Ralph Damien
07/16/2019
Minor problem, quickly fixed, A+ support
Bought 4 of these 2kw Fresnel's. One fixture was delivered with a cracked lens (most probably due to how DPD handled the delivery). Alex from Cinelight customer support promptly replied to my claim and send me a replacement lens which arrived after two days at my door. Lights are build at high standards and perform very well. Way way better at all points than other similar China lights that I have tried. Cinelight support is A+!
Give 4 stars because 5 are for originals ;-)
PO
From Paul Ott
07/16/2019
Happy with the purchase.
Got my 2000W Fresnel two month ago and used it now on different film sets in different situations and I'm very happy with it.
