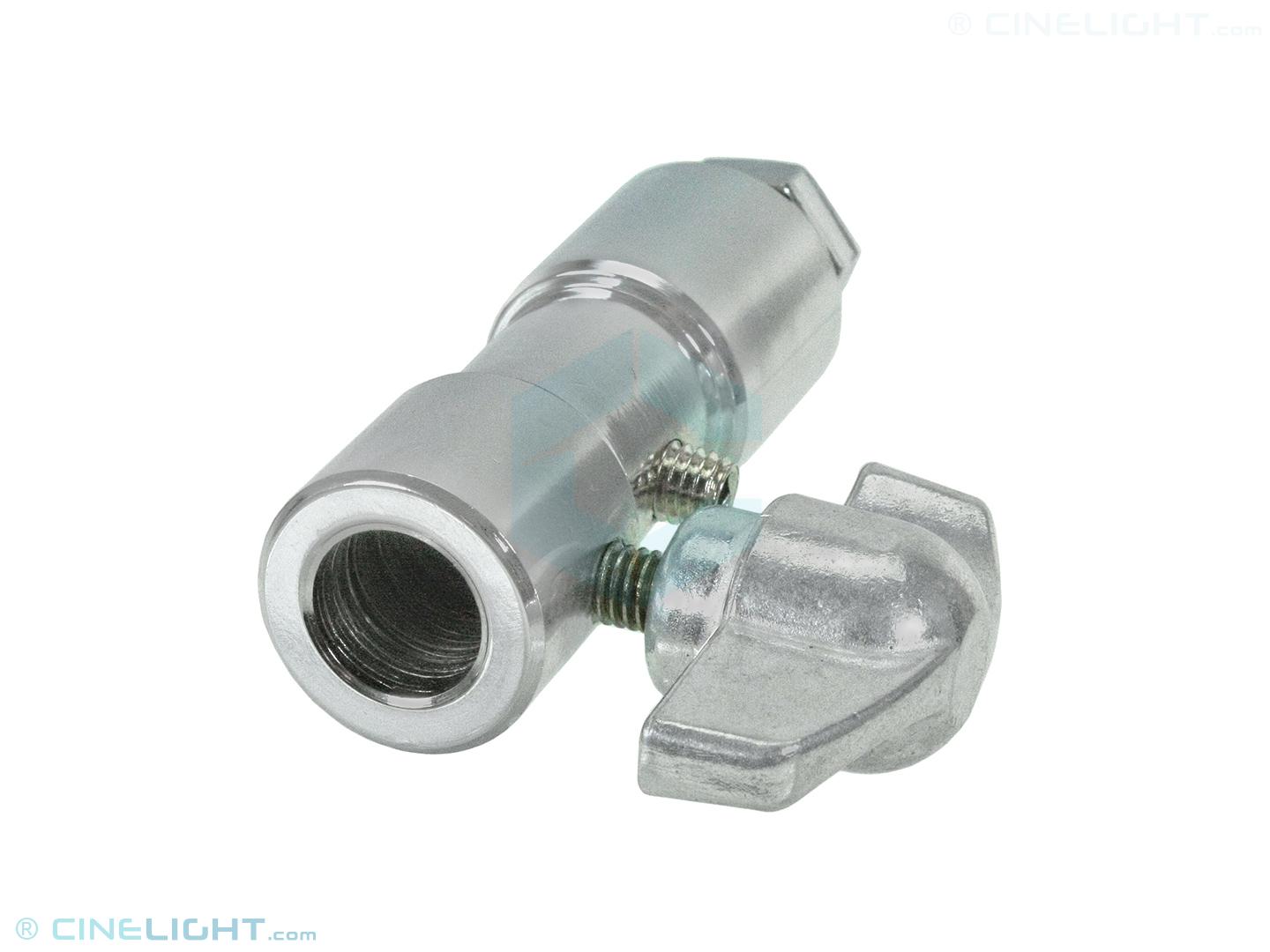

Spigot adapter TVMP - bale block
€1000
This spigot adapter allows to make compatible the theater or TV lighting fixtures with motion picture industry mount.
Install this spigot adapter on to the yoke bar of TV type lighting fixture and mount it on baby / junior light stands using the 16 mm spigot receiver or into a combo / senior stand using the 28 mm spigot stud.
The spigot has an M12 thread on top and comes with a 30 mm M12 screw with washer.
Dual locking position for handle to fit multiple versions of spigot 16 mm.
By removing the locking handle the spigot transforms from a 16 mm receiver into a 28 mm stud.
Common used for mounting PAR CAN fixtures on light stands.
- Made from chromed steel
- Length: 75 mm
- Weight: 290 g
Similar to Avenger E390, Metthews TVMP bale block 429492 / Yoke to stand adapter.
Specifications
Grip & Mounting
| Grip type | Adapter |
| Mounting | Stud 28mm & Receiver 16mm |
| Overall size | 7.5 cm |
| Color | Chrome |
| Material | Stainless steel |
| Weight | 0.29 kg |
Q & A ( 1 )
f
From figureau
12/02/2024
Bonjour
Pouvez-vous bien me confirmer que la partie du bas se met sur un tenon spigot 16mm ?
Pouvez-vous me donner le diamètre extérieur précis de la partie du haut, là où la vis M12 se met ? Est-ce bien 28mm ?
Merci beaucoup
Answer
Hello,
This adapter can work as 28mm stud when fitted into a junior receiver or as 16mm receiver for a spigot 16mm pin.
The outside diameter is approx. 28mm and the inside diameter is 16+ mm
Bonjour,
Cet adaptateur peut fonctionner comme un goujon de 28 mm lorsqu'il est monté dans un récepteur junior ou comme un récepteur de 16 mm pour un goujon de 16 mm à emboîtement.
Le diamètre extérieur est d'environ 28 mm et le diamètre intérieur est de 16+ mm.
