SKU: SHX-PANTOGR40200
- Stepless extensible from 40 to 200 cm
- Maximum payload 10kg using only the friction device
- Spigot 16mm receiver on both ends
- Cable guiders on pantograph's edge
- Includes track runner with bearing wheels
Studio Ceiling Rail System 3x3m - 4 pantograph
€65900
Optionals
Dedicated accessories
- Stepless extensible from 40 to 200 cm
- Maximum payload 10kg using only the friction device
- Spigot 16mm receiver on both ends
- Cable guiders on pantograph's edge
- Includes track runner with bearing wheels
- Guides the lighting fixture's cable
- Inserts at the end of the rail
- Holds the cable when sliding the lights
- Single track carriage / sled with 16mm spigot
- Provided with brake
- Rubber wheels with bearings inside
- Silent and smooth movements
- Suitable for payloads up to 15 Kg
- Payload: 8 kg
- Maximum length: 110 cm
- Dual 16mm spigot receivers

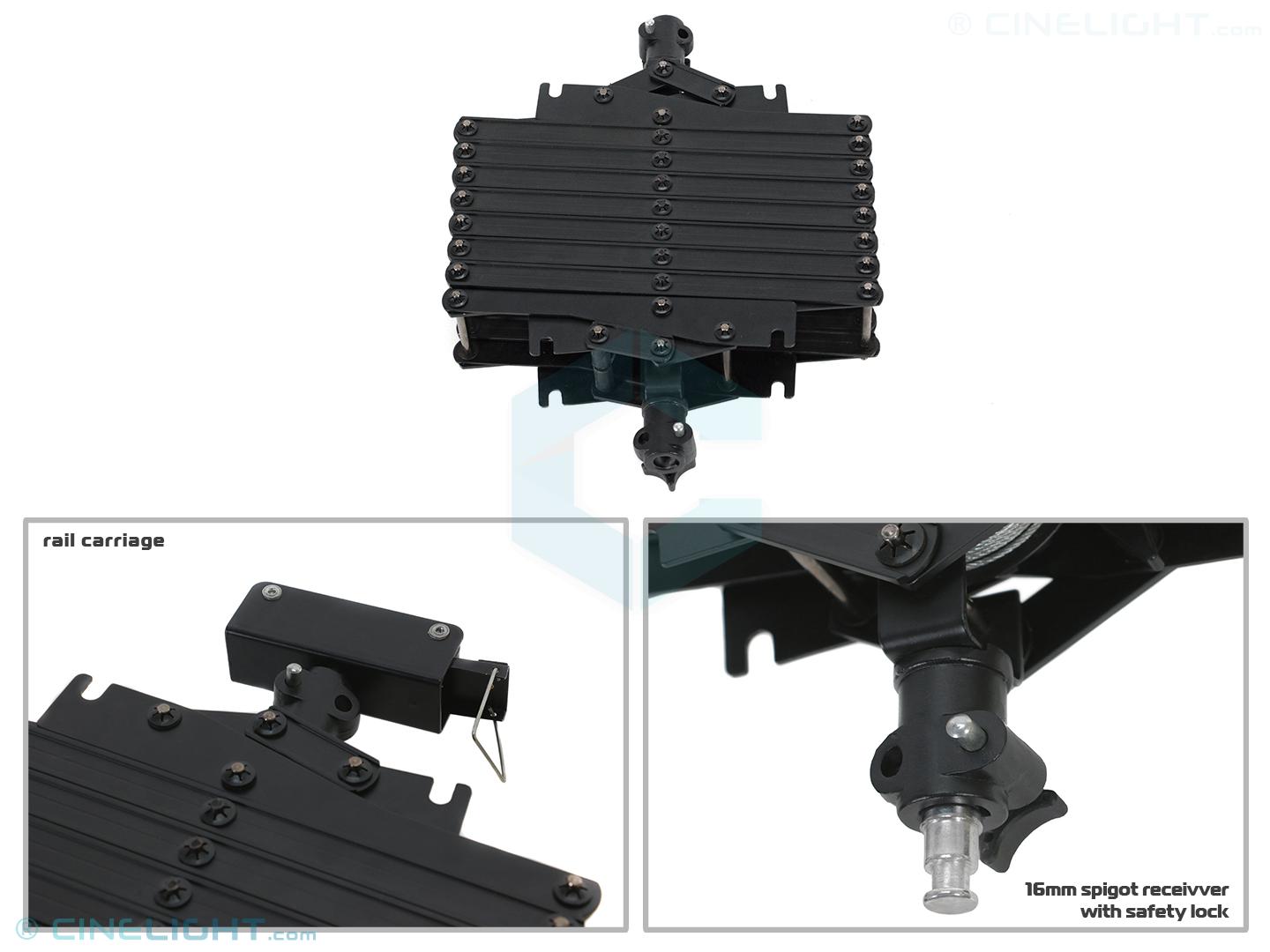

- Removable 16mm spigot
- Made from steel alloy
An innovative studio device which combines the benefits of both motorized pantograph's and hoist into one versatile unit. The key feature is the very compact length in the fully raised position, which is especially important in studios where height is restricted. It is mounted to the ceiling so that the unit is very stable and loads do not have to be balanced. The entire lighting and cable systems can be suspended from this studio rail system clearing the floor from light stands and cables, giving you more free space to move.
Key Features:

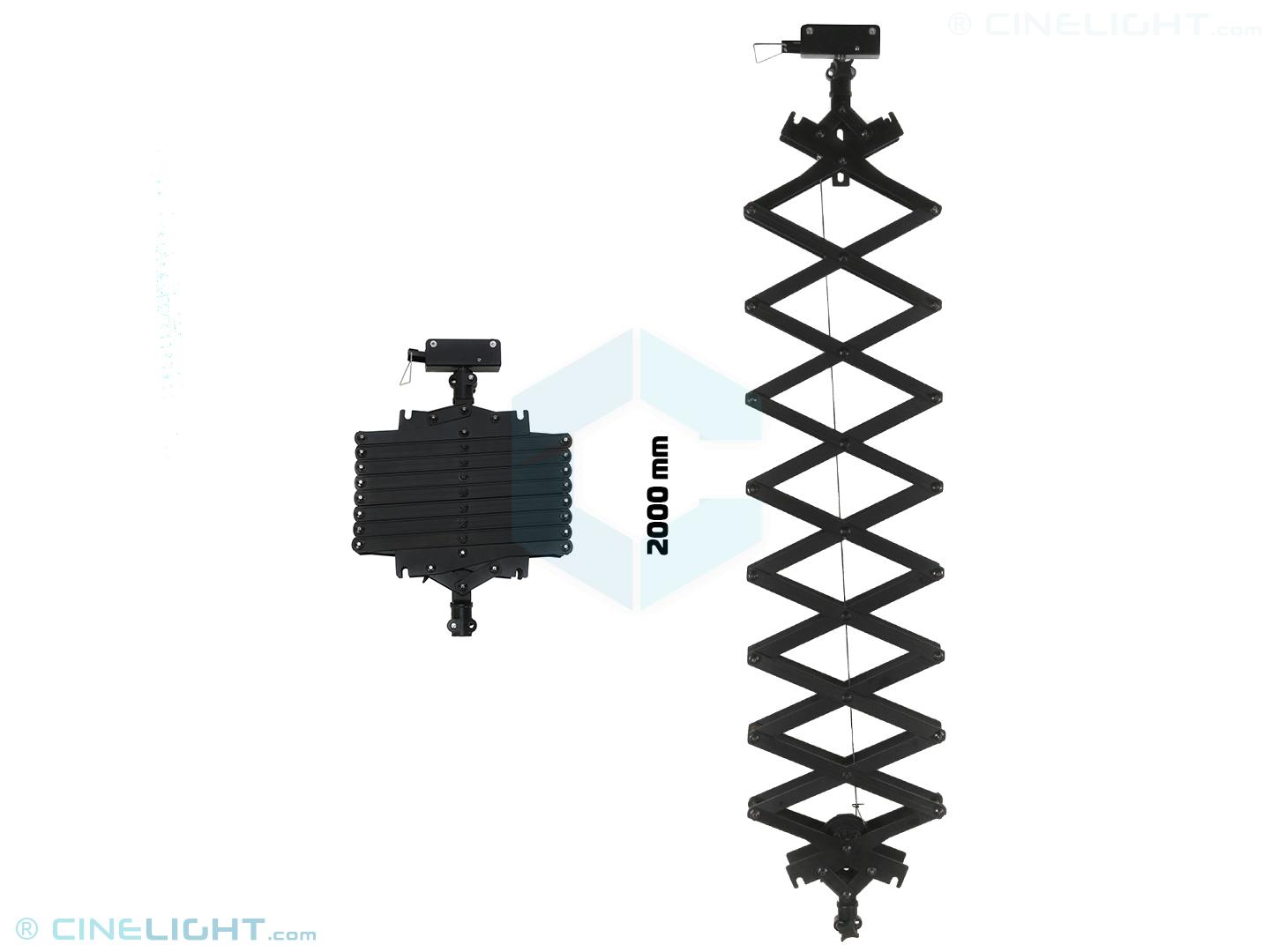

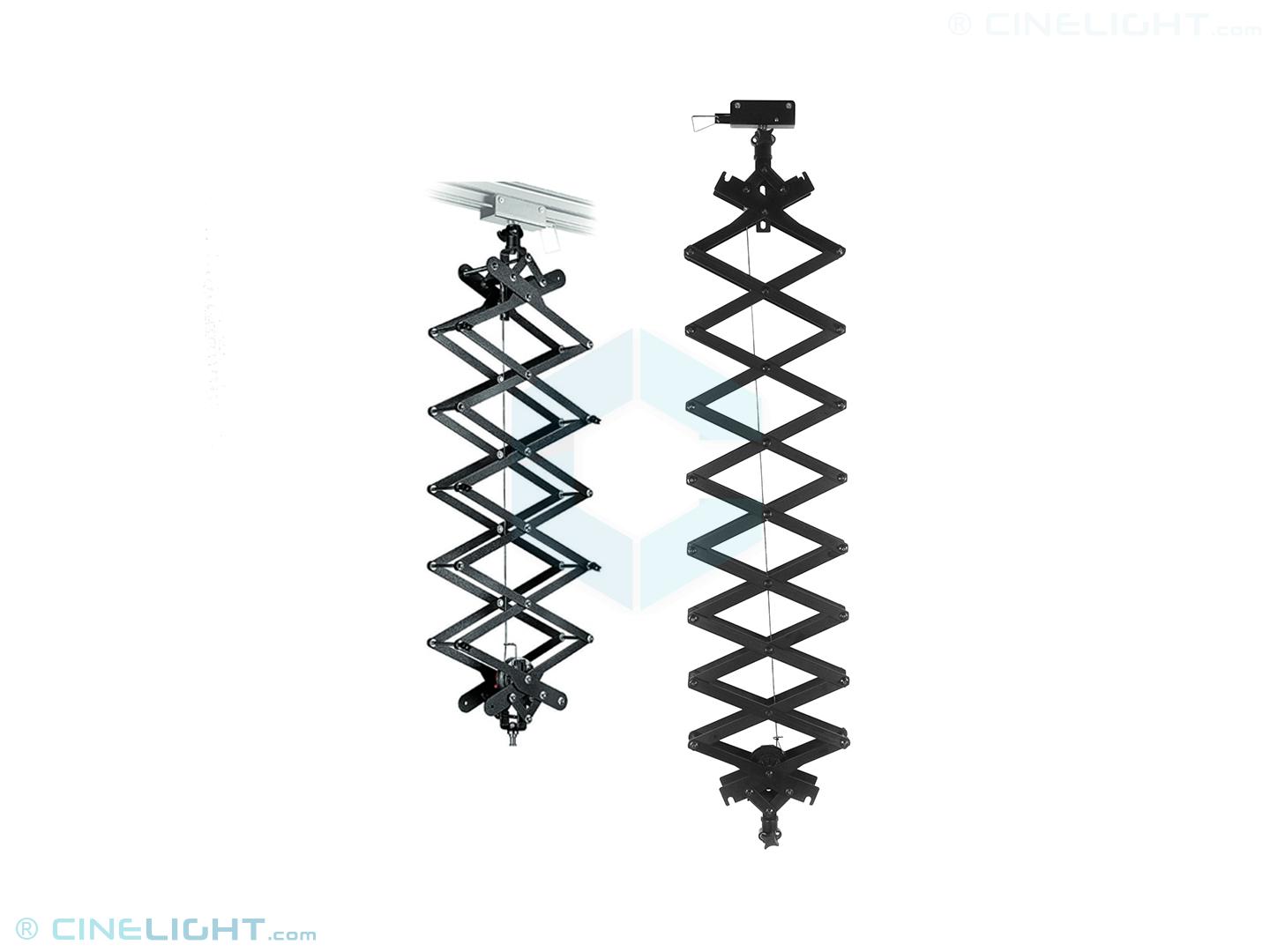

- pantograph extensible from 40 to 200 cm
- maximum system load: 60 kg
- each pantograph supports a load of up to 10kg using only the friction device

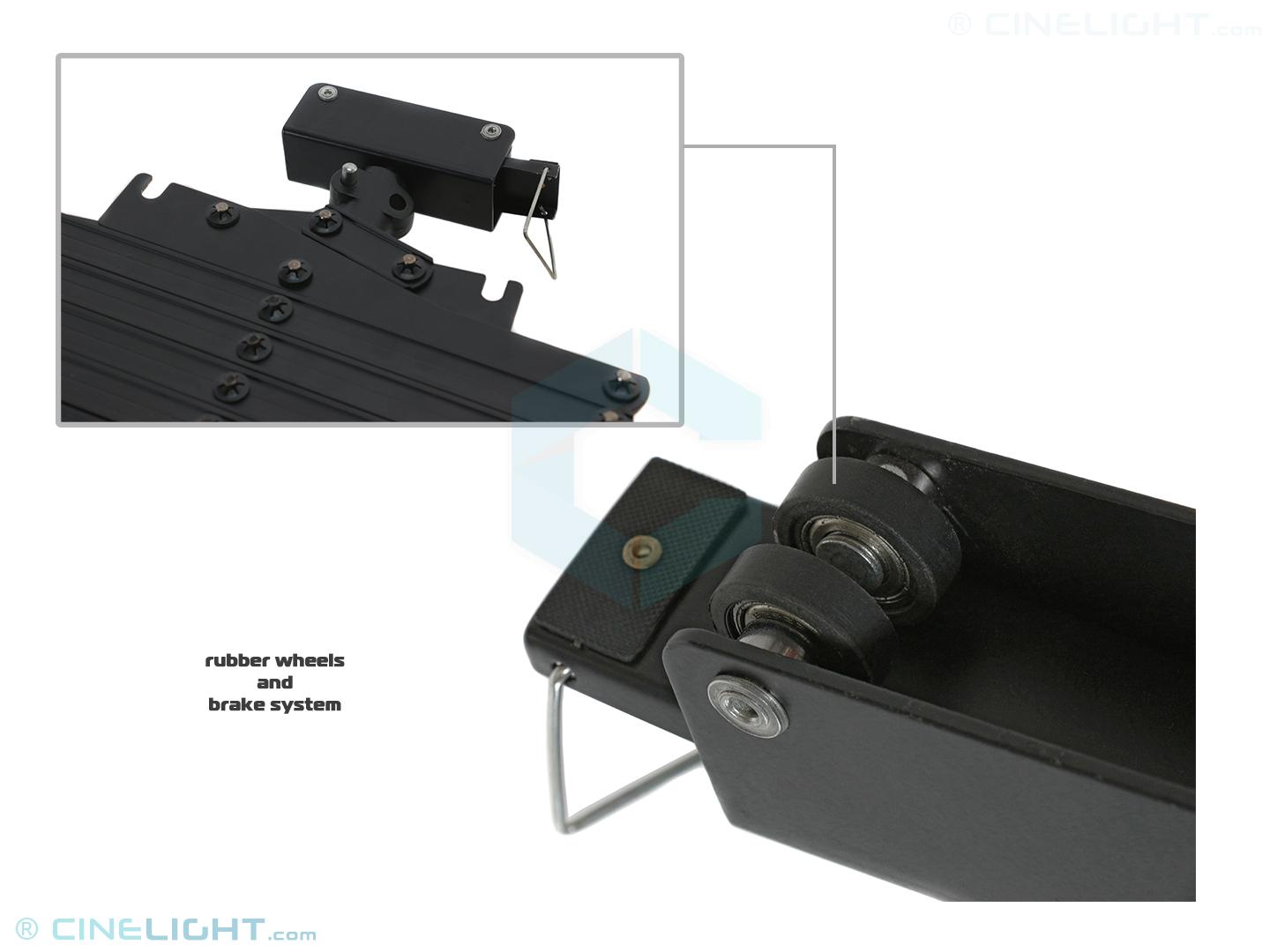

- rail carriages with brake system for unwanted movements of pantographs or tracks
- rails length: 3m

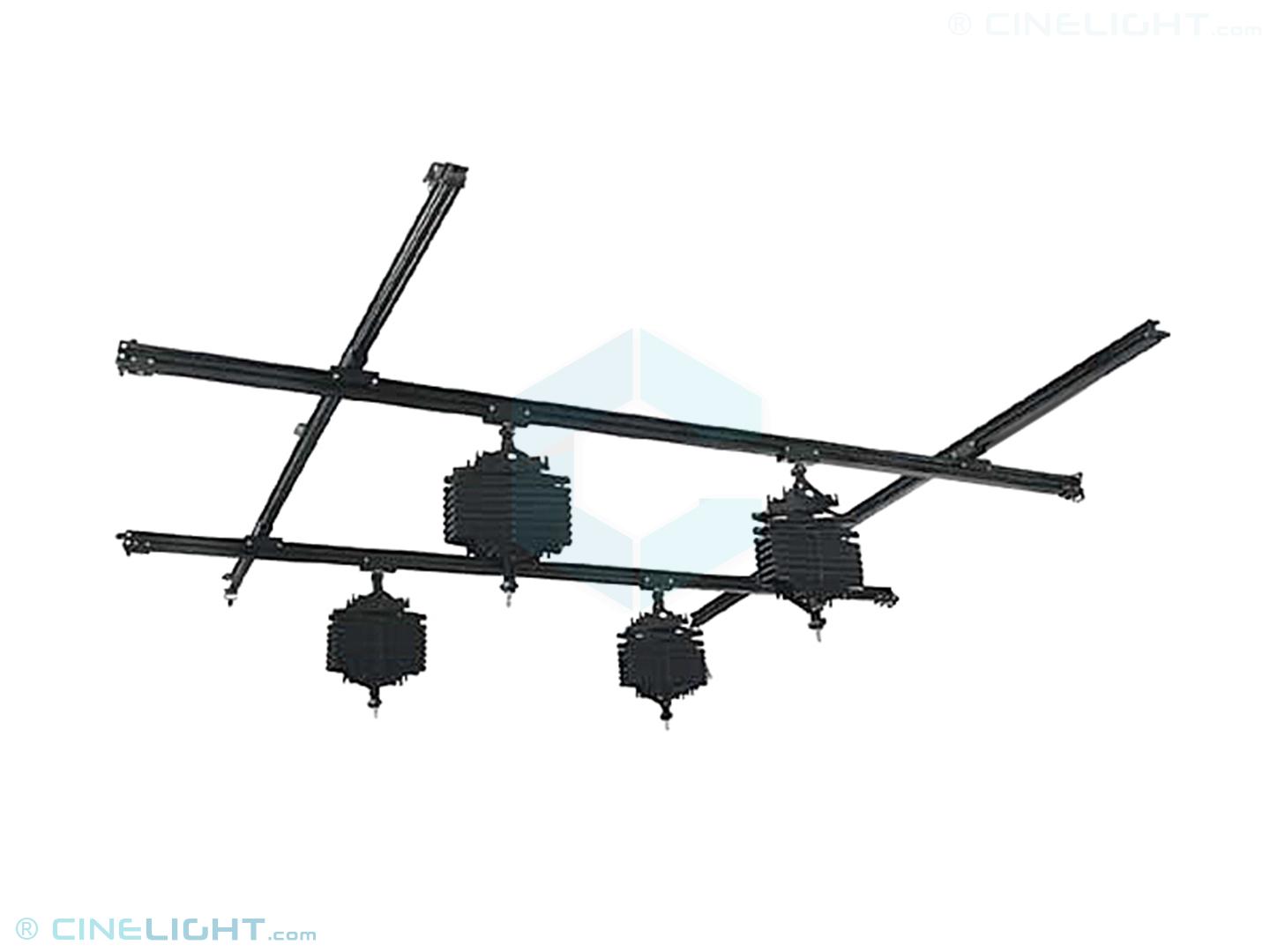

- 4 rails (2 fixed, 2 movable)
- rubber wheels with metal ball bearings ensure safe operation with loads of up to 15 kg
- silent and smooth movements due to rubberized wheels and bearings

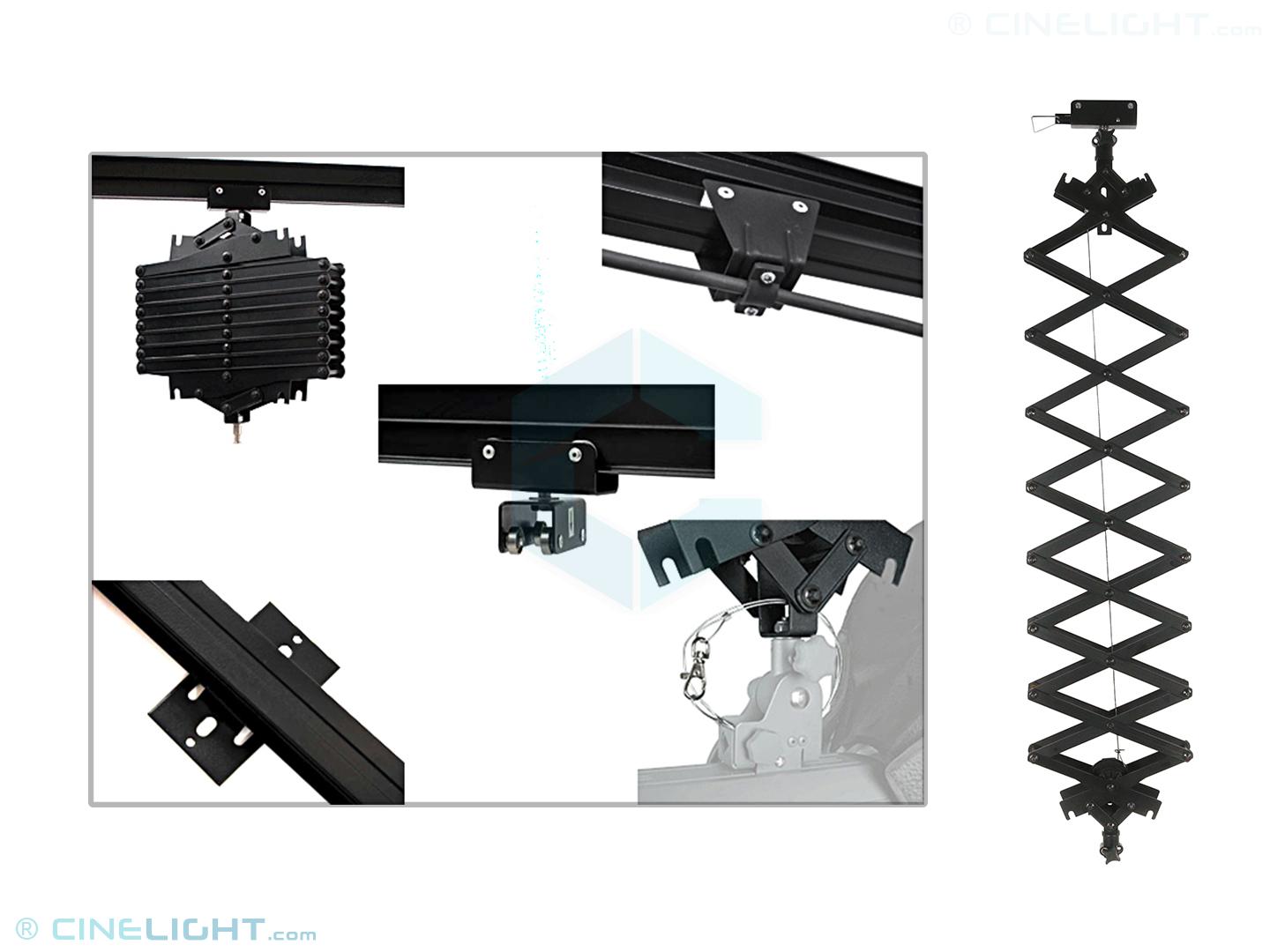

- metal made parts (aluminum & steel)
- all components are black painted to eliminate unwanted reflections
- recommended for small & medium size studios. For large studios multiple fixed tracks can be joined covering a larger area. Movable tracks cannot be joined

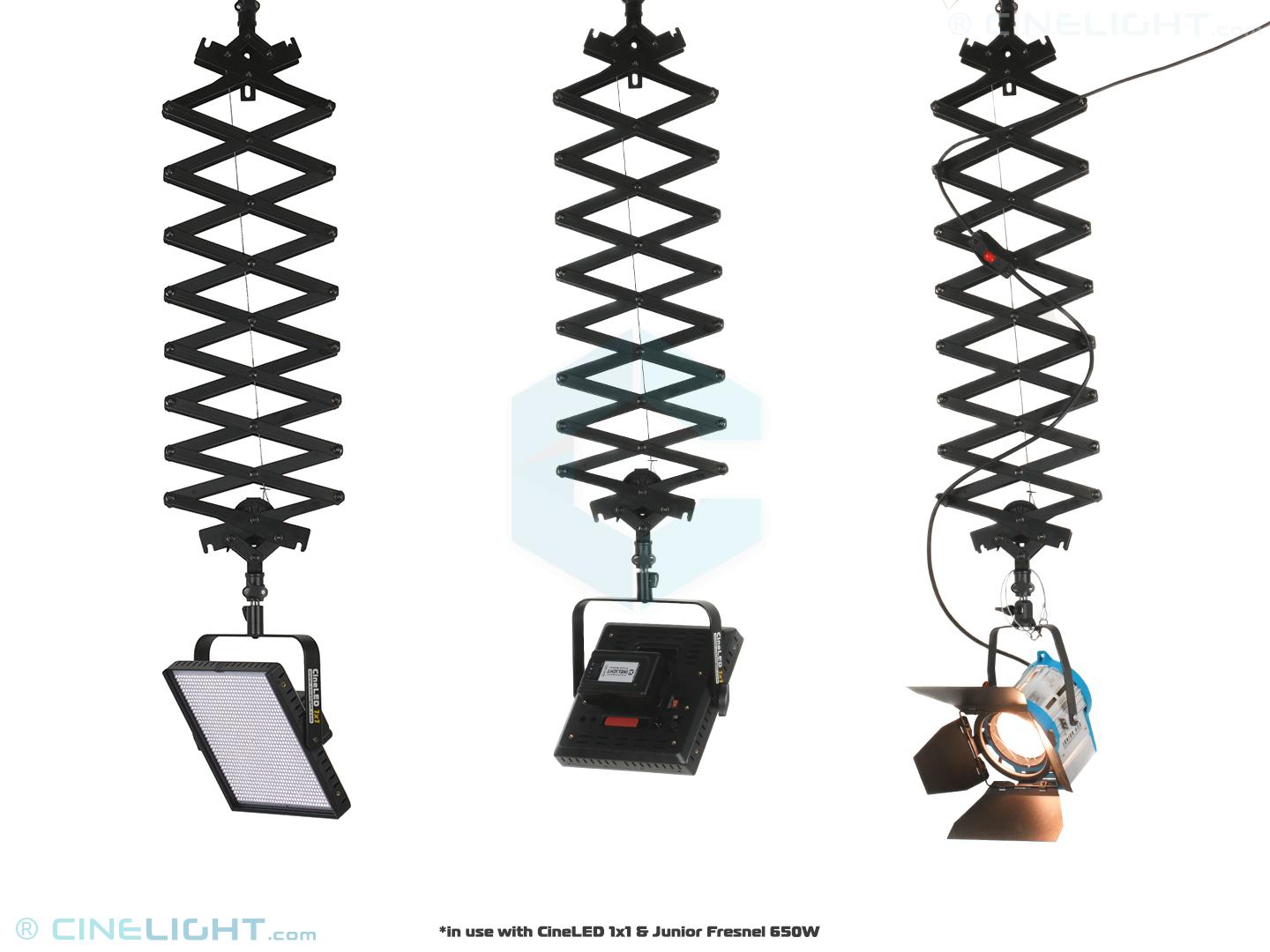

- the lights can be moved in 3D axis (front/back ; left/right / up/down)
Specifications
Stands
| Stand type: | Hanger |
| Mounting | Stud 16mm (5/8") & Receiver 16mm (5/8") |

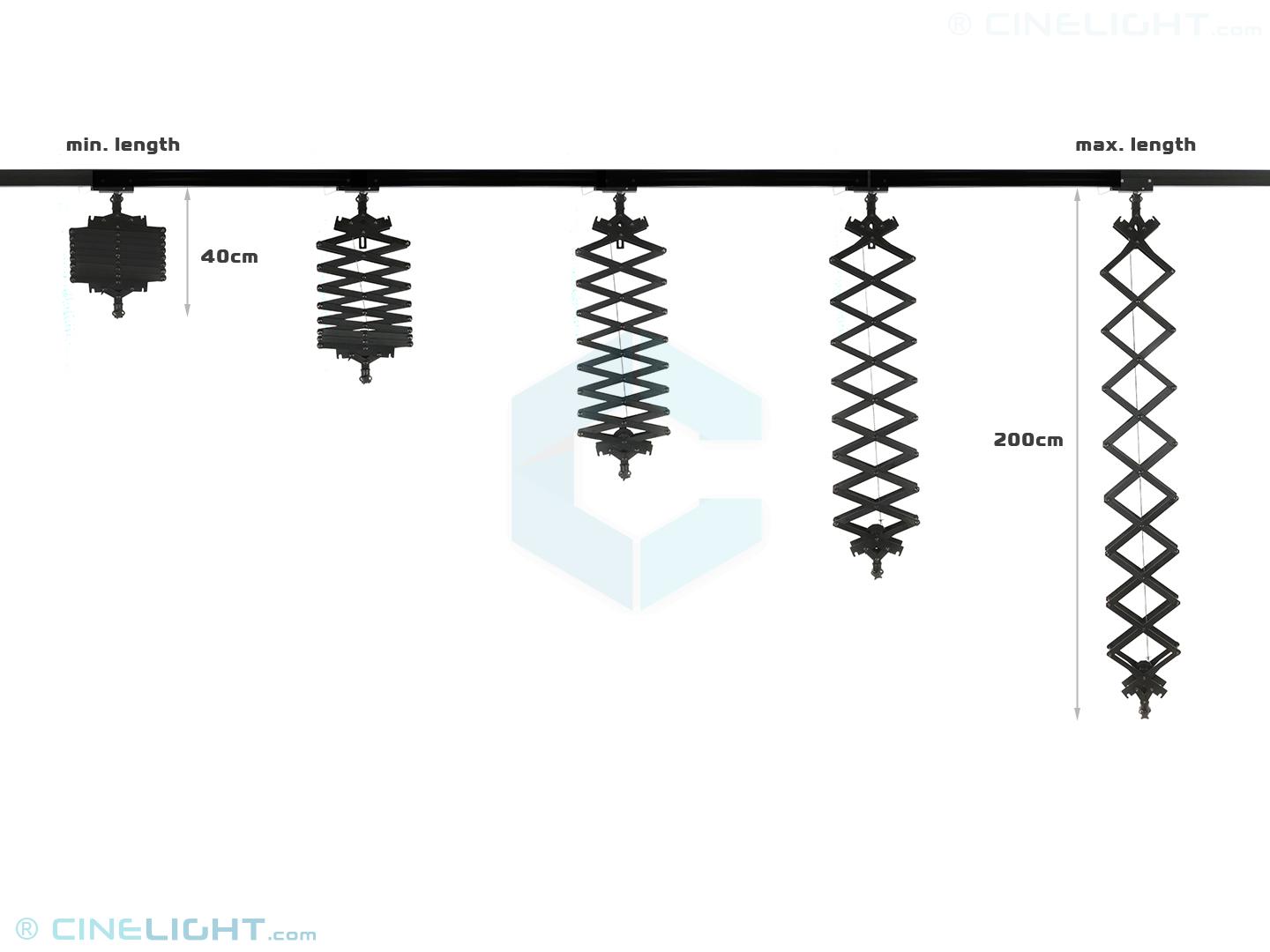

| Maximum height | 200 cm |
| Minimum height | 40 cm |
| Maximum payload | 60 kg |
| Folded length | 40 cm |
| Material | Aluminum |
| Color | Black |
Accessories & Bundles
SKU: SHX-SCARRIAGE

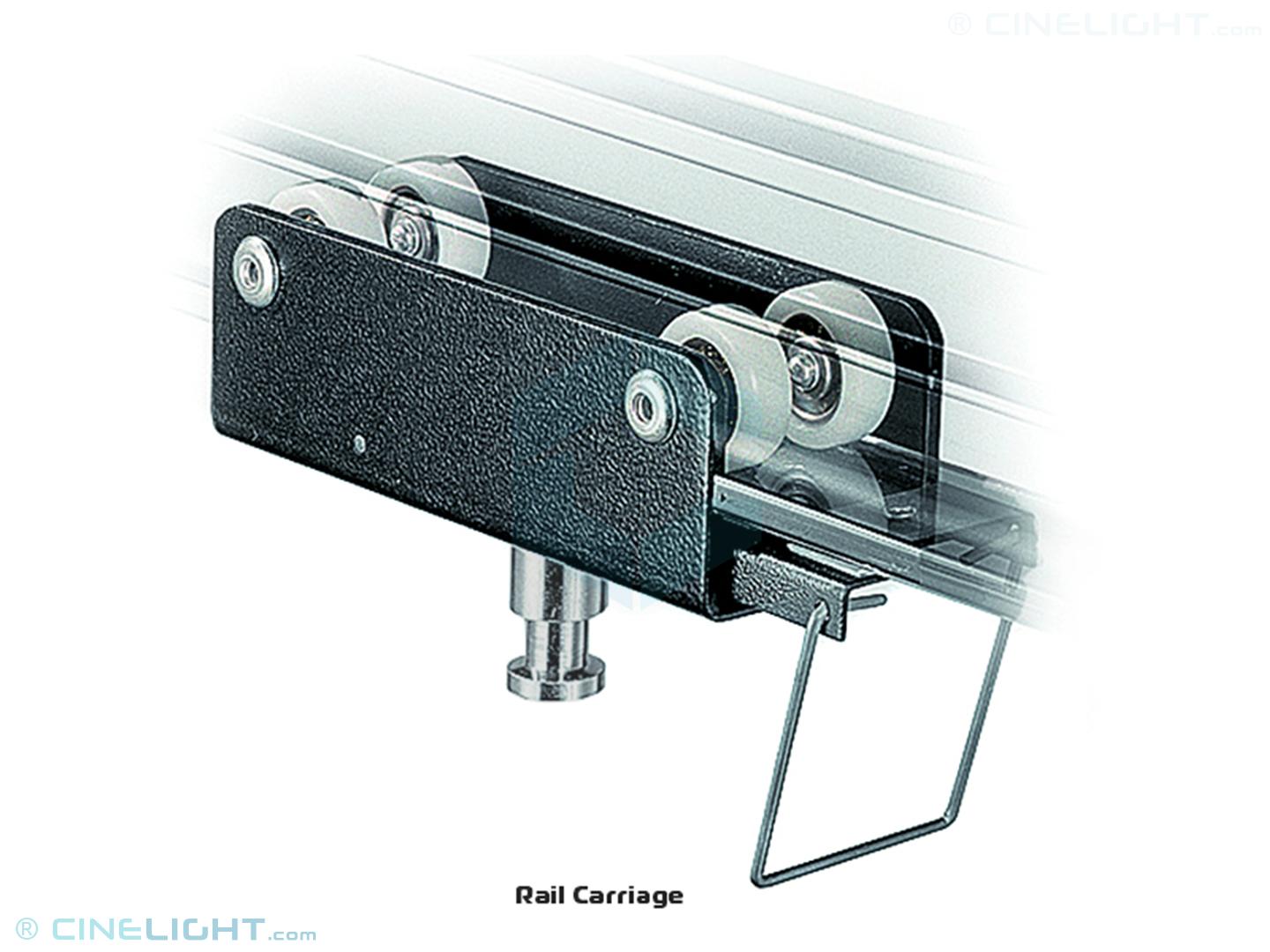

- Single track carriage / sled with 16mm spigot
- Provided with brake
- Rubber wheels with bearings inside
- Silent and smooth movements
- Suitable for payloads up to 15 Kg
SKU: SHX-DCARRIAGE

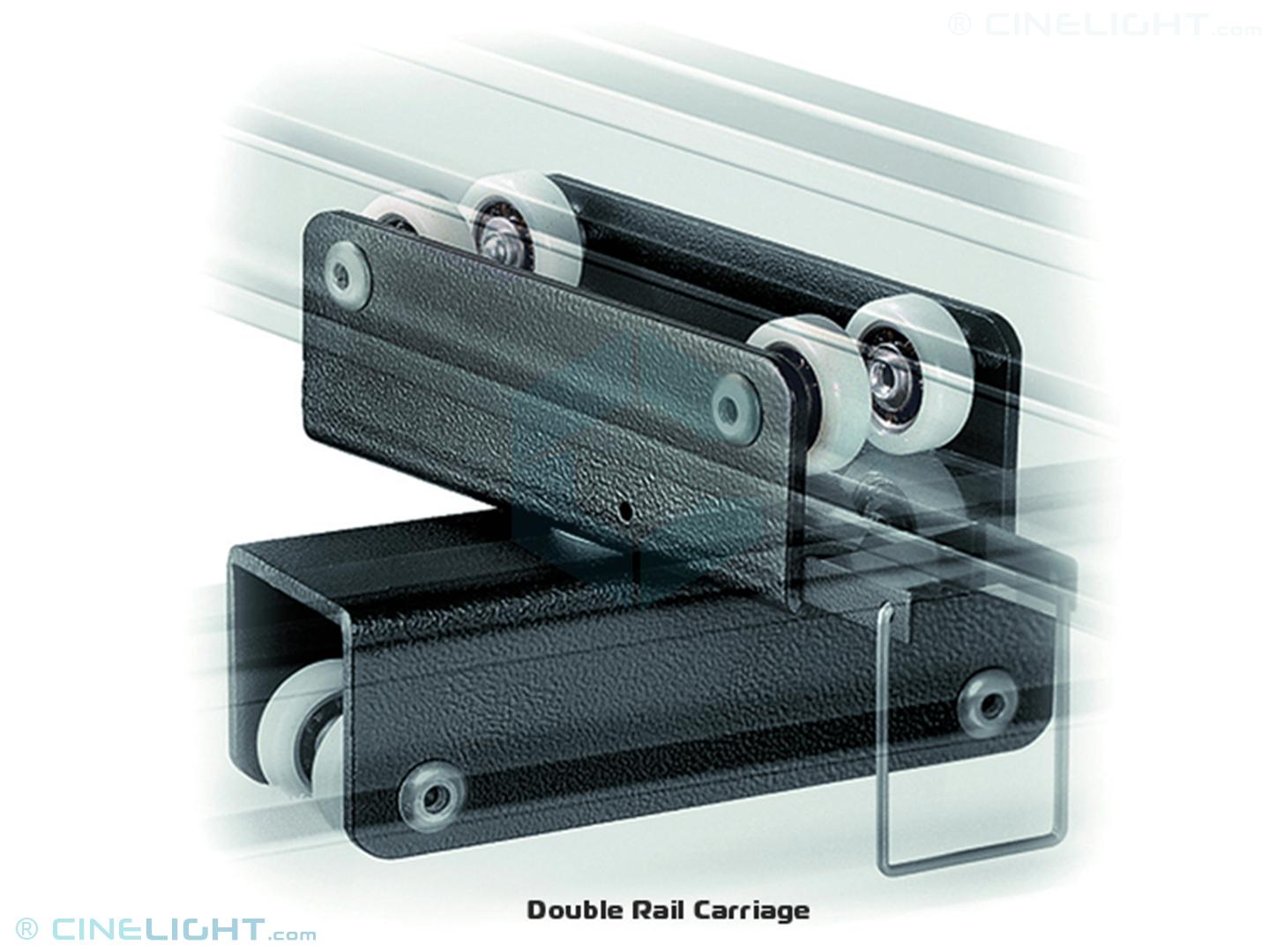

- Dual track carriage
- Provided with brake on one carriage
- Rubber wheels with bearings inside
- Silent and smooth movements
SKU: SHX-CABCARRIAGE

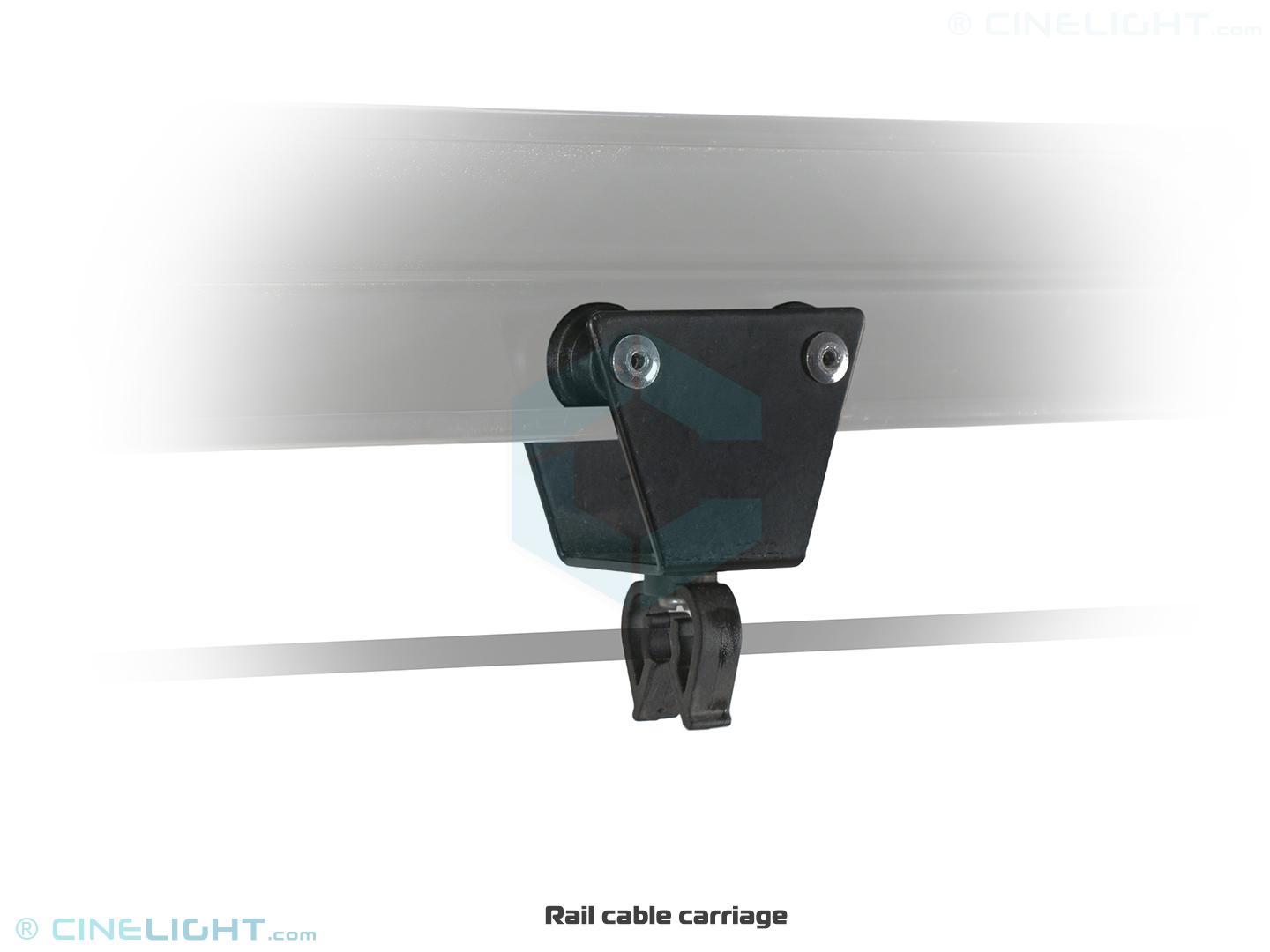

- Guides the lighting fixture's cable
- Inserts at the end of the rail
- Holds the cable when sliding the lights
SKU: SHX-CELFIXPLATE
- Metal bracket for studio rails

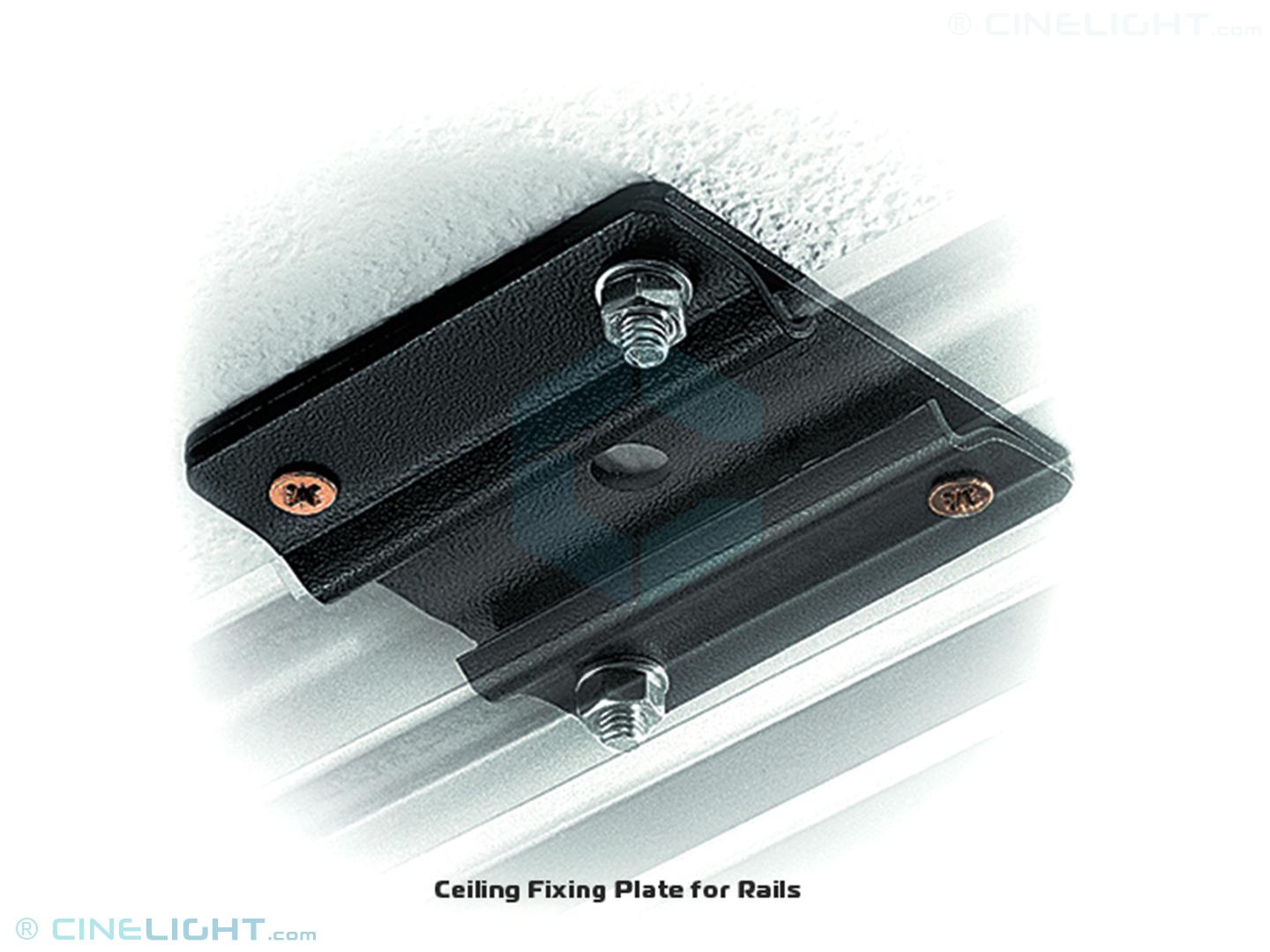

- Attaches the rail to the concrete ceiling
SKU: SHX-TRCONNECT
- Pair of clamp plates
- Connects two fixed rails at the ends
- Must be supported by a rail-mounting bracket
SKU: GHX-DROPARM200CM
- Payload: 8 kg
- Maximum length: 110 cm
- Dual 16mm spigot receivers
- Removable 16mm spigot
- Made from steel alloy
Q & A ( 7 )
KD
From Keith D.
09/19/2024
Can the (Movable) rails be shortened in Length?
Answer
Hi,
Yes, you can shorten the rails to fit your available space.
Regards,
Alex - customer support
TL
From Taras L.
07/17/2024
Be so kind to give info about packaging dimensions and gross weight. Thanks in advance.
Answer
Hi Taras,
The system is delivered in two packages with the following details:
305x10x10 cm / 12.5 kg
49x46x36 cm / 28 kg
Best regards,
Alex - customer support
D
From Dan
01/11/2023
Several questions:
1) Can you please provide the package contents list in English (my Romanian is a bit rusty)?
2) Please explain how the brakes on the rail carriages are activated/released?
3) There appears to be a safety cable on each pantograph, is that correct?
Thanks!
Answer
Hi Dan,
Thank you for your interest in our products.
1. We have corrected the description of the package content to be in English.
2. The brakes are made of a spring load mechanism which put friction pressure with a rubber pad over the rail surface. To release the brakes, simply pull down the metal spring to release the pressure. A rope can be hanged by the metal spring to make process more convenient from the ground floor or a telescopic pole can be use (not included in the package)
3. Yes, there is a safety wire on each pantograph. Additional safety wires can be added if needed
Link: https://cinelight.com/studio-accessories/secure-wire-45-cm
Regards,
Alex - customer support
MA
From Mzerah A.
10/04/2022
This studio pantograph ceiling light rails system, do you have the one capable of holding uo to 80kg payload?
Answer
Hi Mzerah,
You can increase the total payload of the rail system by adding some extra "Ceiling Fixing Plates" and extra pantographs to split the load (each pantograph has a max payload of approx. 10 kg.
Ceiling Fixing Plate: https://cinelight.com/studio-rails-pantographs/ceiling-fixing-plate
Pantograph: https://cinelight.com/studio-rails-pantographs/pantograph-for-studio-rail-system-200-cm
JG
From Jan G.
06/15/2022
Hi Can you send a email address so i can share my drawing for quotation please? Thanks Jan
Answer
Hi Jan,
Please email us at sales @ cinelight
HB
From Hervé B
11/18/2020
Could you tell me what is the total weight of the ceiling rail system with 4 pantograph and the weight of one pantograph? Regards Hervé
Answer
Hi Hervé. The approx total weight of the ceiling rail system is 32 kg. The weight of only one pantograph alone is approx 5 kg.
AS
From Andrew S
04/27/2020
Hi, I’m looking to pair up the pantographs to carry iMac in timber box, to hover over desk and be pushed up out of way, iMac is 10kg, box may be to 12-15kg, do you think this will function ok and be man enough or too unstable at 2m extension? Glad of suggestions.
Answer
Hi, the max rated payload of the pantograph is 15 kg even if it's fully extended so it should be no problem if the max payload is not exceeded.
1
Ask a question
Your Question has been successfully sent our team. Thanks for this!
Your Question has been successfully sent our team. Thanks for this!
