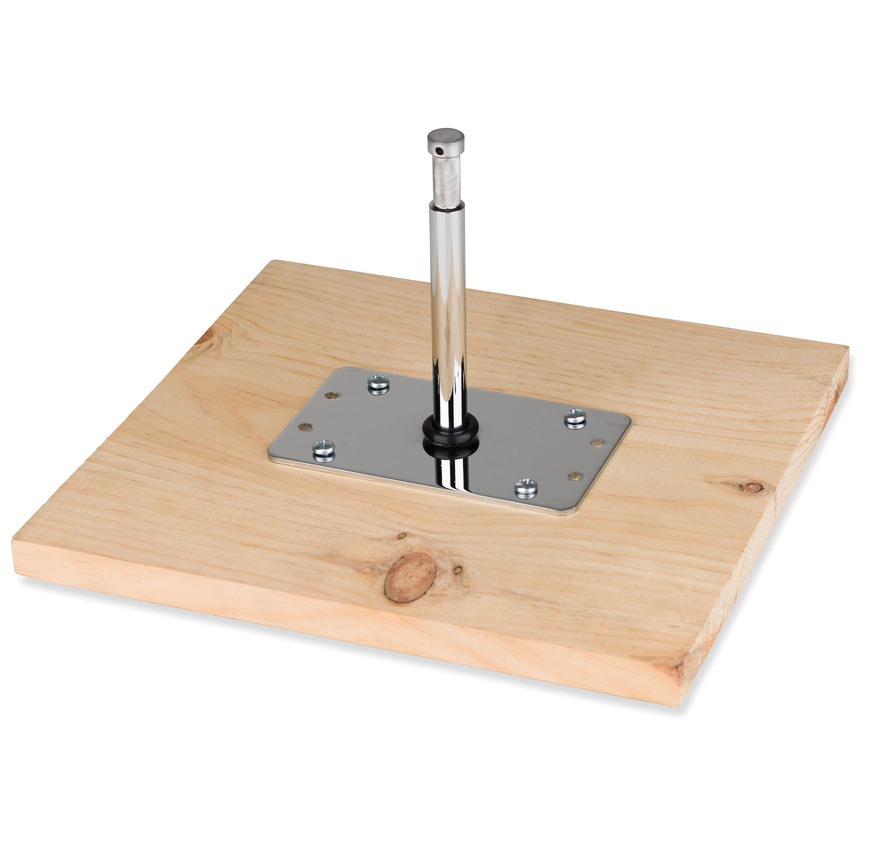

Studio Wall Mounting Plate Spigot 16mm 5/8" as KS-046 Kupo
Studio Wall Mounting Plate Spigot 16mm 5/8" as KS-046 Kupo 3" Wall Plate with 5/8" baby pin 16mm spigot as Avanger F800 Studio wall plate with 16mm spigot stud 5/8" - dimensions

Wall plate with spigot 16 mm Pin - 75 mm

  • Mounts lighting fixtures on walls and ceiling
  • Aka 3" wall plate with baby pin
  • Spigot length: 75 mm
  • Spigot diameter: 16 mm
  • Made of steel, chrome plated
  • Size: 15 x 9 x 7.5 cm | 0.41 kg
  • As: F800, KS-046, LF.8000.A, 429041, LTM PA-A254
SKU: GPX-WPLATE75CHST
Status: In Stock
€17.00
Overview


     Wall plate with a 16 mm spigot pin and 75 mm length, for mounting lighting fixtures in places where light stands and clamps cannot be used.

     Using this metal plate, common lamp heads featuring a 16 mm mounting receiver can be installed on a side wall or hanged close to the ceiling.

     Pre-drilled mounting plate with 8 holes for screw insertion and fixing on different solid surfaces like wood, brick, concrete.

     Spigot nozzle with textured anti-rotation surface.

     Similar with other brands wall mounts: Avenger F800, KS-046 / KG003512 Baby 3" Wall Plate, 429041, LF.8000.A, SRP-115P, LTM PA-A254

  • Spigot diameter: 16 mm
  • Spigot neck length: 75 mm

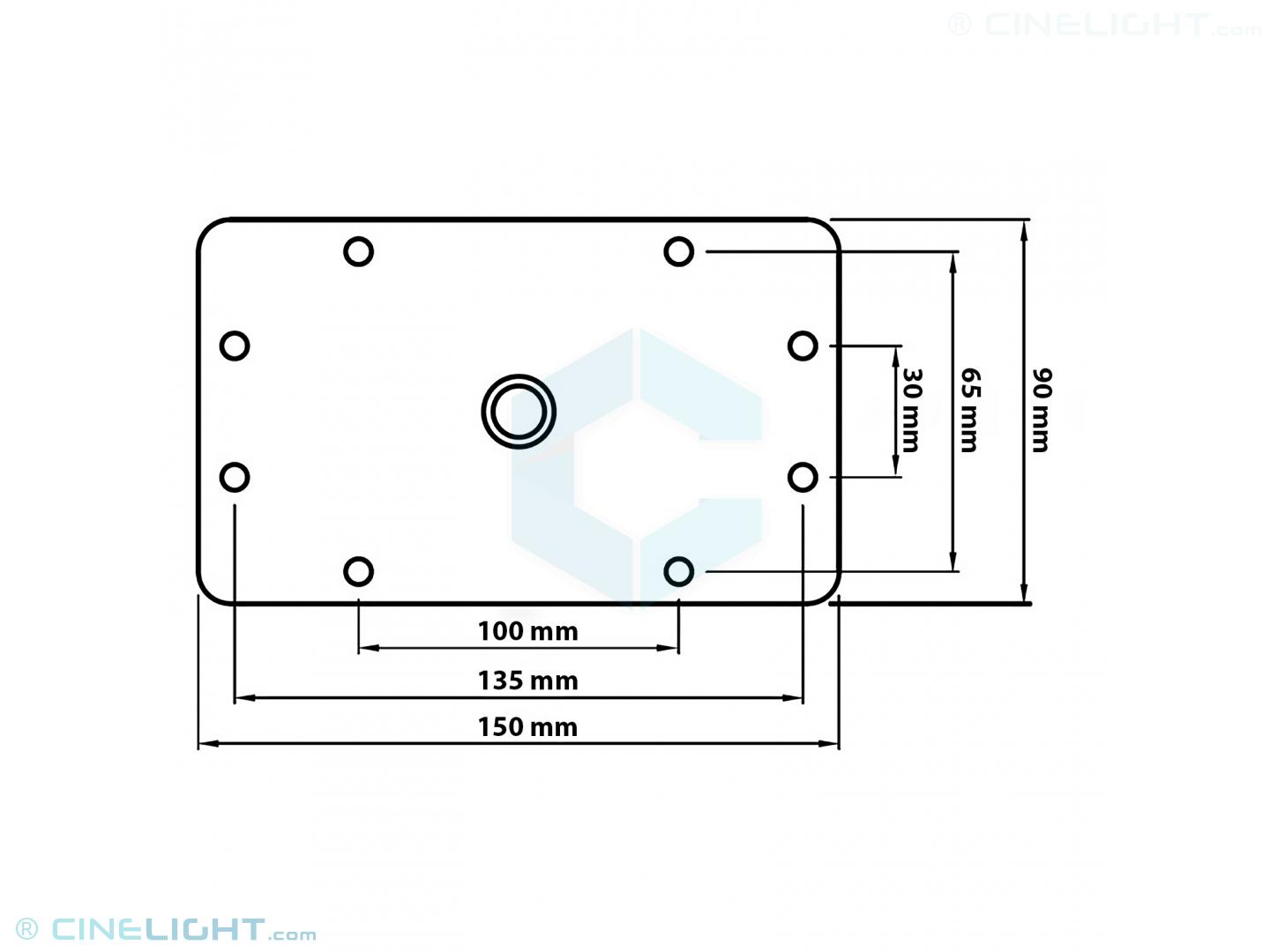

  • Mounting base size: 150 x 90 x 3 mm
  • Weight: 410 g
  • Pre-drilled 8 x M6 holes
  • Spigot nozzle anti-rotation surface
  • Welded base spigot
  • Made of chrome plated steel
Specifications

Specifications

Grip & Mounting

Grip type Plate
Mounting Stud 16mm (5/8")
Overall size 15 x 9 x 7.5 cm
Color Chrome
Material Steel
Weight 0.41 kg
