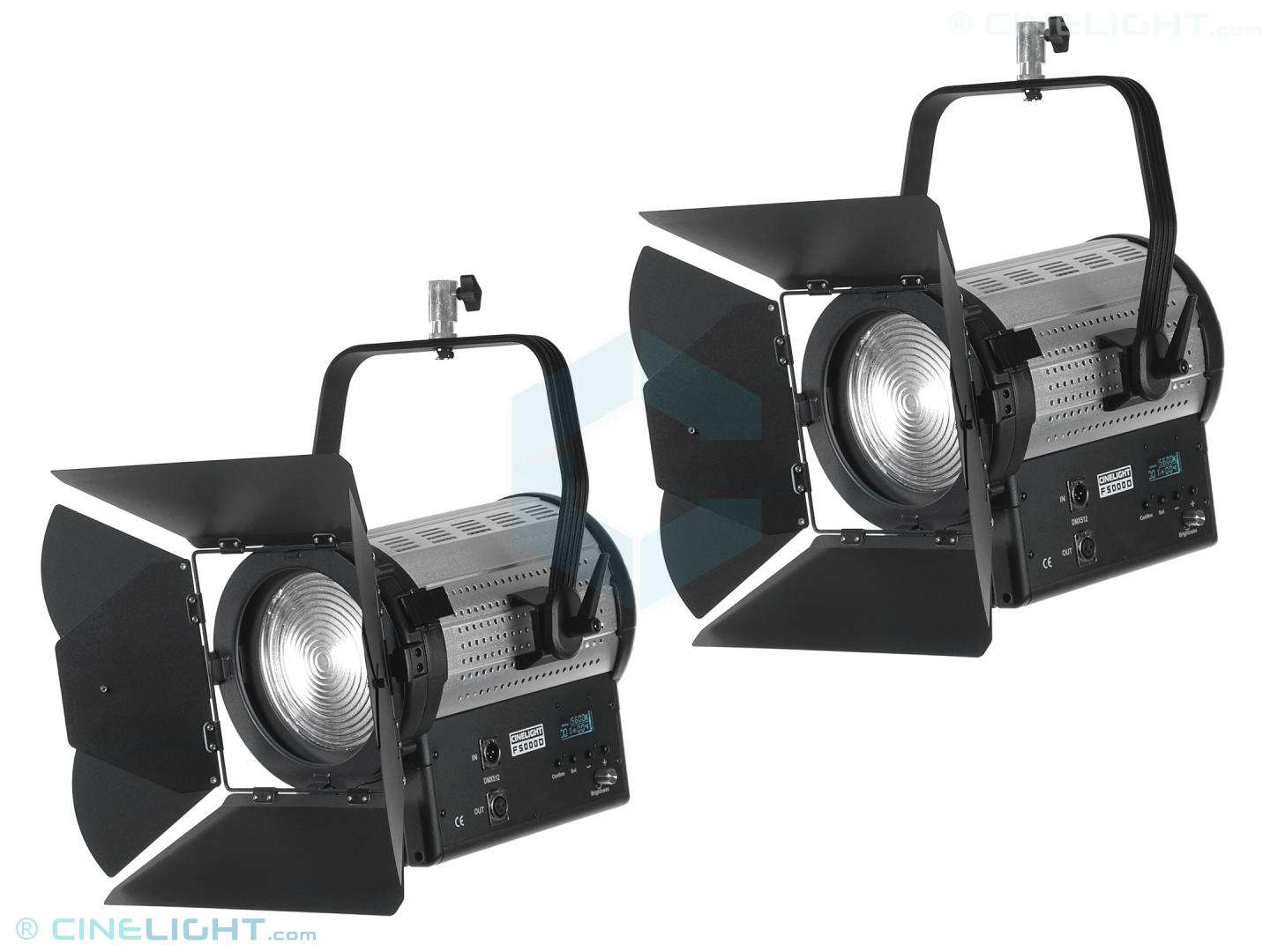

Convenient pack of 2 x Studio LED Fresnel 500W 5600K that feature the newest power efficient COB technology in a sturdy, traditional Fresnel body.
The newest generation of Studio LED Fresnel lights feature the highly efficient COB technology to deliver powerful and directional light. The true Fresnel lens produces single-shadowed soft-edged beam, delivering that natural result every cinematographer is looking for.
The fixture's body is similar to the traditional Fresnel lights, ensuring a sturdy and robust construction for years of use in a professional environment. The full metal housing is made from a series of light weight aluminum extrusions that ensure proper ventilation and heat dissipation.
The Studio LED Fresnel features the newest power efficient COB technology with high index rating CRI 98 and TLCI 99 specially developed for photo-video applications where color rendering accuracy is mandatory, making it suitable for broadcast and film.
The beam angle is adjustable from spot 60° to flood 90° using a mechanical focusing mechanism. The light output is dimmable from 100% to 0%, flicker free across the dimming range (tested at 3'000 fps), therefore suitable for slow motion shootings.
Local control using dedicated buttons and potentiometers to quickly & intuitively adjust the light intensity or enabling one of the several lighting effects.
DMX-512 via the XLR 3P in/out connectors: the Studio LED Fresnel fixtures can be integrated into more complex studio installations such as news sets, talk-shows or entertainment productions where a standardized remote controlling method is required.
Bluetooth via IOS & Android app: one or several LED Fresnel units can be controlled from up to a 50 m distance through the dedicated smartphone app (iOS & Android). Having a visual representation of all the physically settings of the Studio LED Fresnel fixture on any common smartphone can only make this light easier to use. One or more LED Fresnel spotlights can be simultaneous controlled through the smartphone application.
The Studio LED series are universal voltage capable AC 100V-240V and the IEC connector allows for fast change of power cable with local models.
The Fresnel LED series comes with 8-leaf metal barndoors that cut and shape the beam spread. The small leaves offer a more precise control of the beam, creating a variety of shapes and concentrating the light where needed.
Rated power | 500 watts |
Beam type | spot-flood |
LED type | Daylight only |
Voltage input | 100-240V 50 / 60 Hz |
Color temperature | 5600K |
CRI rating | 98 |
TLCI rating | 99 |
Beam angle | 60°-90° |
LED no | 1 |
Dimming range | 100%-10% |
Display type | Simple - Monochrome |
Battery mount | N/A |
Plug in connector type | IEC - female |
Cooling system | Active |
Power source | Internal, AC 100-240V 50 / 60 Hz |
Power connector type | CEE 7/7 |
Power cord total length | 5.0 m |
Local functions control | Analog |
DMX control | Yes |
DMX connectors type | XLR-3P |
Bluetooth / WIFI APP control | Yes |
Radio remote control | N/A |
Yoke mount | Combo: 16mm receiver & 28mm stud |
Housing material | Aluminum |
Housing color | Black & gray |
Lens type | Fresnel |
Lens size | 175 mm |
Barndoors slot size | 240 mm |
Filter slot size | 223 mm |
Photometrics spot mode | 1m: 53000 lx | 2m: 14000 lx 3m: 6500 lx | 4m: 3600 lx |
Photometrics flood mode | 1m: 28000 lx | 2m: 7100 lx | 3m: 3300 lx | 4m: 1850 lx |
Spot-Flood selector type | Mechanical |
Lamp head weight | 9.7 kg |
Lamp head dimensions | 37 x 41 x 32 cm |
Ballast type | Internal |
