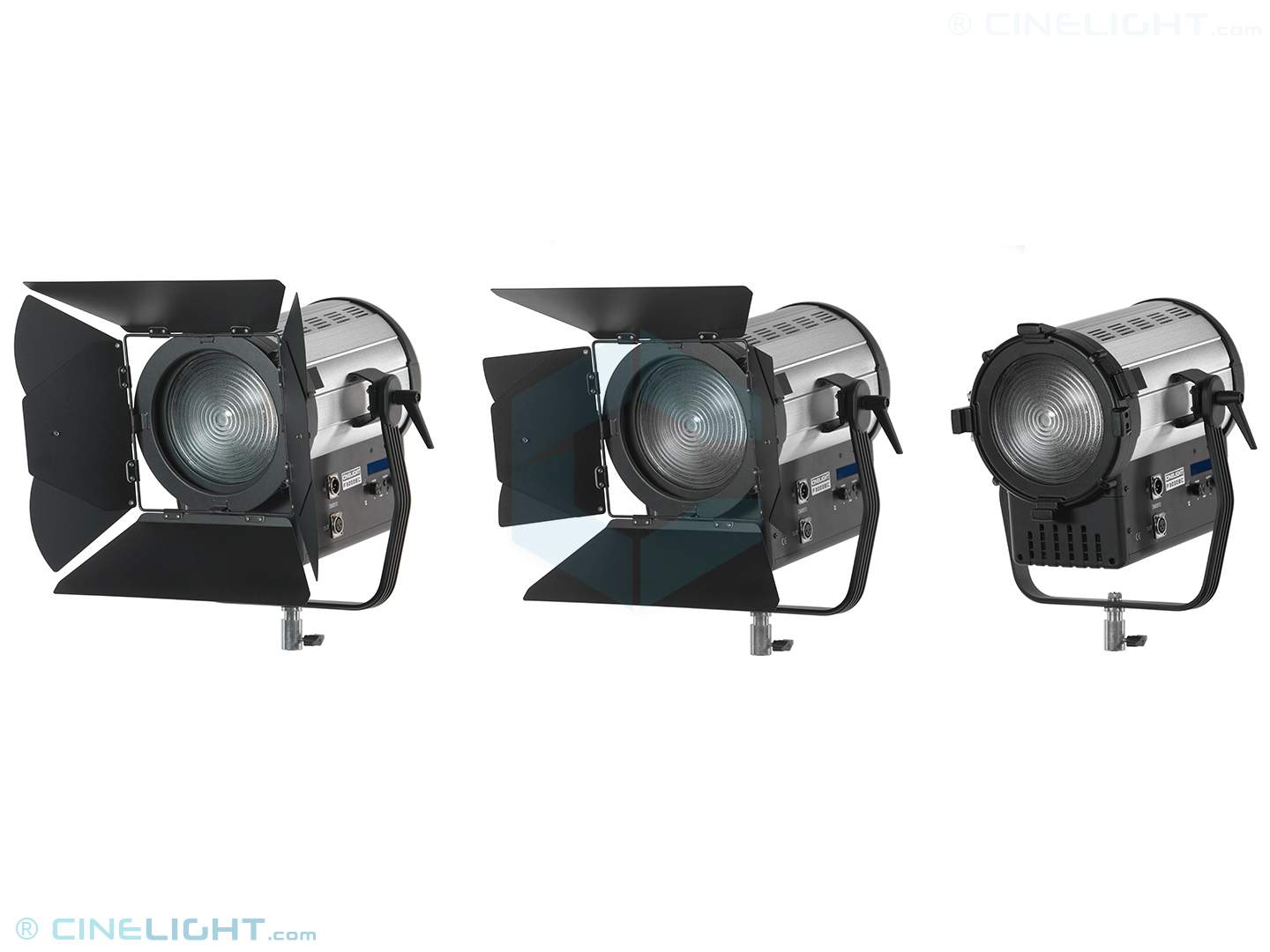

Pack 2 x Studio LED Fresnel 300W 5600K
Cinema Light Studio LED Fresnel 300W 5600K Cinelight Studio LED Fresnel 300W 5600K Video Studio LED Fresnel 300W 5600K TV Studio Fresnel LED 300W Display Studio LED Fresnel 300W 5600K Cinema Studio Light Fresnel LED 300w Studio LED Fresnel 300W Cinema Light Films Studio Lifht LED Fresnel 300W Fresnel Light LED 300W 5600K

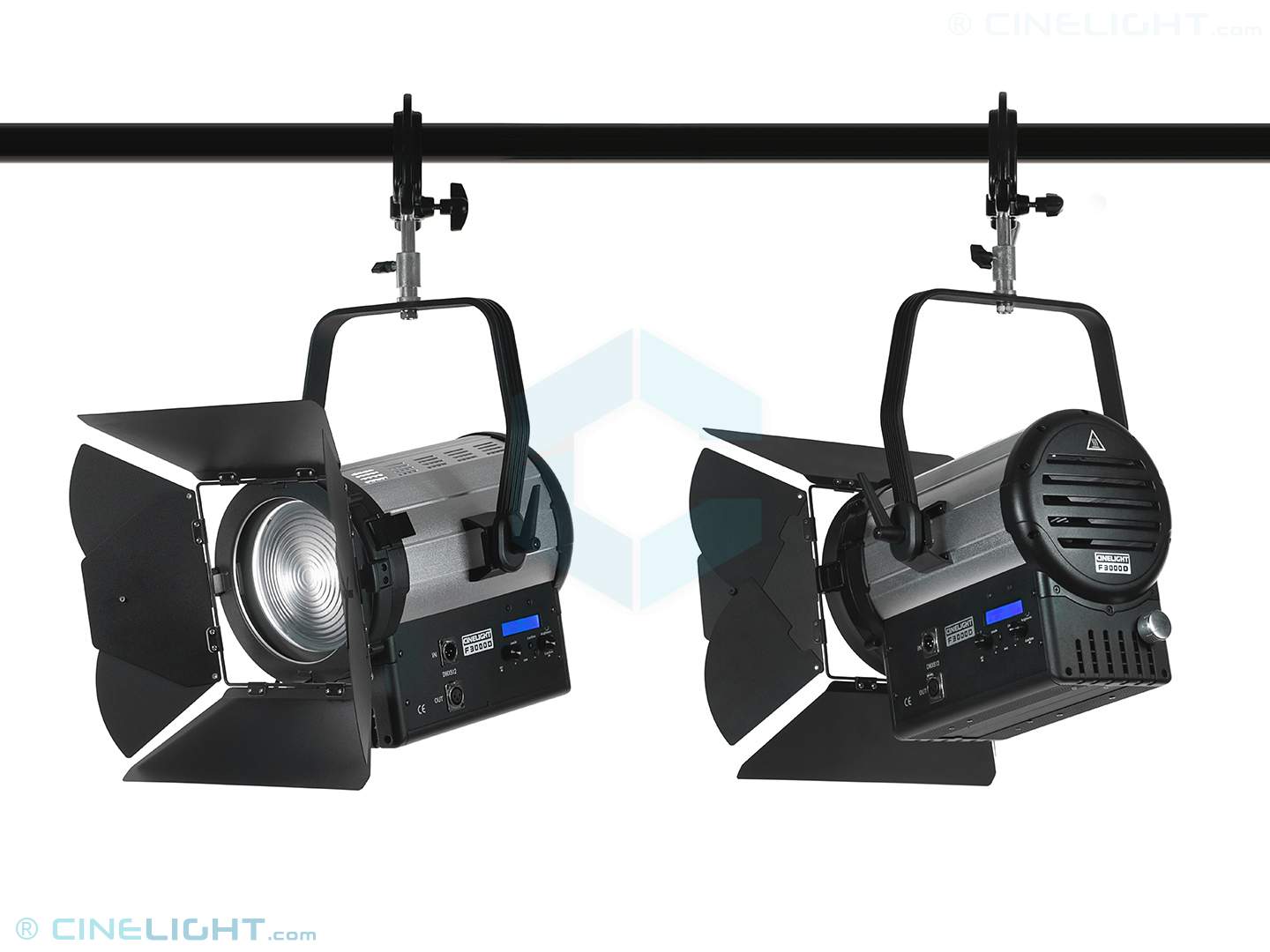

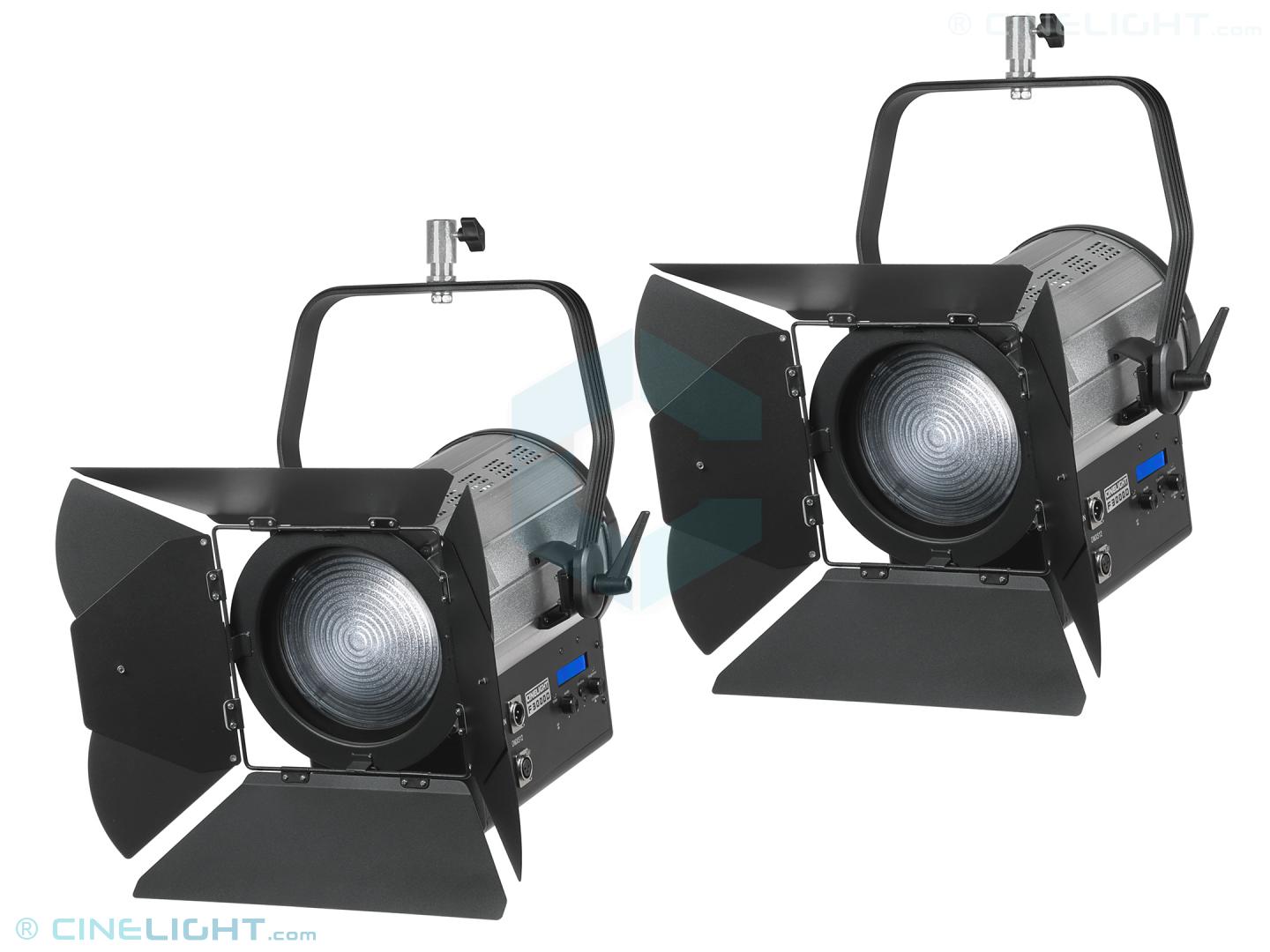

Pack 2 x Studio LED Fresnel 300W 5600K

  • 2 x Studio LED Fresnel 300W 5600K
  • 2 x 8-leaf metal barndoors
  • 2 x yoke bar with combo mount
  • 2 x power cable 5m

€1'59900

/ €1'99800 save: €399.00
SKU: LLK-PACK2XSF300D
Status: Out of stock
€1'599.00
Optionals

Dedicated accessories

Softbox kit for Studio LED Fresnel - 60x60 cm
V-mount battery plate for Studio LED Fresnel

Add stands

Overview

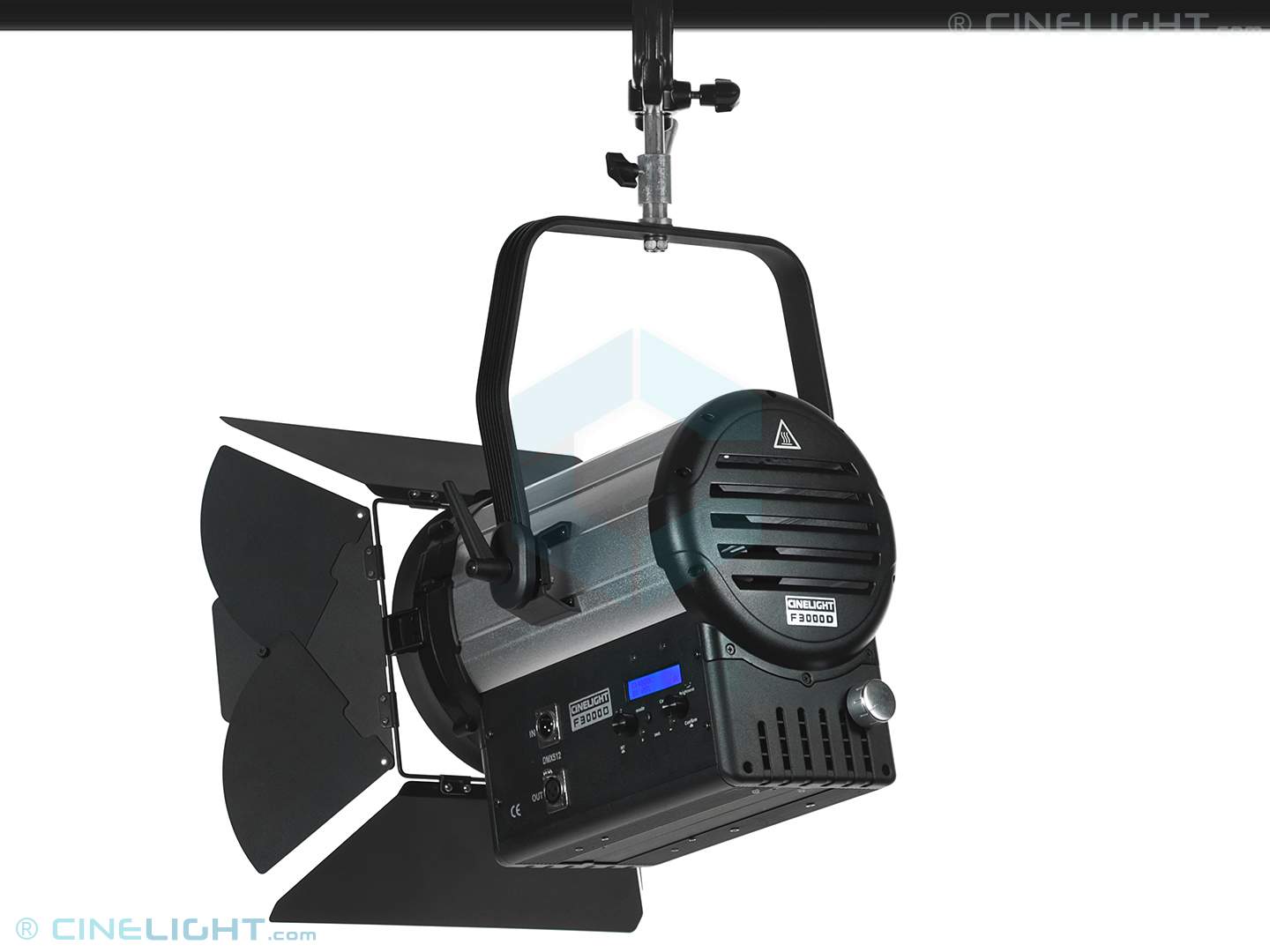

Convenient pack of 2 x Studio LED Fresnel 300W 5600K that feature the newest power efficient COB technology in a sturdy, traditional Fresnel body.

  • Power: 300W
  • Light output: 59'000lx (30°) @ 1m
  • CCT: 5600K | CRI / TLCI 99
  • Size: 37 x 41 x 32 cm | 10.7 kg
  • Adjustable beam angle from 30° to 60°
  • Die-cast aluminum housing
  • Local, BT APP & DMX512 control
  • 5 programs with lighting effects



  High_CRI_TLCI.jpg  The newest generation of Studio LED Fresnel lights feature the highly efficient COB technology to deliver powerful and directional light. The true Fresnel lens produces single-shadowed soft-edged beam, delivering that natural result every cinematographer is looking for.



LED source into a classic Fresnel body

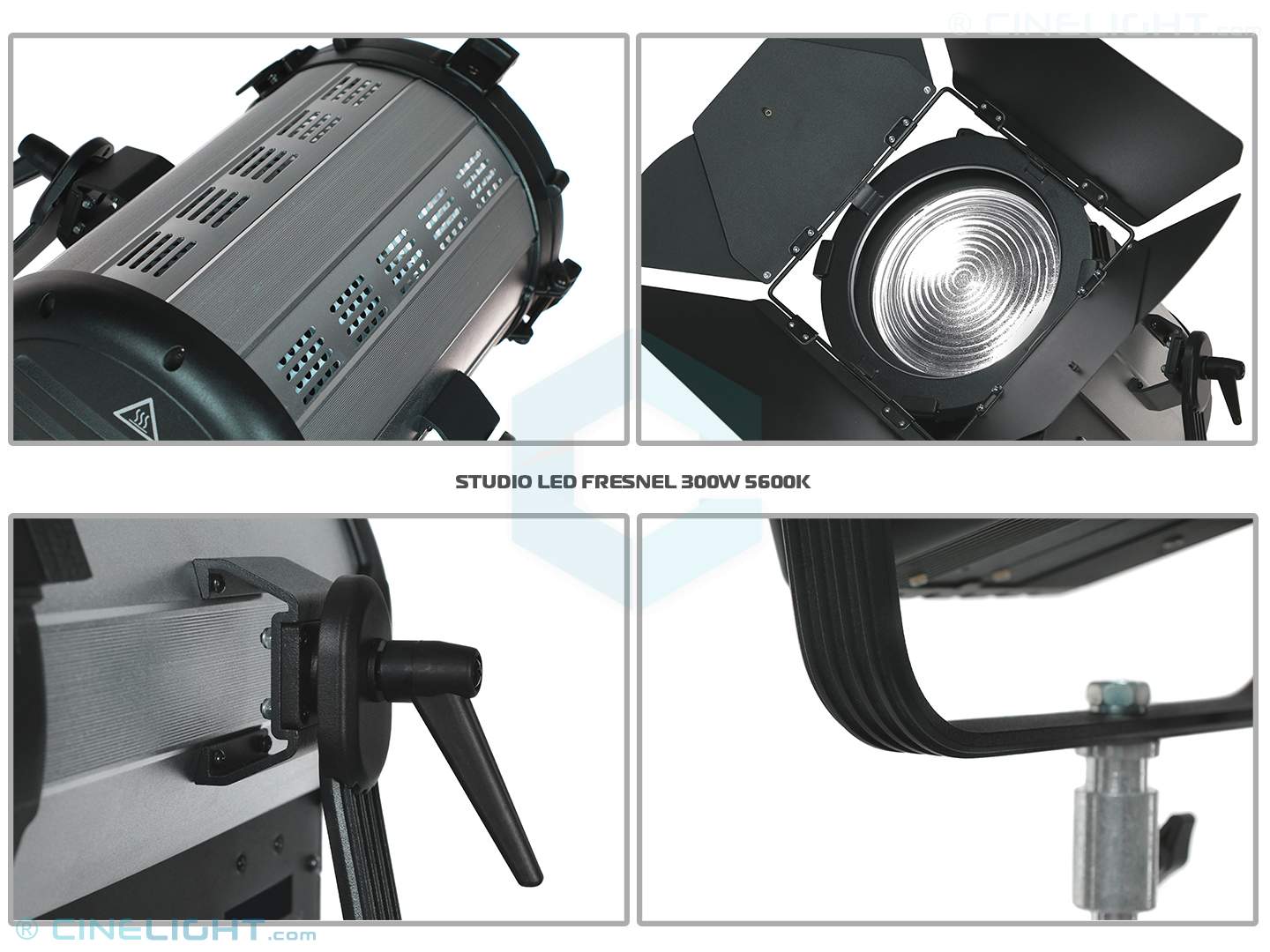

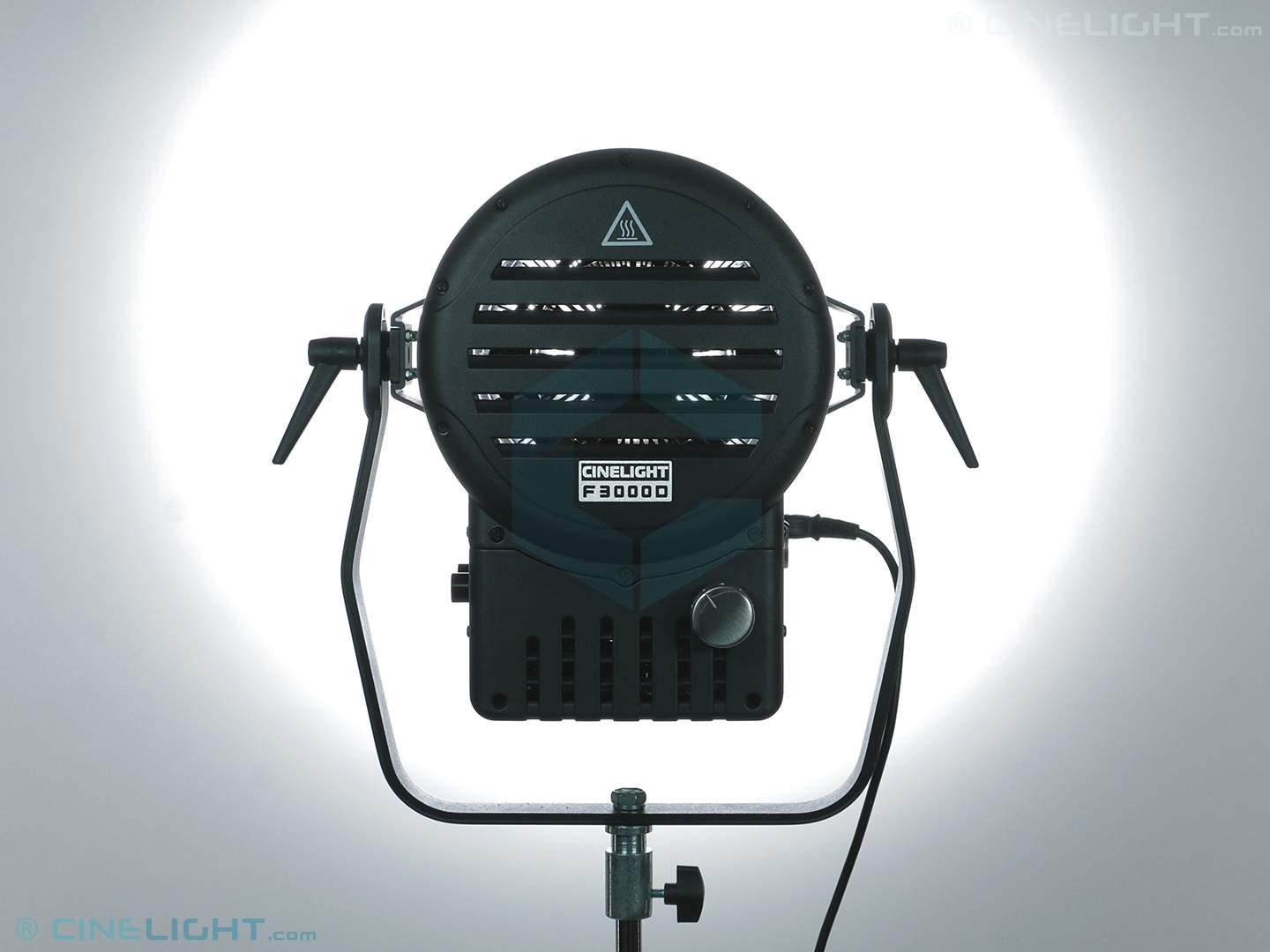

     The fixture's body is similar to the traditional Fresnel lights, ensuring a sturdy and robust construction for years of use in a professional environment. The full metal housing is made from a series of light weight aluminum extrusions that ensure proper ventilation and heat dissipation.



Powerful & High CRI COB Technology

     The Studio LED Fresnel features the newest power efficient COB technology with high index rating CRI 98 and TLCI 99 specially developed for photo-video applications where color rendering accuracy is mandatory, making it suitable for broadcast and film.




Adjustable beam and light intensity

     The beam angle can be adjusted from spot 30° to flood 60° using a mechanical focusing mechanism. The light output is dimmable from 100% to 0%, flicker free across the dimming range (tested at 3'000 fps), therefore suitable for slow motion shootings.



3-way control: Local, DMX512 & BT App

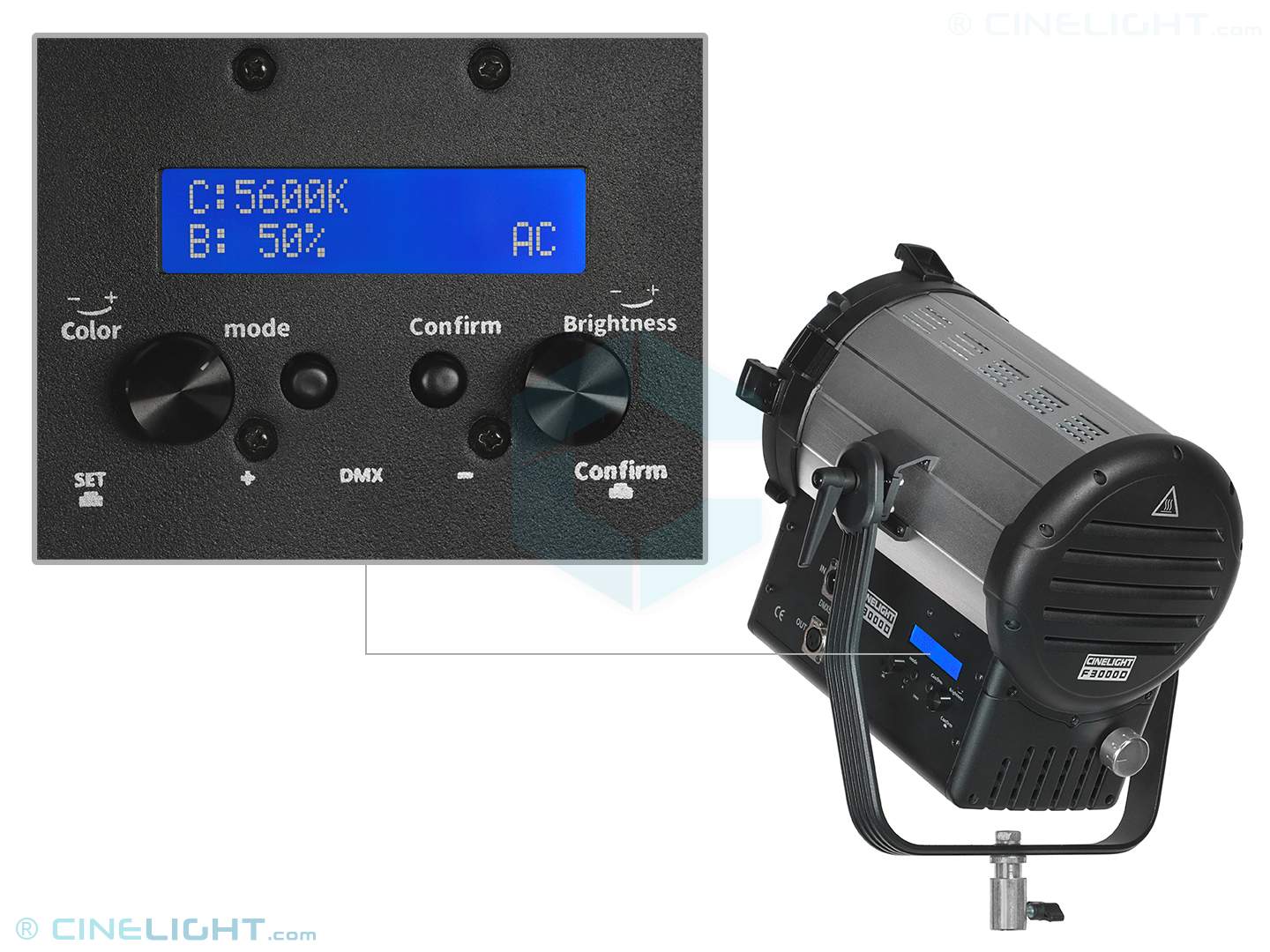

     Local control using dedicated buttons and potentiometers to quickly & intuitively adjust the light intensity or enabling one of the several lighting effects.

     DMX-512 via the XLR 3P in/out connectors: the Studio LED Fresnel fixtures can be integrated into more complex studio installations such as news sets, talk-shows or entertainment productions where a standardized remote controlling method is required.

     Bluetooth via IOS & Android app: one or several LED Fresnel units can be controlled from up to a 50 m distance through the dedicated smartphone app (iOS & Android). Having a visual representation of all the physically settings of the Studio LED Fresnel fixture on any common smartphone can only make this light easier to use. One or more LED Fresnel spotlights can be simultaneous controlled through the smartphone application.




5 Pre-programmed lighting effects

     The bi-color version of the Studio LED Fresnel 300W comes with 7 programmed lighting effects with adjustable parameters, as follows:

1. SOS - light is projected similar to SOS flashlight signals in Morse code (three short flashes, three long flashes, three short flashes)
2. Watch TV - simulates the fluctuating light from a TV screen
3. Lightning - simulates the lightning phenomenon in a thunderstorm
4. Photo - simulates the light from a camera during a photo session
5. Flash - simulates the light from a camera flash as seen on "paparazzi" style shots

     These lighting effects presets enhance the user's creativity and production value, being the most accessible way to create impressive dynamic scenes from the touch of a button.



AC and DC powering options

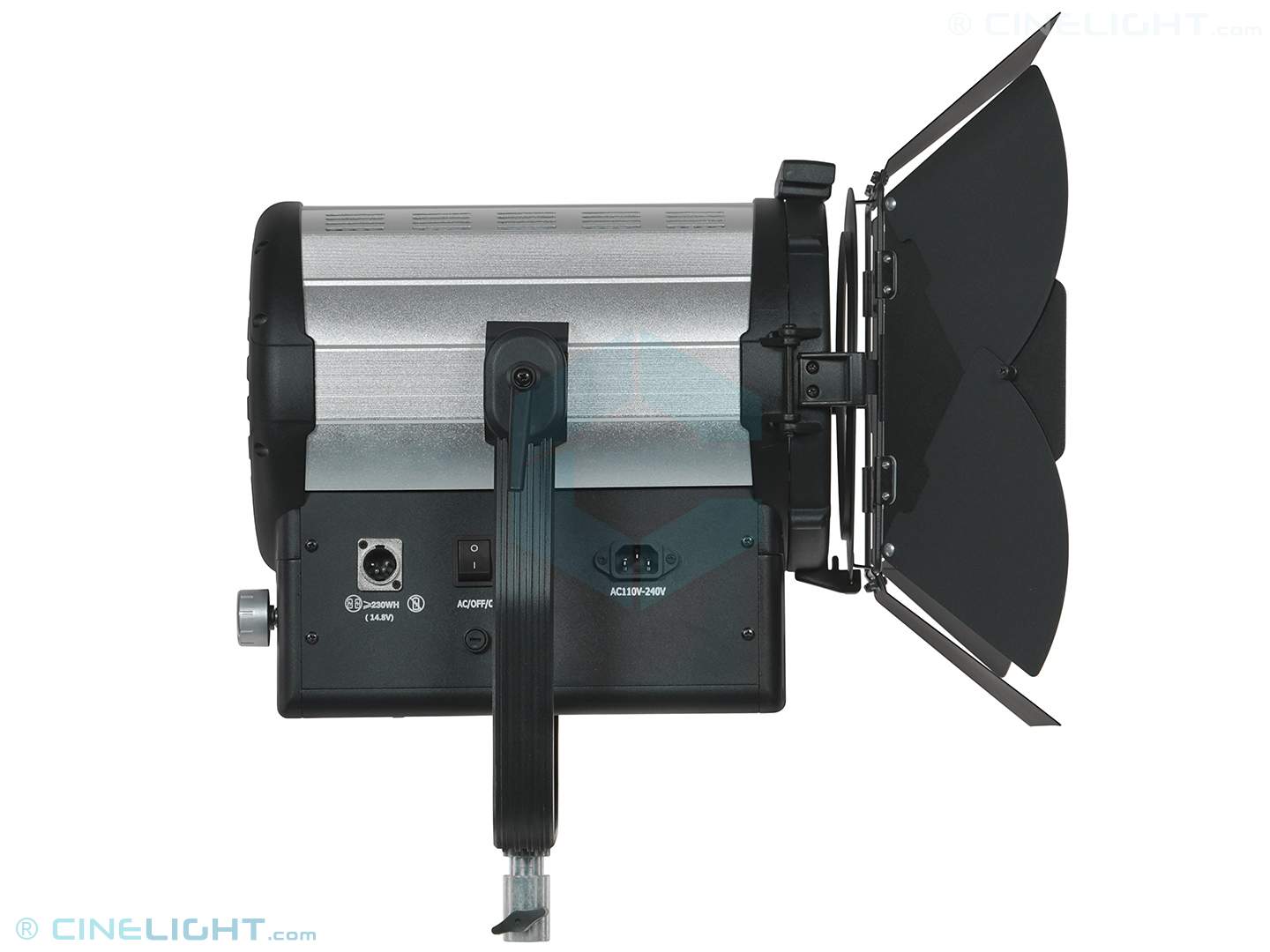

    The Studio LED series are universal voltage capable AC 100V-240V and the IEC connector allows for fast change of power cable with local models.

    In addition to the main AC powered plug the 300W version of Studio LED Fresnel fixture is also equipped with a low voltage 14.8V DC XLR 4P socket allowing to be powered from two V-Lock batteries using the optional battery plate.

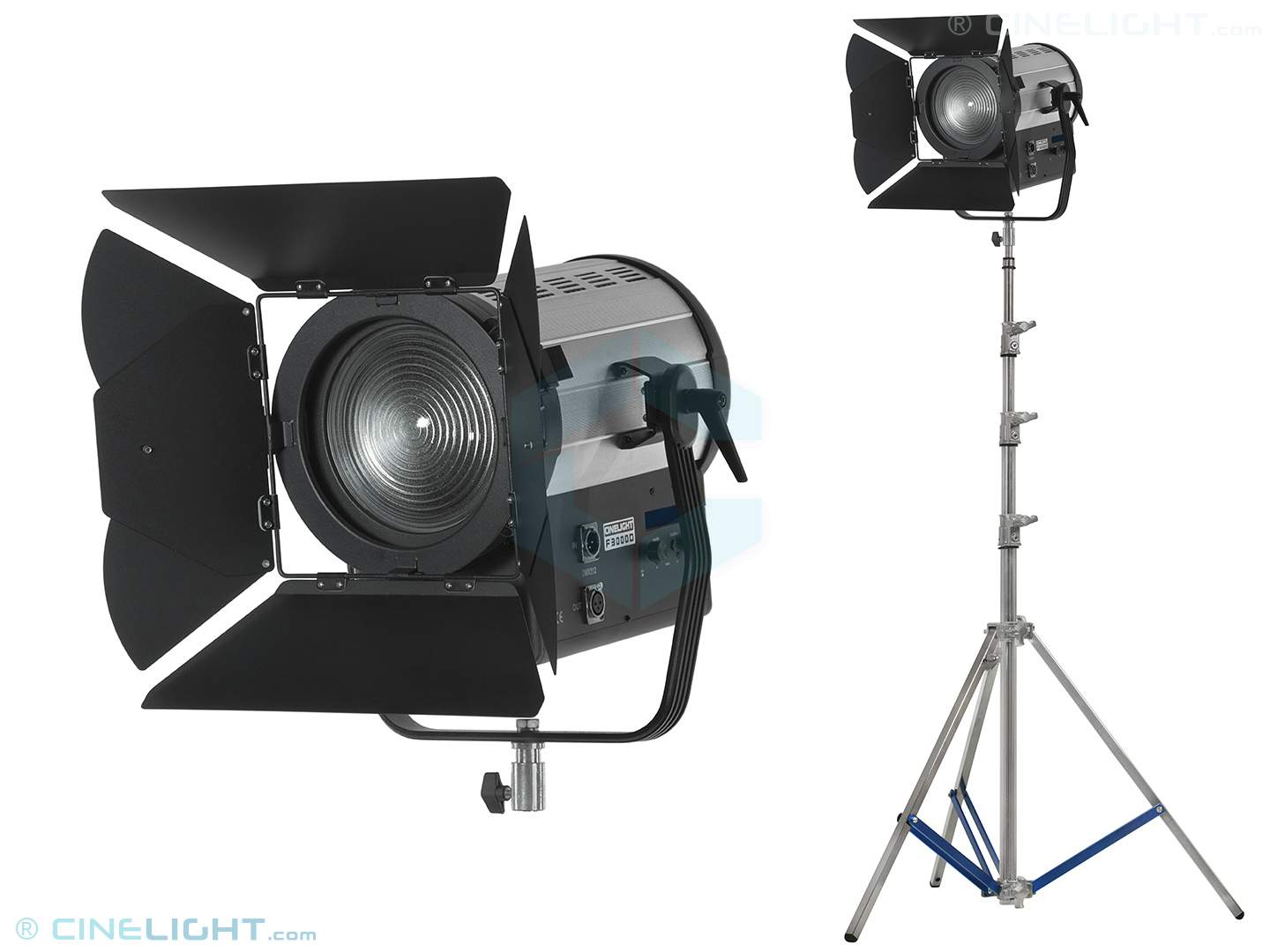

8-leaf metal barndoors included

     The Fresnel LED series comes with 8-leaf metal barndoors that cut and shape the beam spread. The small leaves offer a more precise control of the beam, creating a variety of shapes and concentrating the light where needed.



Key features:

  • adjustable beam angle spot 30° - flood 60°
  • accurate color rendering CRI 98 / TLCI 99
  • dimmable output from 100% to 0%
  • flicker free at high speed shooting rates
  • built-in DMX controller with XLR 3P connectors
  • smartphone APP control via Bluetooth.
  • digital display for brightness and DMX address

Specifications

Rated power 300 watts
Beam type spot-flood
LED type Daylight only
Voltage input 100-240V 50 / 60 Hz
Color temperature 5600K
CRI rating 98
TLCI rating 99
Beam angle 30°-60°
LED no 1
Dimming range 100%-0%
Display type Simple - Monochrome
Battery mount N/A
Plug in connector type IEC - female
Cooling system Active
Power source Internal, AC 100-240V 50 / 60 Hz
Power connector type CEE 7/7
Power cord total length 5.0 m
Local functions control Analog
DMX control Yes
DMX connectors type XLR-3P
Bluetooth / WIFI APP control Yes
Radio remote control N/A
Yoke mount Spigot 16mm receiver
Housing material Aluminum
Housing color Black & gray
Lens type Fresnel
Lens size 175 mm
Barndoors slot size 223 mm
Filter slot size 240 mm
Photometrics spot mode 1m: 59000 lx | 2m: 15500 lx | 3m: 7100 lx | 4m: 3900 lx
Photometrics flood mode 1m: 30000 lx | 2m: 8000 lx | 3m: 3800 lx | 4m: 2100 lx
Spot-Flood selector type Mechanical
Lamp head weight 10.8 kg

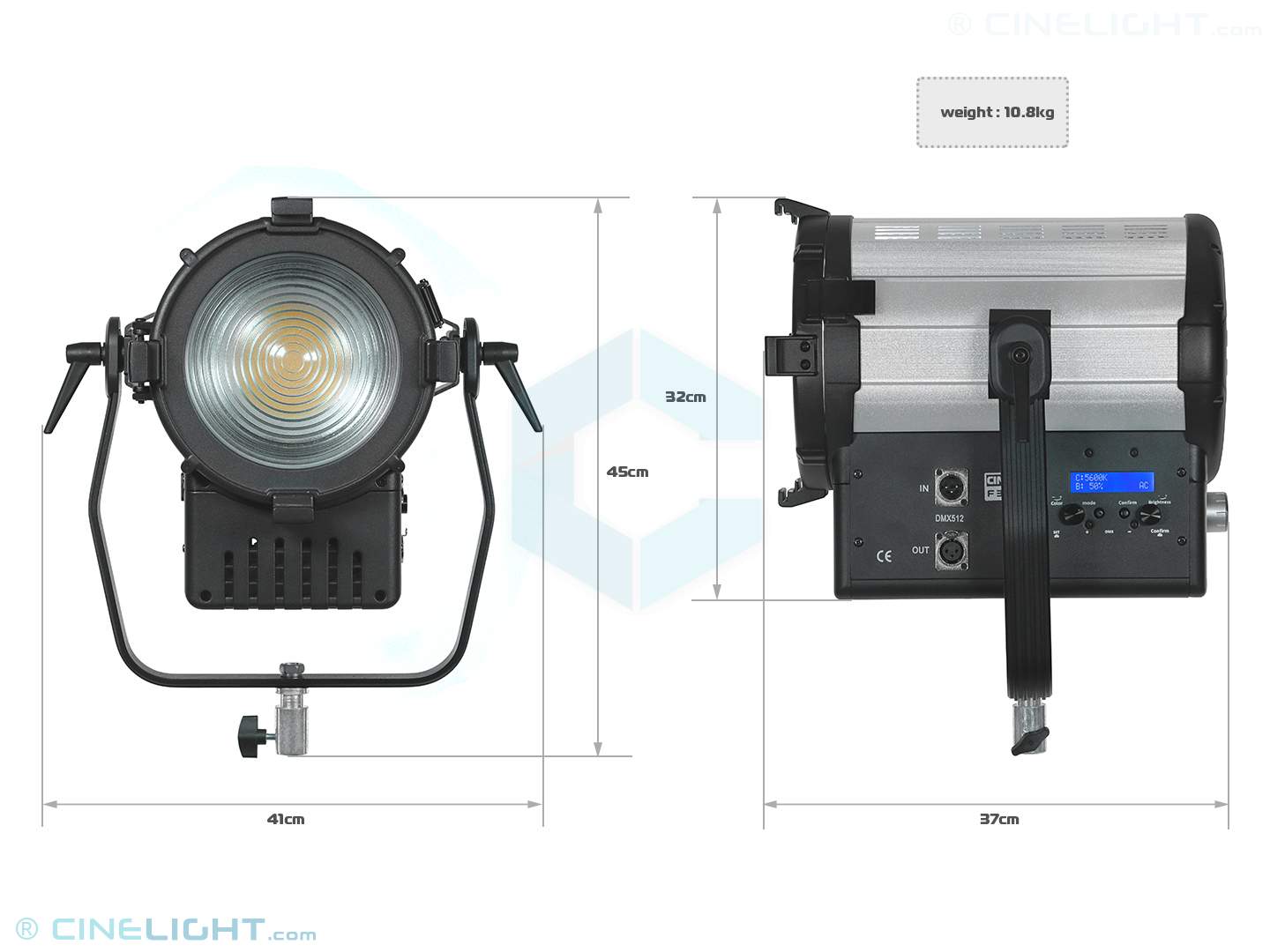

Lamp head dimensions 37 x 41 x 32 cm
Ballast type Internal
