Vise Clamp with 16 mm Pin & Receiver - Short
- Max opening: 5.5 cm
- Aka: Super Viser / Cardellini / Metthellini Clamp, MaxClamp
- Spigot 16 mm tail and hexa 16 mm receiver on top
- Rubber pads to protect surface & avoid slipping
- Anti-twist grooved threaded shaft
- Total length: 22.5 cm | 0.75 kg
- Payload: 50 kg
- As: KCP-600, KG602912, 420115
€3900

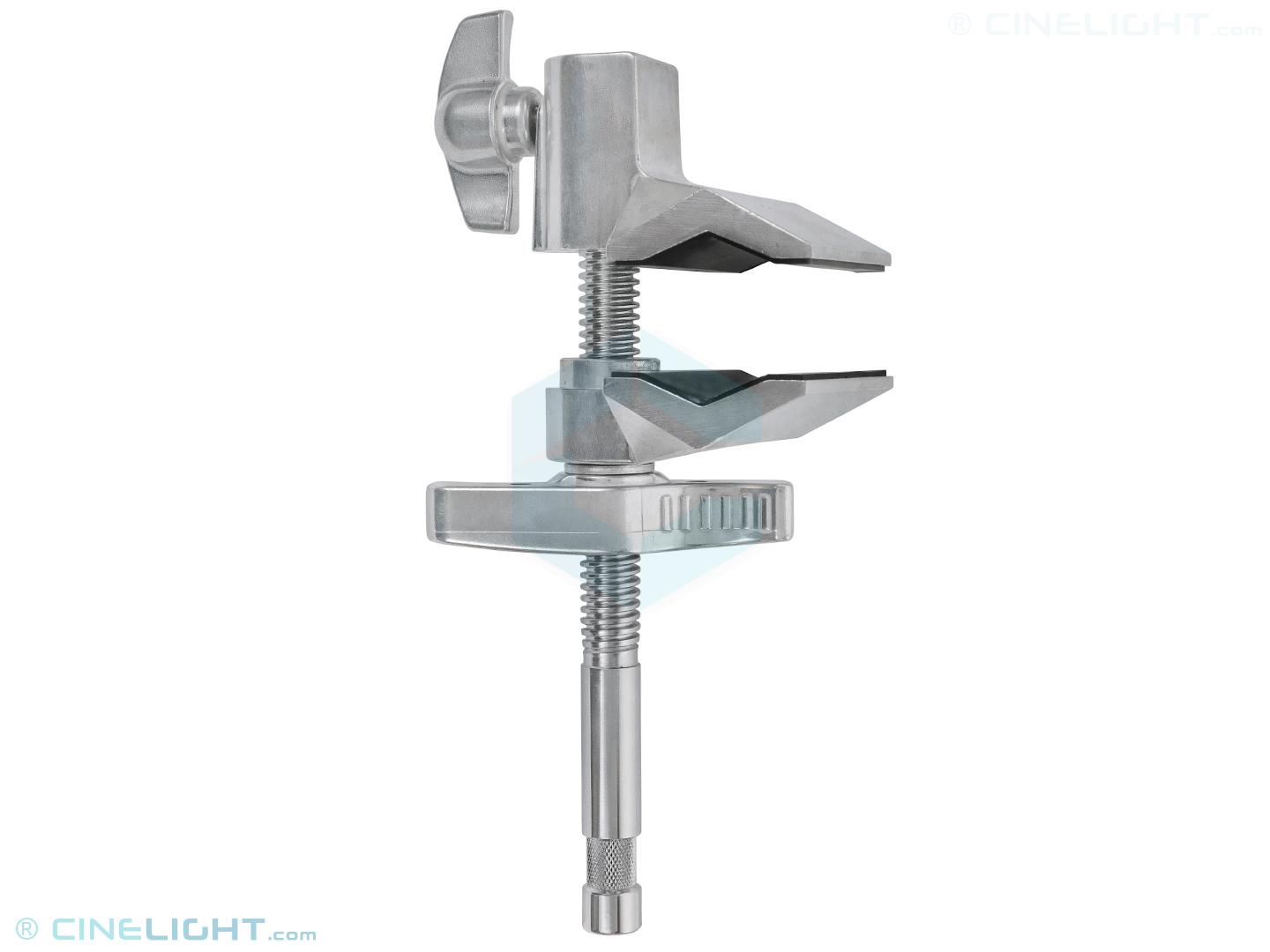

Also known as: Cardellini, Matthellini Clamp or Max Clamp.
Adjustable C-Clamp with 22.5 cm total length.
Fully made of metal with adjustable opening up to 60 mm.
Features rubber pads to protect the surface and avoid slipping.
On top of the clamp there is an adapter socket where a hexagonal spigot or a Pro Clamp can be mounted.
Spigot pin 16 mm on the bottom end to attach lights or other compatible accessories. Spigot nozzle with textured anti-rotation surface.
Grooved design on the threaded shaft to keep the orientation of both jaws in the same direction all the way.
Similar with other brands clamps: Kupo KCP-600, KG602912 Super Viser Clamp, 420115 Matthews Matthellini 3" Center Jaw Clamp.
- Payload: 50 kg
- Length: 22.5 cm
- Width of the jaw: 8 cm
- Clamp weight: 750 g
Specifications
Grip & Mounting
| Grip type | Clamp |
| Mounting | Stud 16mm & Hex 16mm receiver |
| Openings | 0-55 mm |
| Max opening | 55 mm |
| Maximum payload | 50 kg |
| Overall size | 22.5 cm |
| Color | Chrome |
| Material | Steel alloy |
| Weight | 0.75 kg |
