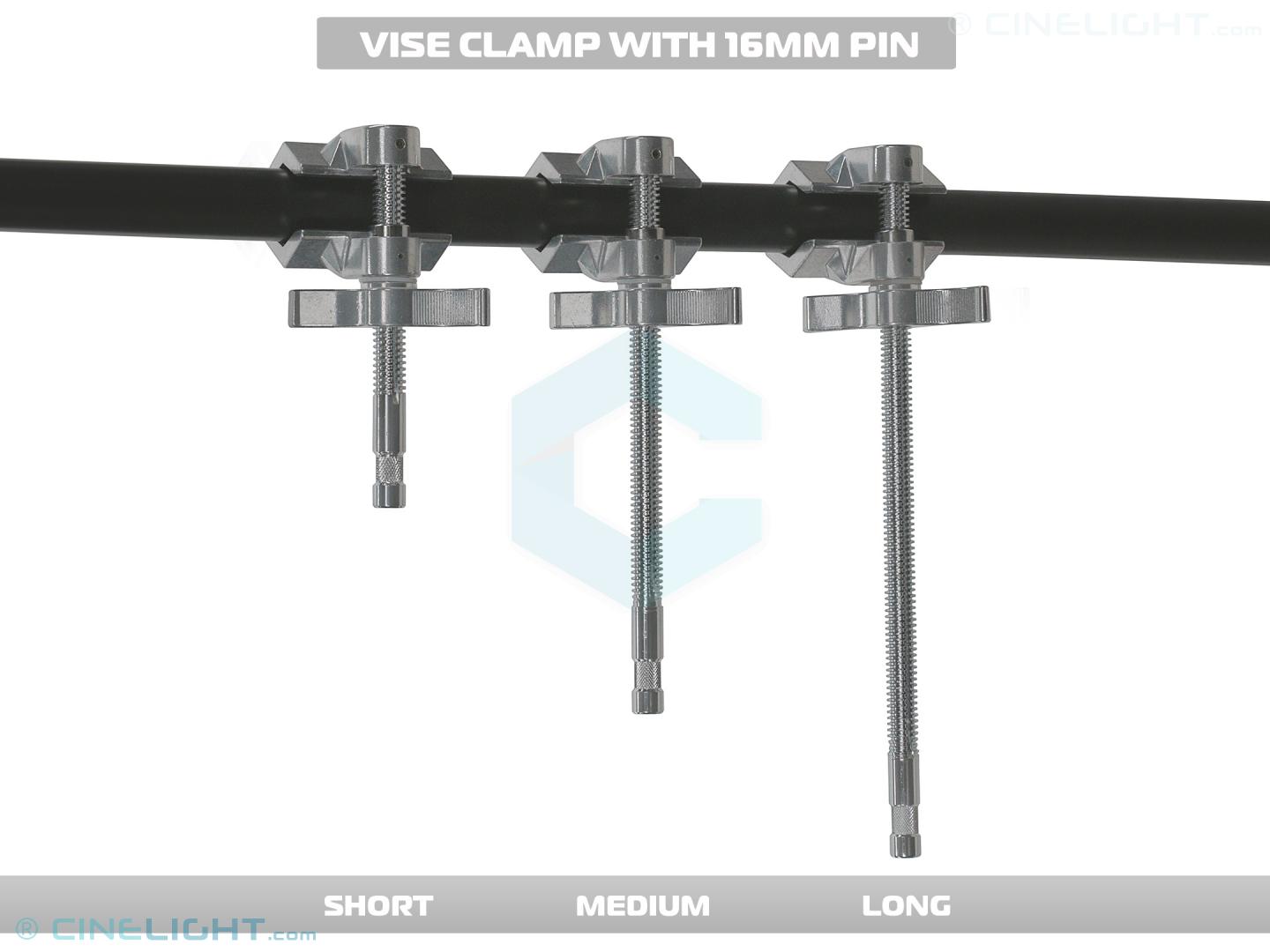

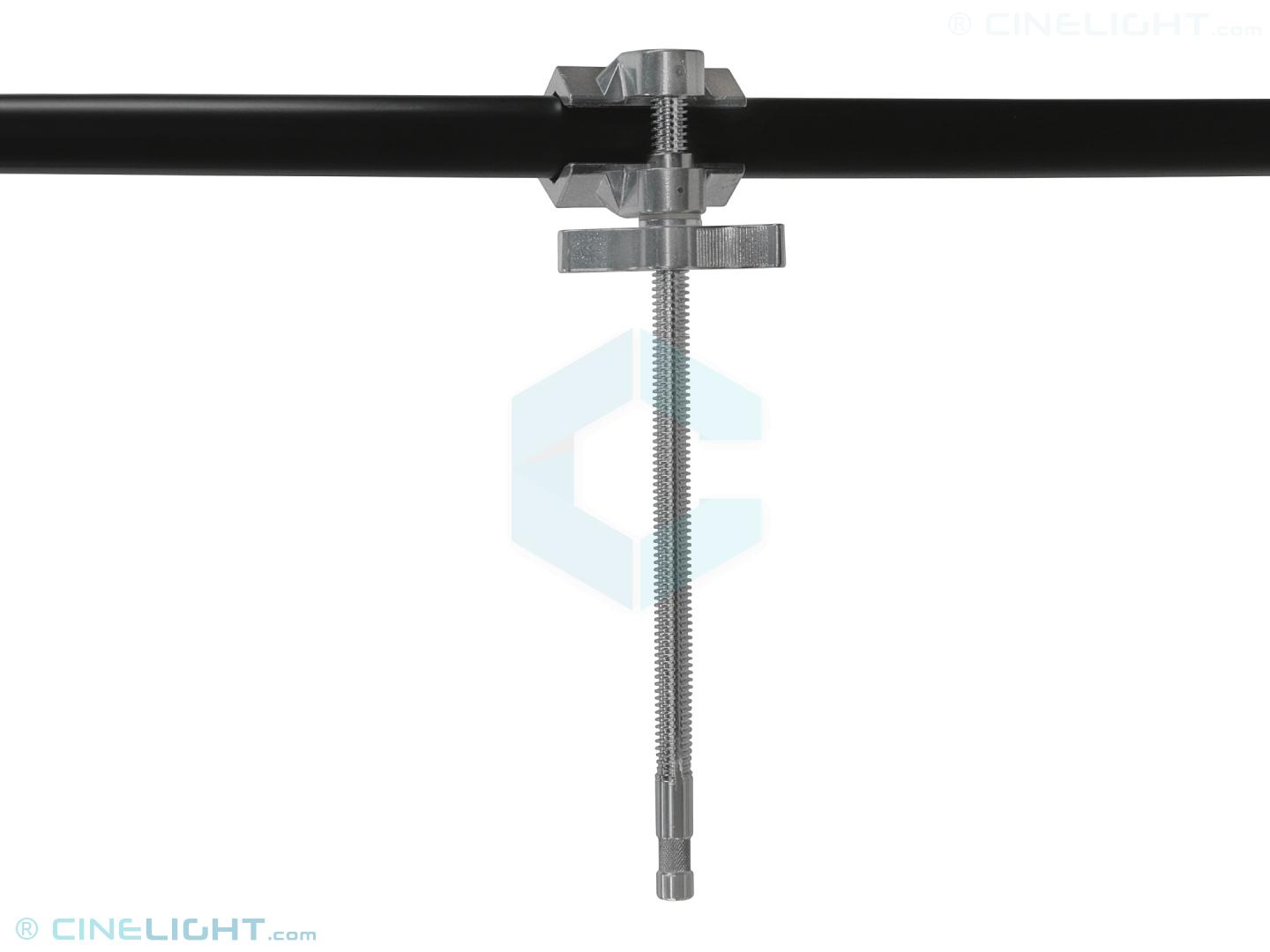

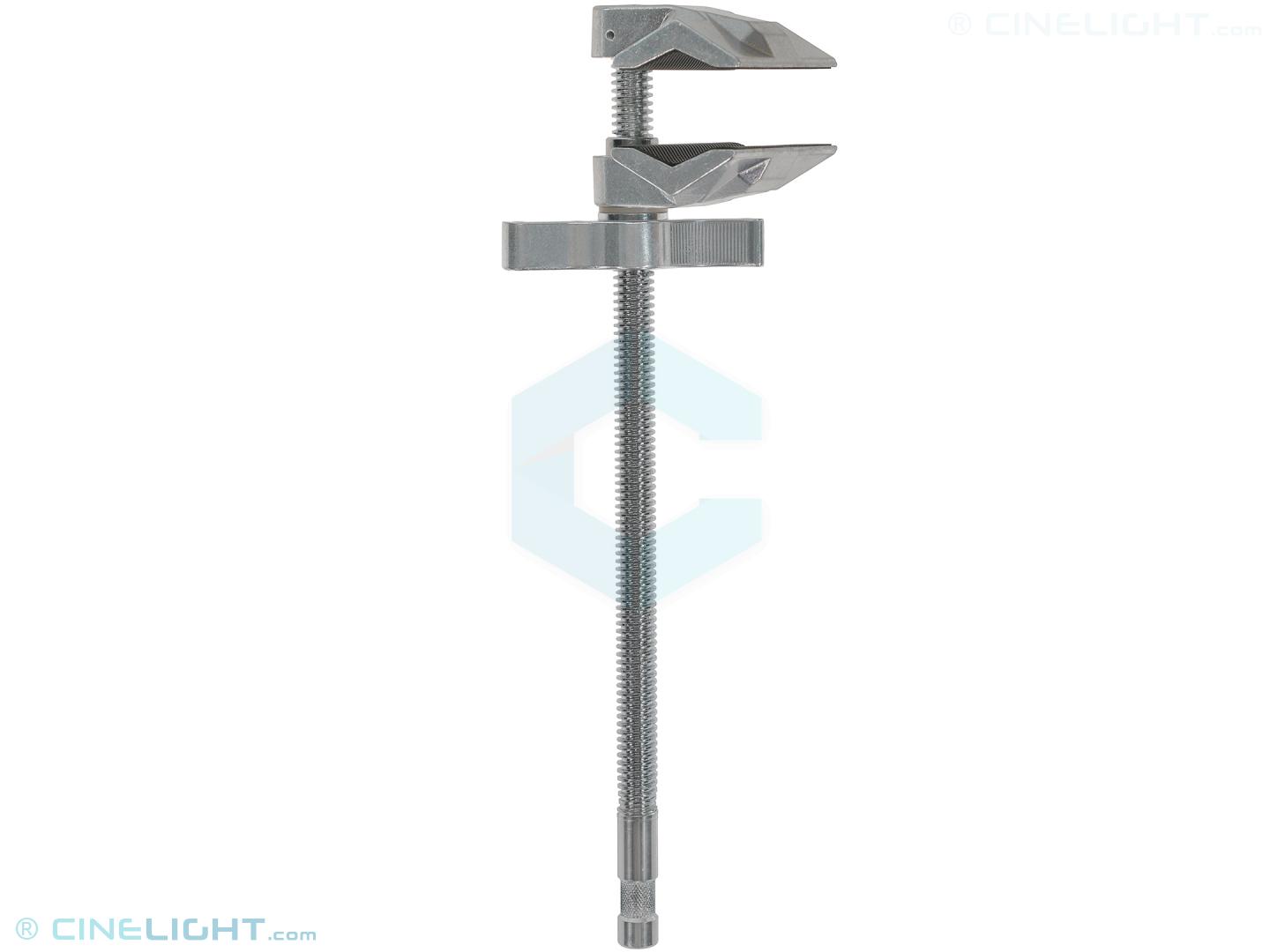

Vise Clamp with 16 mm Pin - Long
- Max opening: 23.5 cm
- Aka: Super Viser / Cardellini / 7" Metthellini Clamp, MaxClamp
- Spigot 16 mm tail
- Rubber pads to protect surface & avoid slipping
- Anti-twist grooved threaded shaft
- Total length: 36 cm | 0.77 kg
- Payload: 50 kg
- As: KCP-601-L, KG600312, 420210
€3500
Also known as: Cardellini, Matthellini Clamp or Max Clamp.
Adjustable C-Clamp with 36 cm total length and jaws opening up to 23.5 cm
The jaws are made of die casting aluminum making it sturdy and lightweight while the threaded shaft with 16mm spigot is made of steel for improved strength.

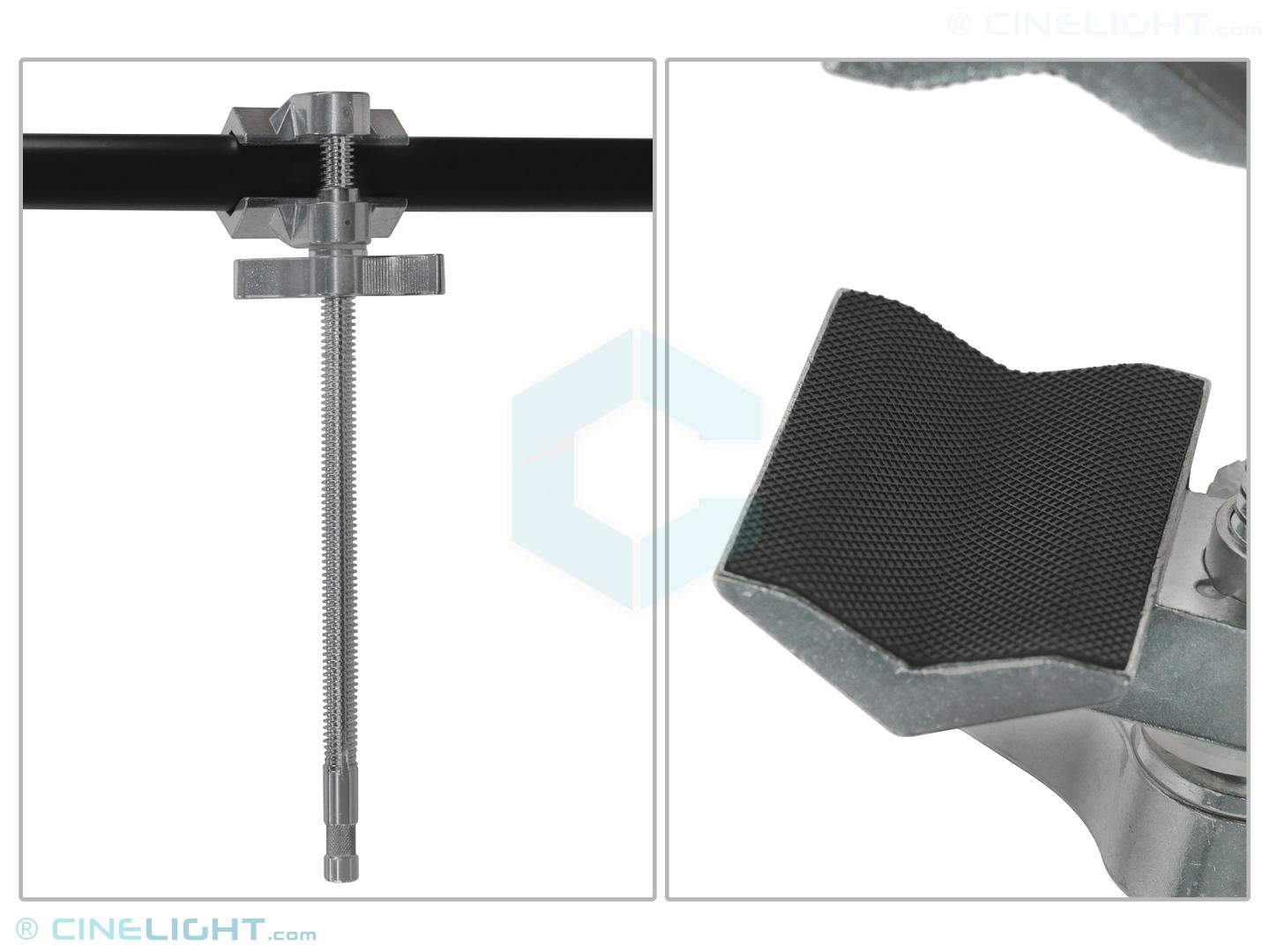

The jaws are rubber padded to protect the surface and avoid slipping.

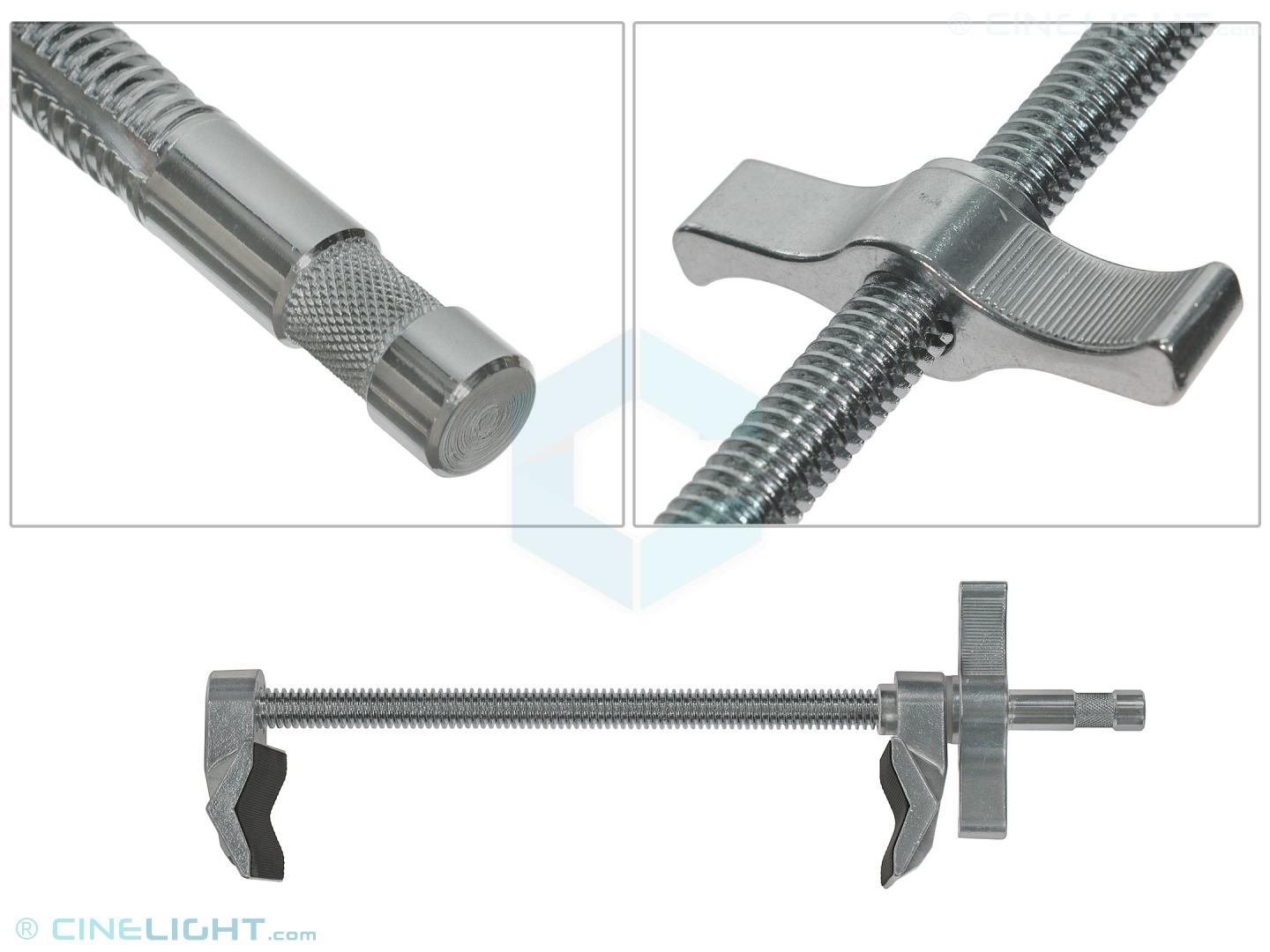

Spigot pin 16 mm on the bottom end to attach lights or other compatible accessories.
Spigot nozzle with textured anti-rotation surface.

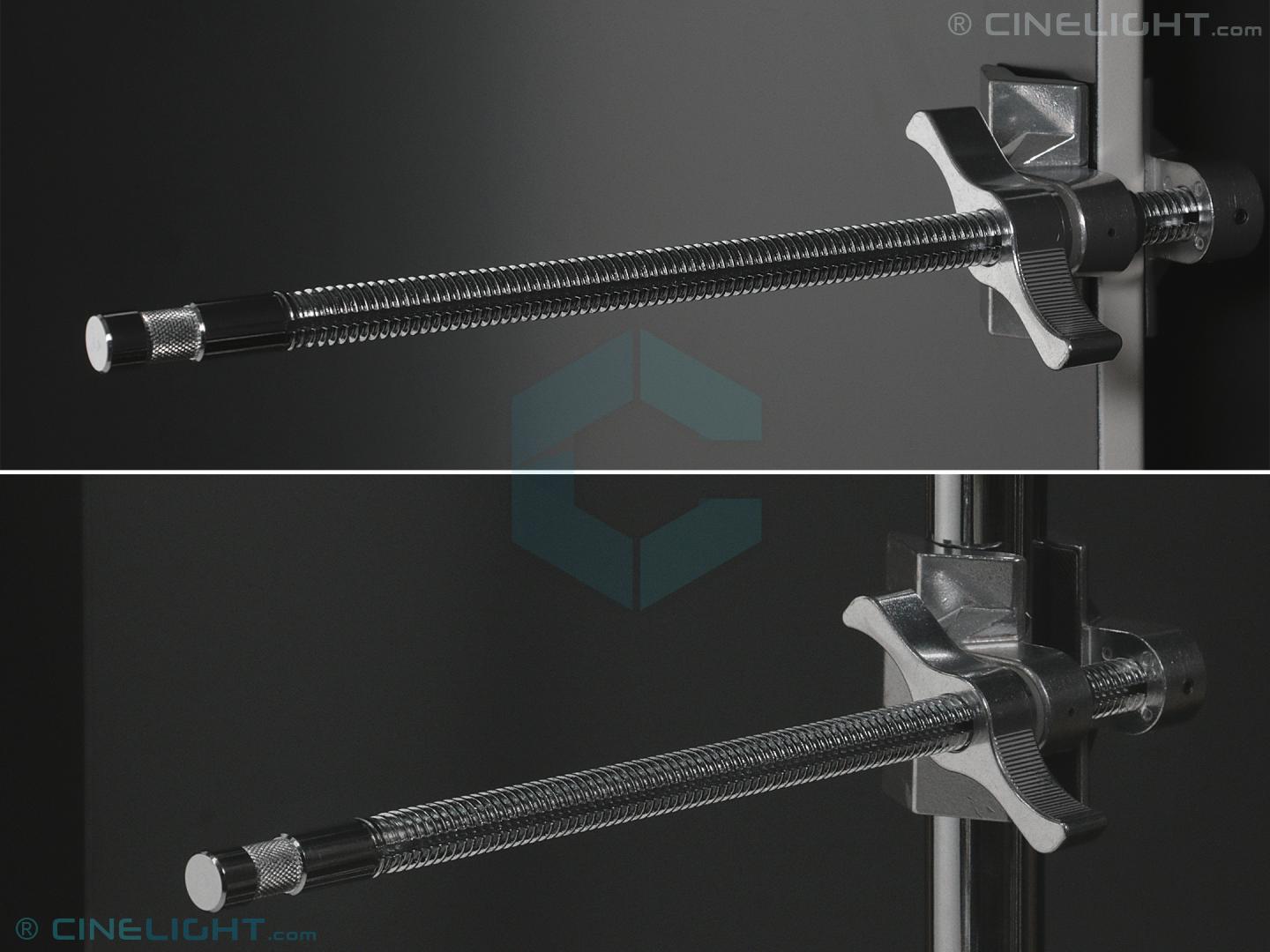

Grooved design on the threaded shaft to keep the orientation of both jaws in the same direction all the way.
Similar with other brands clamps: Kupo KCP-601-L, KG600312 17" Super Viser Clamp, 420210 Matthews Matthellini 9" Jaw Clamp, Cardellini XXL
- Total length: 36 cm
- Jaws opening: 23.5 cm
- Width of the jaws: 7.7 cm
- Payload: 50 kg
- Clamp weight: 770 g
Specifications
Grip & Mounting
| Grip type | Clamp |
| Mounting | Stud 16mm (5/8") |
| Openings | 0-235 mm |
| Max opening | 235 mm |
| Maximum payload | 50 kg |
| Overall size | 36 cm |
| Color | Chrome |
| Material | Steel alloy |
| Weight | 0.77 kg |
