Crab Clamp with 16 mm pin
Crab Clamp with 16 mm pin Studio Hanging Clamp 16mm spigot pin stud crag Jaws Studio accessory Crab Clamp Cinelight Crab Clamp with 16 mm pin Film Studio Crab Clamp with 16 mm pin Cinema Studio Crab Clamp with 16 mm pin Video Accessory Crab Clamp 16mm pin Pipe Clamp 16mm pin - in use

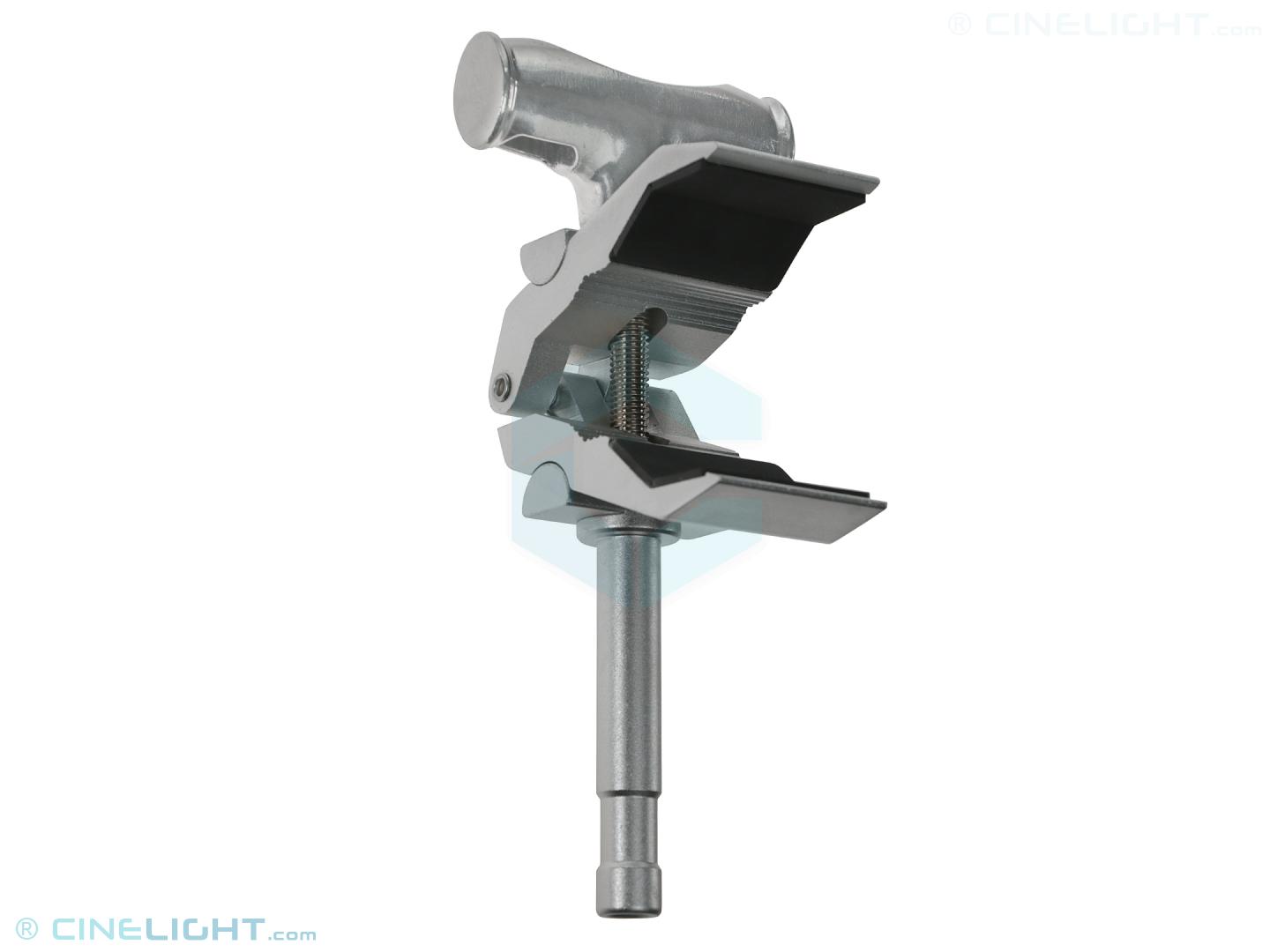

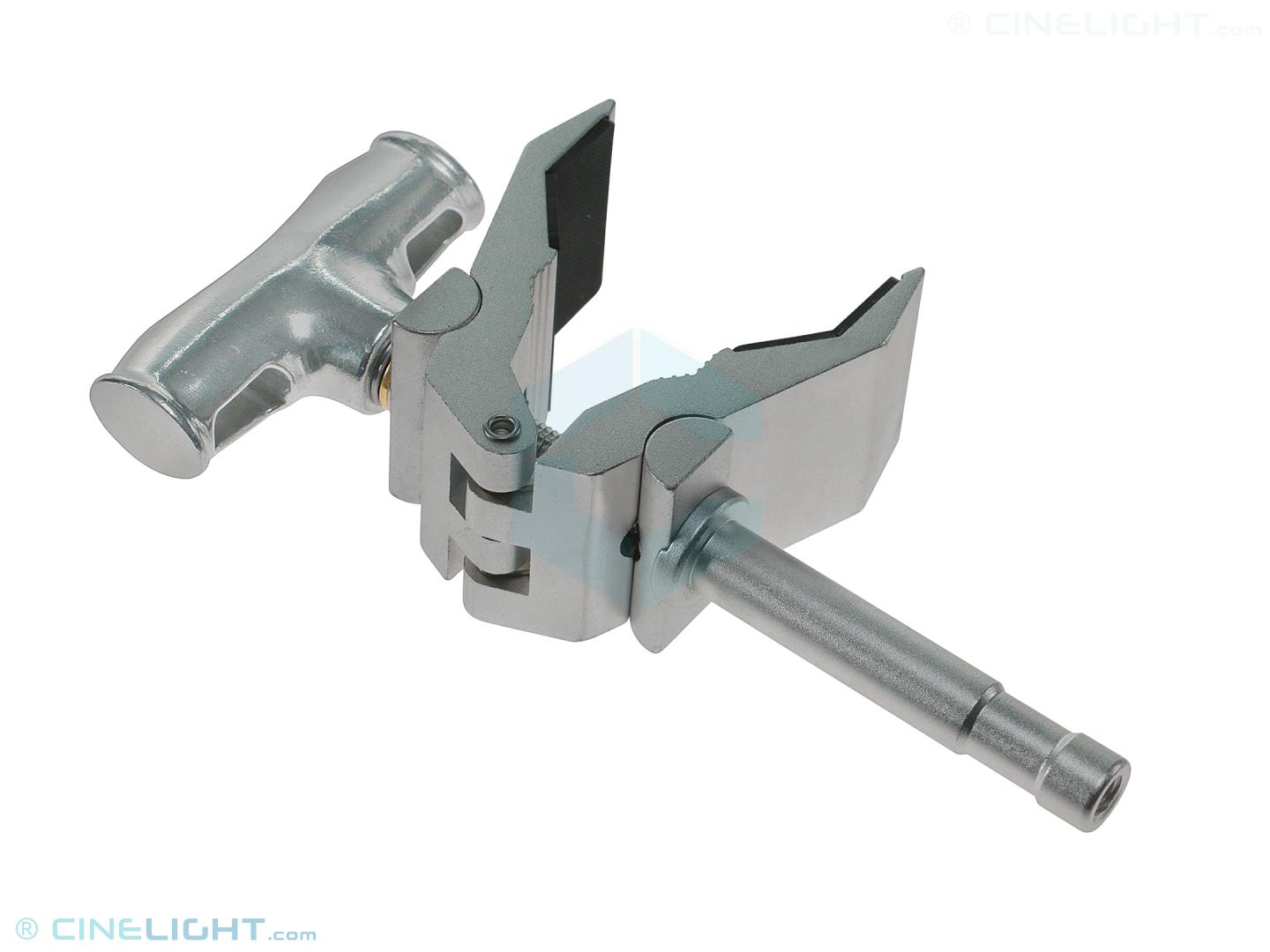

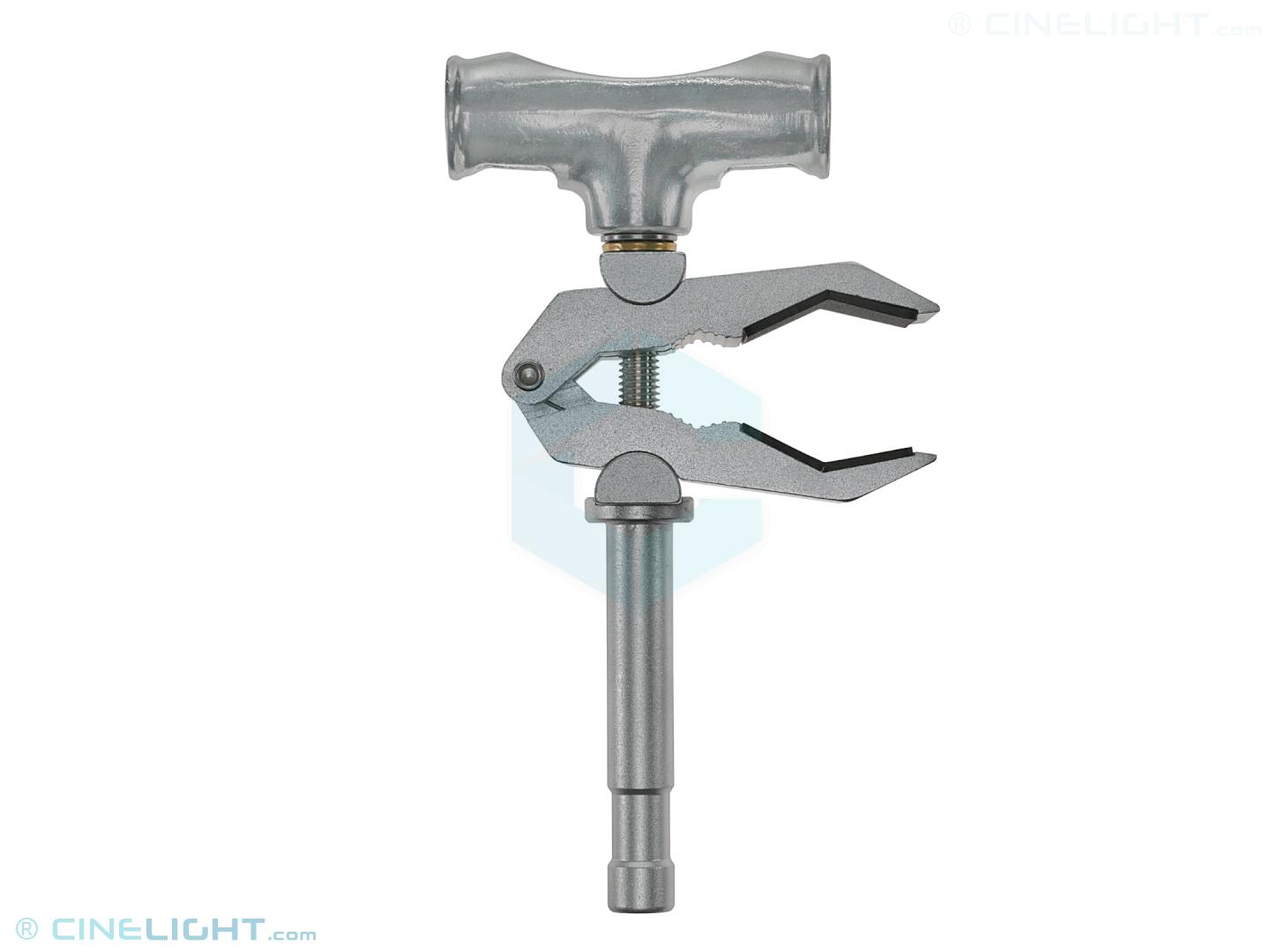

Crab Clamp with 16 mm pin

  • Grid pipe clamp with 16 mm spigot
  • Fits on 10 to 60 mm diameters
  • Oversized locking handle & bearings for torque
  • 16 mm baby pin with 90 mm length
  • Payload: 50 kg
  • Aka baby grid clamp, little Ben clamp
  • As 425157
Ask us Brochure
SKU: GCX-CRABCL16PS
Status: In Stock
€29.00
Overview

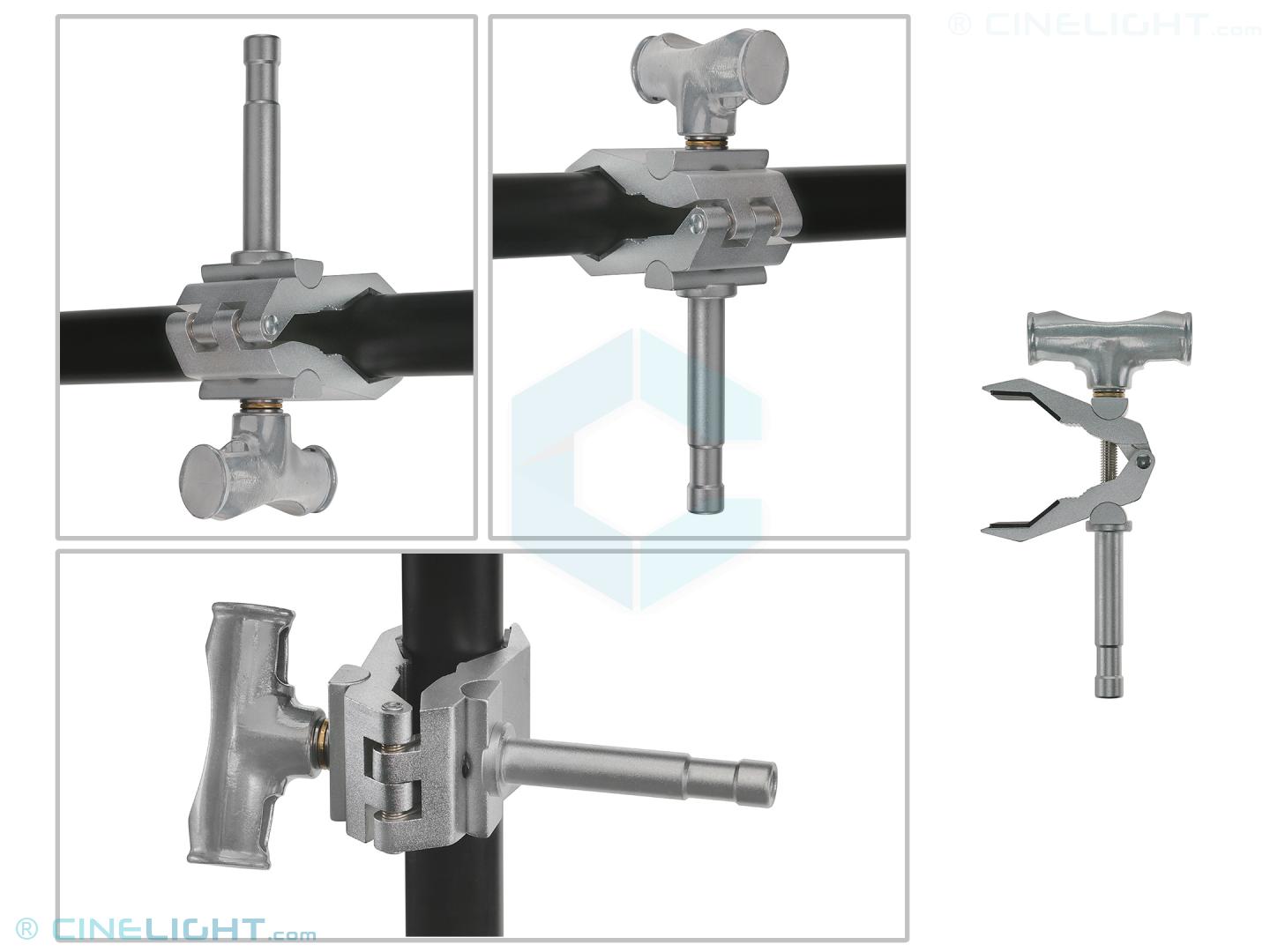

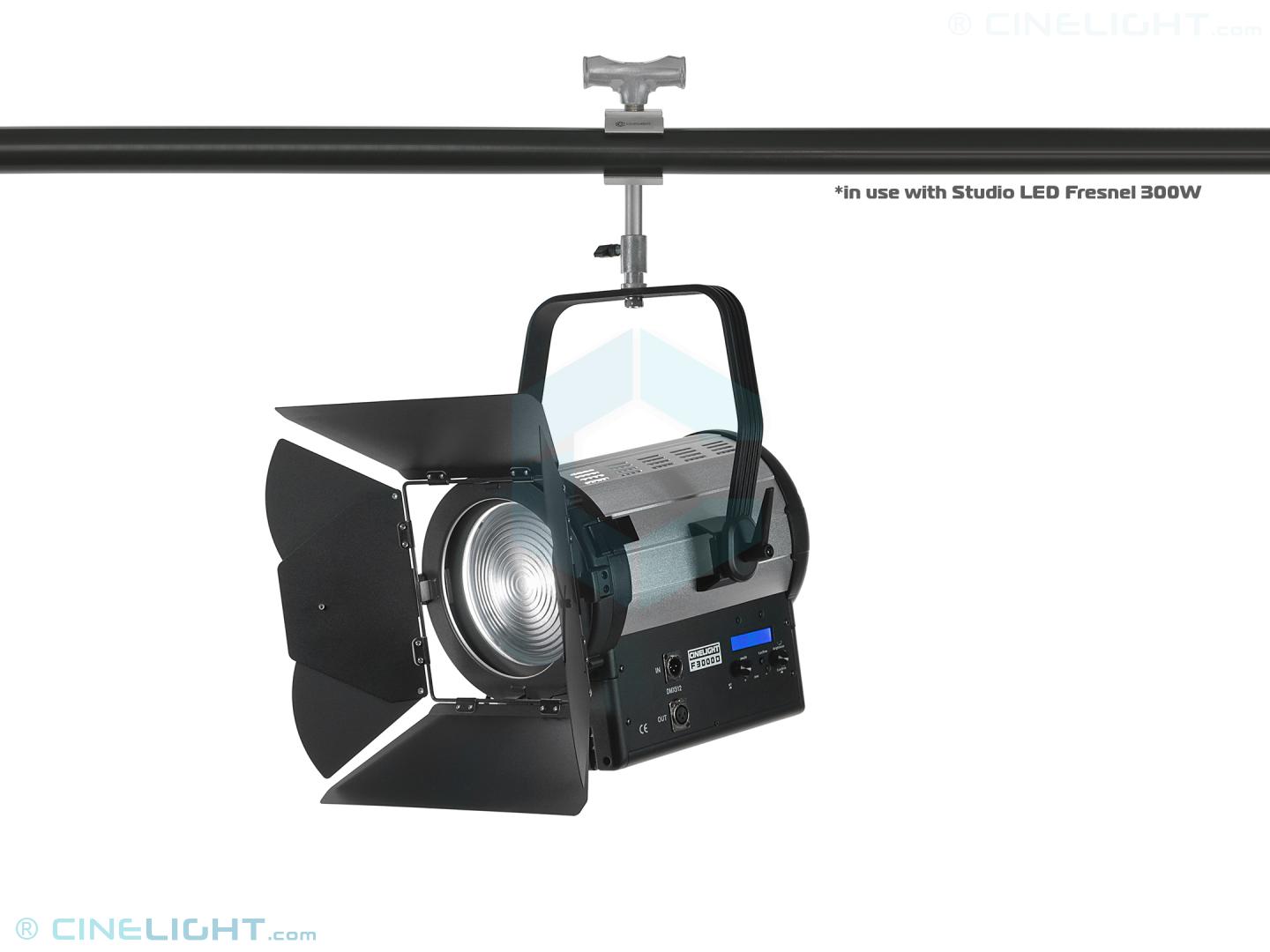

     With a grip inspired by Crab claws this grid clamp can be used to hang lights or accessories on overhead grids, truss tubular pipes or car rigs.

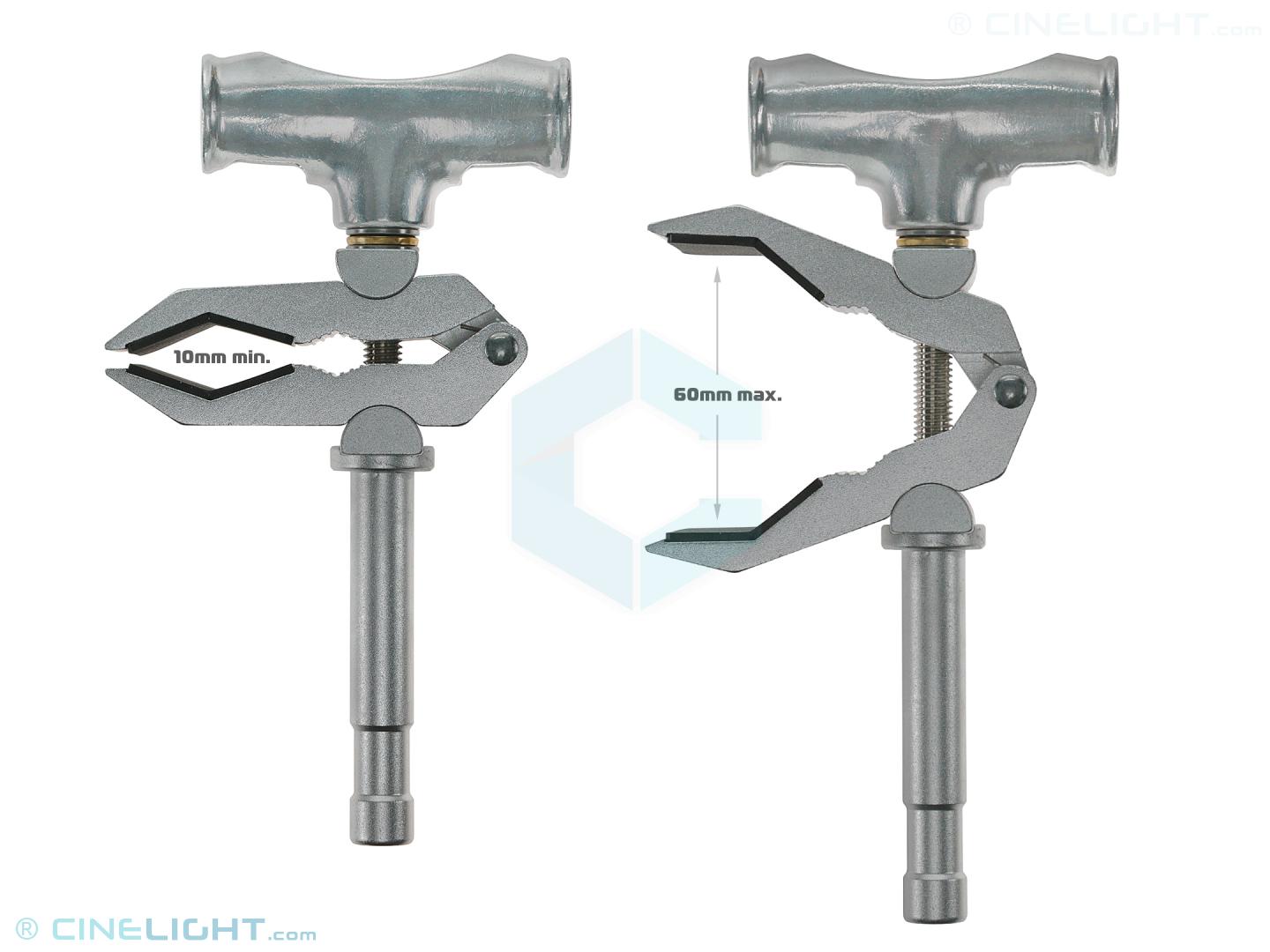

     The clamp can be securely gripped on tubular pipes with diameters between 10 mm up to 60 mm. The jaws are rubber padded for increased grip and surface protection.

     The oversized "T" locking handle features dedicated roller bearings designed for anti-seize and maximum torque when tighten.

     The 16 mm (5/8") spigot stud has 90 mm length with a 3/8" thread on the bottom.

     The crab clamp is made of die-cast aluminum and has a rated payload of 50 kg.

     Similar to Little Ben Clamp 425157, Baby Pipe Clamp.

Specifications

Specifications

Grip & Mounting

Grip type Clamp
Mounting Stud 16mm (5/8")
Openings 10-60 mm
Max opening 60 mm
Maximum payload 50 kg

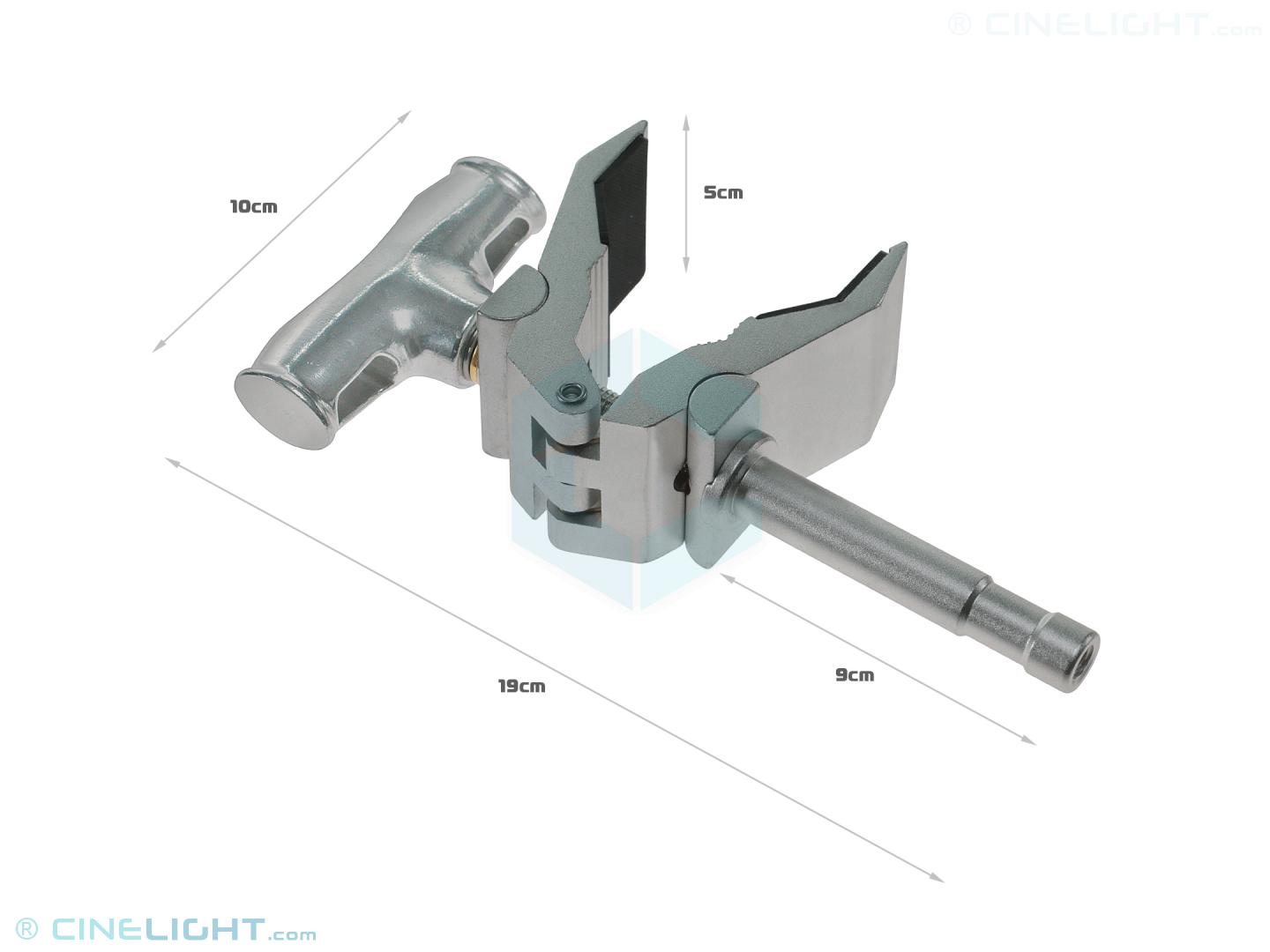

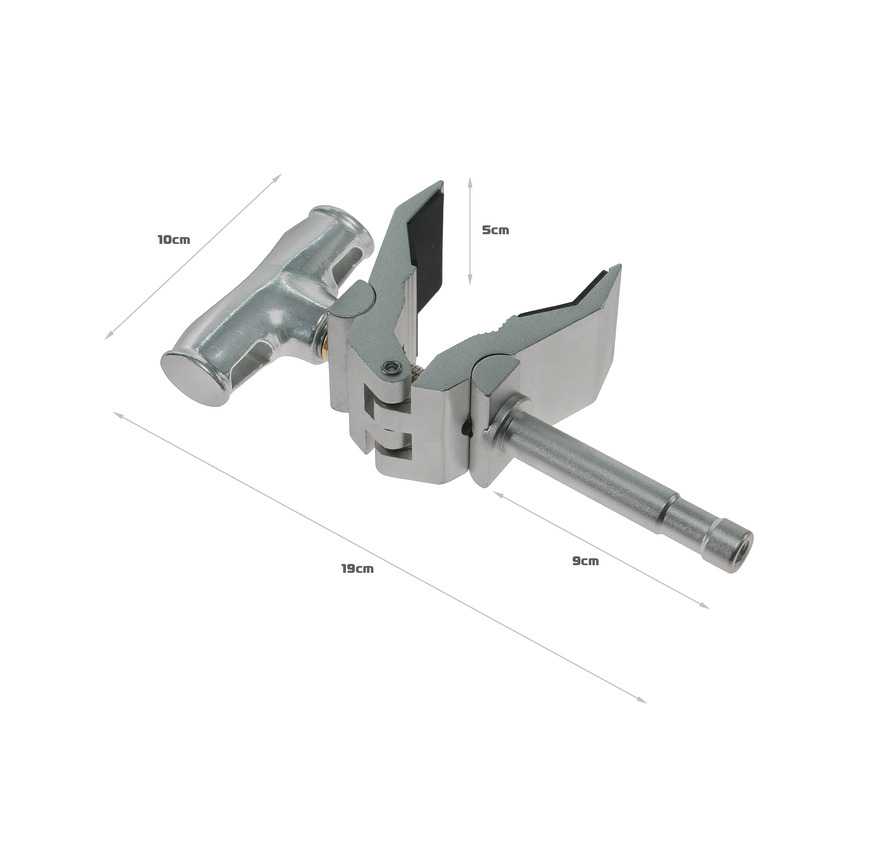

Overall size 19x10x5 cm
Color Silver
Material Aluminum
Weight 0.5 kg
