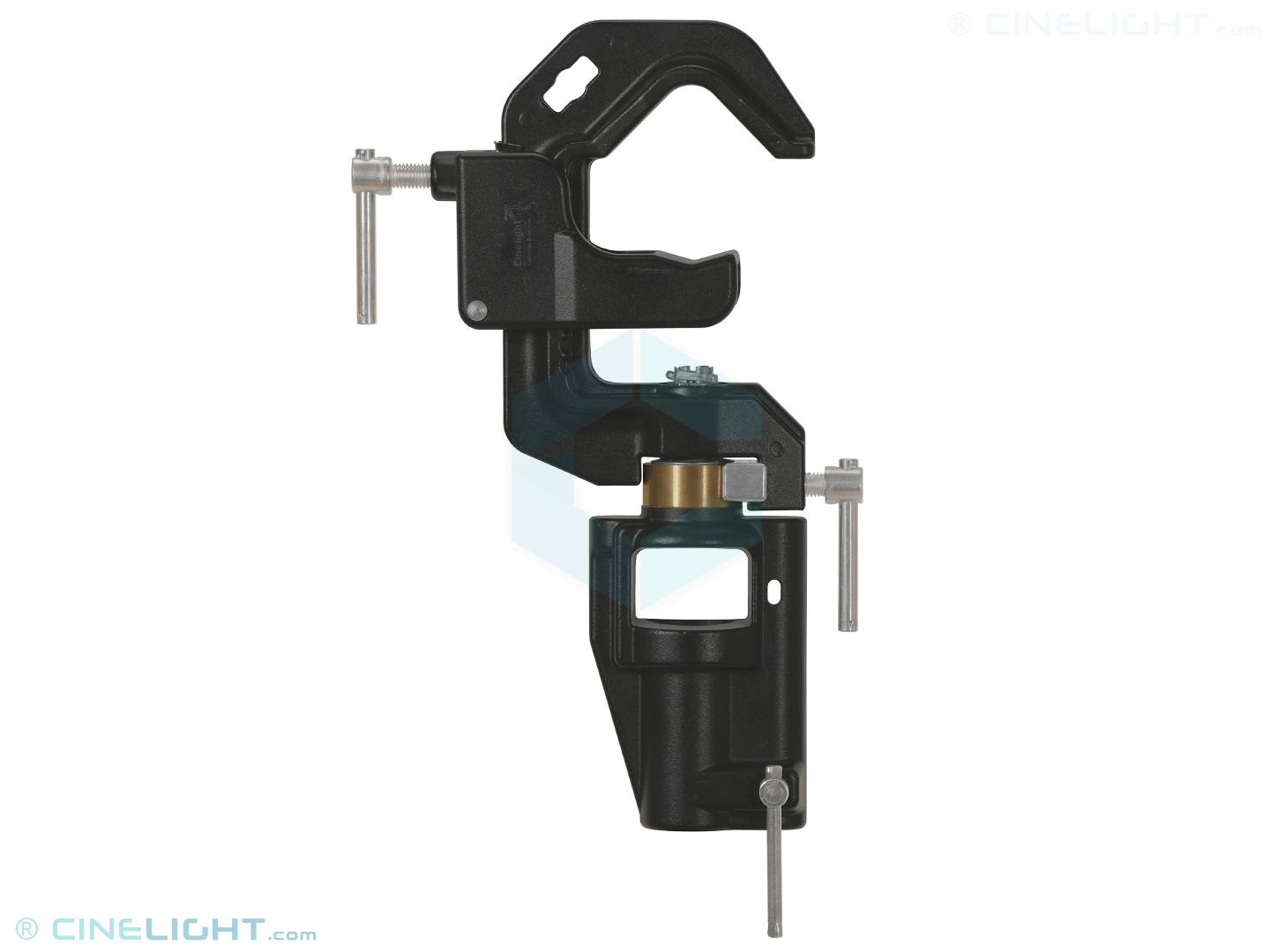

C-150 Swiveling Pipe Clamp 28 & 16 mm
€8900
Heavy duty C150 C-Clamp with swiveling Junior 28mm receiver designed to mount studio lighting fixtures on trusses and grid pipes with a diameter between 28 and 78 mm.
The structure is very solid and robust, made from gravity die casting aluminum ensuring better mechanical properties and a better quality of the product comparing to classic sand casting grip tools.
The clamp allows for mounting both small and large, heavy fixtures having two different attachment sizes: Baby 5/8" (16 mm) spigot & receiver and Junior 1-1/8" (28 mm) receiver.
The swiveling system allows for easy orientation of the hanged fixture without going through the trouble of loosening it from the mount. The swivel system is also equipped with a lock into position mechanism.
This clamp also features a cable lock to secure the junior 28 mm pin of the fixture when mounted and prevent an accidental loosening.
The load capacity of the clamp is up 10 Kg on the baby 5/8" (16 mm) attachment and up to 50 Kg on the junior 1-1/8" (28 mm) attachment.
Similar with other brands clamps: C150 swiveling C-clamp, KCP-150 Swiveling Pipe C Clamp w/ Universal Head.
Clamp weight: 1.90 Kg
Specifications
Grip & Mounting
| Grip type | Clamp |
| Mounting | Receiver 28mm & Stud 16mm |
| Openings | 28-78 mm |
| Max opening | 78 mm |
| Maximum payload | 50 kg |
| Overall size | 32 x 20 x 7.5 cm |
| Color | Black |
| Material | Steel alloy |
| Weight | 1.9 kg |
