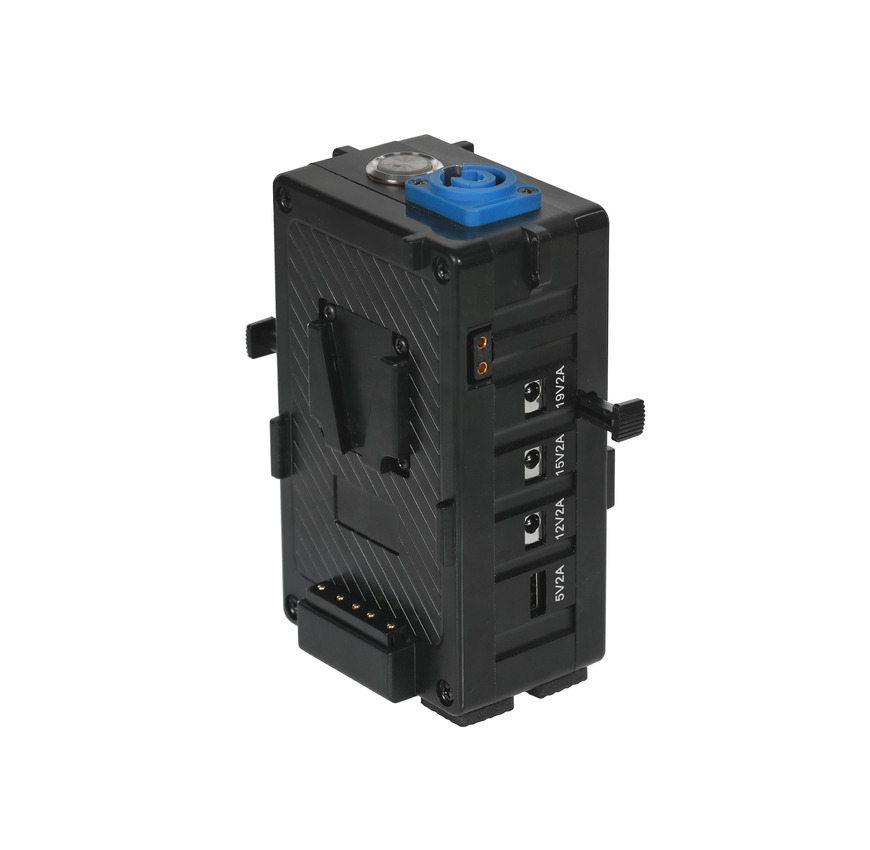

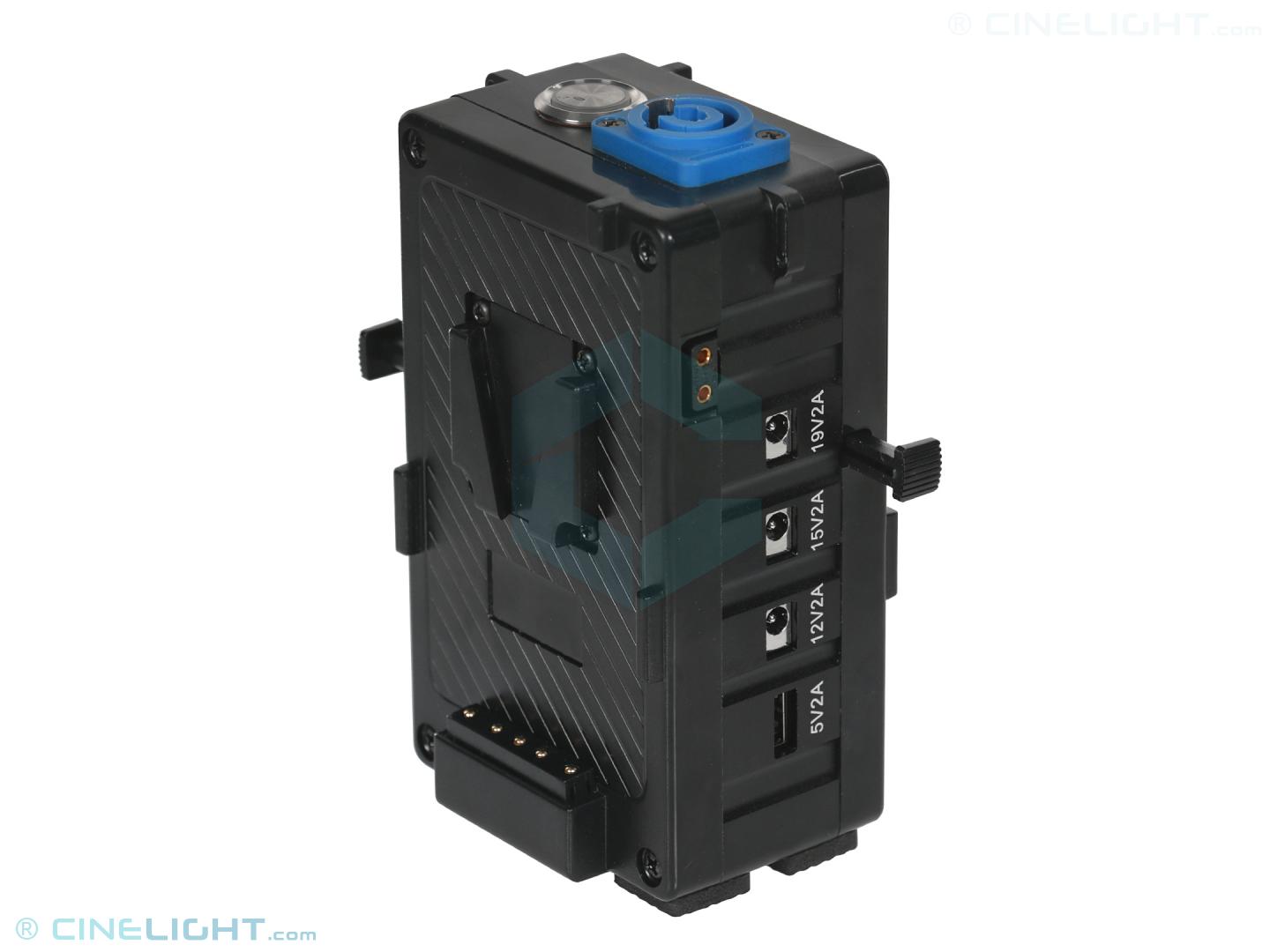

Dual V-Mount Multi Voltage Output Adapter

     Multi voltage output adapter working with V-Lock batteries for powering a wide range of DC devices such as: phones, tables, monitors, cameras, external recorders, lights and many other DC voltage compatible devices.

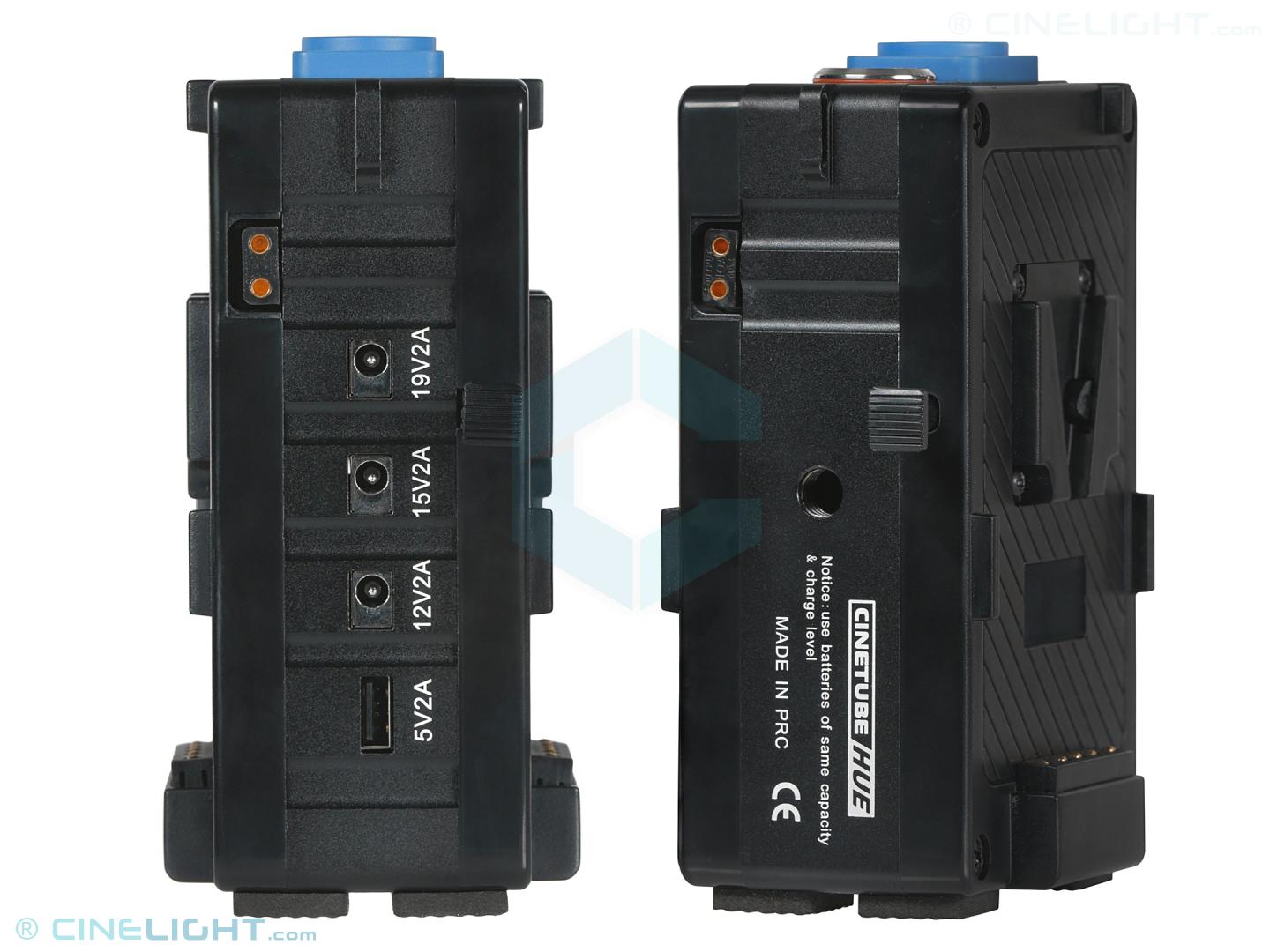

     The device converts the 15V voltage from the V-Mount batteries to the following voltages: 5V via USB type A port, 12V / 15V / 19V via DC 5.5*2.5mm barrel ports.

     This adapter can work either with one or two V-Mount batteries installed. By installing two V-Mount batteries a higher current can be outputted via the Powercon connector for devices that are demanding for more power than if a single battery is capable to output.

     Using the dedicated high current output Powercon port, the adapter can power & charge simultaneously up to 4 CineTUBE HUE 120* or up to 8 CineTUBE HUE 60* tube LED lights - *when two batteries are installed.     This multi voltage output adapter is especially useful on locations where AC power is not available and there is a need to extend the runtime of the CineTUBE HUE lights beyond the autonomy offered by the CineTUBE's built-in batteries.

     Along with this adapter, a set of interchangeable power plug terminals is provided to fit common brands devices like: DELL, Lenovo, HP, Samsung, Sony, Toshiba (any many others) for powering and charging various devices like monitors, recorders, notebooks and other devices matching any of the voltage output by the adapter (5V / 12V / 15V / 19V).

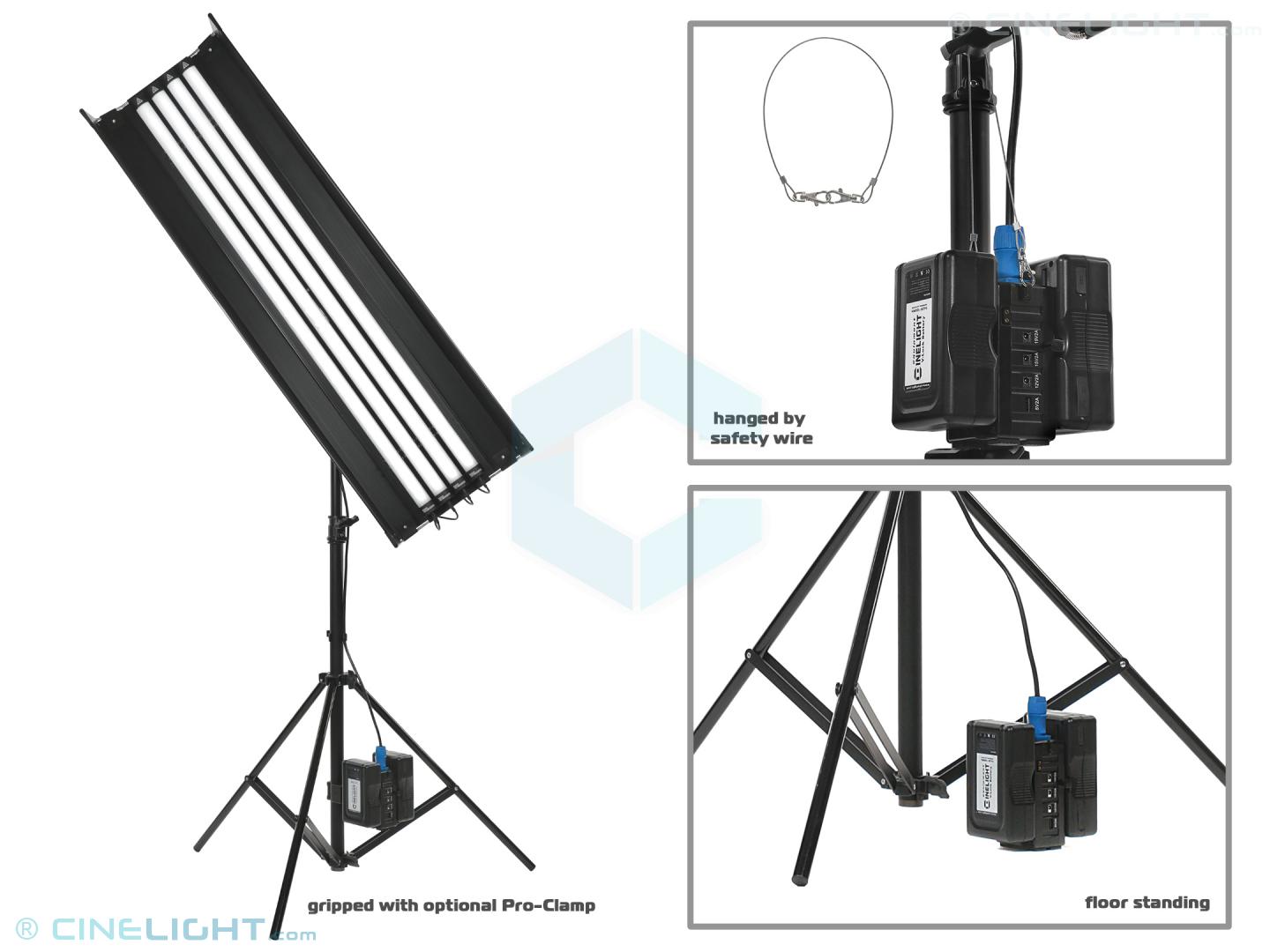

     The device's body features a 3/8" threaded whole for screwing a clamp and conveniently grip it on various studio objects.

     Input voltage: 15VDC max 10A

     Output voltages:  5V - max 2A / USB type A
                             12V, 15V, 19V  - max 2A / barrel 2.1 mm
                             15V - max 10A  / 2 x D-Tap

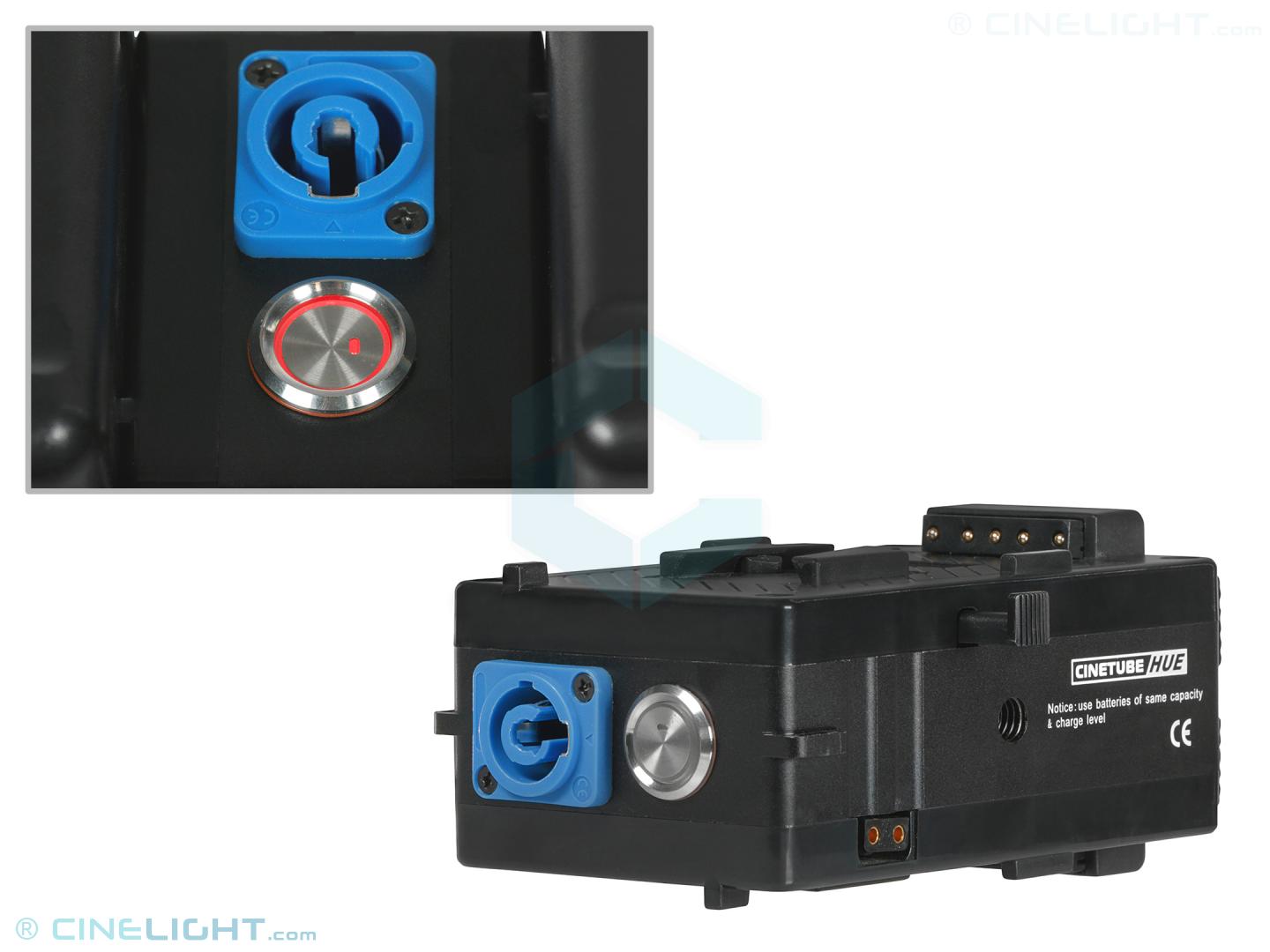

                             15V - max 16A / Powercon*

     *For reaching the high current output of 16A via Powercon port it is required to install two V-Mount batteries.

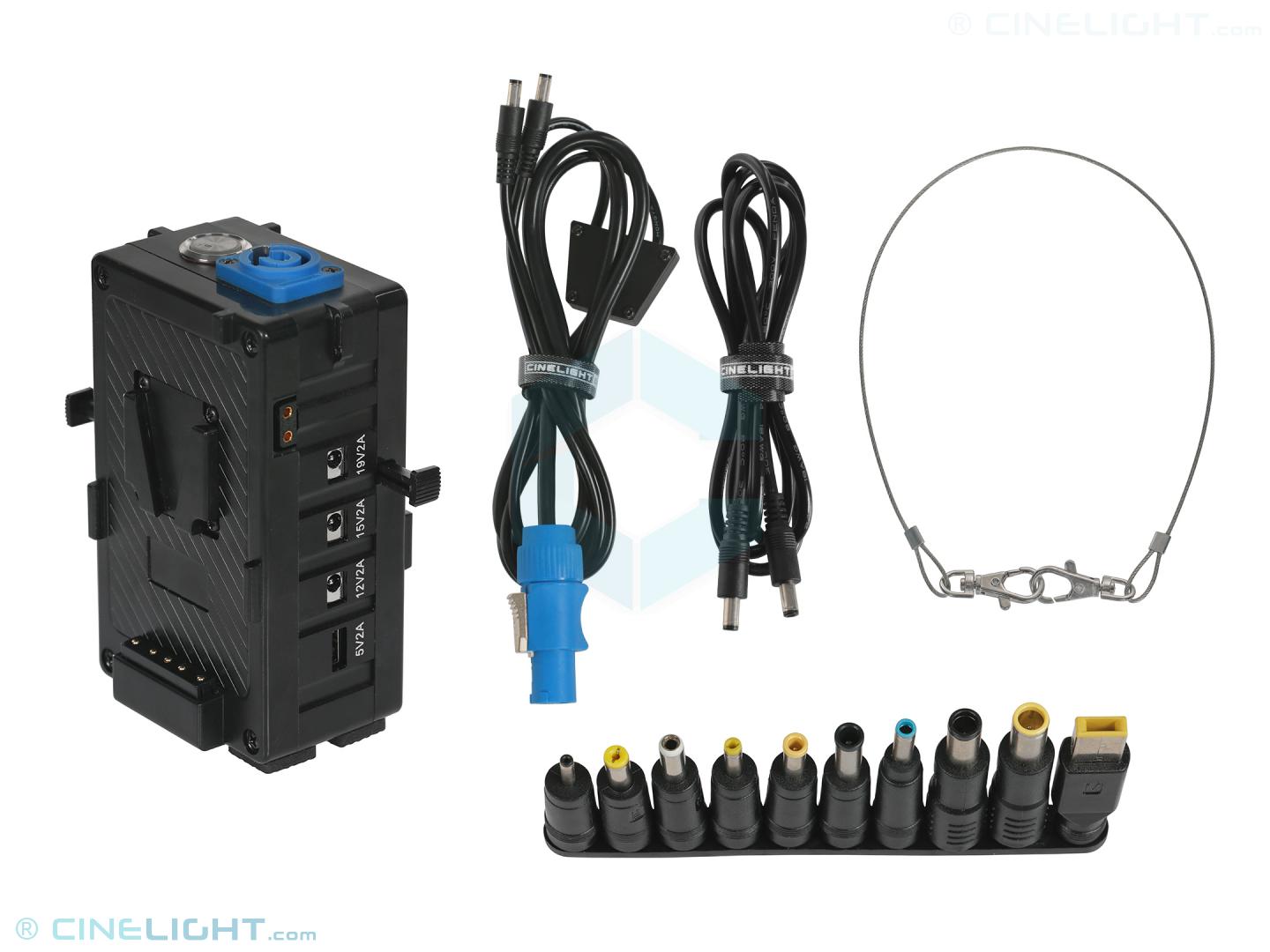

     Content of terminals pack for various brands:

          1 x Lenovo square tip
          1 x 7.9*5.5 mm - Yellow - for Lenovo IBM Thinkpad
          1 x 7.4*5.0 mm - Black - for Dell, HP Compaq Pavilion
          1 x 4.5*3.0 mm - Blue - center pin inside, for HP
          1 x 6.0*1.4mm Core pin - Black - for Samsung, Fujitsu, Sony
          1 x 5.0*1.1mm Core Pin - Yellow
          1 x 5.5*1.7mm Tuning Fork - Yellow - for Hasee, Acer, Lenovo, Asus, BenQ, Toshiba
          1 x 4.0*1.7mm Tuning Fork - Yellow - for Asus, BenQ, acer, SonyPSP, HP(mini), GPS Navigator
          1 x 5.5*2.5mm DC - White - for Lenovo, Asus, Acer, MSI, BenQ, Toshiba, IBM, Gateway, Haier
          1 x 2.0*0.5mm Tuning Fork – Black
