SKU: LHA-15MCABLE6000W
- Connects the lamp head to ballast
- Length: 15m
- For HMI 6KW/9KW fixtures

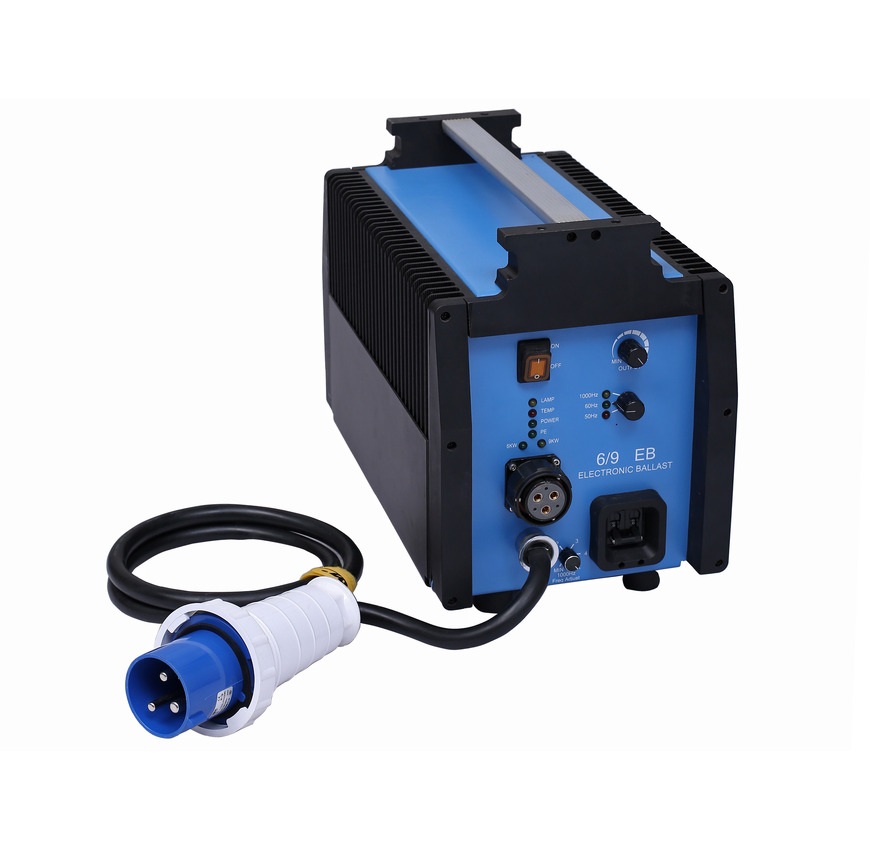

HMI MAX M90 Kit
- Dual-power: 6000W / 9000W
- MAX lens-less reflector
- HMI 6000K G38 metal-halide lamp
- Electronic Ballast 1KHz flicker free
- Dual-wattage ballast 6000W/9000W
- Includes barndoors
- M90 head hard case optional
- DMX512 control option
€18'99000
Specifications
HMI - Fixture
| Rated power | 9000 watts |
| Lamp type | HMI |
| Lamp socket | GX38 |
| Color temperature | 6000K |
| Beam angle | 20°-55° |
| Lens type | MAX |
| Lens size | 500 mm |
| Filter slot size | 571 mm |
| Barndoors slot size | 584 mm |
| Spot-Flood selector type | Mechanical |
| Yoke mount | Spigot 28mm pin |
| Housing color | Gray & blue |
| Housing material | Aluminum |
| Lamp head dimensions | 71.5 x 62.5 x 60 cm |
| Lamp head weight | 40 kg |
HMI - Ballast
| Ballast power | 9000 watts |
| Ballast line power | 11200 VA |
| Ballast nominal current | 56-44A |
| Ballast operation voltage | 190-245 VAC |
| Ballast frequency | 50-60 Hz |
| Ballast current characteristics | Square wave, 75Hz |
| Ballast power factor | 0.98 |
| Ballast dimming range | 100%-50% |
| Ballast starting | Hot & cold restrike |
| DMX control | Optional |
| DMX connectors type | XLR-5P |
| ballast power cable length | 7.5m |
| Power cord total length | 3.5m |
| Ballast dimensions | 49 x 27.5 x 36.5 cm |
| Ballast weight | 30 kg |
| Ballast protection class | IP32 |
Accessories & Bundles
SKU: GCX-JPC100B
- Fits on 16 to 55 mm diameters
- Studio hanging C-Clamp for pipe grids
- Junior spigot receiver 28m ( 1-1/8")
- Safety pin against accidental extraction
- Tommy bar for improved gripping
- As: C100, KCP-100B, 429619, LC.1000.A
SKU: SBX-WSTAND280CMHD
- Payload: 40 Kg
- Max height: 280 cm | Min height: 170 cm
- Junior receiver (28mm) top
- Oversized slip-free handle with self lock
- Built-in levelling leg
- Braked wheels included
- Material: steel
- Aka: crank stand, crank-up stand, vator stand
- As: LS.6, 438SH, B6026CS, KS-403512
Q & A ( 0 )
Ask a question
Your Question has been successfully sent our team. Thanks for this!
Your Question has been successfully sent our team. Thanks for this!
Reviews ( 0 )
Your Review has been successfully sent our team. Thanks for this!
SKU: GEX-MAGARM2SM
- Articulated arm for lights, camera & accessories
- Aka variable friction arm
- 2 swivel 360° ball heads with 90° tilt
- 5/8" end studs with 3/8" and 1/4" male screws
- Large locking knob for easy adjustments
- Full length (including spigots): 53 cm
- Payload: 4 Kg
- As: 244N, KCP101W, 350627, L2.0005203
SKU: LLP-GEMX400RGBW
- Power: 400 watts
- Light output: 73000 lx @ 1m
- CCT: 2700K-10000K
- High output RGBW narrow-spot LED's
- Water & dust resistant IP65
- Robust heavy duty aluminum housing
- CCT / HSI-HUE360 / CIE XY / Gels / FX
- Wired DMX XLR 5P with RDM support
- Wireless DMX (W-DMX) CRMX by LumenRadio
- BT App support Luminair & Blackout
- 4 dimming curves. 8 & 16 bit control
- Optional 2-axis Pole Operated yoke (PO stirrup)
- Barndoors, softbox, grid, dome diffuser
SKU: MRX-DIFFFAB1520
- Replacement diffusion fabric for Butterfly 200x150
- Translucent white layer
- Used to diffuse the light & soften the shadows
- Easy to attach Velcro system
SKU: LTP-FLENS80MM
- Replacement Fresnel lens for Junior 300W
- Lens diameter: 80 mm
- Material: Borosolicate glass
SKU: SAX-STWHEELS25X25
- Stand wheels for increased mobility
- Made from high density plastic, inside bearings and rubber coating
- Metal chassis
- Brakes on every wheel
- Required stand leg section: 25x25 mm (square profile)
- As: A9000N, 366170
SKU: LFS-STD220
- Power: 220W
- Light output: 6500lx @ 1m
- Lamp type: 2G11 55W
- Size: 66 x 37 x 12 cm | 5.2 kg
- Professional Osram Quicktronic HF ballast
- Deep metal housing with highly reflective interior
- Optional: honeycomb grid, dispersion filter
SKU: LTP-OSRAM64571
- For Redhead 800W
- Product code: 64571
- ANSI code: DXX
- Lamp socket: R7S
- Power: 800 watts
- Voltage: 230V
- Output: 21000 lm
- Color temperature: 3200K
SKU: SSK-JCOMBO300CM
- Payload: 20 kg
- Stand max height: 530 cm
- Stand min height: 168 cm
- Boom max height: 300 cm
- Boom min height: 133 cm
- Boom length: 148 - 250 cm
- Folded length: 168 cm
- Combo mounts: 28 mm receiver & 16 mm pin
- Convertible upper column in boom arm
- Strong pivoting collar with oversized handle
- Wheels and sand bag included
- Material: steel
- As 546M, KS501311, A4050CS,
SKU: LTF-J5000W
- Power: 5000W
- Light output: 4800lx (spot) / 1360lx (flood) @ 8m
- Size: 76 x 48 x 37 cm | 16 Kg
- Adjustable beam angle from spot 15° to flood 60°
- High quality Fresnel lens with short focal length
- Sturdy die cast aluminum construction
- Optional accessories: scrim kit, filter frame, dimmer
SKU: LHA-15MCABLE4000W
- Connects the lamp head to ballast
- Length: 15m
- For HMI 2.5KW/4KW fixtures
