SKU: LHA-15CABLE18KW
- Connects the lamp head to ballast
- Length: 15m
- For HMI 12KW/18KW fixtures
HMI CINE-MAX 18/12 Kit
- Dual-power: 12KWW / 18KW
- MAX lens-less reflector
- HMI 6000K GX51/38 metal-halide lamp
- Electronic Ballast 1KHz flicker free
- Dual wattage ballast 12/18 KW
- Includes barndoors, wheeled EB support
- DMX512 control option
€21'99000
Specifications
HMI - Fixture
| Rated power | 18000 watts |
| Lamp type | HMI |
| Lamp socket | GX38 |
| Color temperature | 6000K |
| Beam angle | 25°-65° |
| Lens type | MAX |
| Lens size | 646 mm |
| Filter slot size | 740 mm |
| Barndoors slot size | 740 mm |
| Spot-Flood selector type | Mechanical |
| Yoke mount | Spigot 28mm pin |
| Housing color | Gray & blue |
| Housing material | Aluminum |
| Lamp head weight | 70 kg |

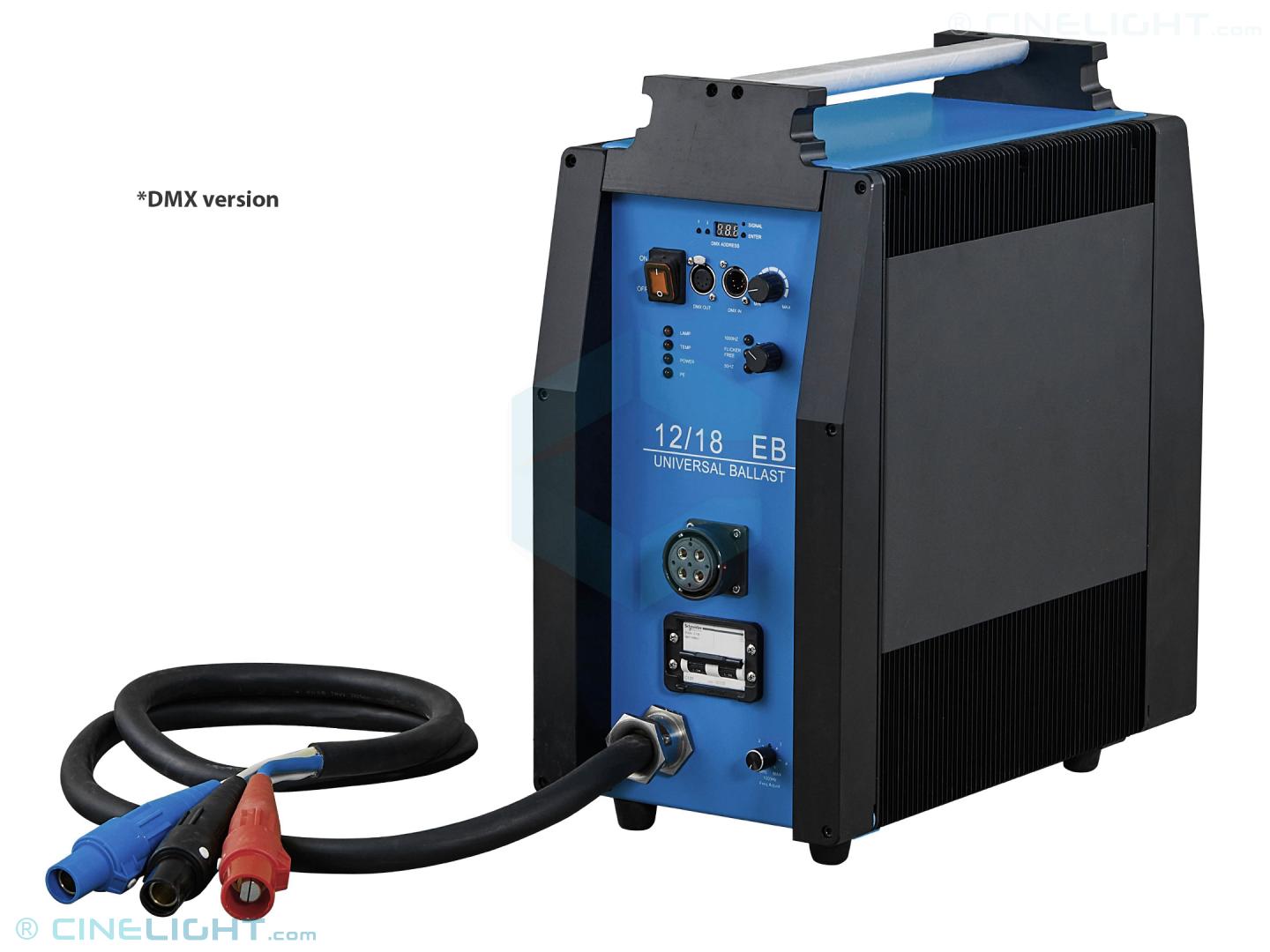

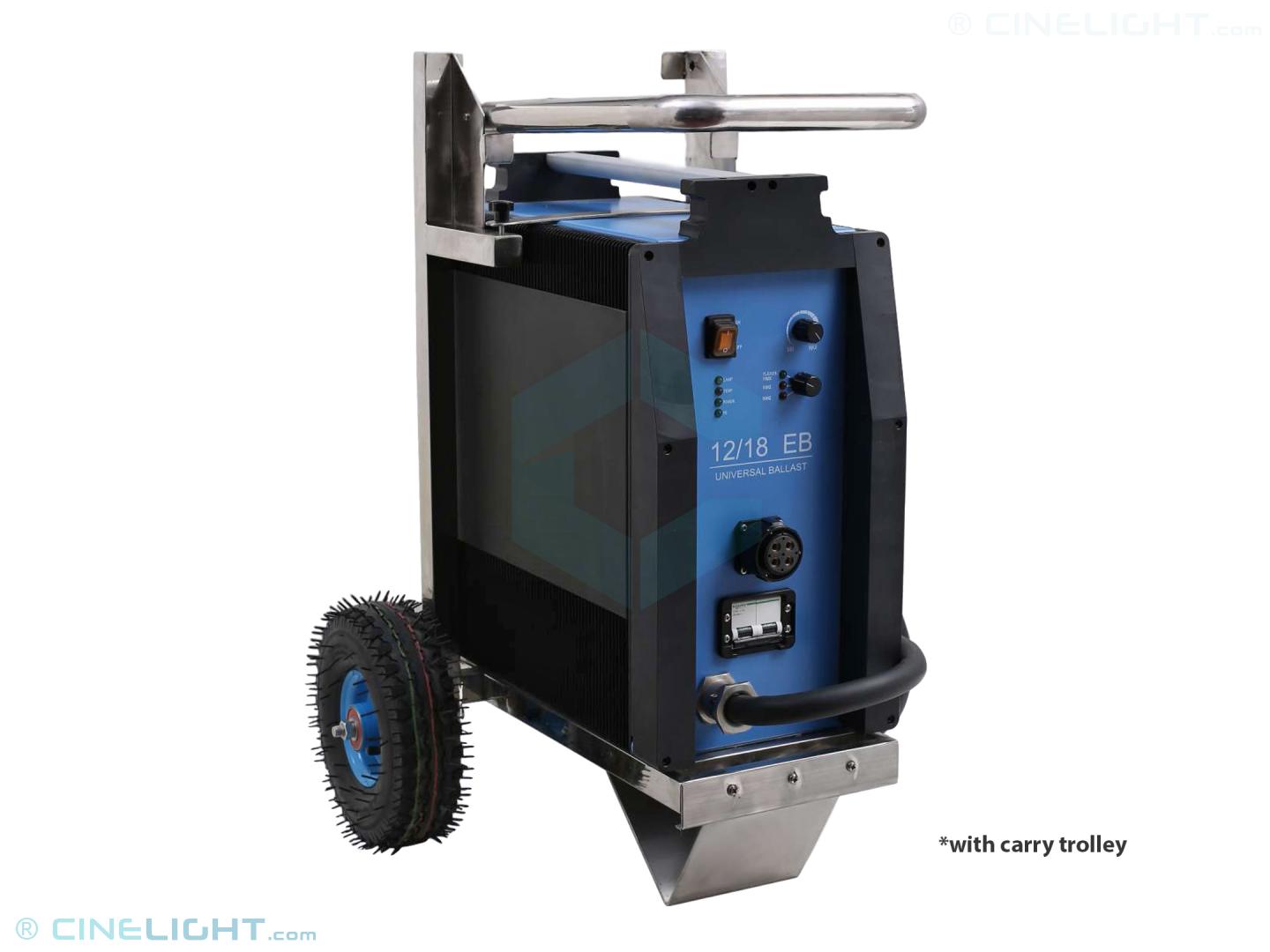

HMI - Ballast
| Ballast power | 18000 watts |
| Ballast line power | 19400 VA |
| Ballast nominal current | 68-102A |
| Ballast operation voltage | 190-245 VAC |
| Ballast frequency | 50-60Hz |
| Ballast current characteristics | Square wave, 75Hz |
| Ballast power factor | 0.98 |
| Ballast dimming range | 100%-50% |
| Ballast starting | Hot & cold restrike |
| DMX control | Optional |
| DMX connectors type | XLR-5P |
| ballast power cable length | 15 m |
| Power cord total length | 5 m |
| Ballast dimensions | 27 x 55 x 51 cm |
| Ballast weight | 47 kg |
| Ballast protection class | IP32 |
Accessories & Bundles
SKU: SBX-WSTAND280CMHD
- Payload: 40 Kg
- Max height: 280 cm | Min height: 170 cm
- Junior receiver (28mm) top
- Oversized slip-free handle with self lock
- Built-in levelling leg
- Braked wheels included
- Material: steel
- Aka: crank stand, crank-up stand, vator stand
- As: LS.6, 438SH, B6026CS, KS-403512
Q & A ( 0 )
Ask a question
Your Question has been successfully sent our team. Thanks for this!
Your Question has been successfully sent our team. Thanks for this!
Reviews ( 0 )
Your Review has been successfully sent our team. Thanks for this!
SKU: LTA-BNDF300W
- 4 leaf barndoors for Junior Fresnel 300W
- Used to control and shape the light beam
- Heat resistant and treated against rust
SKU: SHX-PANTOGR40200
- Stepless extensible from 40 to 200 cm
- Maximum payload 10kg using only the friction device
- Spigot 16mm receiver on both ends
- Cable guiders on pantograph's edge
- Includes track runner with bearing wheels
SKU: LLS-SF300WRGBW
- Power: 300W
- Light output: 47'000 lx @ 1m
- CCT: 2800K-6500K + RGB | CRI / TLCI 98
- 5in1 RGB+Bi-Color COB LED engine
- Size: 37 x 41 x 32 cm | 8 kg
- Adjustable beam angle from 35° to 65°
- Die-cast aluminum housing
- Local, BT APP & DMX512 control
- 14 programs with lighting effects
- 22 gels library
- 4 dimming curves
SKU: LTK-PACK3XJ650W
- 3 x Fresnel 650W heads
- 3 x Barndoors 4 leaf
- 3 x Power cables 7m
SKU: SSB-BSTAND385CMB
- Payload: 5 Kg
- Max height: 380 cm | Min height: 130 cm
- 16 mm mounting spigot (5/8" stud)
- Air-cushioned
- Material: aluminum
SKU: GAX-SPIGSP4M8F
- 16mm spigot adapter
- 3/8" screw & 1/4" threaded hole
- Total length: 40 mm
SKU: LLP-SPACELED8BC
- Power: 1200 watts
- Light output: 14500 lx @ 3m
- CCT: 2600K-6000K
- Round shape as Space Light 9K
- Beam focusing mechanism
- 8 pixel individual control
- Wired DMX & Wireless DMX
- Stand or hanged operation
- Included black & white skirts
- Aka SpaceLite LED Light, LED Space light
SKU: SHX-SCARRIAGE
- Single track carriage / sled with 16mm spigot
- Provided with brake
- Rubber wheels with bearings inside
- Silent and smooth movements
- Suitable for payloads up to 15 Kg
SKU: LTP-PAR641KWX16D
- For Maxi Brute and Maxi SpaceLight
- Product code: CP62 EXE
- Lamp socket: GX16D
- Power: 1000 watts
- Voltage: 230V
- Output: 12000 lm
- Color temperature: 3200K
- CRI: 95+ Ra
SKU: LFP-CINEFLO4F4B
- Power: 300W
- Lamp type: G13 KinoFlo True Match T12 75W
- Lamp control: Analog ON/OFF - four switches
- Size & weight: 130 x 33 x 7.5 cm | 5.2 kg
- External flicker free 4 bank - select ballast
- Detachable harness with color labeled lamp cables
- Lightweight polypropylene housing with reinforced ends
