Space LED 6 - Bi-Color
€1'99900

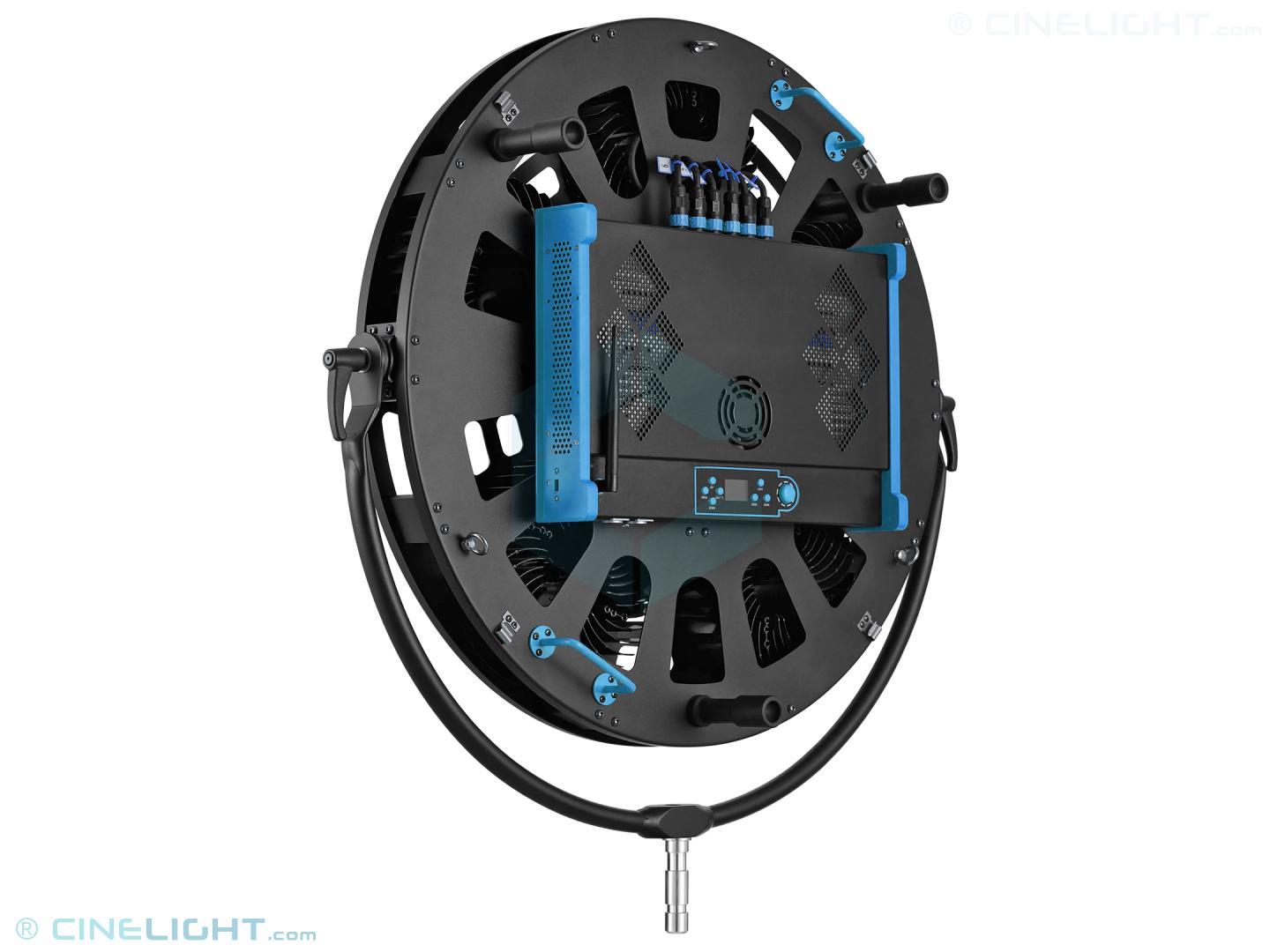

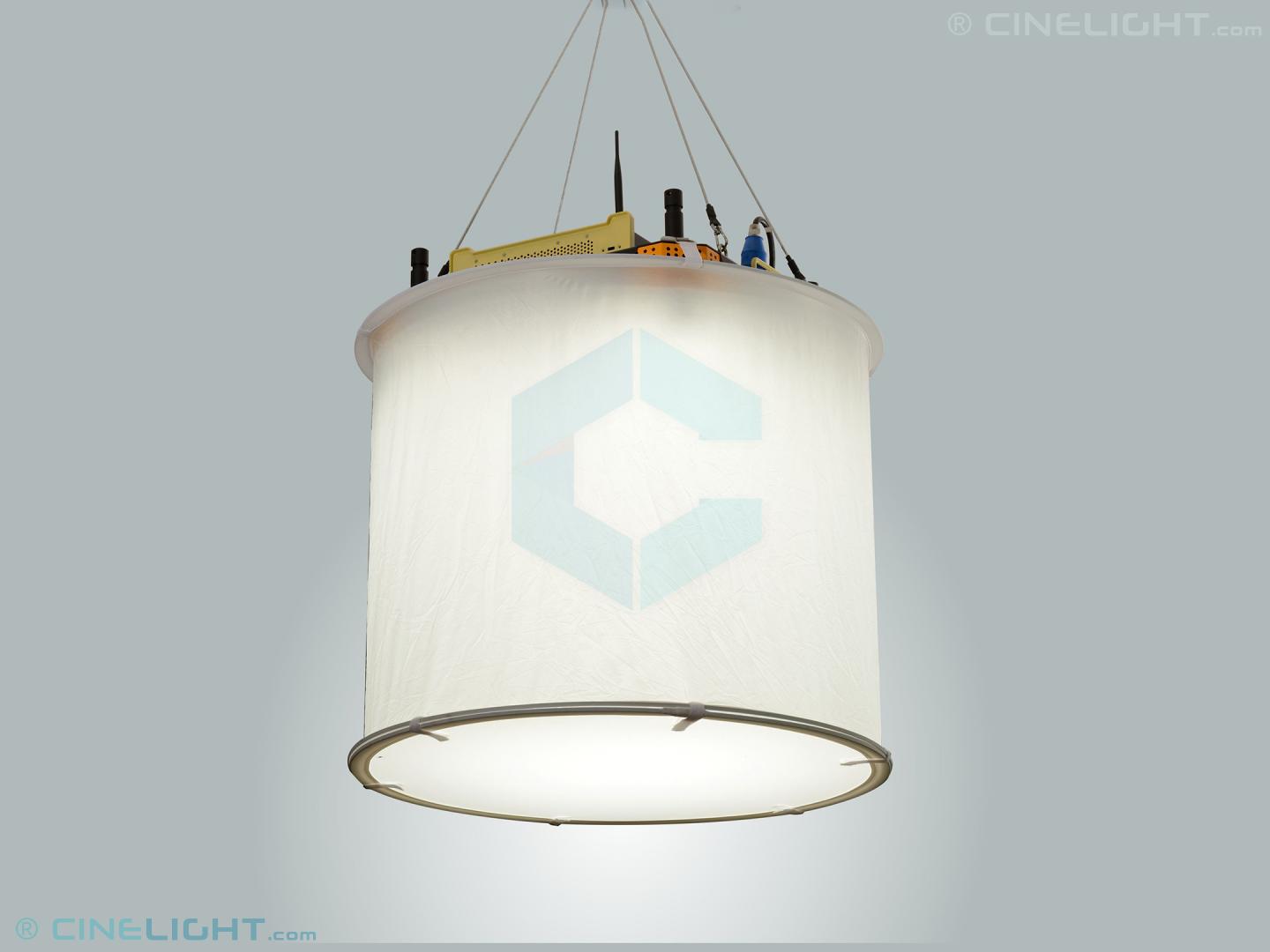

The new Space LED 6 series are aimed to replace the classic incandescent Space Light 6KW. It is delivered with a black (opaque) cylindrical skirt and white (diffusion) cylindrical skirt with bottom cover.
The Space LED 6 is designed to be suspended as a Space Light / overhead light but can also be mounted on a junior / combo stand like traditional Maxi-Brute / studio Dino light thanks to the included "U" support yoke with 28mm stud.
The Space LED 6 delivers up to 900W power from the 6 separate LED arrays. These LED arrays work simultaneously to provide adjustable color temperature from 2600K – 6000K, and a smooth dimmable output from 0% – 100% with no green or magenta shift at any brightness or CCT setting. Additionally in Pixel Mode is it possible to control each LED spotlight individually with full control over CCT and LUX, great for visual lighting effects.
Adjusting the brightness, color temperature, FX or other settings can be done locally, from the back panel controller using an intuitive color menu system or remotely via wired DMX protocol and wirelessly via W-DMX CRMX by LumenRadio protocol. Additionally, the light can be controlled using a phone or tablet (IOS & Android) over WIFI 2.4Ghz network. Different control options are key in todays stage, tv studios & film making industry.
In front of the LED's there is a Fresnel lens installed which ensures a smooth & uniform light within the beam area.
The steel and aluminum materials used to build the Space LED 6 body contribute to a relative low weight of the fixture and also makes it robust to withstand the intensive studio use. Suitable for stage & film lighting rental companies,
A combination of passive & active cooling systems provides excellent heat management with minimal sound. The low noise fan will start to spin only after the setpoint temperature of 70° is reached.
- Head only size & weight : 80W x 80H x 23D cm | 23 kg
- Overall size & weight (including yoke bar): 92W x 102H x 23D cm | 26 kg
- Can be used hanged by the chains (included) or mounted on a stand using the yoke bar (included)
- Includes black & white skirt, transport hard case
- Optional accessories: softbox with grid
Specifications
LED Panels - Fixture
LED type | Bi-Color |
LED no | 6 |
Beam angle | 45° |
Beam type | flood |
Photometrics | 3m: 11900 lx | 6m: 3500 lx | 9m: 1900 lx |
Color temperature | 2600K-6000K |
TLCI rating | 98 |
CRI rating | 97 |
APP support | Android & IOS |
Dimming range | 100%-0% |
Dimming curves | Yes |
Wireless DMX | CRMX |
Cooling system | Active |
Display type | Complex - color |
LED Panels - Controls
Local functions control | Analog |
DMX control | Yes |
DMX connectors type | XLR-5P |
Wireless DMX | CRMX |
Dimming curves | Yes |
Bluetooth / WIFI APP control | Yes |
APP support | Android & IOS |
Radio remote control | No |
LED Panels - Powering
Rated power | 900 watts |
Voltage input | 100-240V 50 / 60 Hz |
Power source | Internal, AC 100-240V 50 / 60 Hz |
Battery | No |
Battery mount | N/A |
Plug in connector type | PowerCon |
Power cord total length | 5.0 m |
Power connector type | CEE 7/7 |
LED Panels - Physical
Yoke mount | Spigot 28mm pin |
Housing material | Metal |
Housing color | Black |
Lamp head dimensions | 80 x 23 cm |
Lamp head weight | 23 kg |
