Maxi LED 9 - RGBW
- RGB + Bi-Color LED chips
- Power: 1400 watts
- Light output: 18'500 lx @ 3m
- CCT: 2600K-6000K
- CCT / HSI / RGBWW modes
- Rosco & LEE gel library
- 20 lighting effects (FX)
- 9 pixel individual control
- Wired DMX & Wireless CRMX
- Stand or hanged operation
- Includes softbox with grid
- Optional black & white skirts
- Aka Dino light, Megabrute 9, Luxed 9
€3'39900
The MAXI LED 9, also known on film sets as Dino Light 9 / Megabrute 9, is a high-output LED fixture designed to provide soft light over large area.
The MAXI LED 9 RGBW delivers up to 1400W power of full spectrum light from the 5 color LED chips (red, green, blue, yellow, white). These 5 color chips work simultaneously to provide rich & vibrant colors .
CCT, HSI and RGBW operation modes
CCT mode user can dial any color temperature from 2600K to 65000K in 100K step increments thanks to the dedicated Bi-Color LED's which ensure an accurate and high TCLI / CRI light output for accurate color rendering on cameras. Additionally the Plus / Minus Green function is available in CCT mode to perfectly blend with the color cast of other lighting sources (HMI, Fluorescent or older generation of LED’s) or precise color balancing for different camera sensors.
HSI mode user can intuitively select any color based on the 360° chromatic wheel. The vividness of a selected color is adjusted through the saturation function and the overall brightness is controlled by the dimming function.
RGBW mode user can individually adjust each color channels (red / green / blue , warm white/ cool white) for a precise color dialing.
Rosco / Lee gels library
The Maxi LED RGBW series includes a collection commonly used gels from LEE and ROSCO which can be quickly selected from the dedicated GEL mode. This feature simplifies the process of achieving the desired lighting effect, making it an invaluable tool for professionals working in varying lighting conditions.
Lighting effects (FX)
The Maxi LED RGBW series have special effects (FX) programmes with adjustable parameters to customize them for any specific need. Using the effect presets, the panel can simulate the light from a candle, the police car flashing lights, the fireworks, lighting and other commonly used dynamic lights. These lighting effects presets enhance the user's creativity and production value, being the most accessible way to create impressive dynamic scenes from the touch of a button.
Local & remote control
Adjusting the brightness, color temperature, FX or other settings can be done locally, from the back panel controller using an intuitive color menu system or remotely via wired DMX protocol and wirelessly via W-DMX CRMX / LumenRadio protocol. Additionally, the light can be controlled using a phone or tablet (IOS & Android) over WIFI 2.4Ghz network. Different control options are key in todays stage, tv studios & film making industry.
Pixel Mode
The Pixel Mode allows to control the Maxi LED in different ways: banks, rows or individually with full control (CCT, color or intensity) of each LED spotlight, great for visual lighting effects.
In front of the LED's there is a Fresnel lens installed which ensures a smooth & uniform light within the beam area.
The steel and aluminum materials used to build the MAXI LED body contribute to a relative low weight of the fixture and also makes it robust to withstand the intensive studio use. Suitable for stage & film lighting rental companies,
A combination of passive & active cooling systems provides excellent heat management with minimal sound. The low noise fan will start to spin only after the setpoint temperature of 70° is reached.
The new MAXI LED series is aimed to replace the classic incandescent Maxi-Brute lights at a fraction of the energy consumption. Particularly, the MAXI LED 4 & 6 can easily replace the classic Space Light 3KW and 6KW when hanged by the chains & combined with the included skirt set.
The fixture includes a "U" support yoke fitted with a 28mm stud for rigging on a junior / senior light stand like traditional Maxi-Brute / studio Dino lights.
Key features:
- RGB+WW+CW engine for reach & vibrant colors
- Dedicated Bi-Color chips for high CRI / TLCI color accuracy in CCT Mode.
- CRI: 98.5, TLCI: 99, DuV: 0.005 ; Rf:96 / Rg:101
- GEL library with Rosco & LEE color filters
- 20 built-in FX programs, customizable
- 9-Pixel mode control (individual head control for CCT, HUE & LUX)
- 4 dimming curves (linear / exponential / logarithmic / "s")
- 5 DMX profiles (5 / 6 / 7 / 13 / 25 channel allocation)
- 6 frequency options: 1 / 2 / 4 / 6 / 12 / 25 KHz
- Built-in wireless DMX support for CRMX by LumenRadio
- Wired & wireless master / slave control
- Head only size & weight : 85W x 85H x 23D cm | 33 kg
- Overall size & weight (including yoke bar): 101W x 106H x 23D cm | 37 kg

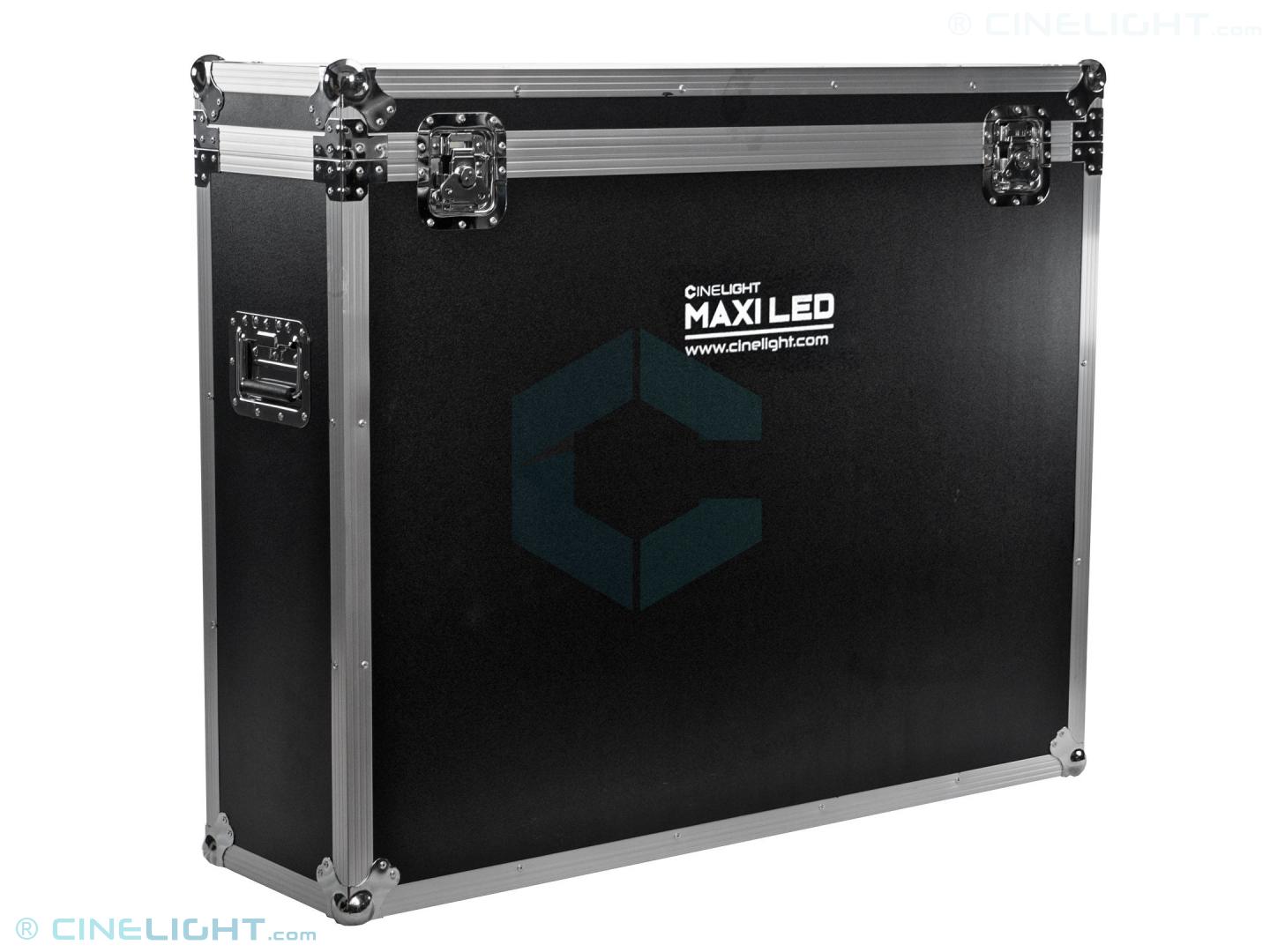

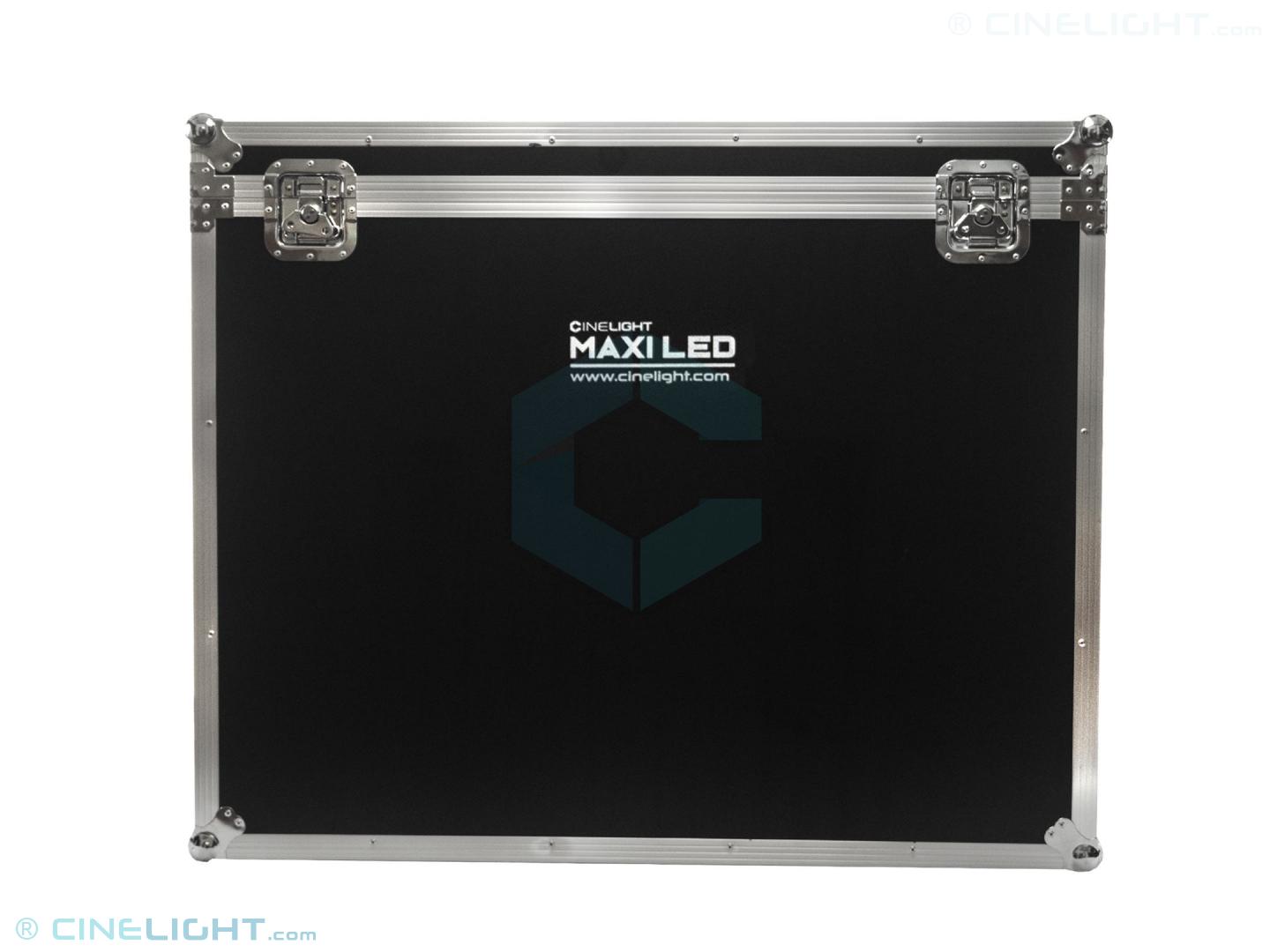

- Flight case size: 116 x 106 x 31 cm
- Can be used hanged by the chains (included) or mounted on a stand using the yoke bar
- Quickly detachable controller from the backside
- Includes softbox with grid, transport hard case.
- Optional accessories: black & white skirt set.
Specifications
LED Panels - Fixture
LED type | RGBW |
LED no | 9 |
Beam angle | 45° |
Beam type | semi-flood |
Photometrics | 3m: 18500 lx |
Color temperature | 2600K-6000K |
TLCI rating | 99 |
CRI rating | 98.5 |
APP support | Android & IOS |
Dimming range | 100%-0% |
Dimming curves | Yes |
Wireless DMX | CRMX |
Cooling system | Active |
Display type | Complex - color |
LED Panels - Controls
Local functions control | Analog |
DMX control | Yes |
DMX connectors type | XLR-5P |
Wireless DMX | CRMX |
Dimming curves | Yes |
Bluetooth / WIFI APP control | Yes |
APP support | Android & IOS |
Radio remote control | No |
LED Panels - Powering
Rated power | 1400 watts |
Voltage input | 100-240V 50 / 60 Hz |
Power source | Internal, AC 100-240V 50 / 60 Hz |
Battery | No |
Battery mount | N/A |
Plug in connector type | PowerCon |
Power cord total length | 5.0 m |
Power connector type | CEE 7/7 |
LED Panels - Physical
Yoke mount | Spigot 28mm pin |
Housing material | Metal |
Housing color | Black & blue |
Lamp head dimensions | 85 x 85 x 23 cm |
Lamp head weight | 33 kg |
Accessories & Bundles
- black, opaque skirt
- white, diffusion skirt
- white, diffusion bottom
- diameter:
- pop-up folding system
