Cinelight Studio Spot LED Panel Narrow Beam RGBW CRMX LumenRadio
Cinelight Studio Spot LED Panel Narrow Beam RGBW CRMX LumenRadio Waterproof Studio LED Panel Splash proof IP65 RGBW Bi-Color Studio Light Panel ARRI SKYPANEL X Studio LED Panel RGBW Bi-Color with W-DMX CRMX by LumenRadion Cinelight GEM X-400 RGBW LED Panel - Aluminum Diecast Housing CineLED GEM X-400 RGBW LED Panel - Standard Stirrup with 28mm spigot stud CineLED GEM X-400W RGBW Studio LED Light - Pole Operated Stirrup with 28mm spigot CineLED GEM X-400 RGBW LED Panel - Honeycomb Grid CineLED GEM X-400 RGBW LED Panel - Dome diffusion panel CineLED GEM X-400 RGBW - Square grid CineLED GEM X-400 RGBW Light Panel - Barndoors with extension flaps.

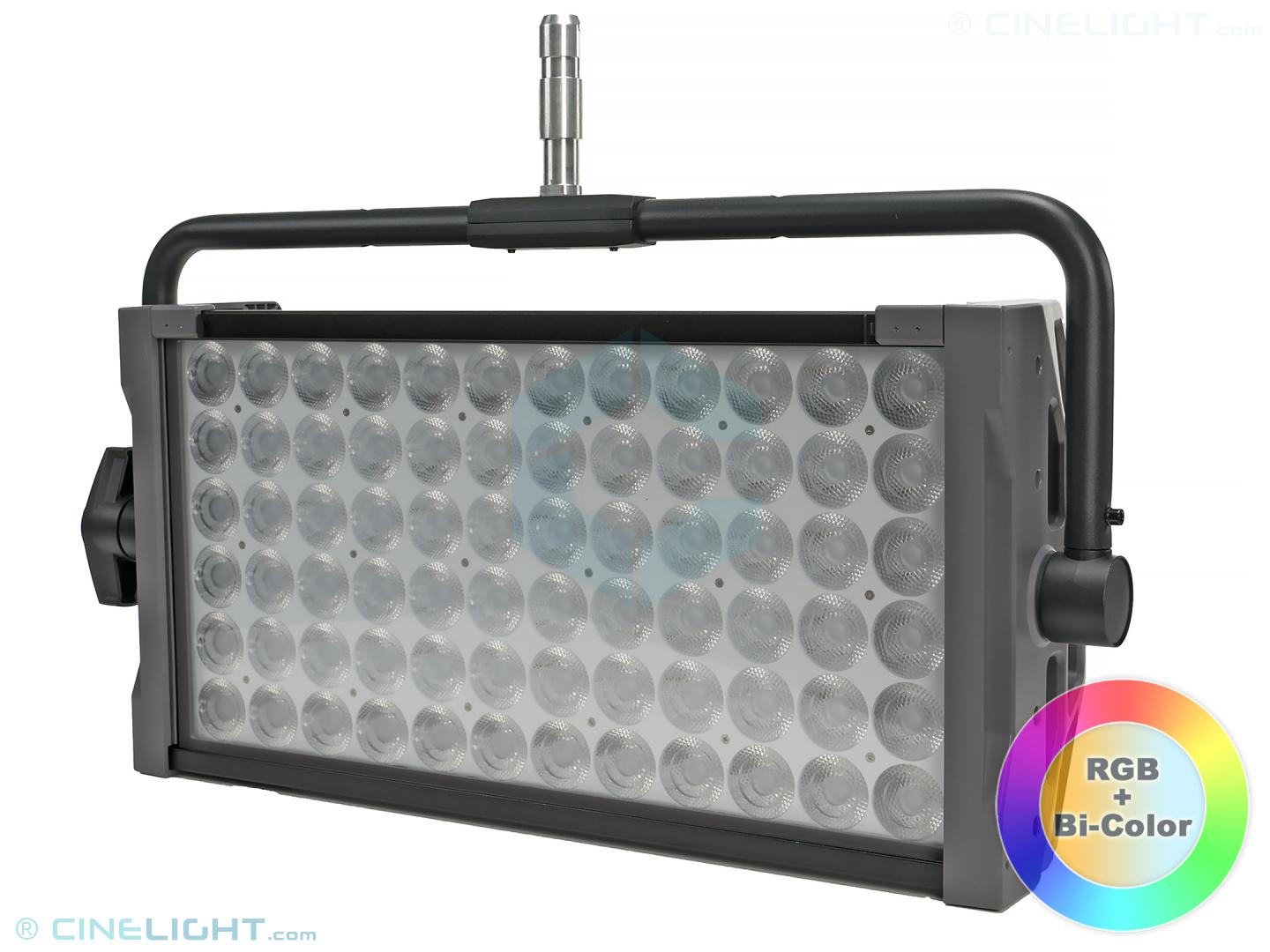

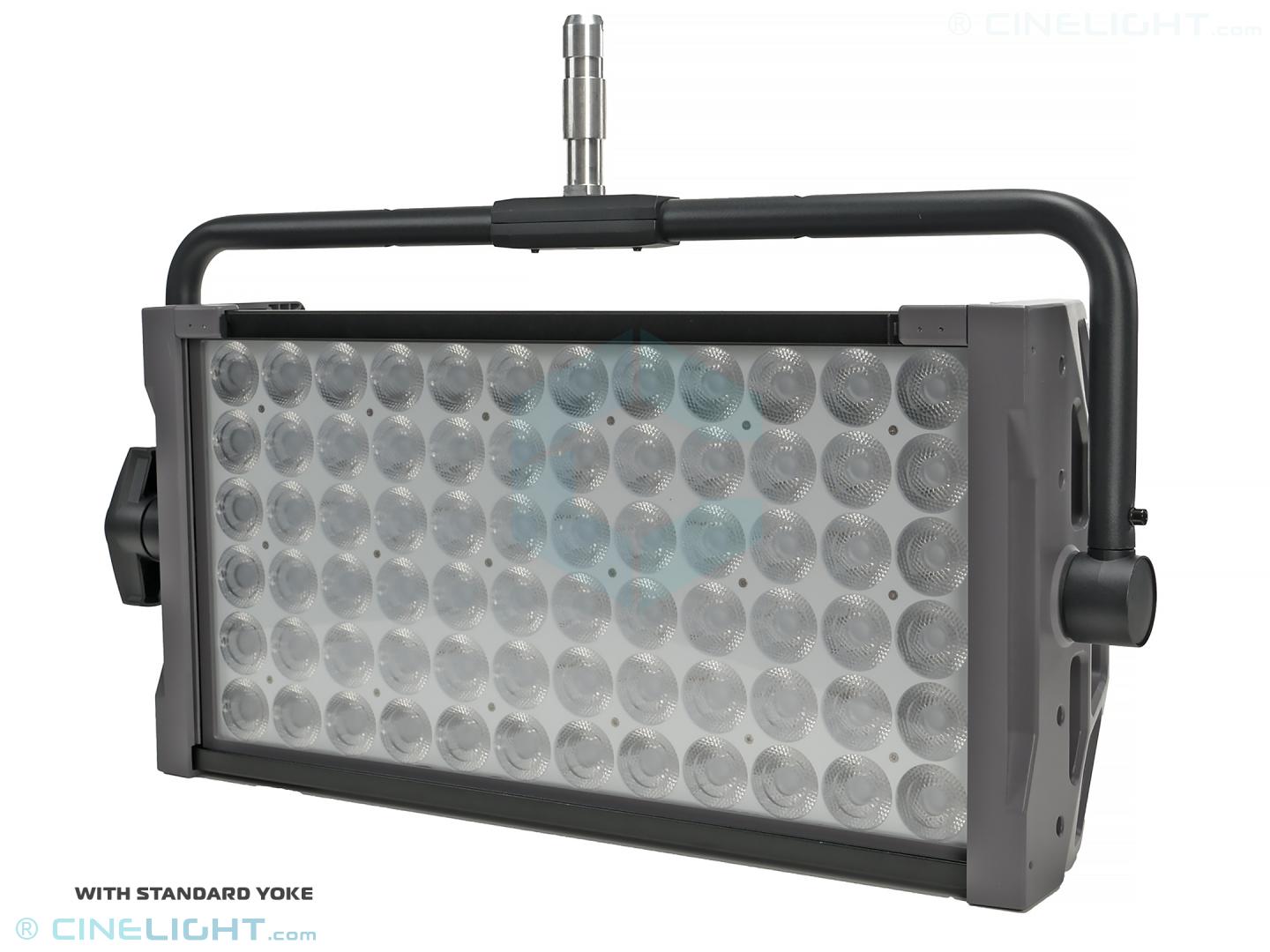

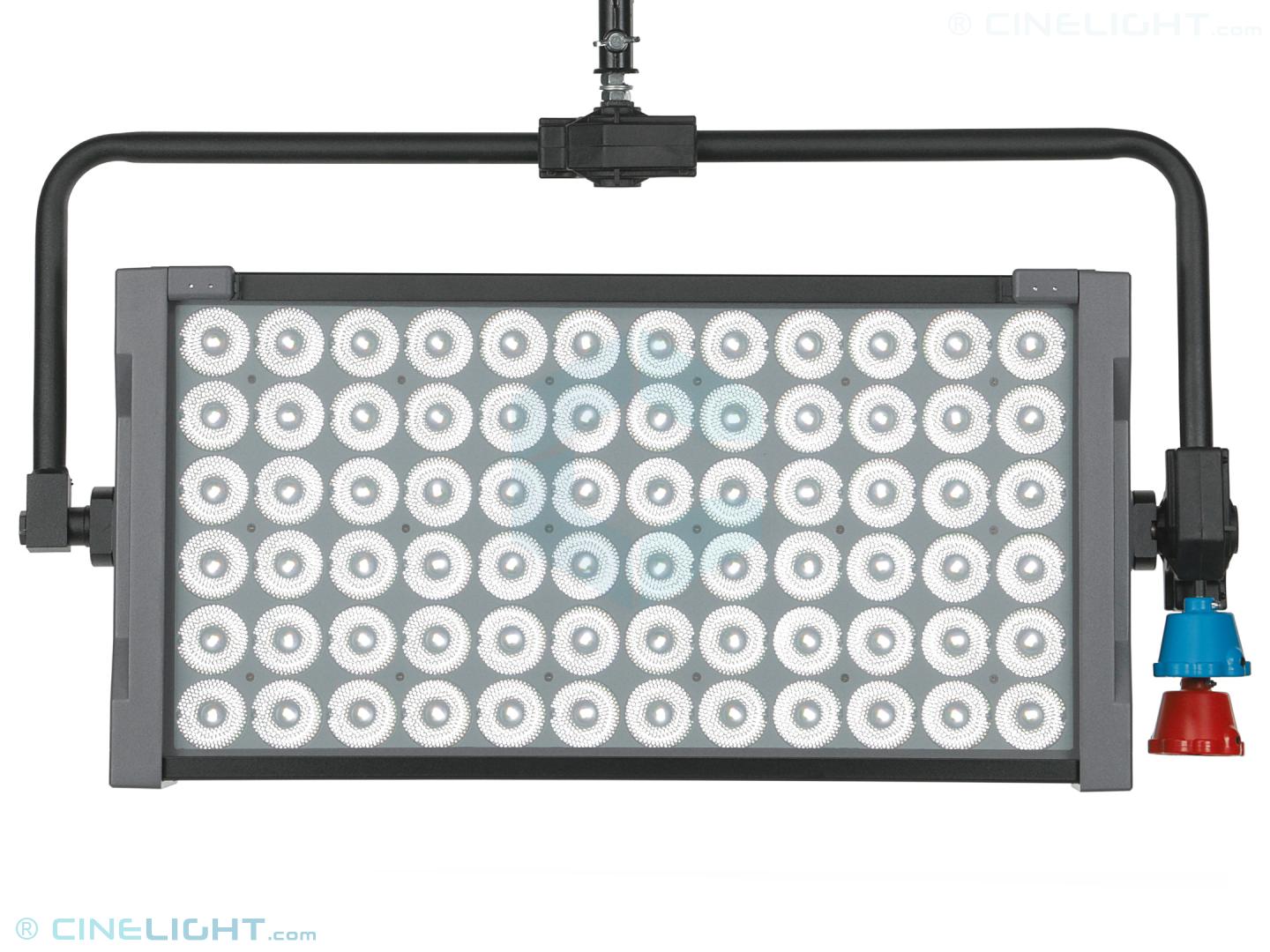

CineLED GEM X400 - RGBW

  • Power: 400 watts
  • Light output: 73000 lx @ 1m
  • CCT: 2700K-10000K
  • High output RGBW narrow-spot LED's
  • Water & dust resistant IP65
  • Robust heavy duty aluminum housing
  • CCT / HSI-HUE360 / CIE XY / Gels / FX
  • Wired DMX XLR 5P with RDM support
  • Wireless DMX (W-DMX) CRMX by LumenRadio
  • BT App support Luminair & Blackout
  • 4 dimming curves. 8 & 16 bit control
  • Optional 2-axis Pole Operated yoke (PO stirrup)
  • Barndoors, softbox, grid, dome diffuser
Ask us Brochure

€1'79900

SKU: LLP-GEMX400RGBW
Status: In Stock
€1'799.00
Optionals

Dedicated accessories

PO Yoke
PO Yoke
€16900
Softbox Kit
Honeycomb Grid
Overview

Key Features:

  • Powerful 400W LED panel with Matrix-DOT RGBW LED's featuring and high output in a long throw, narrow beam angle (25°).
  • Wide range CCT adjustable from 2700K to 10000K with G-M correction support.
  • Multiple operation modes: CCT, HSI-HUE360, CIE XY, RGBW.
  • Comprehensive GEL library from ROSCO and LEE equivalents.
  • Realistic & customizable lighting effects programs (FX)
  • Wired DMX512 with RDM support via XLR-5P IN/OUT ports
  • Wireless DMX (W-DMX) via CRMX from LumenRadio
  • Luminair & Blackout BT APP support
  • Selectable 4 dimming curves.
  • 8 & 16 bit DMX precision control.
  • Multiple selectable DMX profiles.
  • IP65 water, dust & vibrations resistant.
  • Very robust, die-cast aluminum housing, suitable for heavy duty & rental operations.
  • 2-axis Pole Operated yoke (stirrup)
  • Barndoors with extension flaps for increased light control

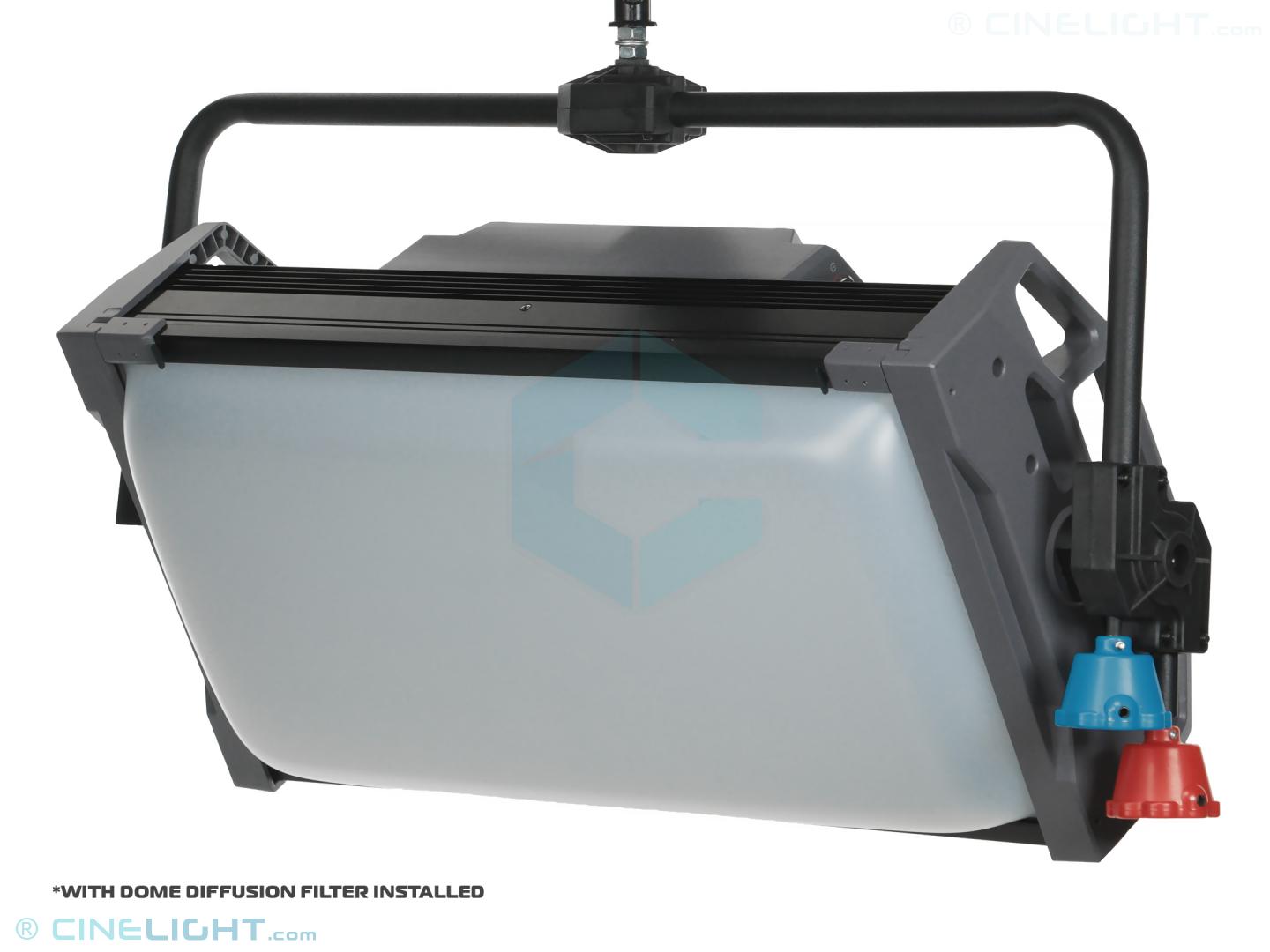

  • Dome diffuser panel for changing into flood beam & soft shadows.

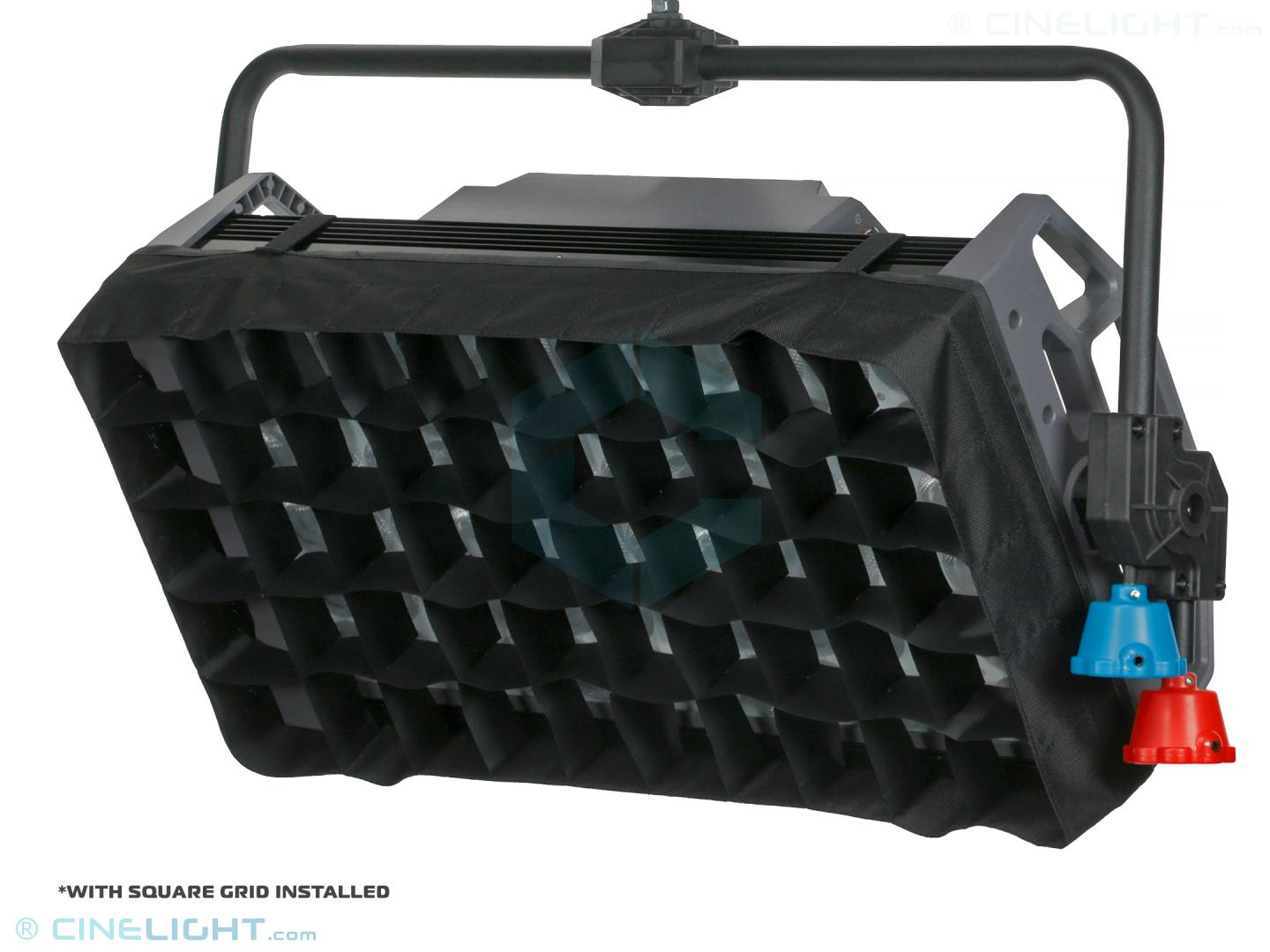

  • Square grid & honeycomb louver
  • Floor mount base (optional)
Specifications

Specifications

LED Panels - Fixture

LED type RGBW
LED no 72
Beam angle 25°
Beam type spot
Photometrics 1m: 73000 lx | 2m: 18500 lx | 3m: 9100
Color temperature 2700K-10000K
TLCI rating 99
CRI rating 98
APP support Android & IOS
Dimming range 100%-0%
Dimming curves Yes
Wireless DMX CRMX
Cooling system Active
Display type Complex - color
LED surface dimensions 60 x 30 cm

LED Panels - Controls

Local functions control Analog & touch screen
DMX control Yes
DMX connectors type XLR-5P
Wireless DMX CRMX
Dimming curves Yes
Bluetooth / WIFI APP control Yes
APP support Android & IOS
Radio remote control No

LED Panels - Powering

Rated power 400 watts
Voltage input 100-240V 50 / 60 Hz
Power source Internal, AC 100-240V 50 / 60 Hz
Battery N/A
Battery mount External
Plug in connector type PowerCon
Power cord total length 3.5m
Power connector type CEE 7/7

LED Panels - Physical

Yoke mount Spigot 28mm pin
Housing material Aluminum
Housing color Gray & black
IP rating 65
Lamp head dimensions 74 x 38 x 18 cm
Lamp head weight 19.5 kg
