CineLED GEM 400 Bi-Color
- Power: 380 watts
- Light output: - lx @ 1m
- CCT: 2700-6800K
- True-Tone SMD LED's CRI 98 | TLCI 99
- Wired DMX RDM 512, 2 profiles (3/7 ch)
- Wireless DMX - CRMX by LumenRadio
- BT App support Luminair & Blackout
- 4 dimming curves. 8 & 16 bit control
- Robust aluminum housing
- Ultra soft light output
- Pole Operated (PO) yoke as option
- Barndoors, grid and softbox as option
€99900
Maximum quantity available in stock for reached
Dedicated accessories


- 4 leaf barndoors with extension leaf's
- Metal made
- For CineLED GEM 400 studio lights
- Help to control the light spread


- Quick assembly & easy to install
- Includes diffusion layer for soft shadows
- Includes square grid for directional beam
- Includes storage pouch
- For CineLED GEM 400


- Direct mount square grid
- Reduce light glare and side spill
- Narrows down the beam angle
- For CineLED GEM 400

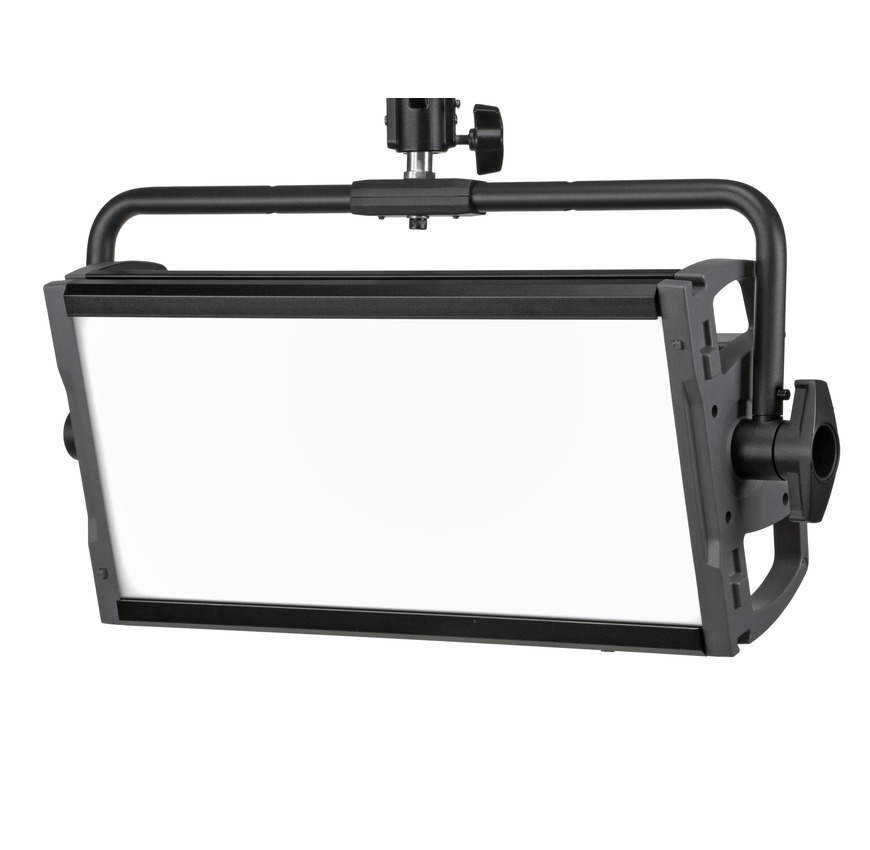

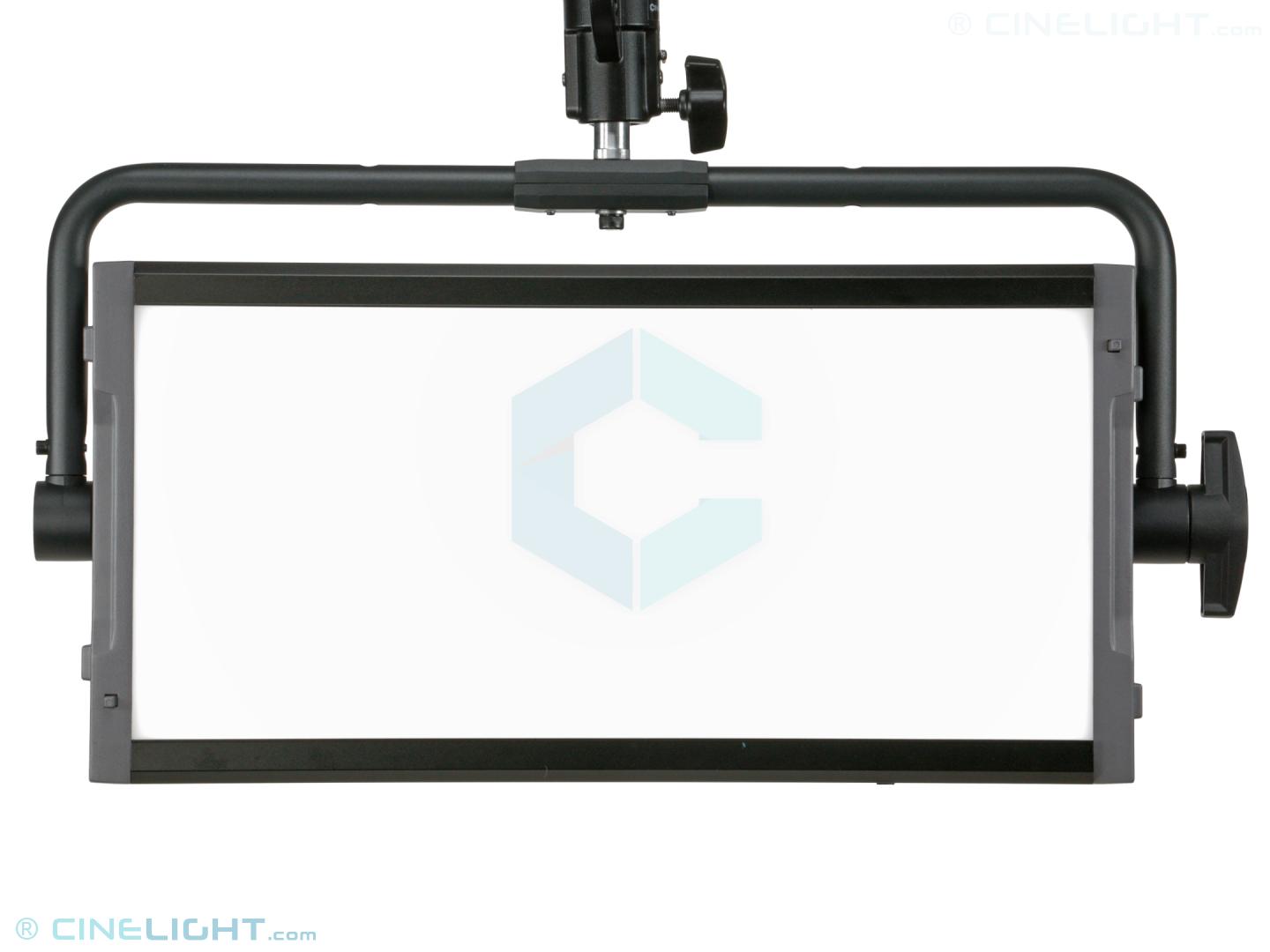

The CineLED GEM 400 Bi-Color is a professional-grade lighting fixture designed to match with technical requirements demanded by studio environments like broadcasting, film, news and entertainment production sets.
Ultra-Soft True-Tone SMD LEDs
This ultra-soft LED panel uses luminous efficient SMD's LED’s with 110 beam angle, covering evenly large studio areas with minimal, diffused shadows.
The True-Tone computer calibrated SMD technology ensures the light spectrum reaches high fidelity scores for CRI 98 and TLCI 99 for accurate color rendering on cameras demanded by professionals.
CCT & Brightness Tunable
The color temperature can be adjusted from 2700K to 6800K and the output is dimmable from 100% down to 0% keeping a constant color temperature and a flicker free operation across the entire dimming range.
DMX512 Protocol with RDM Support
Seamlessly integrate the CineLED GEM into complex setups with fully remote control through industry standard DMX 512 protocol and DMX profiles (with 3 and 7 channels allocation). The additional Remote Device Management (RDM) protocol makes the DMX512 a bi-directional system that allows the control desk to configure and monitor all the connected devices. Besides the standard 8-bit dimming control, this panel features an additional 16-bit mode for a fine-tune and fluid dimming especially in the low-ends.

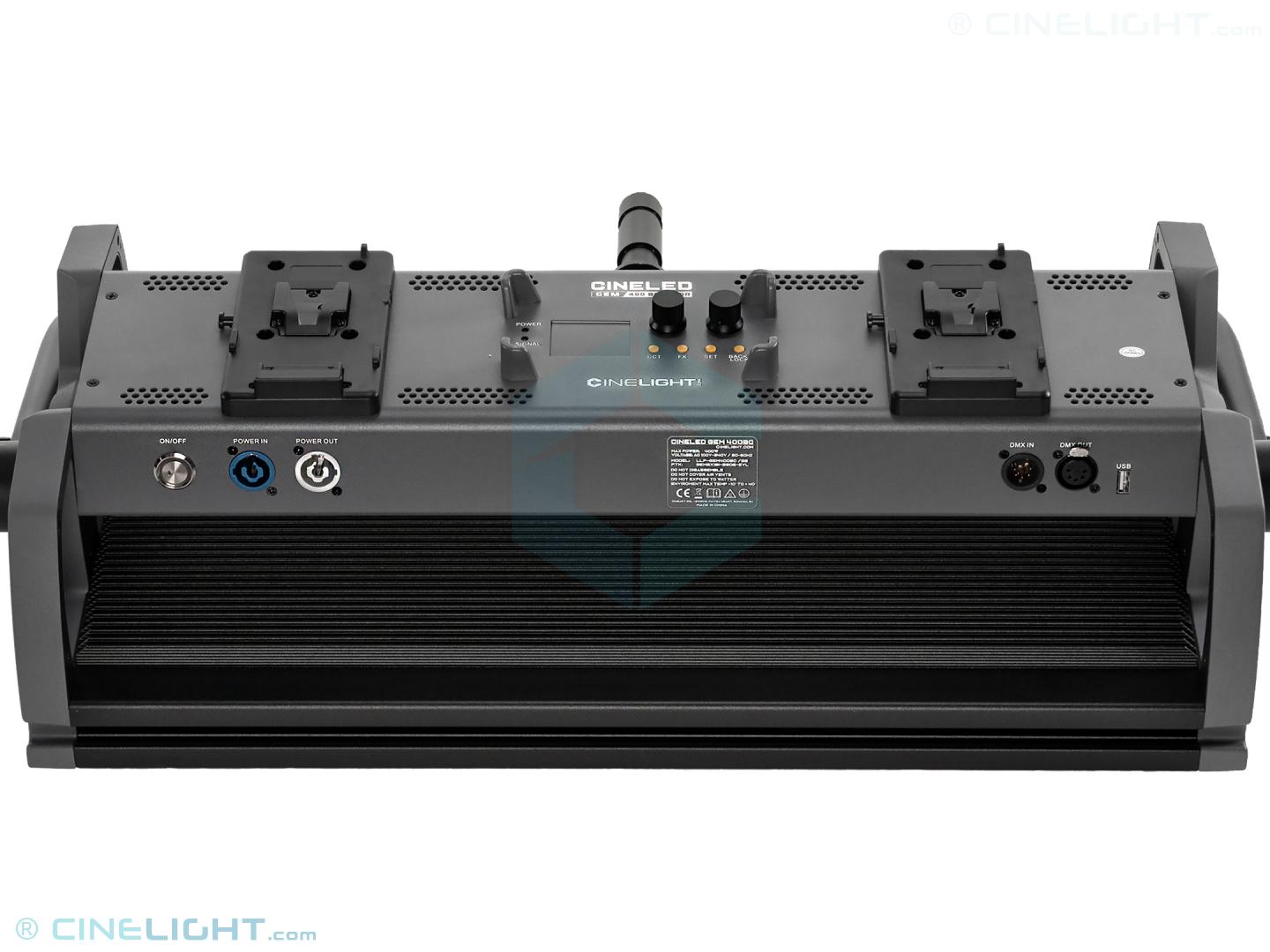

Through the DMX XLR-5P in/out ports multiple lights can be daisy chained into a single DMX line.
Wireless DMX - CRMX by LumenRadio
To further expand the remote controlling via wireless DMX transmitting (W-DMX), the CRMX by Lumen-Radio solution is available as option upon ordering. This unifying technology allows for different brand devices to be easily integrated & wirelessly controlled in a reliable manner from a single interface / app without all the hassle of using specific brand apps and communicators.
App Control
Turn a tablet or a phone into a portable virtual full size lighting console using one of the industry leading DMX control apps like "Luminair" or "Blackout". This professional-grade lighting control apps gives lighting designers, filmmakers and TV professionals, musicians, artists and other enthusiasts advanced control over CRMX-enabled lights. Within this apps you can manage Cinelight panels together with other brand lights in a unified system control system.
Solid Construction
With a sturdy aluminum & steel-alloy structure, the panel can withstand intensive, daily use on busy sets, being also a suitable product for the rental industry.
The aluminum housing ensures an efficient heat dissipation with minimum active cooling effort to maintain a consistent performance over extended running periods, thus prolonging the lifespan of the LED panel.
The cooling system is CPU controlled by temperature sensors and variable RPM fan, ensuring that noise level is kept to minimum and the active cooling enabled only when necessary.

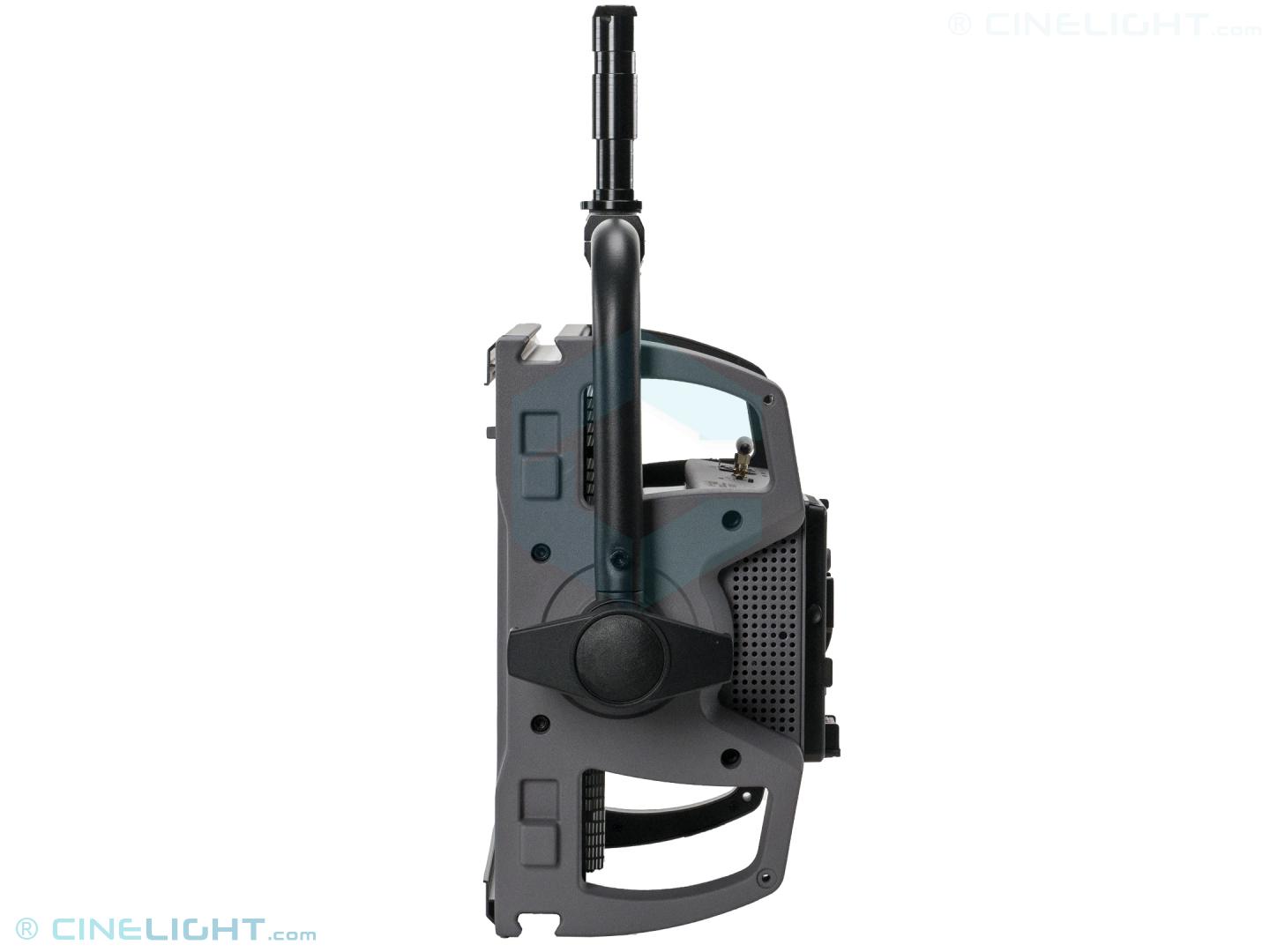

Standard or Pole-Operated Yoke Bar
The CineLED GEM can be configured with two types of yokes.

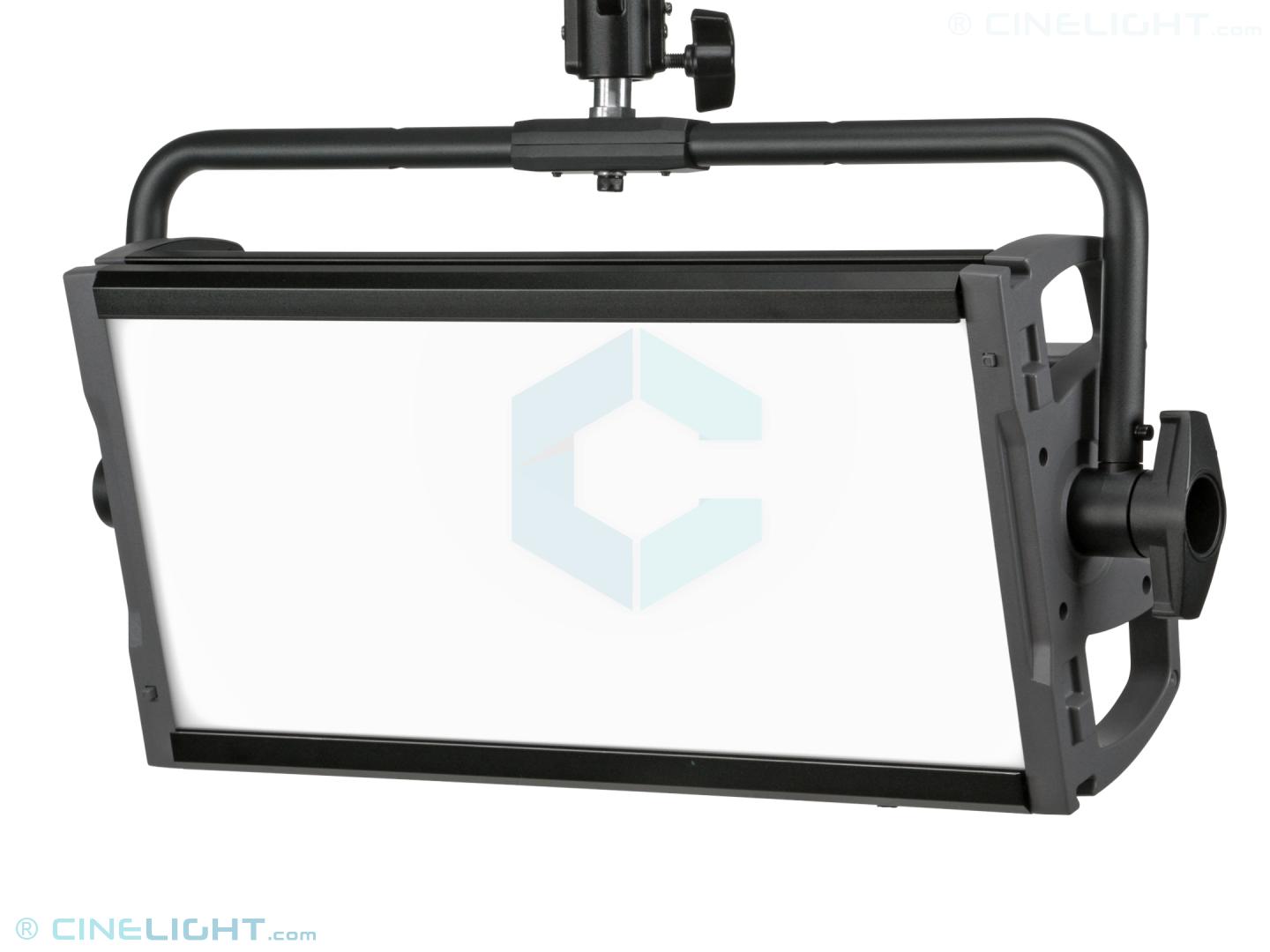

- The standard yoke commonly used for stand/tripod mount equipped with a junior 28mm receiver.

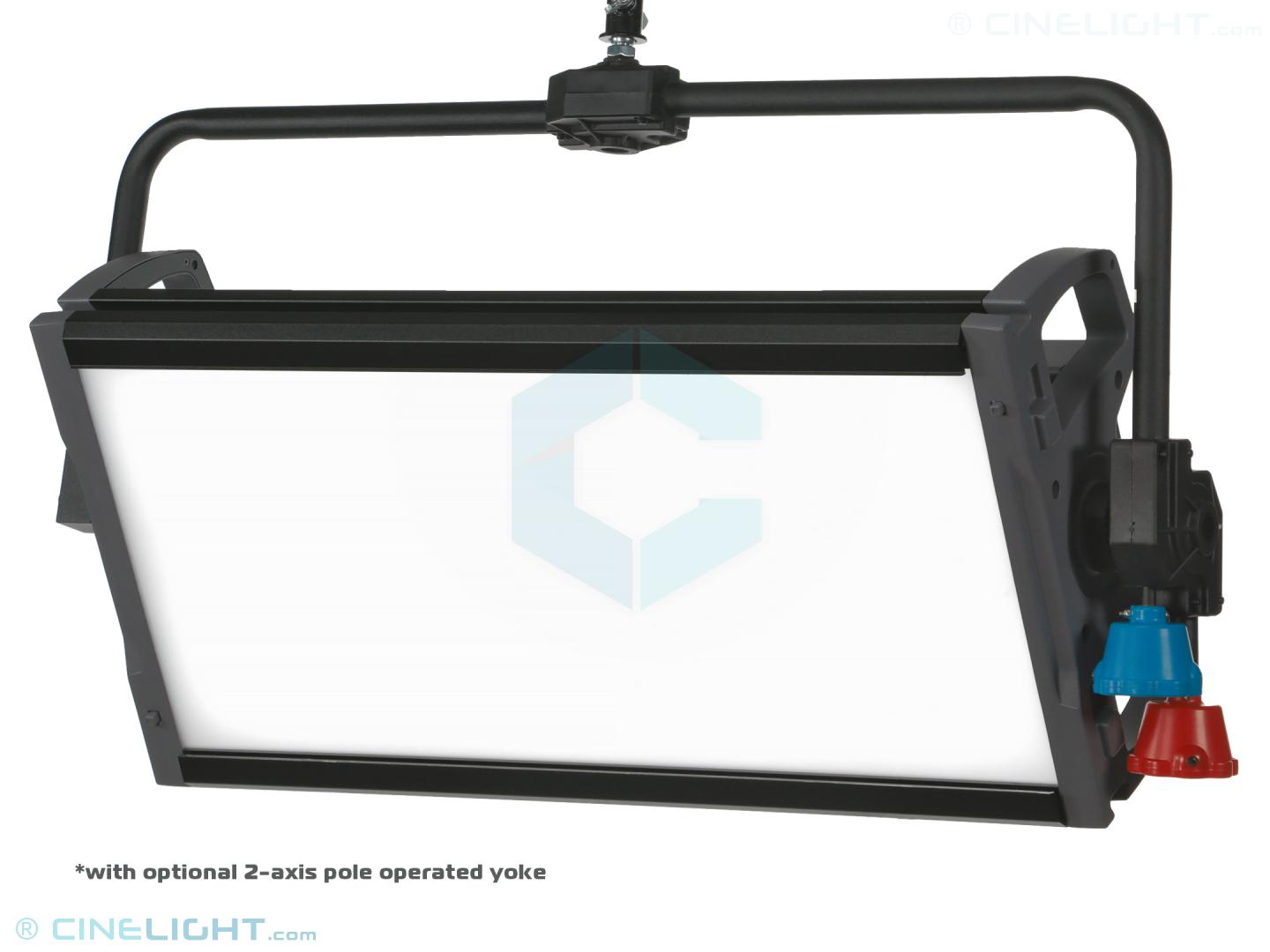

- The Pole Operated yoke commonly used for hanged / suspended mount by truss or pipes systems. The two axis P.O controls offer a convenient way to tilt or pan the lights from the studio floor using a pole rod.
AC & DC Powering

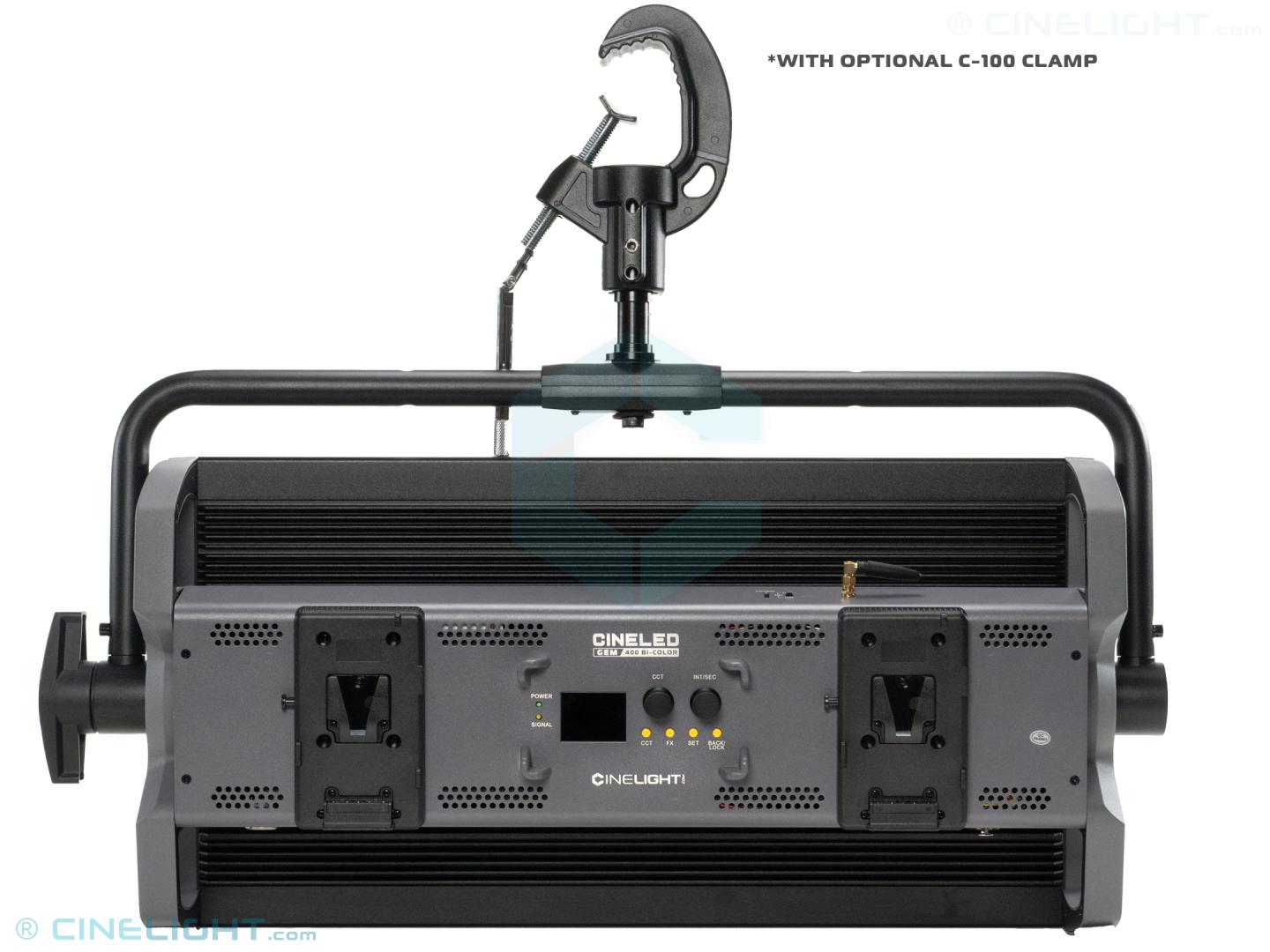

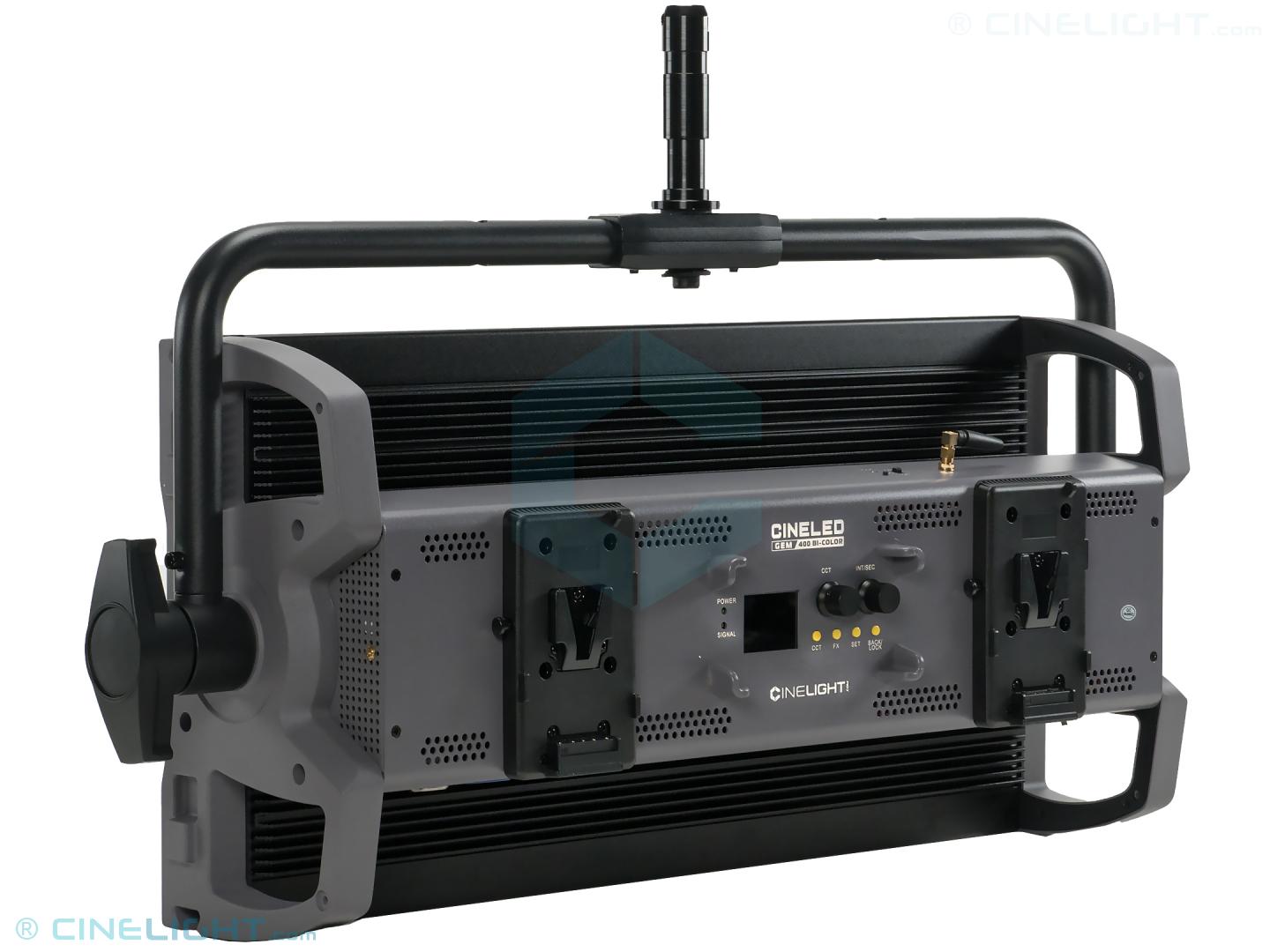

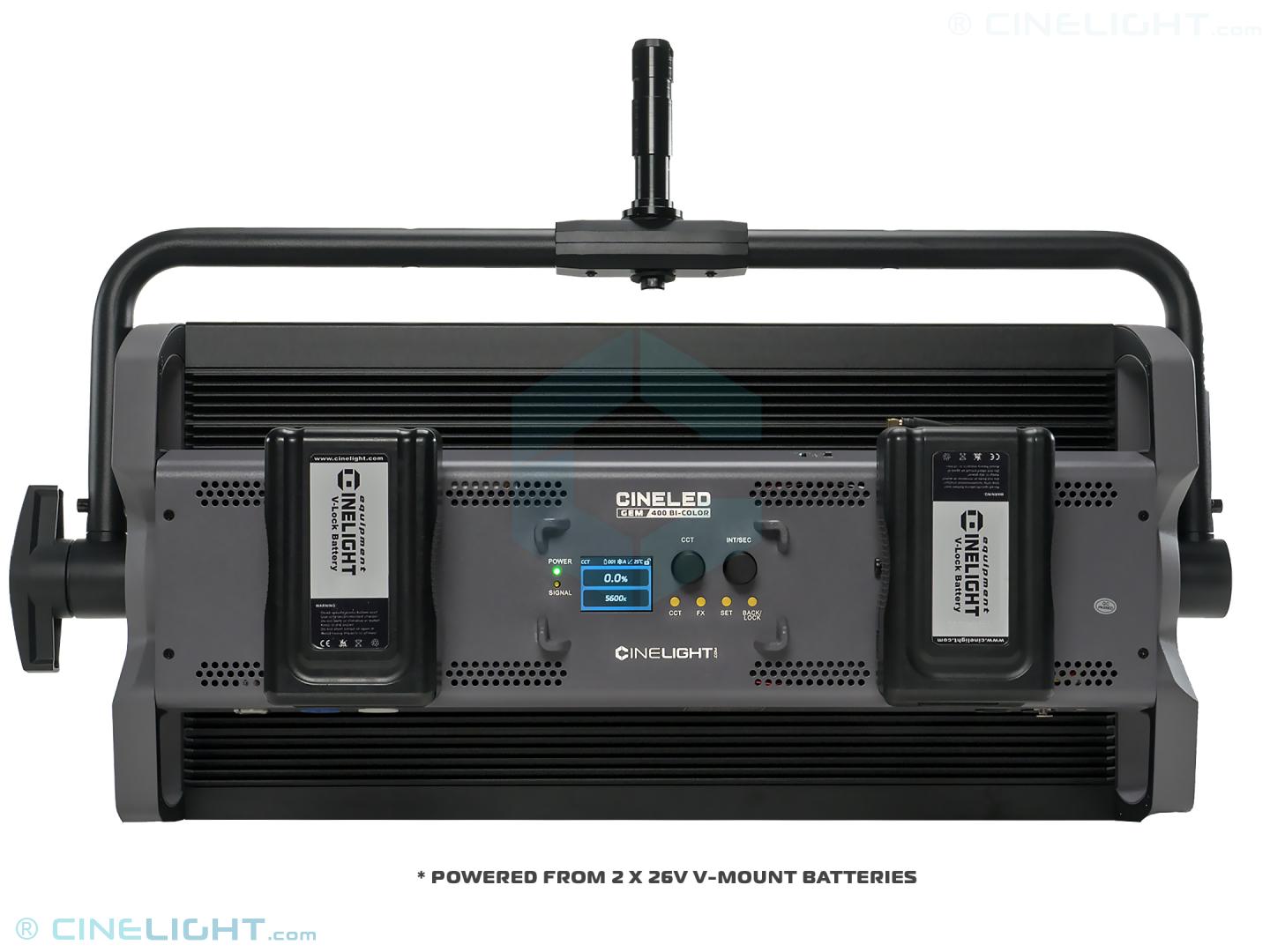

Having an integrated AC power supply, the CineLED GEM panels can be powered directly from an AC 100-240V socket or from an external 52V battery using the DC-in port. A dual V-Mount battery adapter is available as an option.
The PowerCon in/out loop ports allow for up to 10 panels to be interconnected into a single power line.
Variety of Optional Light Modifiers

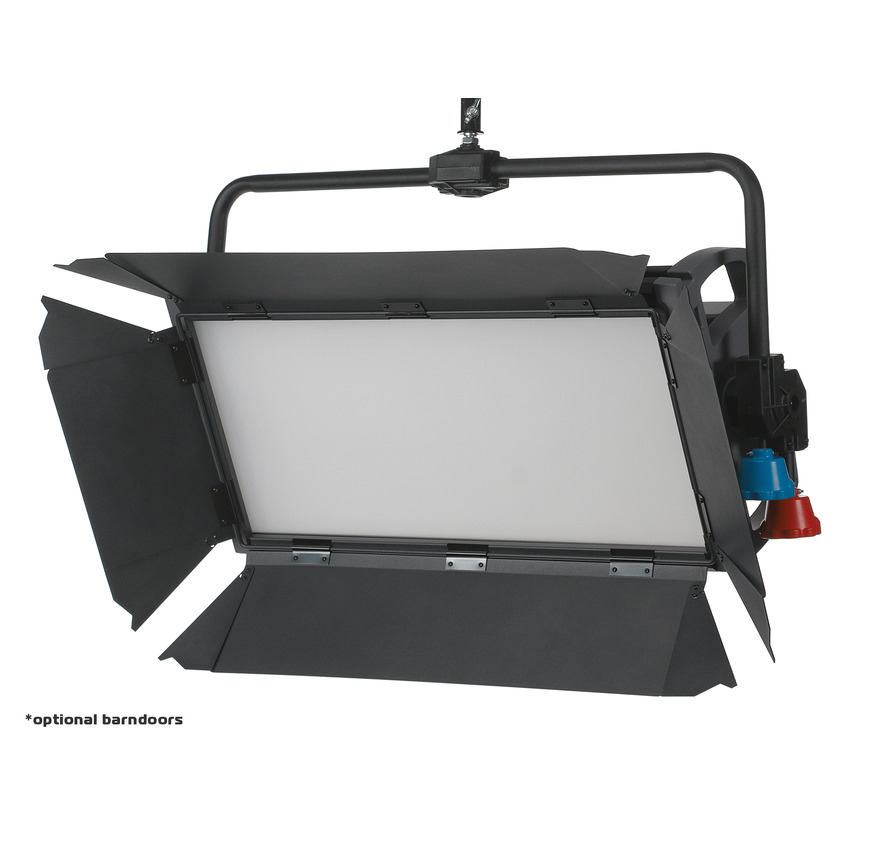

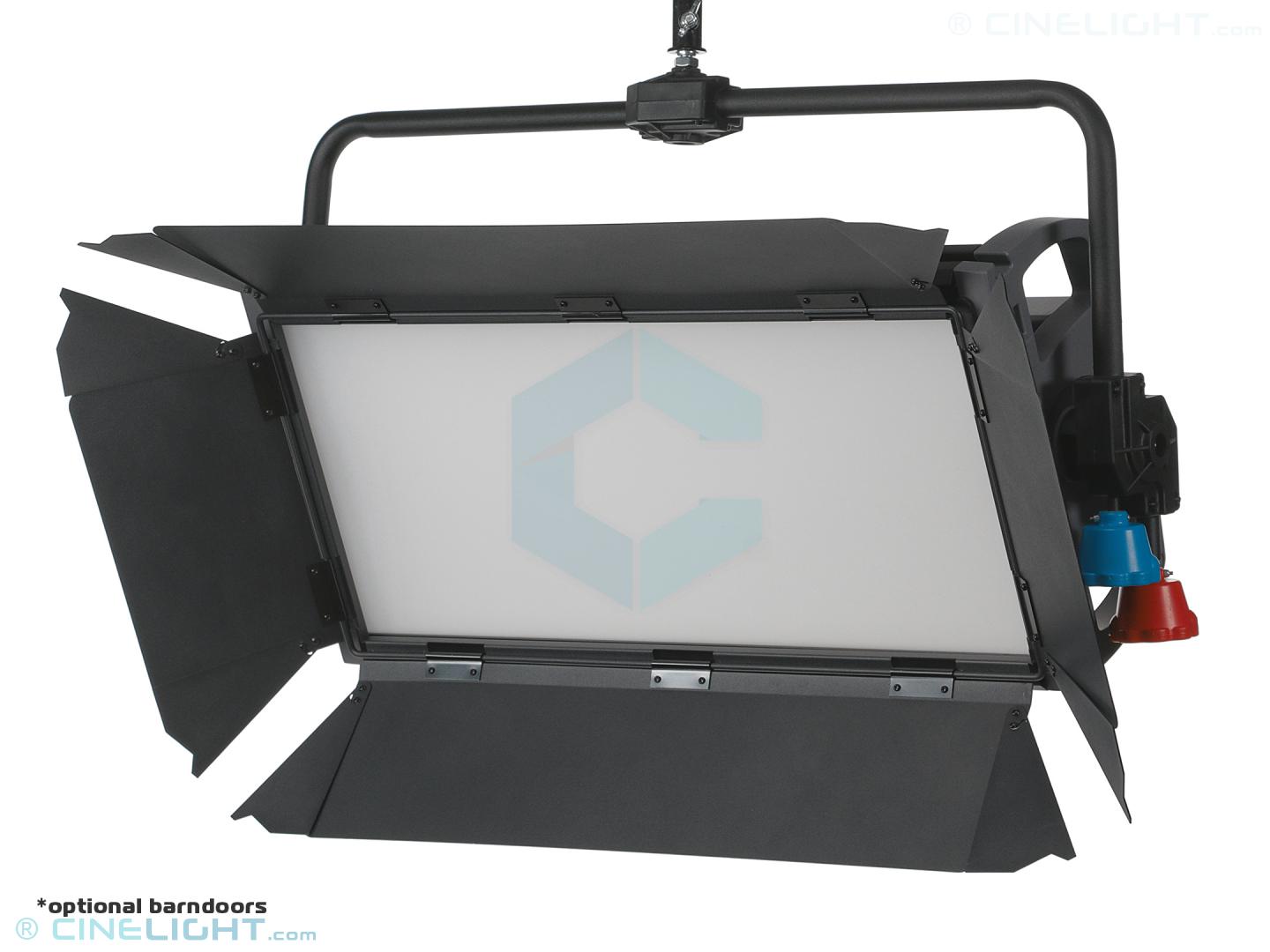

- 4-leaf barndoors with extendable flaps are available to control the light spread and reduce the light spill between the leaves.
- Softbox with silver interior can be used to intensify the panel's output while further reducing the shadows to create an even softer beam. Additionally, the softbox includes a square grid to reduce the side spread of the light.

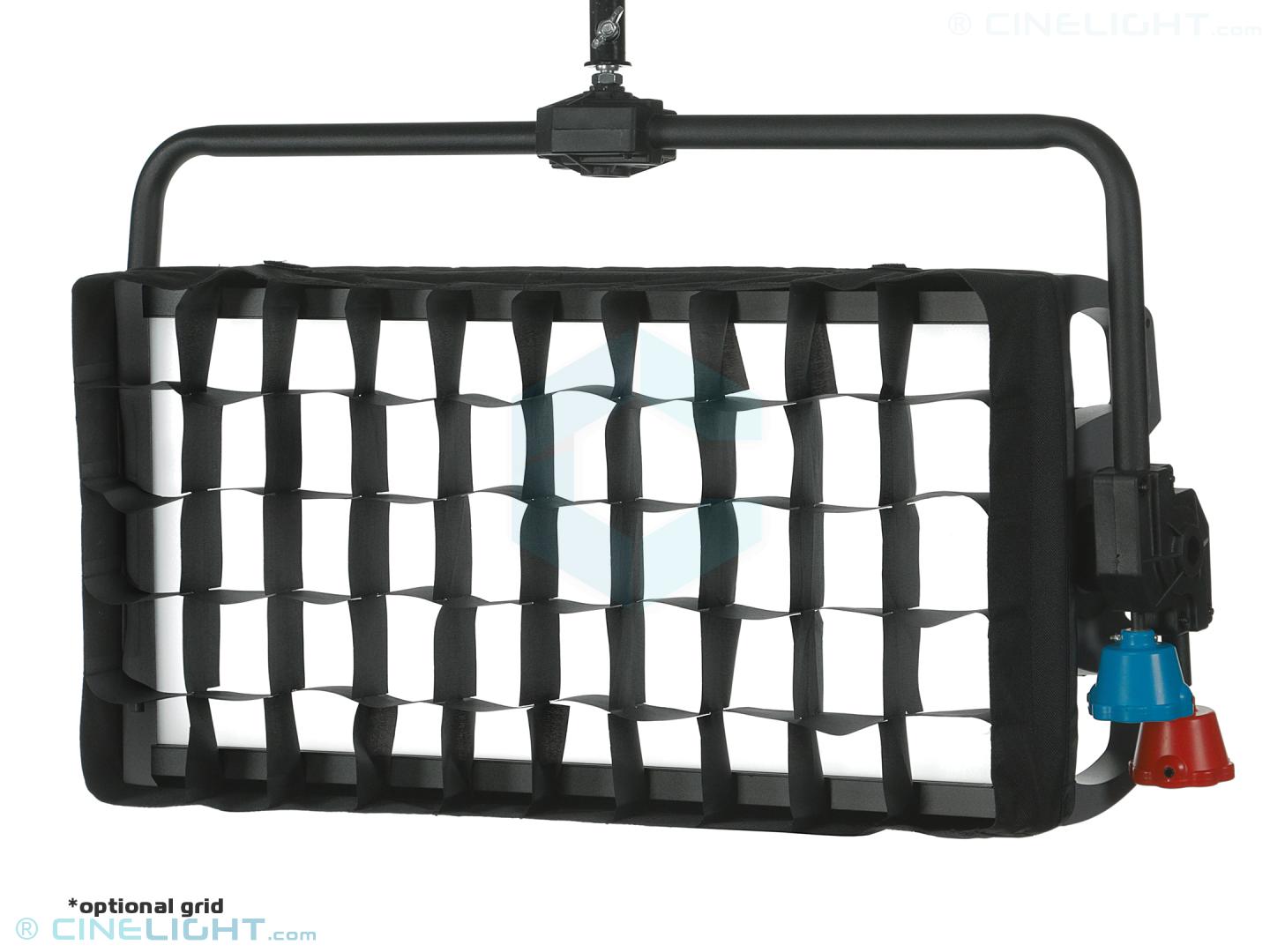

- Direct mount square grid is also available as a modifier to eliminate the light glare (that stray light inconveniently discharged by the panels near the cameras) and to create a more directional but still soft light beam. This grid attached directly on the light body.
Specifications
LED Panels - Fixture
LED type | Bi-Color |
LED no | 576 |
Beam angle | 110° |
Beam type | flood |

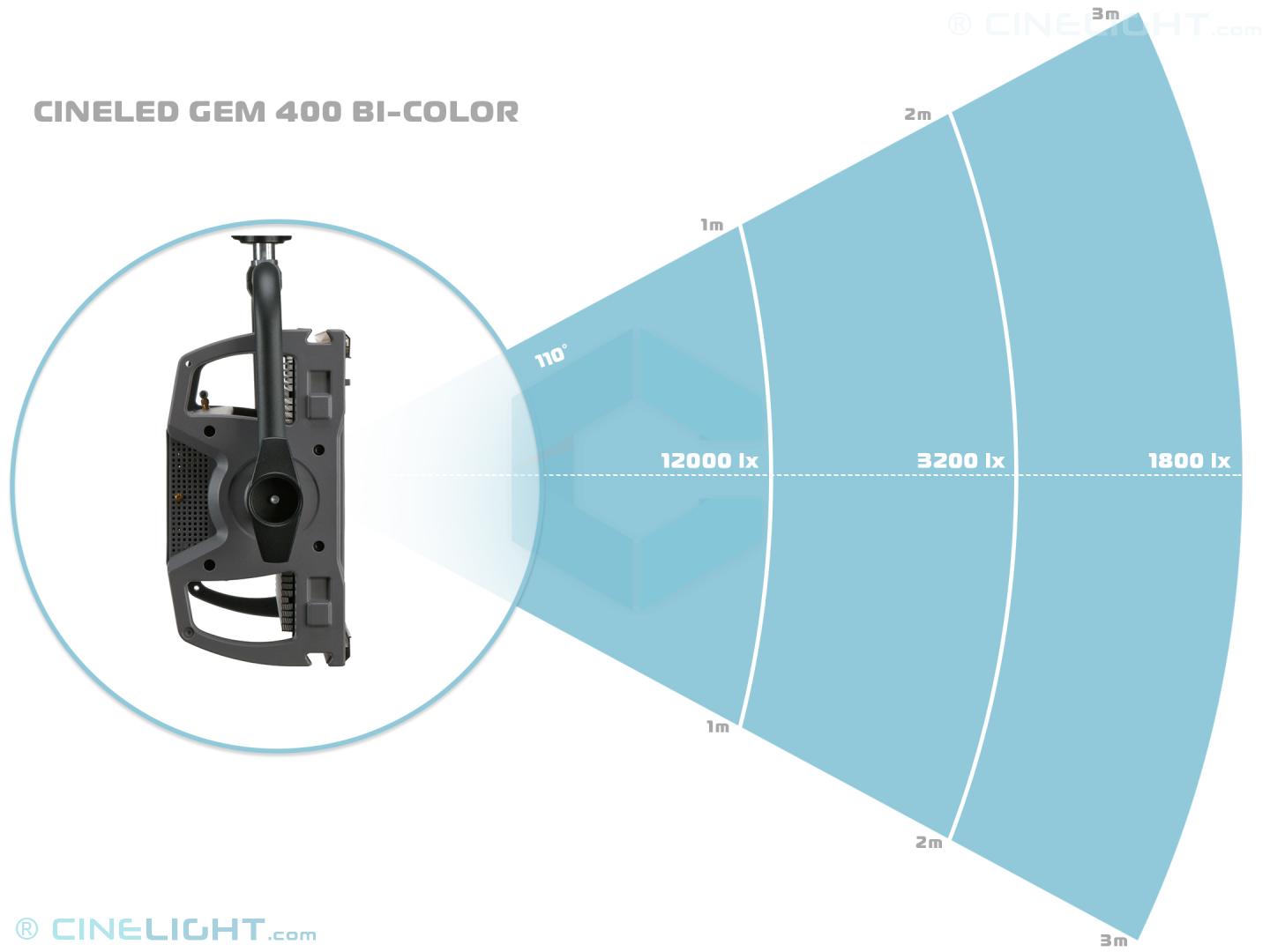

Lumens | 1m: - lx | 2m: - lx | 3m: - lx |
Color temperature | 2700K-6800K |
TLCI rating | 99 |
CRI rating | 98 |
APP support | Android & IOS |
Dimming range | 100%-0% |
Dimming curves | Yes |
Wireless DMX | CRMX |
Cooling system | Active |
Display type | Complex - color |
LED surface dimensions | 58 x 27 cm |
LED Panels - Controls

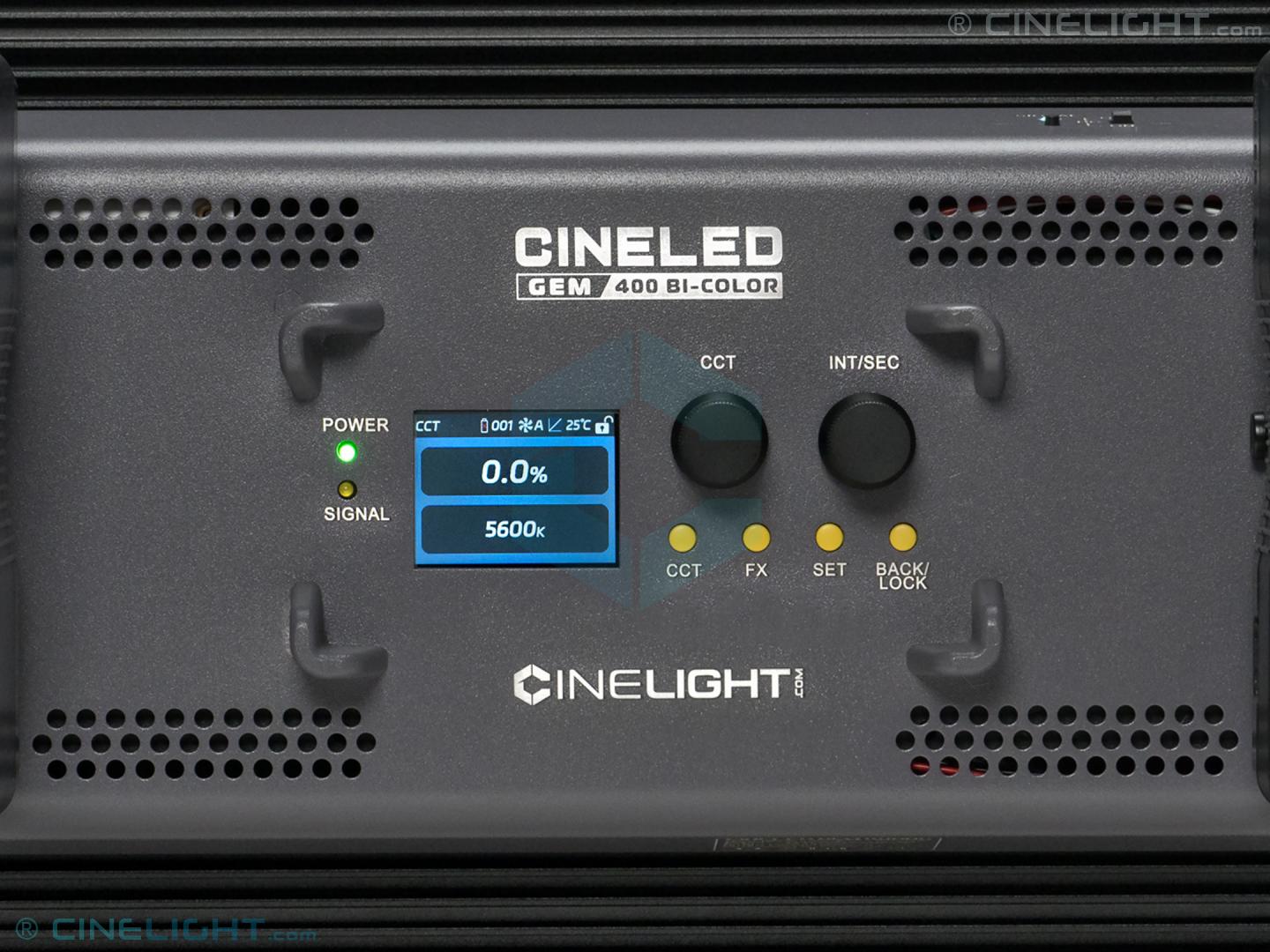

Local functions control | Analog |
DMX control | Yes |
DMX connectors type | XLR-5P |
Wireless DMX | CRMX |
Dimming curves | Yes |
Bluetooth / WIFI APP control | Yes |
APP support | Android & IOS |
Radio remote control | No |
LED Panels - Powering
Rated power | 380 watts |
Voltage input | 100-240V 50 / 60 Hz |
Power source | Internal, AC 100-240V 50 / 60 Hz |
Battery | 52V |
Battery mount | External |
Plug in connector type | PowerCon |
Power cord total length | 3.5 m |
Power connector type | CEE 7/7 |
LED Panels - Physical
Yoke mount | Spigot 28mm pin |
Housing material | Aluminum |
Housing color | Gray & black |
IP rating | 20 |

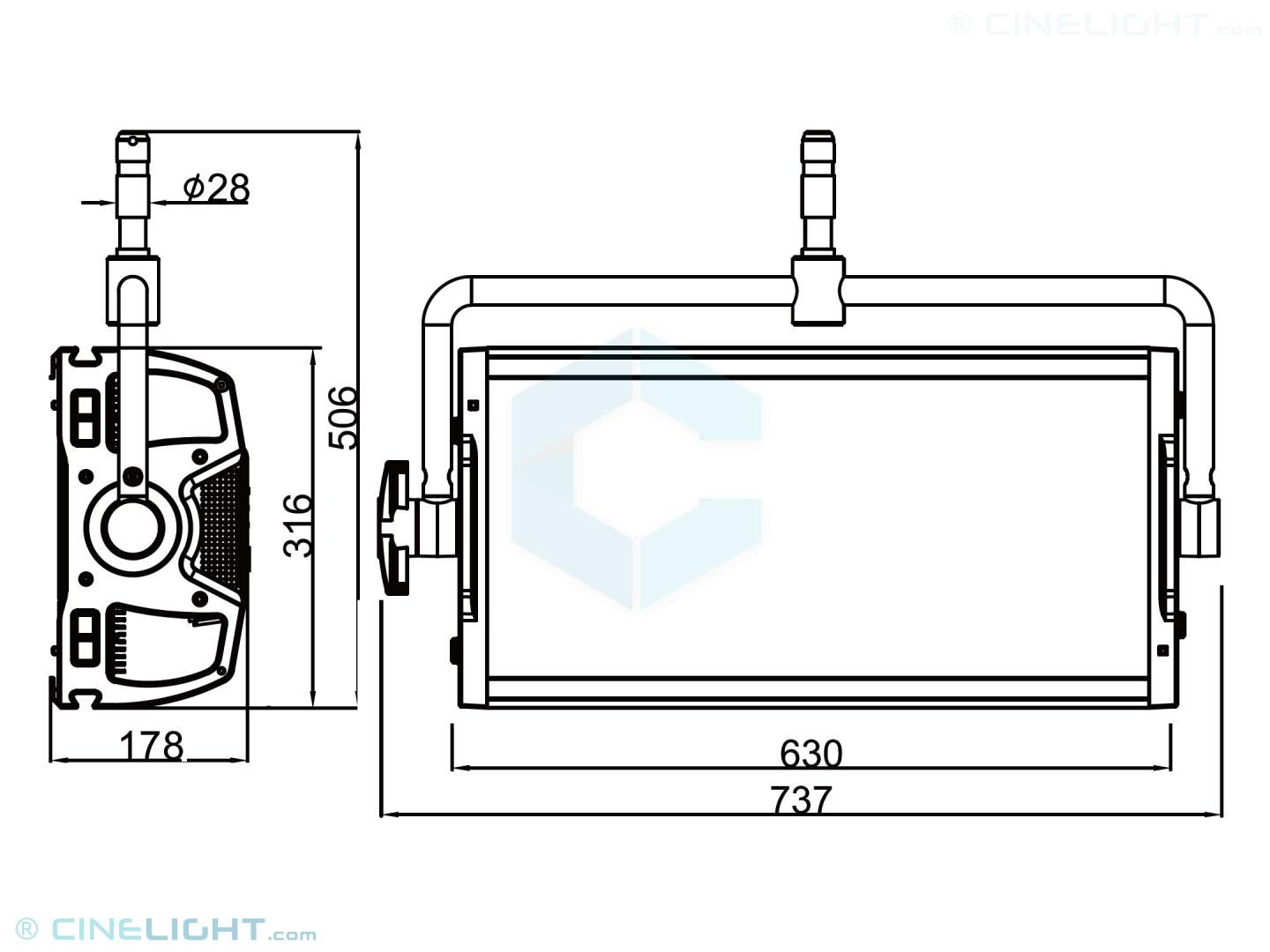

Lamp head dimensions | 74 x 51 x 18 cm |
Lamp head weight | 18.5 kg |
