SKU: LHA-15MCABLE575
- Connects the lamp head to ballast
- Length: 15m
- For HMI 575W/1.2KW/1.8KW fixtures
Cinelight X-12/18 HMI Flood Light
€2'49900
Specifications
HMI - Fixture
| Beam type | flood |
| Rated power | 1800 watts |
| Lamp type | HMI |
| Lamp socket | G38 |
| Color temperature | 6000K |
| Beam angle | 125° |
| Lens type | Without Lens |
| Lens size | 334 x 333 mm |
| Filter slot size | 338 mm |
| Barndoors slot size | 342 mm |
| Yoke mount | Spigot 28mm pin |
| Housing color | Gray & blue |
| Housing material | Aluminum |
| Lamp head dimensions | 46 x 80 x 23 cm |
| Lamp head weight | 14 kg |

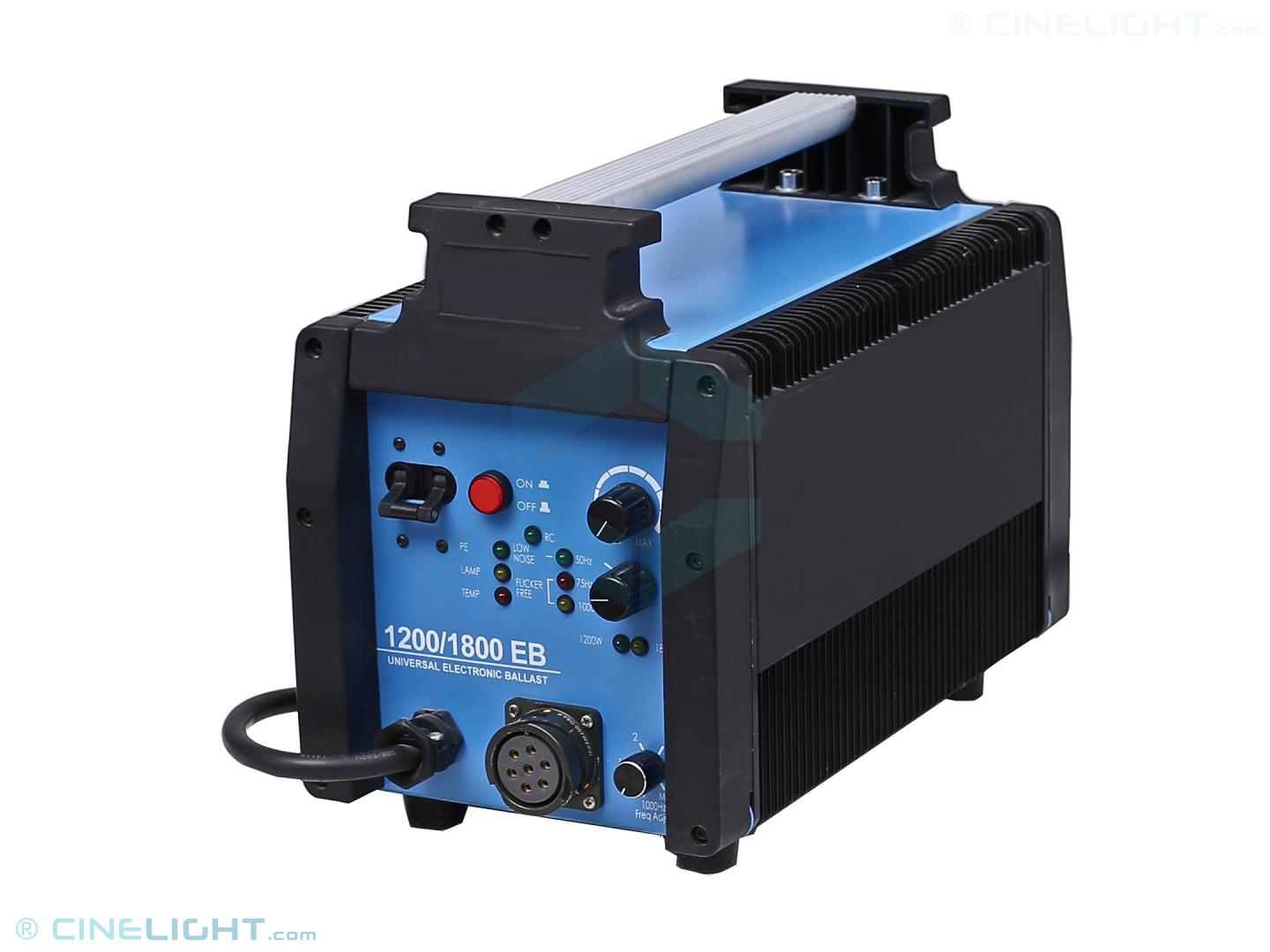

HMI - Ballast
| Ballast power | 1800 watts |
| Ballast line power | 1830 VA |
| Ballast nominal current | 17-6A |
| Ballast operation voltage | 90-265 VAC |
| Ballast frequency | 50-60 Hz |
| Ballast current characteristics | Square wave, 75Hz |
| Ballast power factor | 0.98 |
| Ballast dimming range | 100%-50% |
| Ballast starting | Hot & cold restrike |
| DMX control | Optional |
| DMX connectors type | XLR-5P |
| ballast power cable length | 7.5 m |
| Power cord total length | 3.5 m |
| Ballast dimensions | 20 x 28 x 36 cm |
| Ballast weight | 10.5 kg |
| Ballast protection class | IP32 |
Accessories & Bundles
SKU: SSK-COMBO240CM
- Payload: 20 kg
- Maximum height: 240 cm
- Minimum height: 105 cm
- Folded length: 105 cm
- Mounting: combo 5/8" pin & 1-1/8" receiver
- Material: steel
SKU: SSK-COMBO350CM
- Max Payload: 20 kg
- Maximum height: 350 cm
- Minimum height: 142 cm
- Folded length: 142 cm
- Mounting: combo 5/8" pin & 1-1/8" receiver
- Material: steel
Q & A ( 0 )
Ask a question
Your Question has been successfully sent our team. Thanks for this!
Your Question has been successfully sent our team. Thanks for this!
Reviews ( 0 )
Your Review has been successfully sent our team. Thanks for this!
SKU: LLP-GEMS400BIC
- Power: 380 watts
- Light output: 12000 lx @ 1m
- CCT: 2700-6800K
- True-Tone SMD LED's CRI 98 | TLCI 99
- Wired DMX RDM 512, 2 profiles (3/7 ch)
- Wireless W-DMX or CRMX by LumenRadio
- BT App support Luminair & Blackout
- 4 dimming curves. 8 & 16 bit control
- Robust aluminum housing
- Ultra soft light output
- Pole Operated (PO) yoke as option
- Barndoors, grid and softbox as option
SKU: GGX-PROCLGHEADLD
- Grip Head jaws diameters: 25/19/16/8 mm
- Pro-Clamp + Grip Head with Hexa Spigot
- Detachable design, can be used individually
- Non-slip toothed friction pad
- Larger sized locking handle for maximum torque
- Pro Clamp fits on 10 to 60 mm diameters
- Adjustable (ratchet) "L" handle for pro-clamp
SKU: LTF-S2000WPOB
- Power: 2000W
- Black body version for studio installations
- Pole operated controls: focus, pan & tilt
- Adjustable beam angle from spot 11° to flood 56°
- High quality Fresnel lens with short focal length
- Sturdy die cast aluminum construction
- Solid metal yoke bar with spigot 28 mm (1-18" pin)
SKU: GCX-GRCLHEX53
- Half eye grid clamp with hexagonal spigot
- M12 locking bolt with butterfly nut
- Opening diameters: 38 mm - 52 mm
- Fully metal made
- Size: 13 x 11 x 3 cm | 0.29 kg
- Payload: 25 Kg
SKU: PBC-VLOCKCH1CH
- For 14.8V Li-Ion Batteries (V-Mount & AB)
- Input voltage: AC 100V-240V
- Output voltage: 16.8V
- Charging Current: 2A
- Size : 12 x 6.8 x 3.6 cm | 0.4 kg
SKU: SBX-GOBOARM1MB
- Boom arm (gobo arm) for c-stands
- Includes grip head and 105 cm length steel rod
- Rod ended with two 16 mm spigots
- Material: steel, black finish
- Weight: 1.3 kg
- As: D530LB, KCP-241B / KG203612, B681013
SKU: GCX-GRCLHEX35
- Opening diameters: 25 mm - 38 mm
- Grid Eye Clamp with hexagonal spigot
- M12 locking bolt with butterfly nut
- Fully metal made
- Size: 9 x 10 x 3 cm | 0.21 kg
- Payload: 25 Kg
SKU: PBL-BATVL94NANO
- Compact V-Mount battery
- Capacity: 94Wh / 6.4Ah
- Allowed on air-travelling
- Dimensions: 97 x 72 x 54 mm
- Weight: 490g
SKU: GAX-SPIG16HEXAL
- 16 mm stud & hexa head
- Snap-in pin for Convi / Viser Clamp
- Material: aluminum
- Total length: 85mm
SKU: LTS-CINEBALLT2K
- Power: 2000W
- Light output: 6200lx @ 1m
- Lamp socket: G38 (CP73 / CP41)
- Diameter: 94 cm (37") | Weight: 3.9 Kg
- Soft tungsten light resembling to a China ball lantern light
- Heat-resistant and washable softbox fabric
- Upper side reflective interior to enhance light output
