- Metallic Honeycomb grid for Studio Cool 6x55W
- Reduces the light spill, narrows the beam angle
- Minimal impact on the brightness value
- Easily slides in dedicated accessory slot
Studio Cool 6 X 55W - 3 Bank ON/OFF
€24900
Maximum quantity available in stock for reached
Dedicated accessories


- Metallic Honeycomb grid for Studio Cool 6x55W
- Reduces the light spill, narrows the beam angle
- Minimal impact on the brightness value
- Easily slides in dedicated accessory slot


- Two axis pole operation for Studio Cool 6x55W
- Adjusts the lamphead orientation (pan & tilt)
- Strong metal frame design
Recommended Accessories


- Mounts lighting fixtures on walls and ceiling
- Aka wall plate with baby pin
- Spigot length: 60 mm
- Spigot diameter: 16 mm
- Made of steel
- Size: 12 x 8 x 6 cm | 0.45 kg
- As: F800, KS-046, LF.8000.A, 429041


- Fits on 25 to 55 mm diameter pipes
- Studio hanging C-Clamp for pipe grids
- Baby receiver 5/8"
- Removable 16 mm spigot pin with M8 screw
- Dual locking system against extraction
- Metal made
- Payload: 50 kg
- As: C-05B


- Secures lights when hanged from ceiling or grid
- Metal made
- Length: 45 cm
- Diameter: 1.5mm
- Payload: 5 kg
- As: SW-02

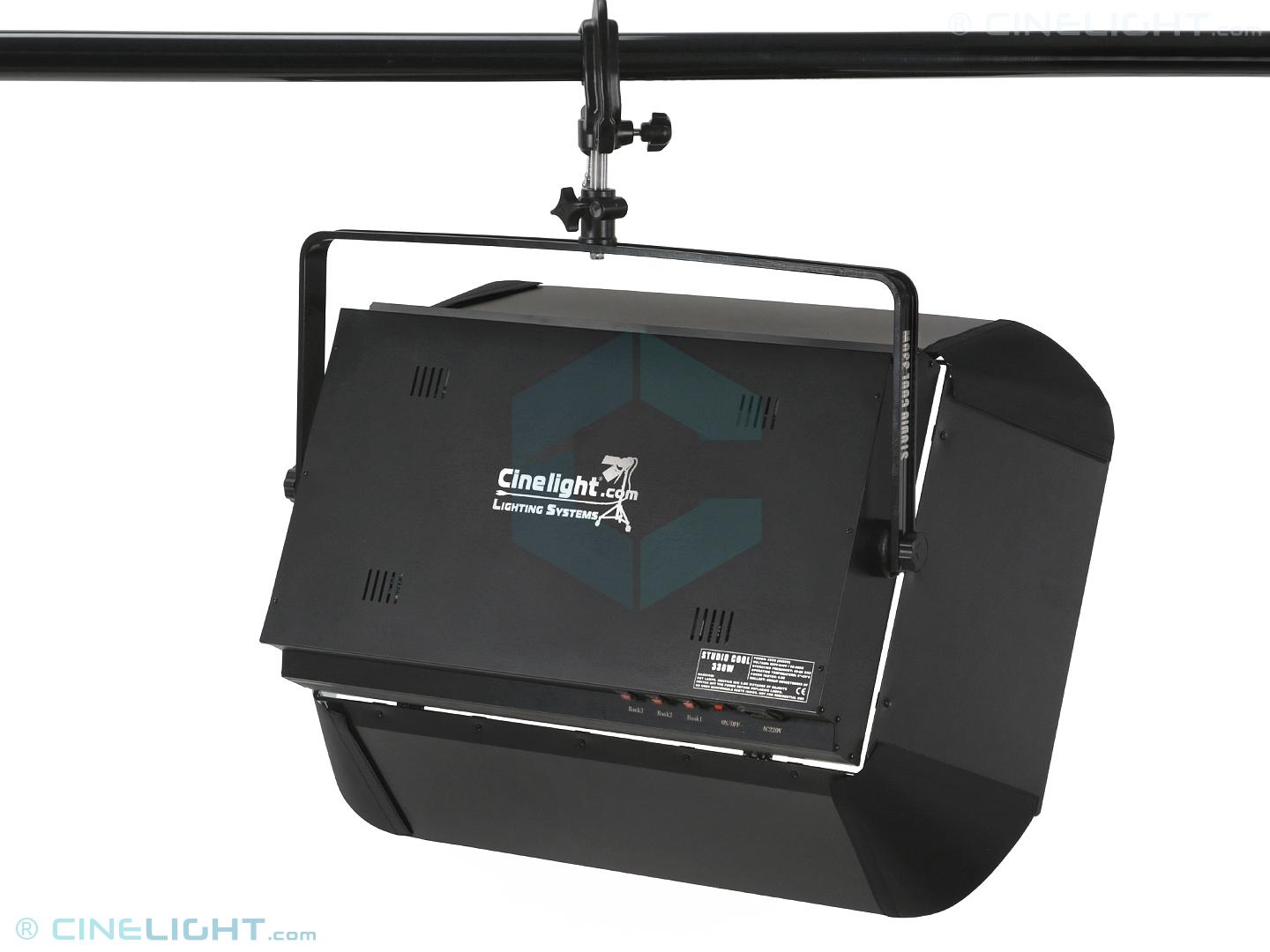

The Cinelight Studio Cool fixtures are the professional choice for all types of visual media production from photography to film and video work. This type of fluorescent lights are the most common TV lights on local and national TV stations. Can be used mounted on stands or suspended from the ceiling.
Soft light source for studio installations
Studio Cool 6x55W is a soft light source, having constant color temperature and low energy consume without heat radiation. The fixture can be equipped with long life, high luminous efficiency tubes available in choice of 3000K / 3200K (warm tubes) or 5400K / 5600K (daylight tubes).
Highly reflective interior for increased output

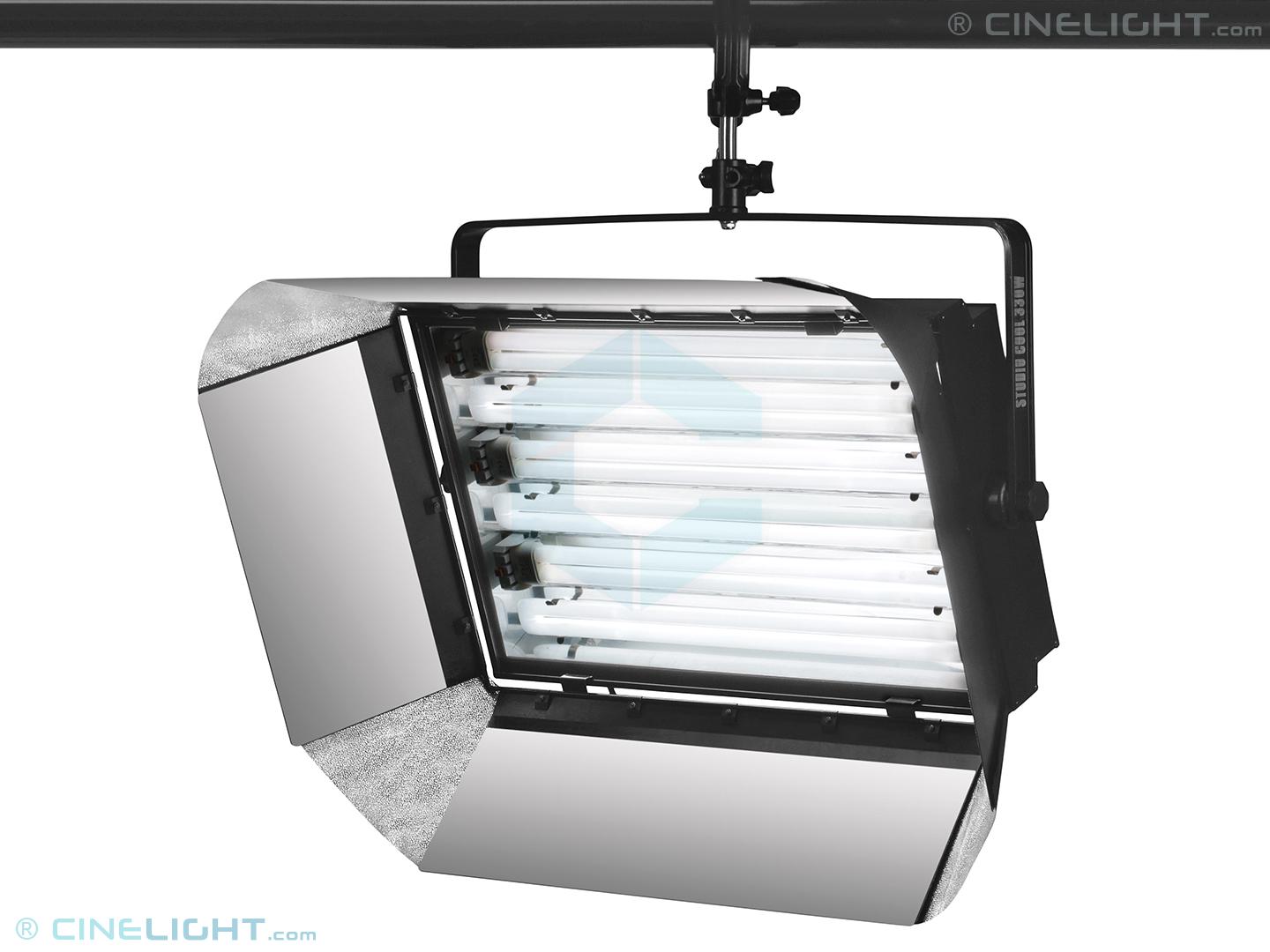

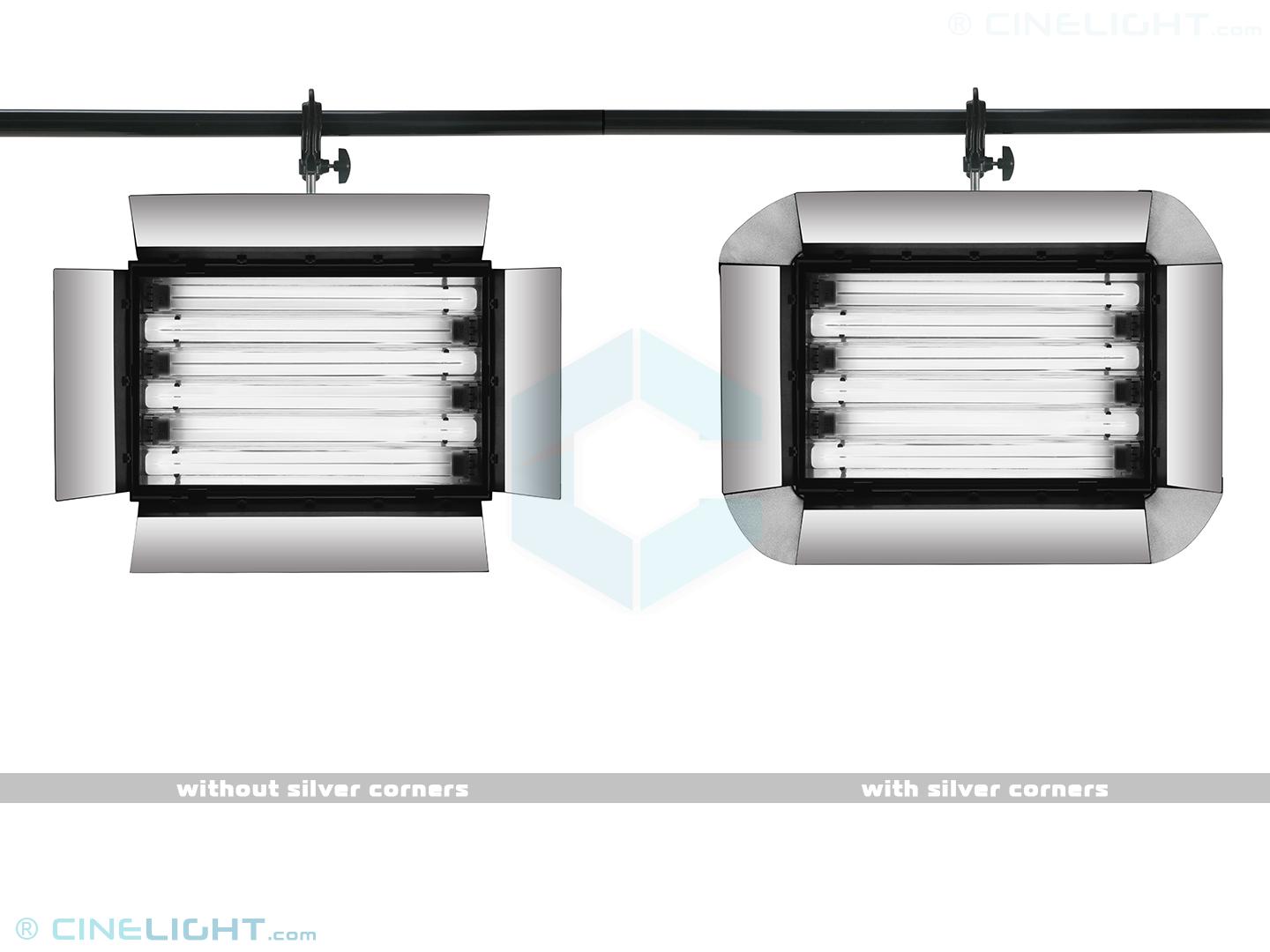

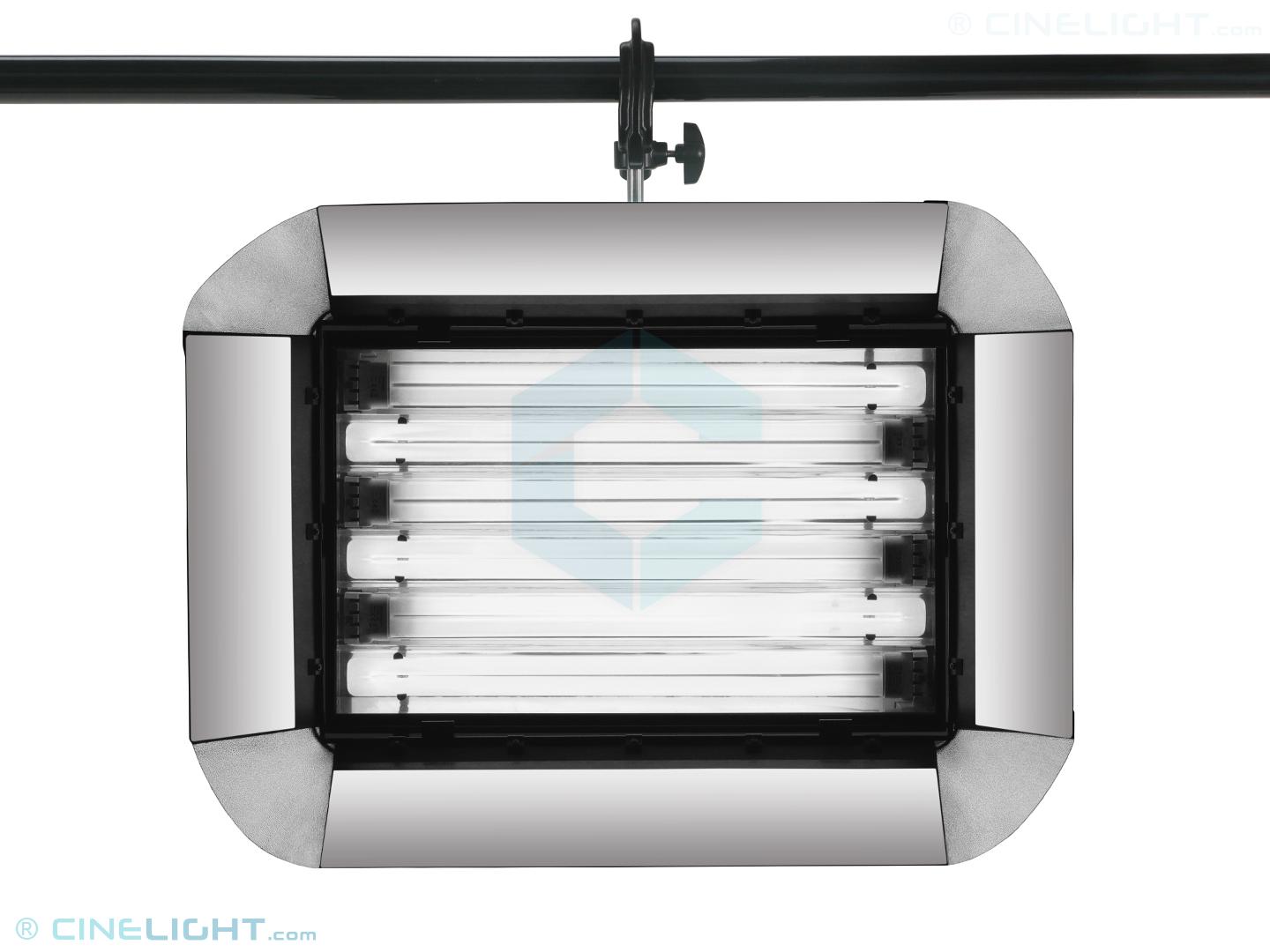

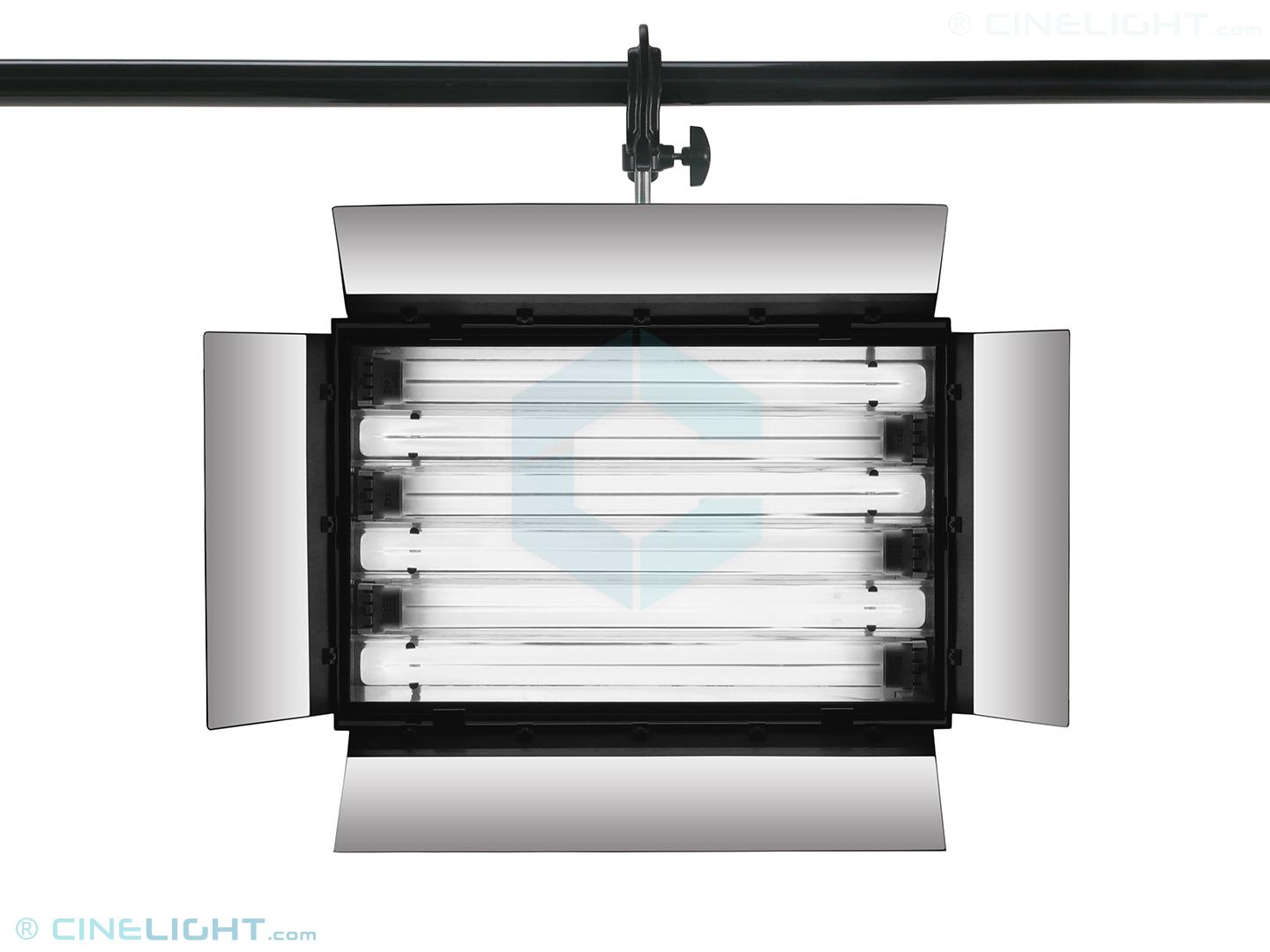

The deeper metal housing with highly reflective interior along with the removable barndoors with specular surface increase the light output and throw distance. Also, the Studio Cool 6x55W includes 4 flexible corners to create a 360° reflective surface for enhanced light output and spill control.
Professional Osram ballast for flicker-free operation
The unit is now equipped with professional Osram Quicktronic HF ballast with high output driving frequency (40-100 KHz) to ensure a flicker-free operation, while maintaining a stable Kelvin color temperature.
Solid and robust metal construction
The Studio Cool 6x55W features a robust metal construction designed for long-term intensive use. The included standard yoke bar can be replaced with two axis Pole-Operated yoke bar which allows for easily adjusting the lamphead orientation (pan & tilt) from the floor using a pole rod when this fixture is mounted high above, typical for studio sets.
Common power plug for European use

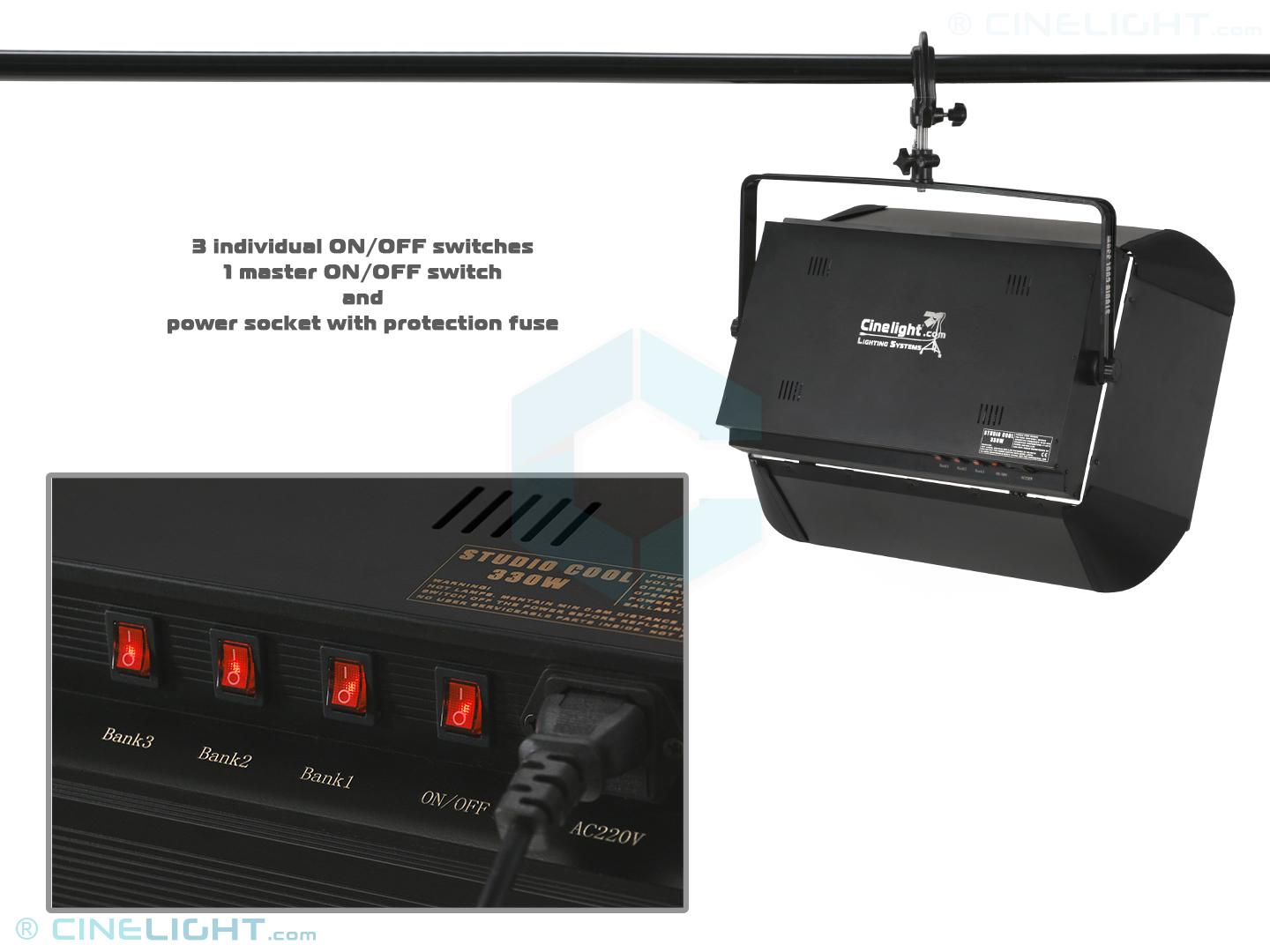

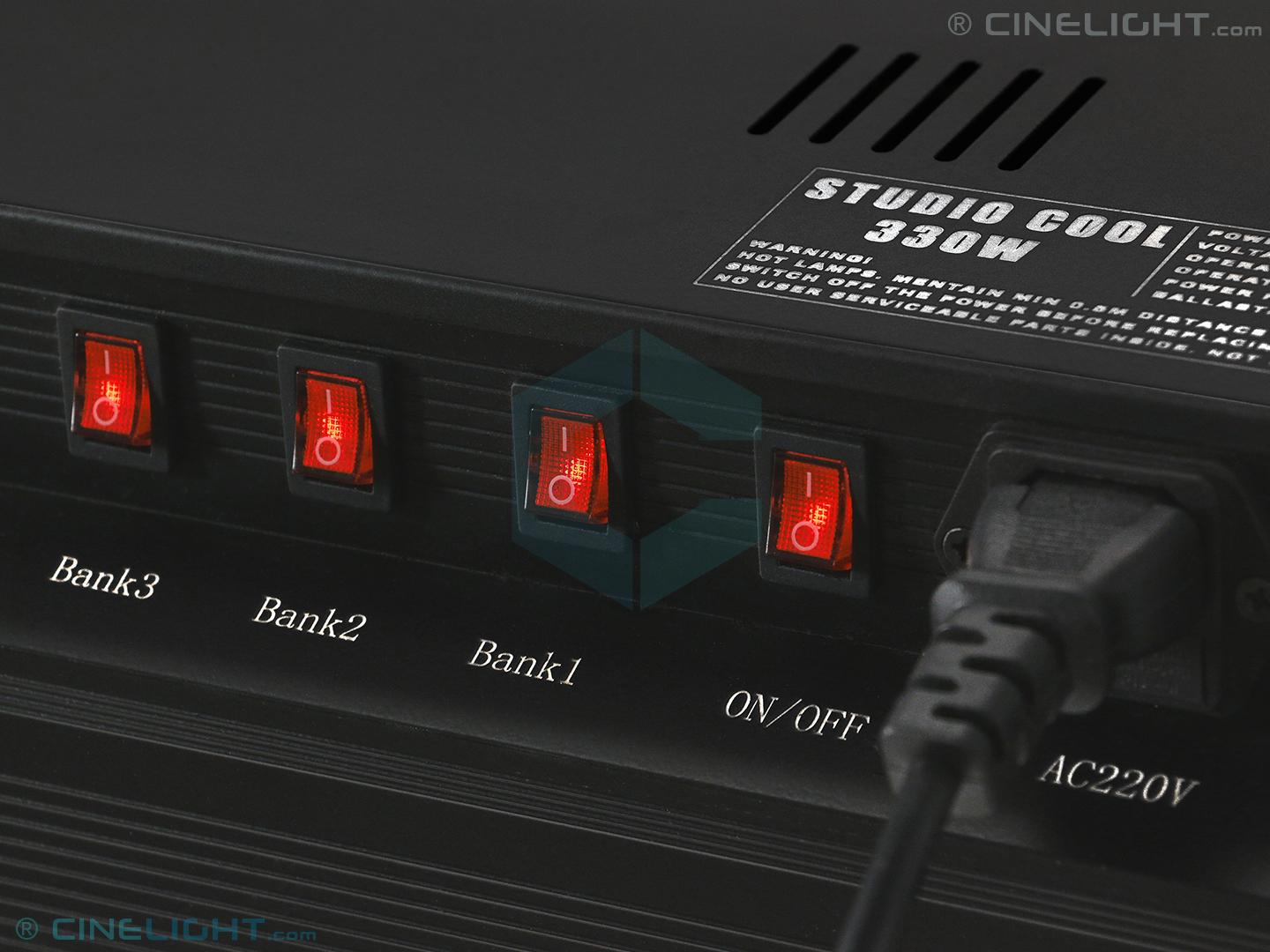

The power plug connects to the fixture through IEC socket with protection fuse and to the wall socket through a CEE 7/4 (Schuko) plug. The power cord has an in-line ON/OFF illuminated master switch.

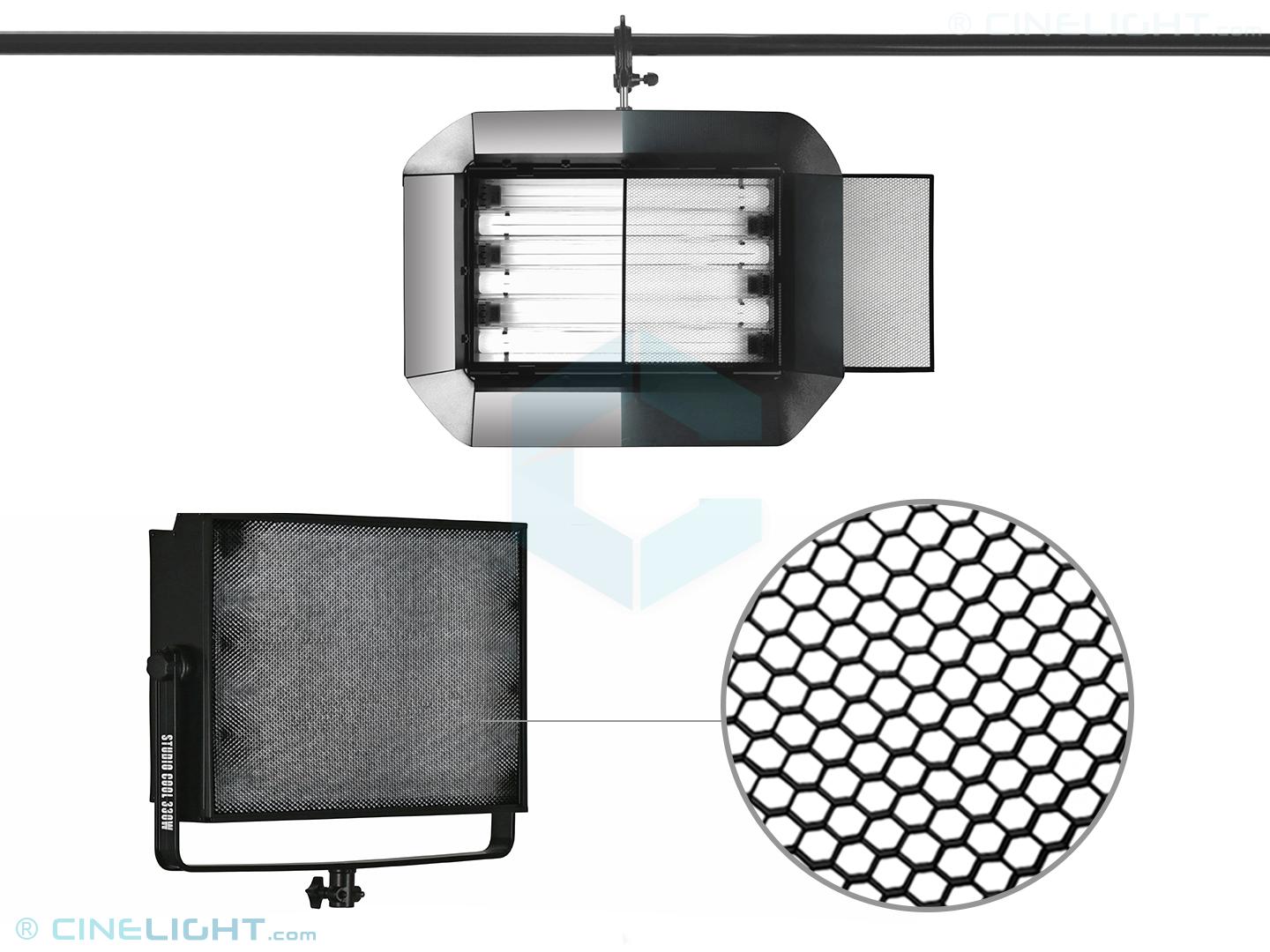

Optional honeycomb grid available
The optional honeycomb grid can be inserted into the specially designed slot for accessories, with securing latch to prevent accidental slipping. The honeycomb grid can be used to reduce the side spill and narrowing the beam angle while keeping the light softness with minimal impact on the brightness value.
Ideal fixtures for permanent studio setups
The Studio Cool series are recommended for permanent TV studio applications, interviews, TV shows, news, product presentations, chroma key and other events. Often used in conjunction with our Cinelight Studio Fresnels which add a more directional light, creating shadows and a stronger three-dimensional look to the image.
Specifications
Fluorescent - Fixture
Beam type | flood |
Rated power | 330 watts |
Photometrics | 1m: 10600 lx | 2m: 2600 lx | 3m: 1150 lx |
Color temperature | 3200K / 5600K |
CRI rating | 95 |
TLCI rating | 95 |
Lamp type | 4-Pin CFL |
Lamp socket | 2G11 |
No of lamps | 6 |
Dimming range | 100% / 60% / 30% |
Ballast type | Internal, Osram Quicktronic HF |
DMX control | No |
Fluorescent - Powering
Rated power | 330 watts |
Voltage input | 230V 50Hz |
Ballast type | Internal, Osram Quicktronic HF |
No of ballasts | 3 |
Ballast frequency | 50000 Hz |
Ballast power factor | 98 |
Plug in connector type | IEC |
Power connector type | CEE 7/4 - Schuko |
Power cord total length | 7.0 m |
Fluorescent - Physical
Yoke mount | Spigot 16mm receiver |
Housing color | Black |
Housing material | Metal |
Lamp head dimensions | 66 x 49 x 12 cm |
Lamp head weight | 6.5 kg |
Accessories & Bundles
- Two axis pole operation for Studio Cool 6x55W
- Adjusts the lamphead orientation (pan & tilt)
- Strong metal frame design
- Fits on 25 to 55 mm diameter pipes
- Studio hanging C-Clamp for pipe grids
- Baby receiver 5/8"
- Removable 16 mm spigot pin with M8 screw
- Dual locking system against extraction
- Metal made
- Payload: 50 kg
- As: C-05B
- Opening diameters: 38 mm - 52 mm
- M12 locking bolt with butterfly nut
- M8 bolt length: 30 mm
- Width: 30 mm
- Payload: 25 Kg
Q & A ( 1 )
G
09/02/2022
Greetings,
Got a question about "Studio Cool 6 X 55W - 3 Bank ON/OFF" . When are you awaiting for restock of a product and also have question about if all the lights are so called "cold" light.
I want 3 of those.
https://cinelight.com/fluorescent-studio-lights/studio-cool-6-x-55w-3-bank-onoff
Sincerely,
Giorgi
Hi. This model line is now discontinued from production and we cannot supplying anymore.
We recommend you to consider newer technology alternatives such like CineLED EVO 150W or CineLED STUDIO 200W units.
Regards,
Alex.
