Flexible and lightweight

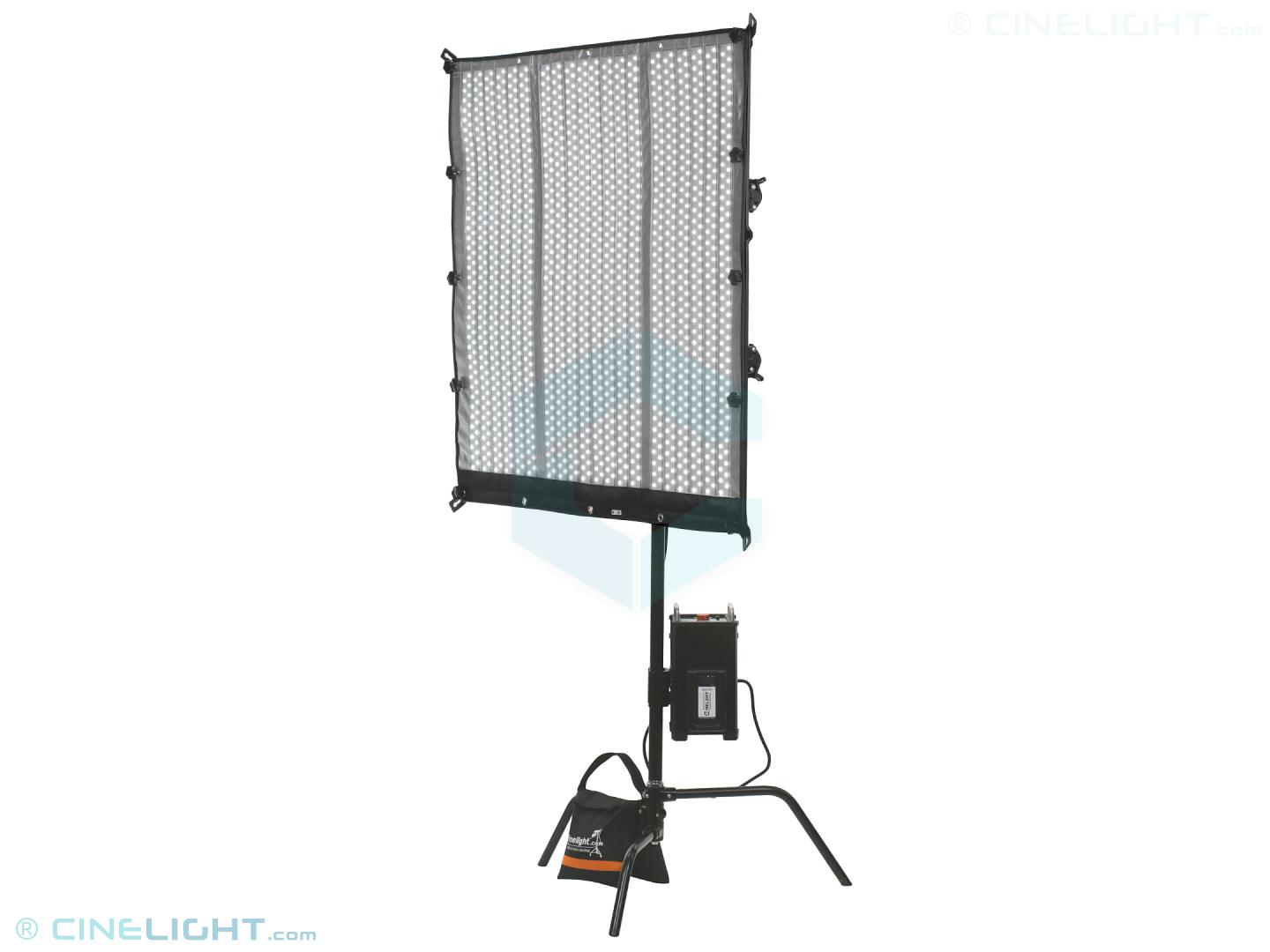

Replace the rigid and bulky lighting fixtures with the newest CineFLEX 700. Having generous dimensions, the CineFLEX 700 flex LED panel can be used as the main fill light even on larger setups. Being a lightweight fixture, it can be easily boomed or hanged above the subject to simulate the effect of a sky lighting.

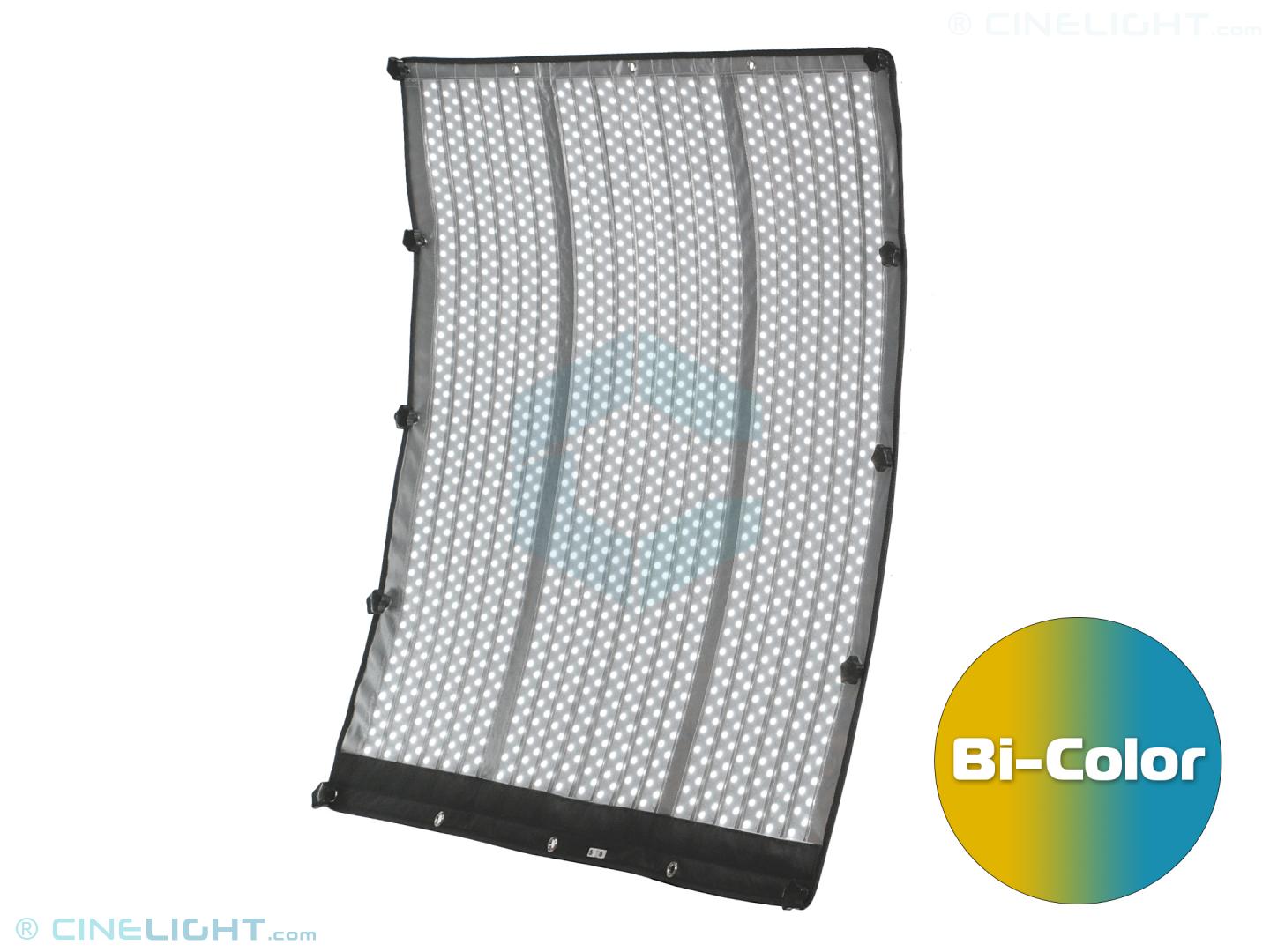

Thanks to its super slim and flexible design combined with the backside Velcro edging the CineFLEX LED mat can be effortlessly rolled or curved into various shapes or attached to fluffy material surfaces thus offering a multitude of mounting options.
True-Tone LED's
We've integrated the latest Bi-Color SMD chips, surpassing previous benchmarks for CRI and TLCI ratings while improving the lumen per watt ratio. With an adjustable color temperature range of 3000K to 5600K and dimmable brightness from 100% to 1%, this fixture is perfect for general fill lighting. The impressive TLCI index of 99 and CRI rating of 98Ra, complemented by Rf 96 and Rg 102 scores, meet the highest standards for color accuracy in broadcast production and professional photography.
Multi-powering external controller

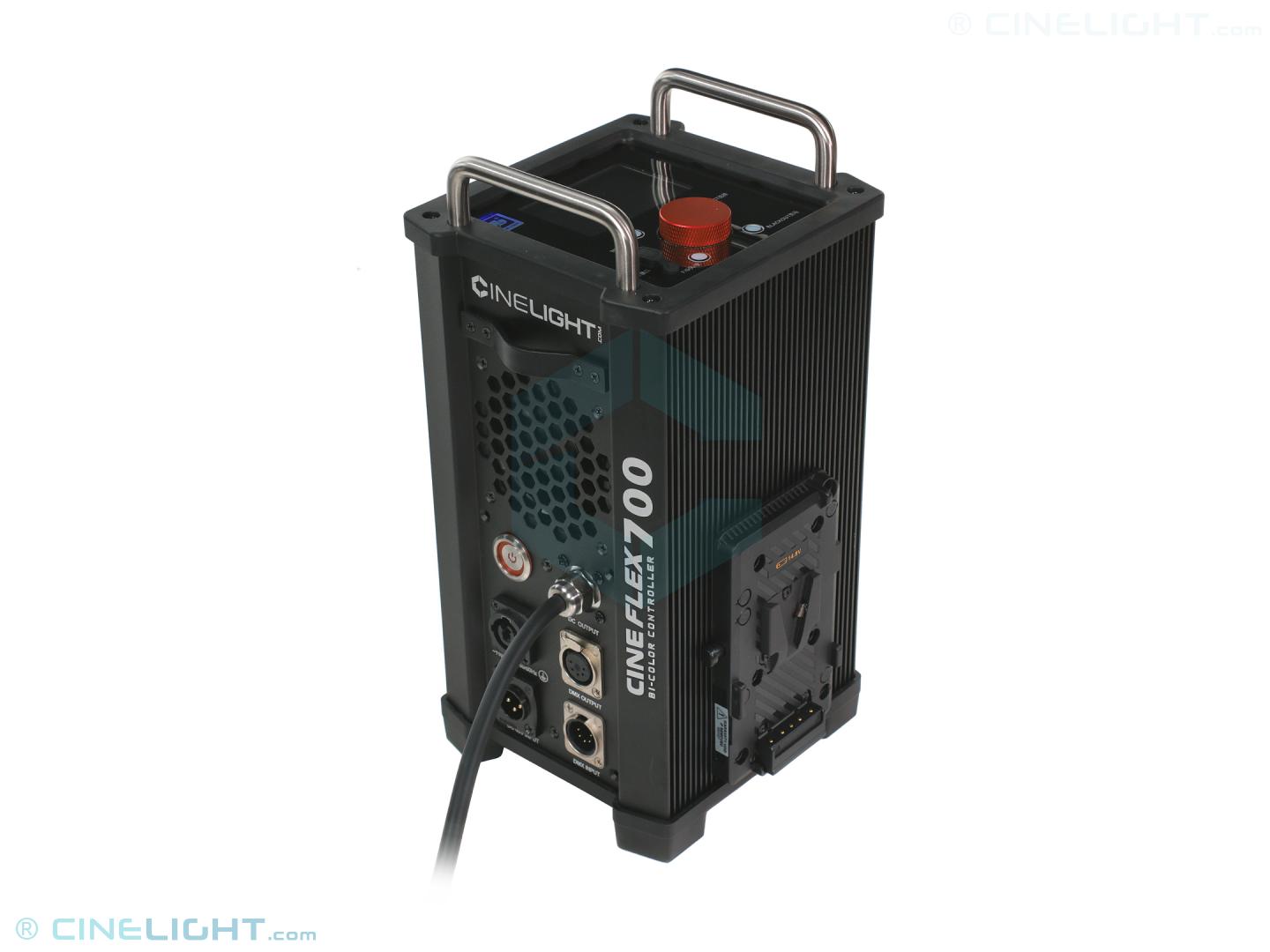

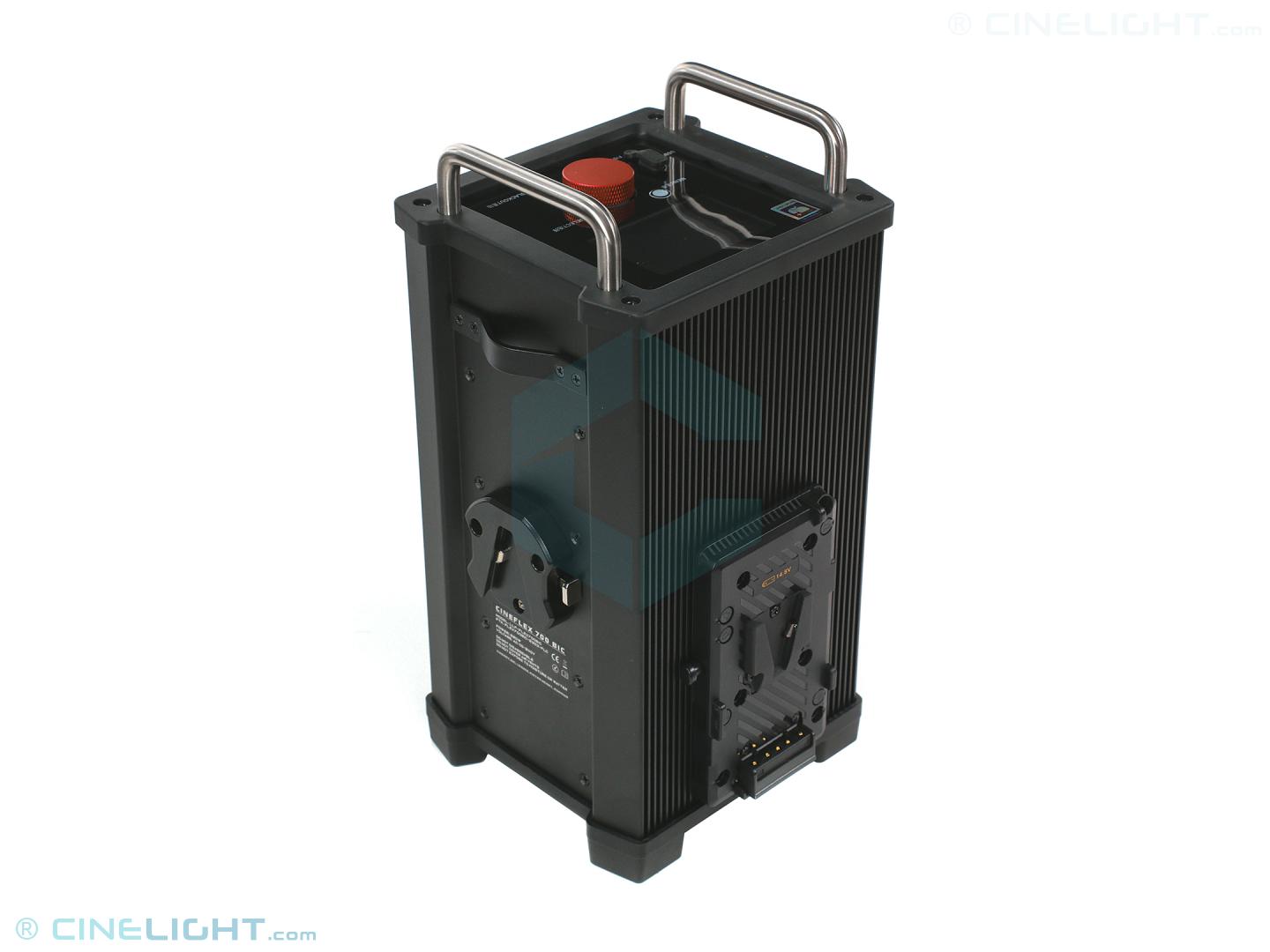

The CineFLEX 700 comes with an external power controller with a built-in AC-DC power supply to feed de panel directly from an AC 110V-240V wall socket via the PowerCon connector. Additionally, the panel can be connected to a DC 48V external source using the XLR 3P input connector or powered by hooking two 14.8V V-Mount batteries, thus being the perfect companion for on-location shoots. NB: when powered from V-Mount batteries the light output is limited to 50% to protect the batteries from overload.
The connection cable between LED mat and controller has 8m length. The power cable between AC socket and controller has 5m length and is equipped with CEE 7/7 socket connector and PowerCon controller connector.

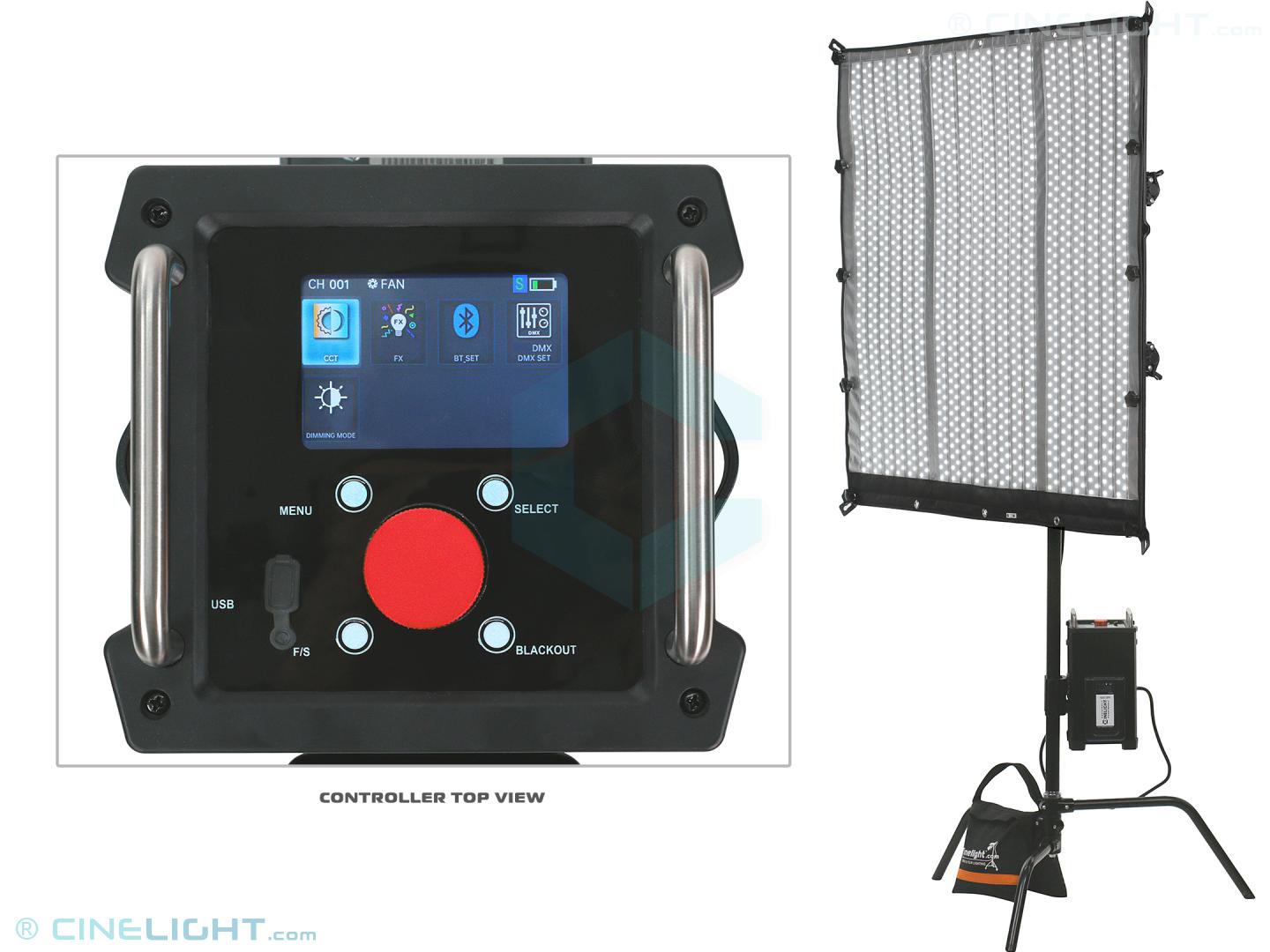

TFT color display with intuitive controls
Effortlessly adjust your lighting setup with the CineFLEX 400 intuitive user interface. The large color TFT display ensures clear visibility and seamless navigation and shows the color temperature, light intensity, DMX or radio channel for remote operation and also the battery remaining level.
The CineFLEX 700 comes with multiple control options: local control, smartphone BT app, wired DMX (XLR 5P in/out ports), and wireless DMX. This allows easy customization and precision in achieving the desired lighting setup.
4-way controls: Local, DMX, W-DMX, BT APP
Local operation using larger TFT display controlled by the 4 push buttons to access the main functions and a jog-wheel to adjust each parameter’s value.
Wired DMX via the XLR 5P in/out connectors, so the CineFLEX panel can be integrated into more complex studio installations such as news sets, talk-shows or entertainment productions where a standardized remote controlling method is required.
Wireless DMX via the built-in W-DMX receiver, for special applications when a cable free operation is required to control the CineFLEX from a lighting console. Note: one optional wireless DMX sender must be added to the lighting console side to transmit the signal to one or multiple DMX fixtures.
Bluetooth APP: Equipped with Bluetooth module, one or several CineFLEX 400 & 700 units can be controlled from up to a 30 m distance through the dedicated “Desal Lite+” smartphone APP (iOS & Android). Having a visual representation of all the physically settings of the panel on any common smartphone can only make this light easier to use.
4 Dimming curves
The controller of CineFLEX 400 flex light is programmed with of four selectable dimming curves for brightness and CCT light changes. A selection between Linear, an S-Curve, an Exponential Curve, or a Logarithmic Curve is possible, rendering the desired lighting effect (smooth or sharp light transitions).
Creative Lighting Effects (FX)
With the CineFLEX 700 you can boost your creativity with a wide range of lighting effects. From subtle "lighting" and cozy "candle" effects to dynamic "pulse" and attention-grabbing "paparazzi" effects, this lighting panel enables you to experiment and achieve captivating visuals that will make your work stand out.
Convenient mounting options

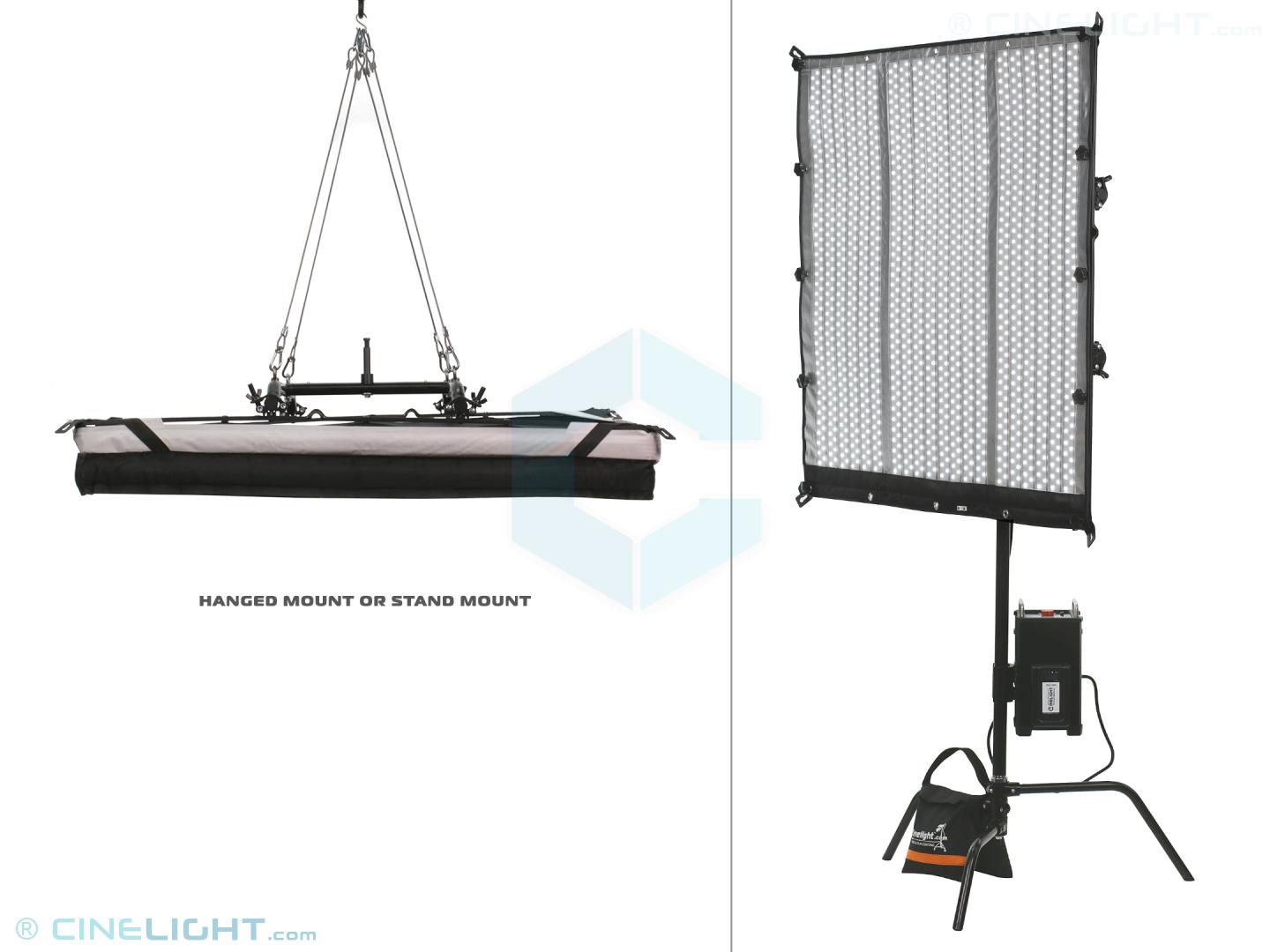

The built-in Velcro back edging allows for customizable mounting to any grip-on surface, while the reinforced corners with hidden magnets ensure a secure hold. Additionally, the CineLFEX 700 can be hanged using the included chains, thus working similar to a classic studio Spacelight to cover larger studio areas.
The included V-Lock clamp securely attaches the controller to light stand central columns or legs, providing a stable operation.
Included softbox & grid

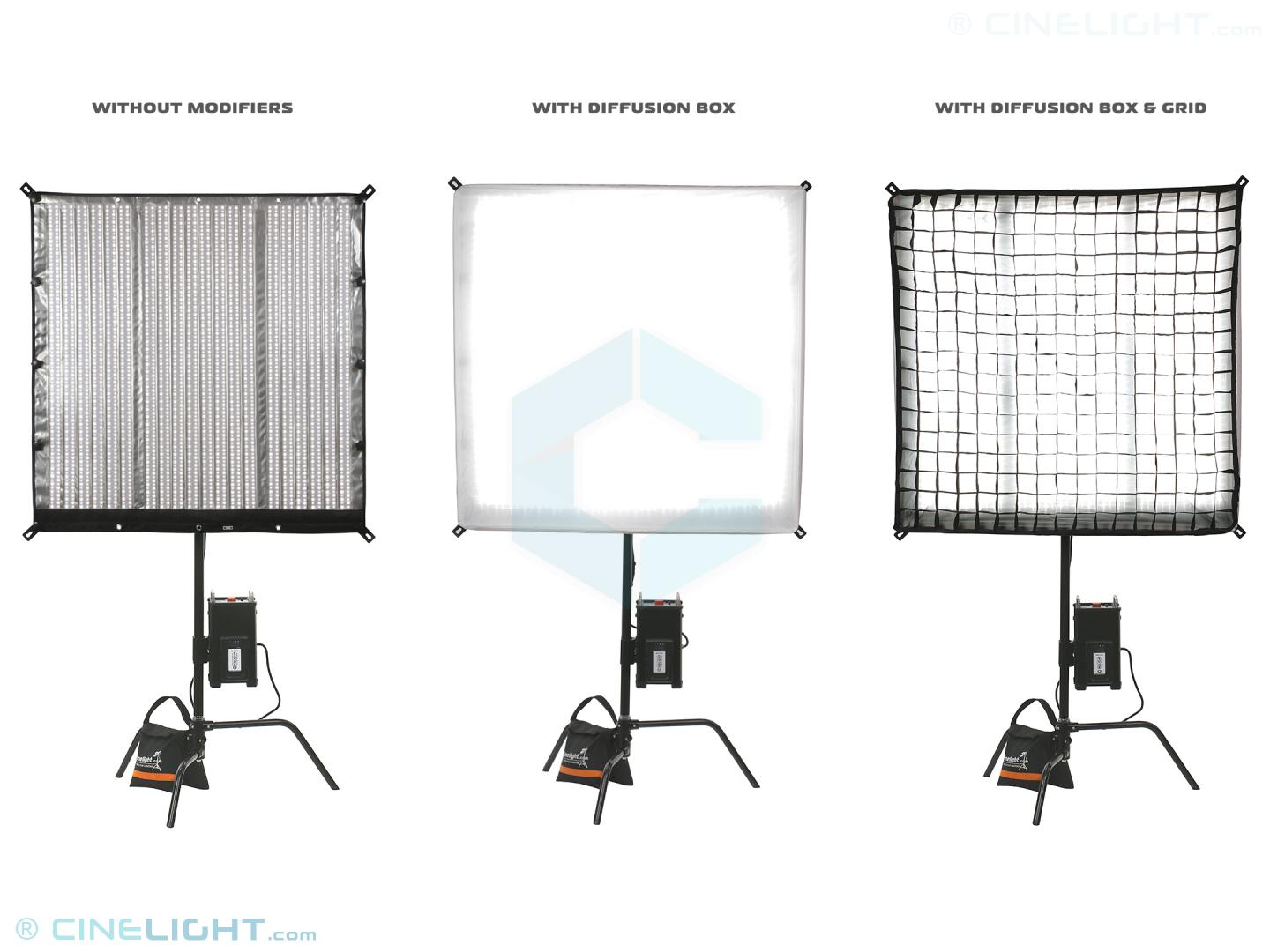

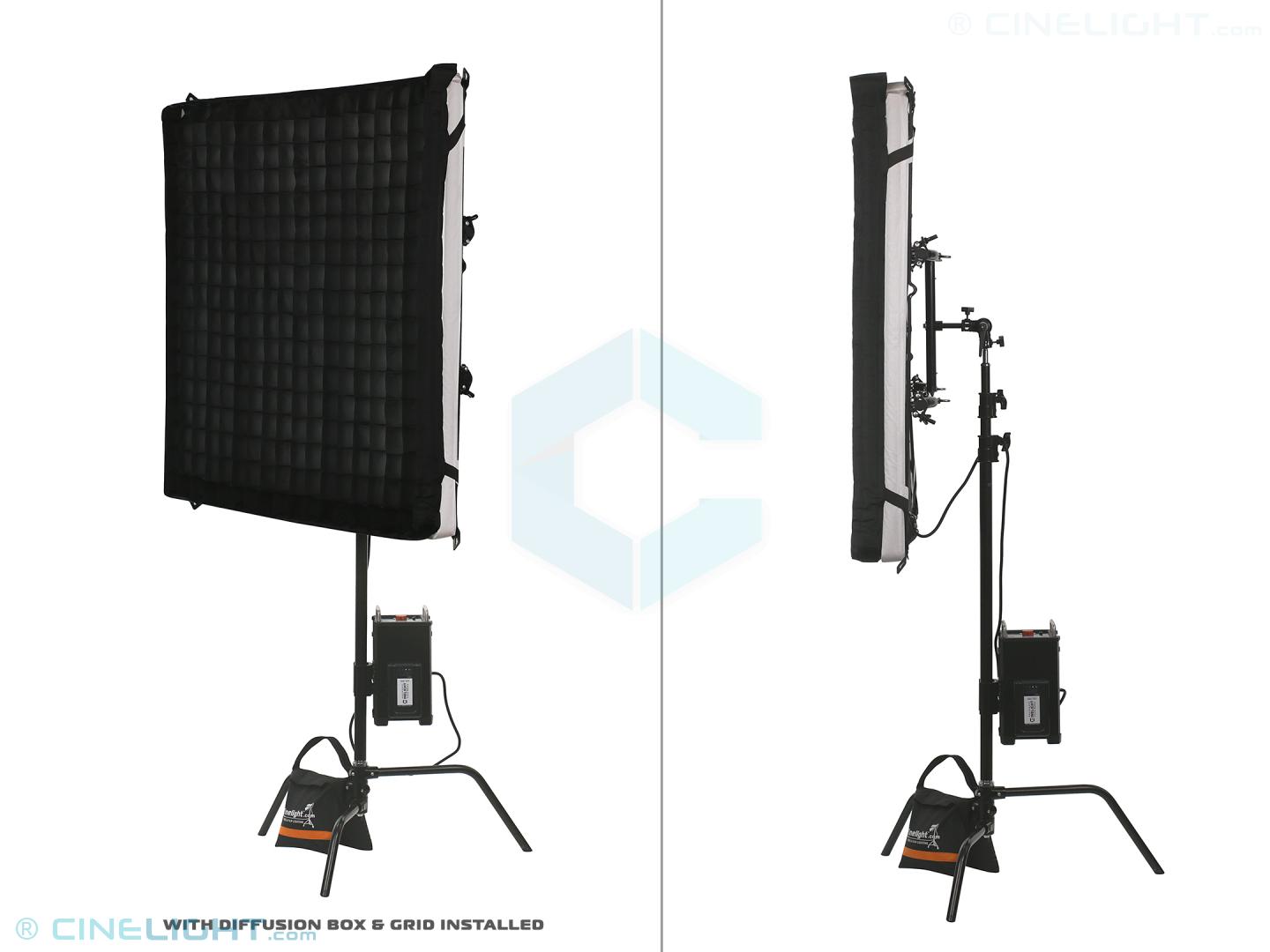

Perfectly balancing the light output and shadows is essential when aiming for professional-looking results. The included softbox with diffusion fabric allows you to soften the shadows as desired. By attaching the additional grid, the light beam is narrowed and sides light spill are reduced, making a more directional light and offering more control over the lighting area. These two modifiers can be combined and helping you to archive a large, soft & directional light source to add depth and dimension to your frames.
Easy storage and carrying

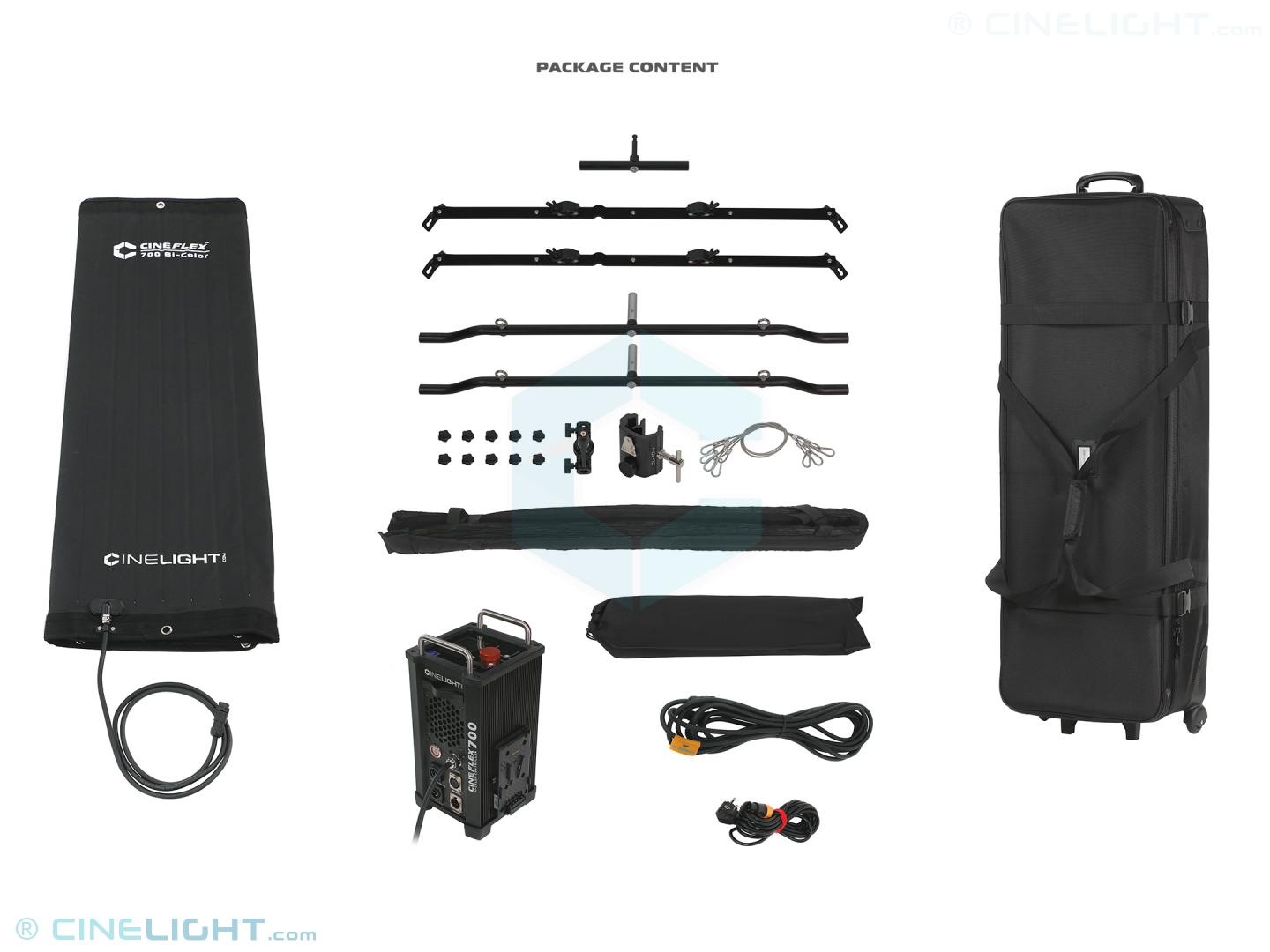

For every professional on the go, the CineFLEX 700 is a convenient lighting solution being easy to fold and roll for storage and transport. It comes with a trolley case that fits inside the CineFLEX panel with all its parts and spare room for some additional accessories like clamps, batteries, extension cables. An easy and convenient transportation between shooting locations.
Specifications
LED Panels - Fixture
LED type | Bi-Color |
LED no | 3200 |
Beam angle | 75° |
Beam type | flood |

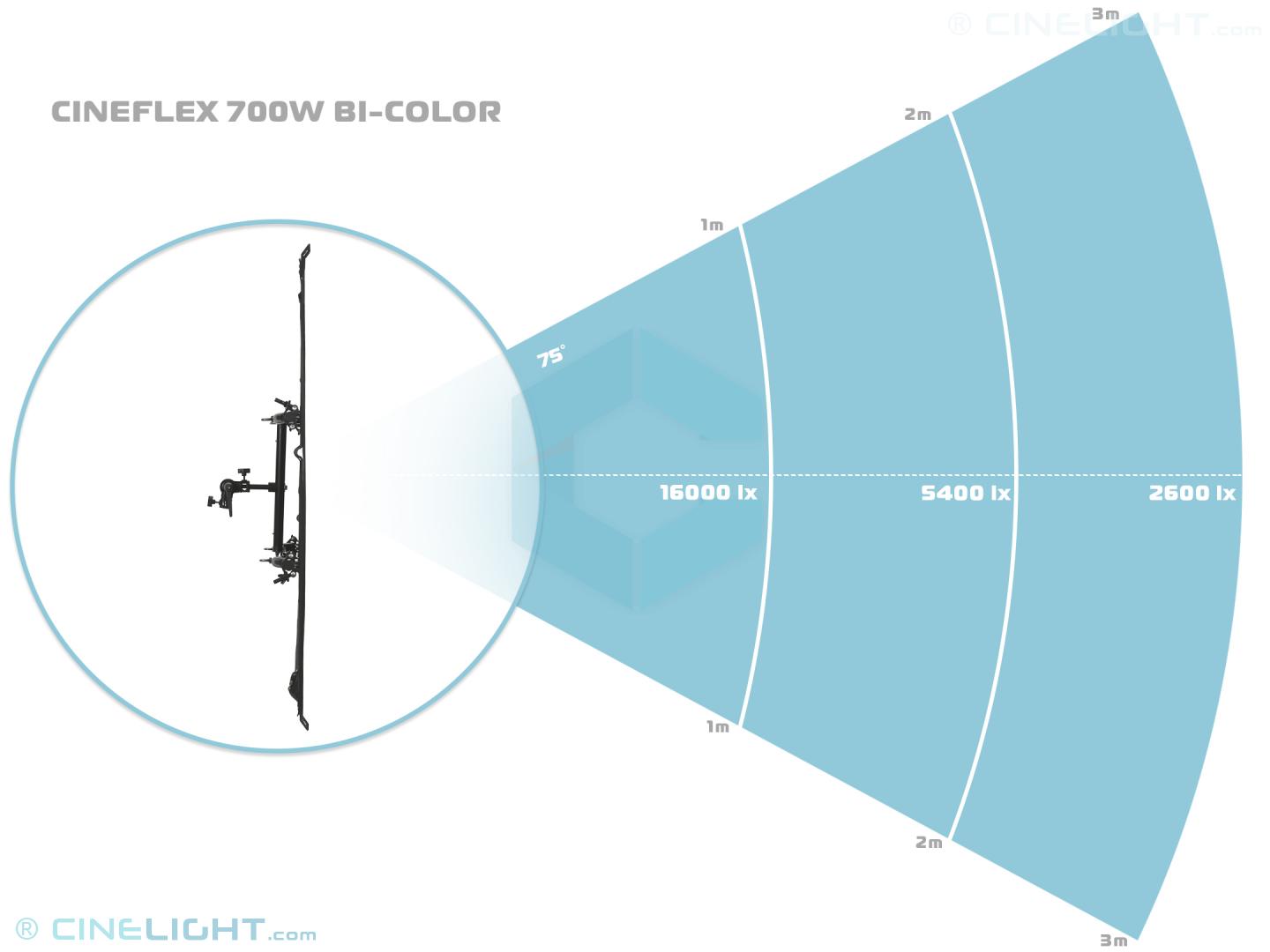

Photometrics | 1m: 16000 lx | 2m: 5400 lx | 3m: 2600 lx |
Color temperature | 3000K-5600K |
TLCI rating | 99 |
CRI rating | 98 |
Dimming range | 100%-0% |
Cooling system | Active |
Display type | Complex - color |
LED Panels - Controls
Local functions control | Analog |
DMX control | Yes |
DMX connectors type | XLR-5P |
Bluetooth / WIFI APP control | Yes |
Radio remote control | Yes |
LED Panels - Powering
Rated power | 680 watts |
Voltage input | 100-240V 50 / 60 Hz |
Power source | Internal, AC 100-240V 50 / 60 Hz |
Battery | Yes |
Battery mount | V-Lock |
Plug in connector type | PowerCon |
Power cord total length | 5.0 m |
Power connector type | CEE 7/7 |
LED Panels - Physical
Yoke mount | Spigot 16mm receiver |
Housing color | Black |
Lamp head dimensions | 117 x 116 cm |
Lamp head weight | 3.2 kg |
Controller dimensions | 19.5 x 17 x 33.4 cm |
Controller weight | 4.4 kg |
Package size | 137 x 50 x 32 cm |
Package weight | 31 kg |
Accessories & Bundles
- Payload: 10 Kg
- Maximum height: 330 cm
- Folded length: 150 cm
- Mounting: spigot 16mm (5/8" stud)
- Material: steel
- As: A2030D, CT-40M, LA.2025.A
- Color display showing battery info
- Ports: USB 5V and D-tap 14.8V
- High Capacity: 310 Wh / 21 Ah
- Dimensions: 161 x 97 x 73 mm
- Weight: 1450 g
- Payload: 12 kg
- Stand height: 150-330 cm
- Boom arm length: 110-240 cm
- Folded length: 150 cm
- Mounting: combo 5/8" pin & 1-1/8" receiver
- Convertible upper column into boom arm
- Strong pivoting collar with oversized handle
- Wheels included.
- Material: steel
- As: KS501311, 546M
- For CineFLEX 400 & 700
- 2.4Ghz W-DMX transmitter (TX)
- Built-in battery & USB-C power input
- 7 groups
- Extension cable for CineFLEX 700 Bi-Color (non-AIR)
- Adds between power controller & lamphead
- Length: 8m
Q & A ( 2 )
ON
12/23/2023
Hi ,
Interested by several 700 BI for a big location shooting .
What is the maximum length cable between control box and head light head mat?
Thank a a lot for the reply
Hi Oliver,
In the package you have a 8m length matt to controller cable.
You can add an extra 8m extension cable, totaling 16m of length.
Link for extension: https://cinelight.com/led-mat-accessories/8m-extension-cable-for-cineflex-700-bi-color
Regards,
Alex - customer support
UG
09/13/2023
Hi, where could I find your DMX-Profiles for the Cineflex 700?
Uwe G
Hi Uwe,
Thank you for your interest in our CineFLEX 700.
The system uses 5 DMX channels (n+4) allocated as follow:
CH1 - Dimmer ( 0-100%)
CH2 - CCT select (3000K-5600K)
CH3 - Scene / FX (1-9)
CH4 - Scene / FX Speed (0-10)
CH5 - Scene / FX Speed or Dim (0-100%)
Regards,
Alex - customer support
