CineFLEX 100W - Bi-Color
- Power: 100W
- Light output: 3800 lx @ 1m
- CCT: 3000K-5600K | CRI 98 TLCI 99
- Size: 47 x 62 cm | 1.8 kg
- Flexible and lightweight SMD mat
- Splash-proof & tear-resistant design
- Velcro back edging to mount on various surfaces
- External power controller w/ digital display
- DMX and 2.4GHz wireless remote control
- PROMO: Diffusion dome included
€30900
Maximum quantity available in stock for reached
Dedicated accessories


- Same effect as a lantern light / China ball
- Even light beam with soft shadows
- Collapsible design
- Size: 45 x 60 x 32 cm


- Includes front diffusion & honeycomb
- Front diffusion for smooth shadows
- Honeycomb grid for directional soft light
- Softbox size: 65 x 50 x 13 cm


- Extension cable for CineFLEX 100-150-250 Bi-Color
- Adds between power controller & lamphead
- Length: 6m


- Remote control for CineFLEX Bi-Color (G5)
- Digital display with intuitive controls
- Adjusts color temperature & brightness
- Selects light effect & DMX channel
- Effective control distance is up to 50 m
- Controls up to 999 devices simultaneously
Powering & batteries


- Color display showing battery info
- Ports: USB 5V and D-tap 14.8V
- High Capacity: 310 Wh / 21 Ah
- Dimensions: 161 x 97 x 73 mm
- Weight: 1450 g
Add stands


- Payload: 10 Kg
- Maximum height: 330 cm
- Folded length: 150 cm
- Mounting: spigot 16mm (5/8" stud)
- Material: steel
- As: A2030D, CT-40M, LA.2025.A


- Payload: 4 Kg
- Max height: 280 cm | Min height: 100 cm
- Material: aluminum
- Removable 16mm spigot with dual screws
- Dual mounting position for spigot adapter
PROMO: Diffusion dome included in the package.
Based on client’s feedback, the new CineFLEX Bi-Color G5 line has been updated to comply with the latest industry’s demands.

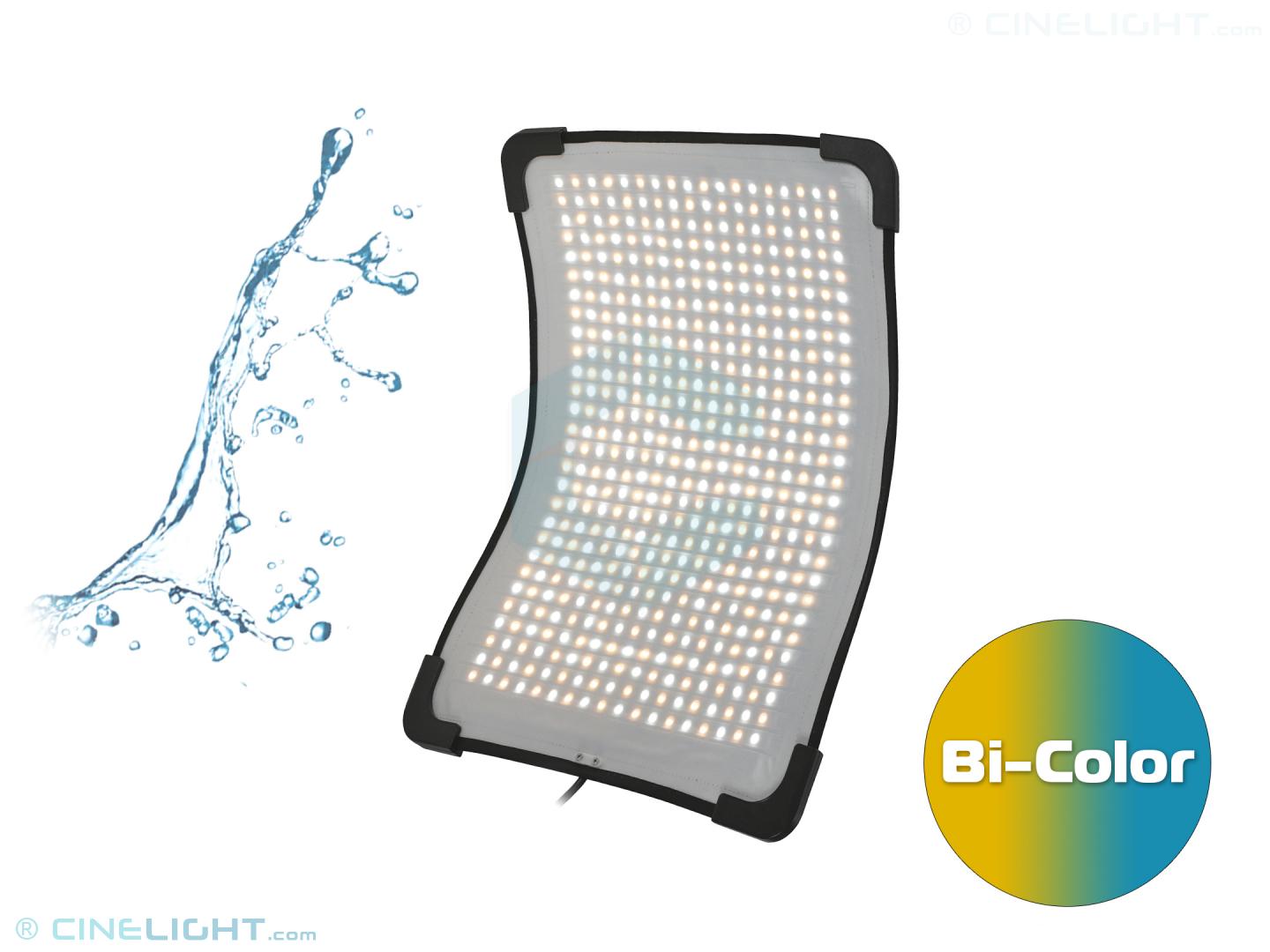

Bendable, tear-resistant & splash-proof LED mat

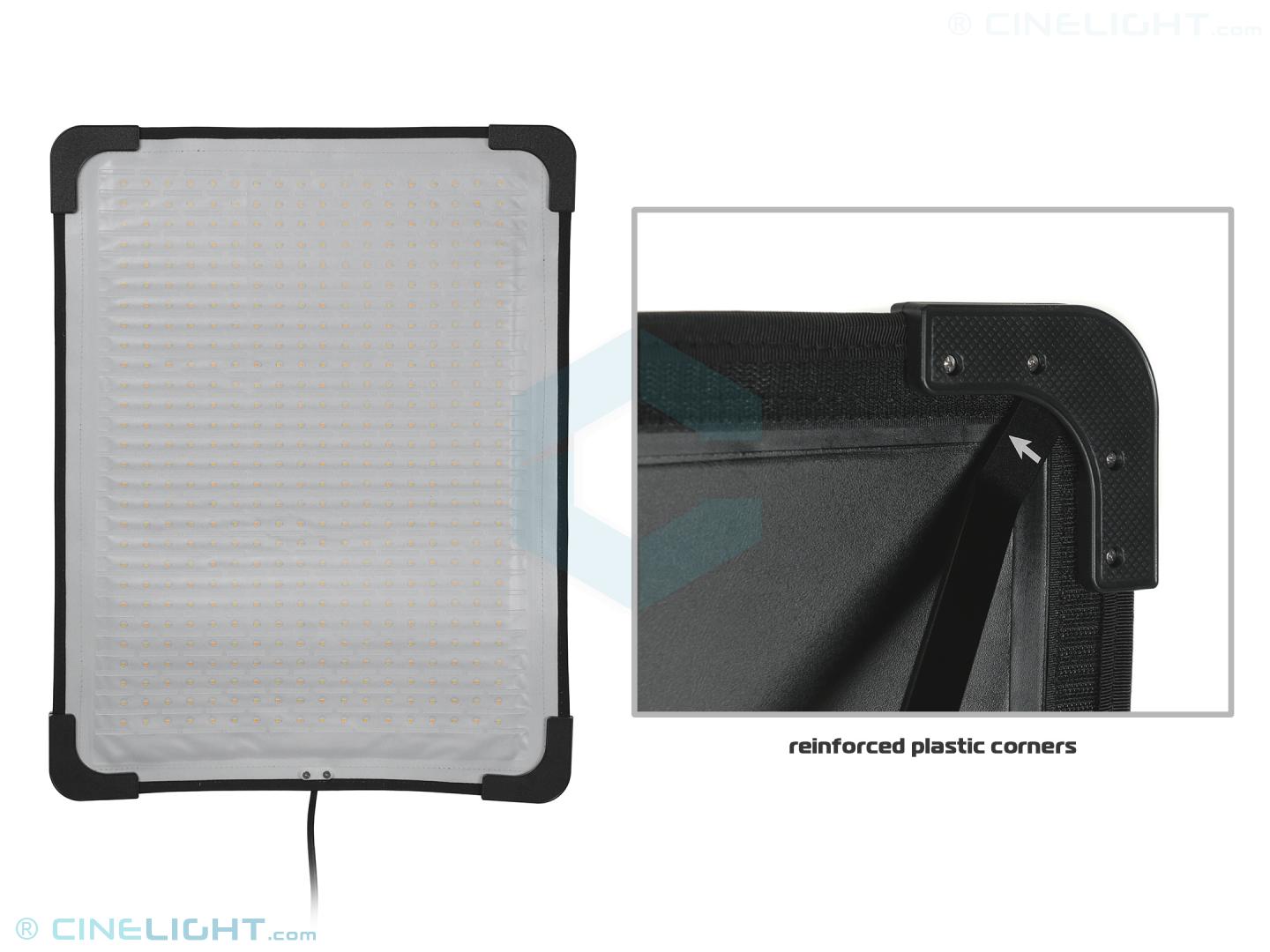

The flexible 47x62 cm panel has been redesigned into a splash-proof LED mat with PVC support base and reinforced plastic corners. Along with included watertight cable system, the CineFLEX Bi-Color can now be used outdoors, even on rainy days (* please note that the controller, power brick and the installed battery must be protected from water).
Highest CRI / TLCI SMD’s

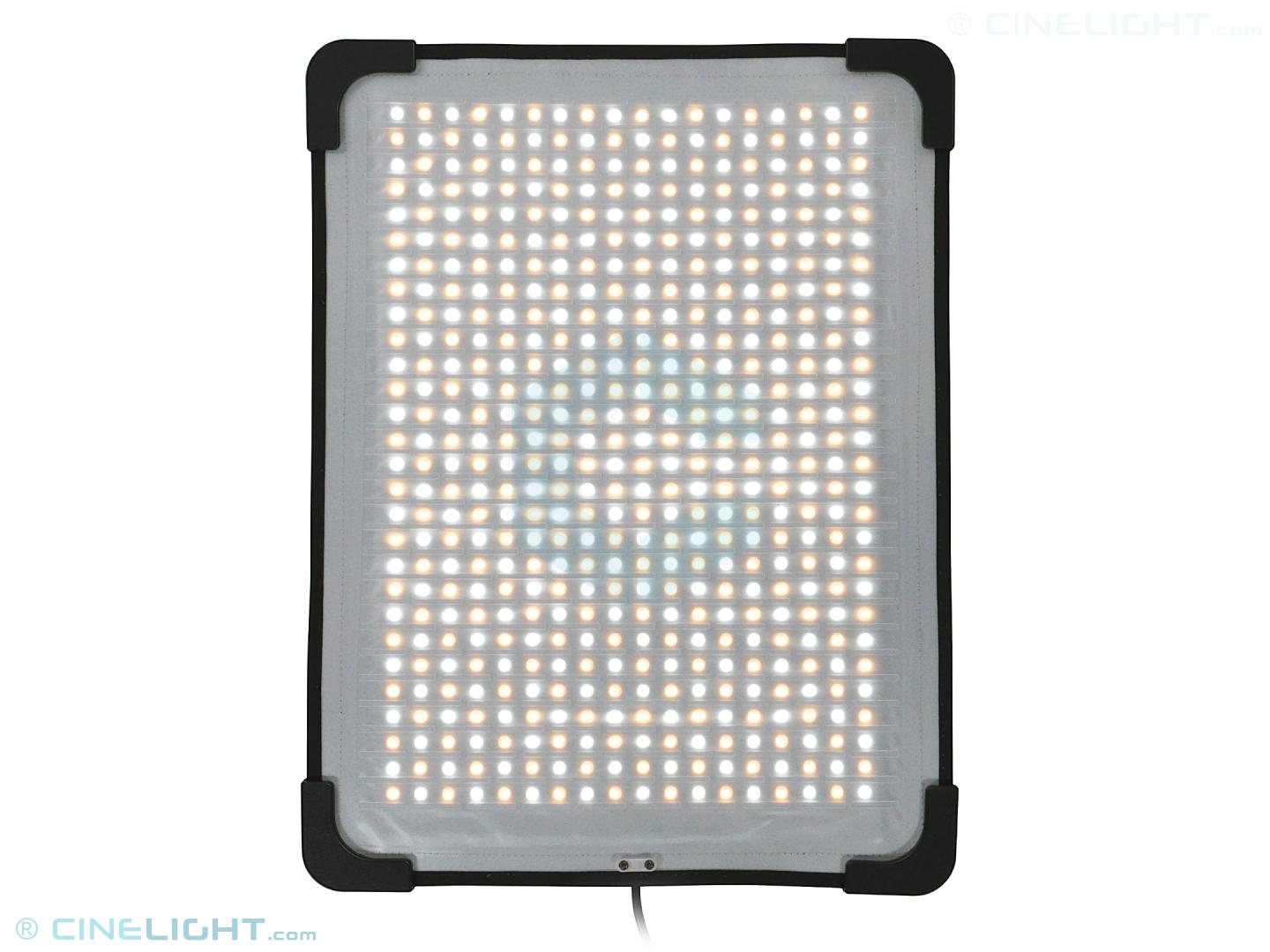

The fixture uses the latest Bi-Color SMD chips of 100W total power with higher than before CRI / TLCI and better lumen per watts ratio, resulting an increased output of the panel. The adjustable color temperature from 3000K to 5600K and dimmable brightness from 100% to 0% make this fixture great for general fill lights. The rated TLCI index is 99 and CRI 98Ra accompanied by Rf 96 and Rg 102 scores meeting the high standards of color accuracy for broadcast production and professional photography.
Flexible design LED mat
The flexible design allows the panel to be used in a variety of shapes such as cylinders, arcs and other more. For example, if rolled in a cylinder form, the panel can be used for a 360° panorama small product photography or for long thin highlights in reflective objects. When twisted in an arc form, the CineFLEX can be used in product photography as an effective wrap-around lighting. Just choose the desired shape to mold the panel into and use adhesive tape to secure the final form.
Optional diffuser dome & softbox
The optional diffuser dome transforms the CineFLEX LED panel into a genuine Chinese lantern light, offering a beautiful wrap-around soft light with a beam spread of up to 180 degrees. Being a lightweight fixture, the converted CineFLEX lantern light can be easily boomed above the subjects by most boom arms.
The optional softbox kit offers an additional diffusion layer, making the CineFLEX LED mat a softer & even light source. By attaching the additional honeycomb-grid the light beam is narrowed and light spill is reduced, offering more control.
Adhesive Velcro back edging
The CineFLEX features a built-in Velcro back edging that allows customizable mounting to any grip-on surface. Having a thin profile, the CineFLEX can be placed in tight spaces like vehicle / boat / plane interiors, elevators or even inside objects for product photography. Also, using the adhesive Velcro design, multiple panels can be joined together to form a large LED wall.

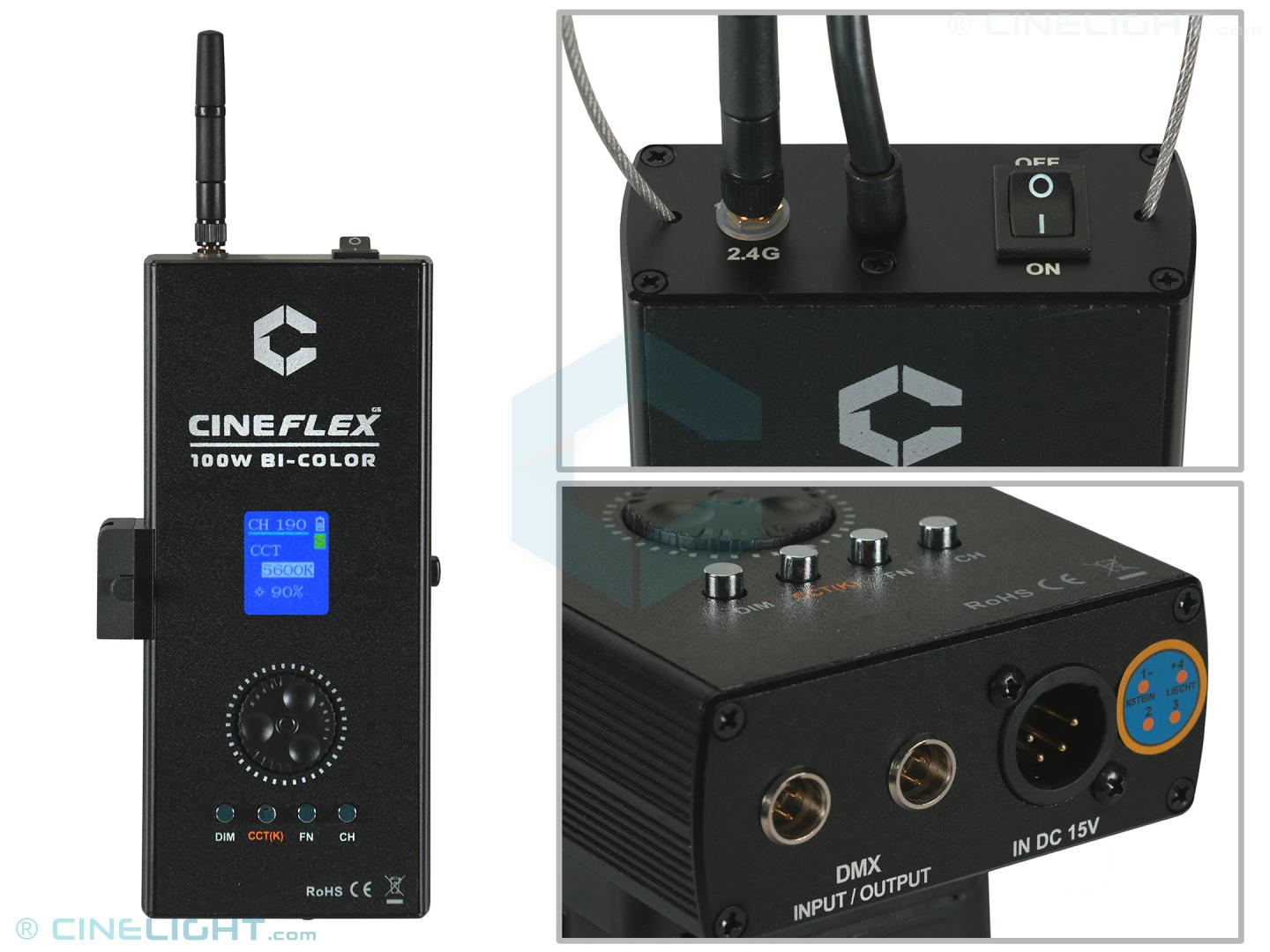

Compact, fully aluminum controller

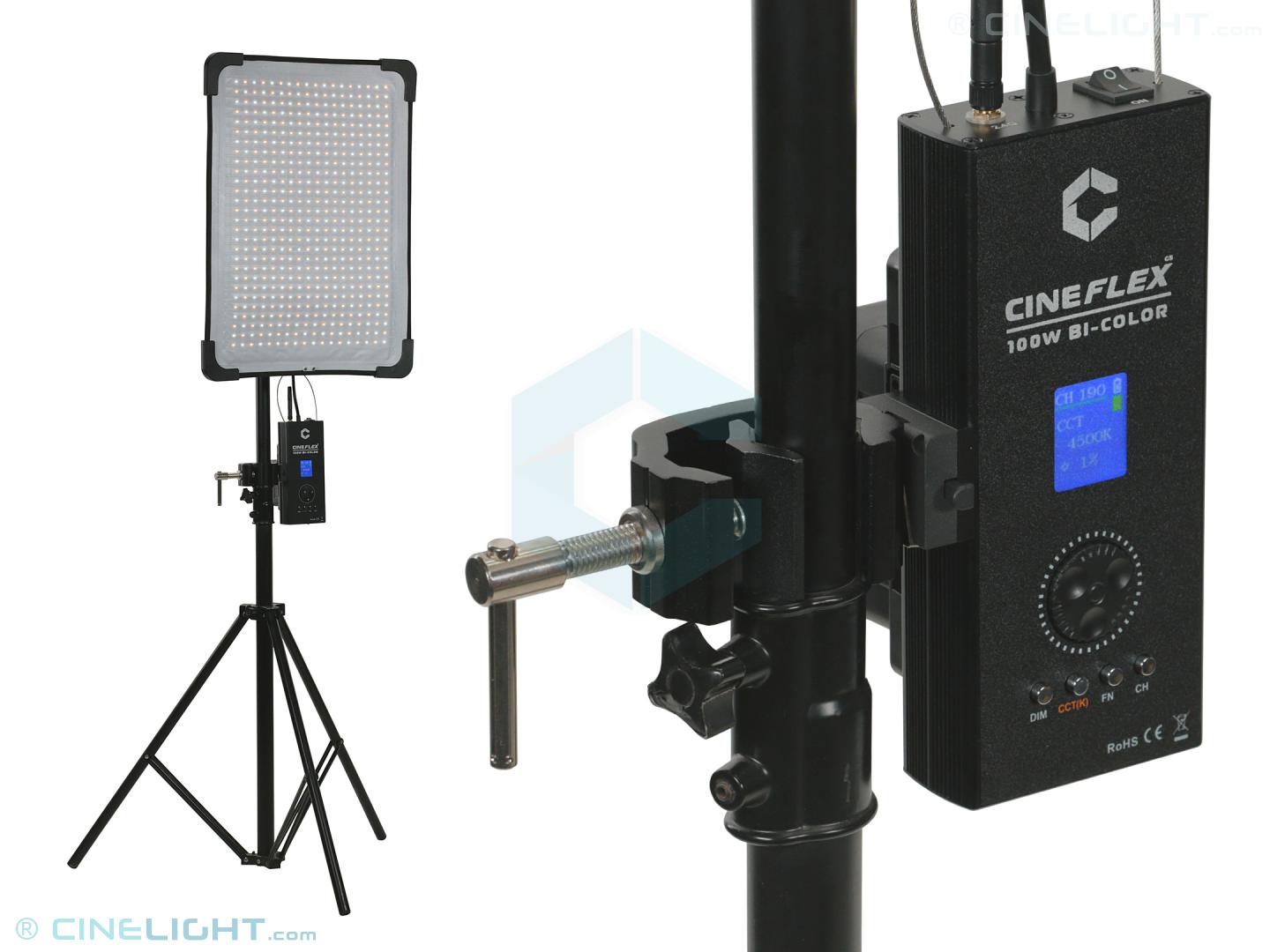

The new G5 CineFLEX controller features a compact design with fully aluminum shell and quick-release V-mount clamping system. The package also includes a metal C-clamp to grip the controller on various surfaces, like a table or on a light stand column. Having an external power controller, the panel can be placed into hard to access places and controlled from a convenient distance so it doesn't affect the shooting frame.
The digital display shows the color temperature, light intensity, DMX or radio channel for remote operation and also the battery remaining level.
Lighting effects
The new CineFLEX comes with 9 pre-programmed lighting effects with adjustable parameters, like: paparazzi, lightning, candle, explosion, strobe, pulsing, TV, etc.
3-way controls: local, DMX & wireless 2.4Ghz
Local control using the 4 push buttons to access the main functions and a jog-wheel to adjust each parameter value.
DMX-512 via the mini-XLR 3P in/out connectors, so the CineFLEX panel can be integrated into more complex studio installations such as news sets, talk-shows or entertainment productions where a standardized remote controlling method is required.
Wireless remote available as an optional accessory CineFLEX, through which users can intuitively control all CineFLEX functions for one or several CineFLEX units at once from a distance up to 50m.

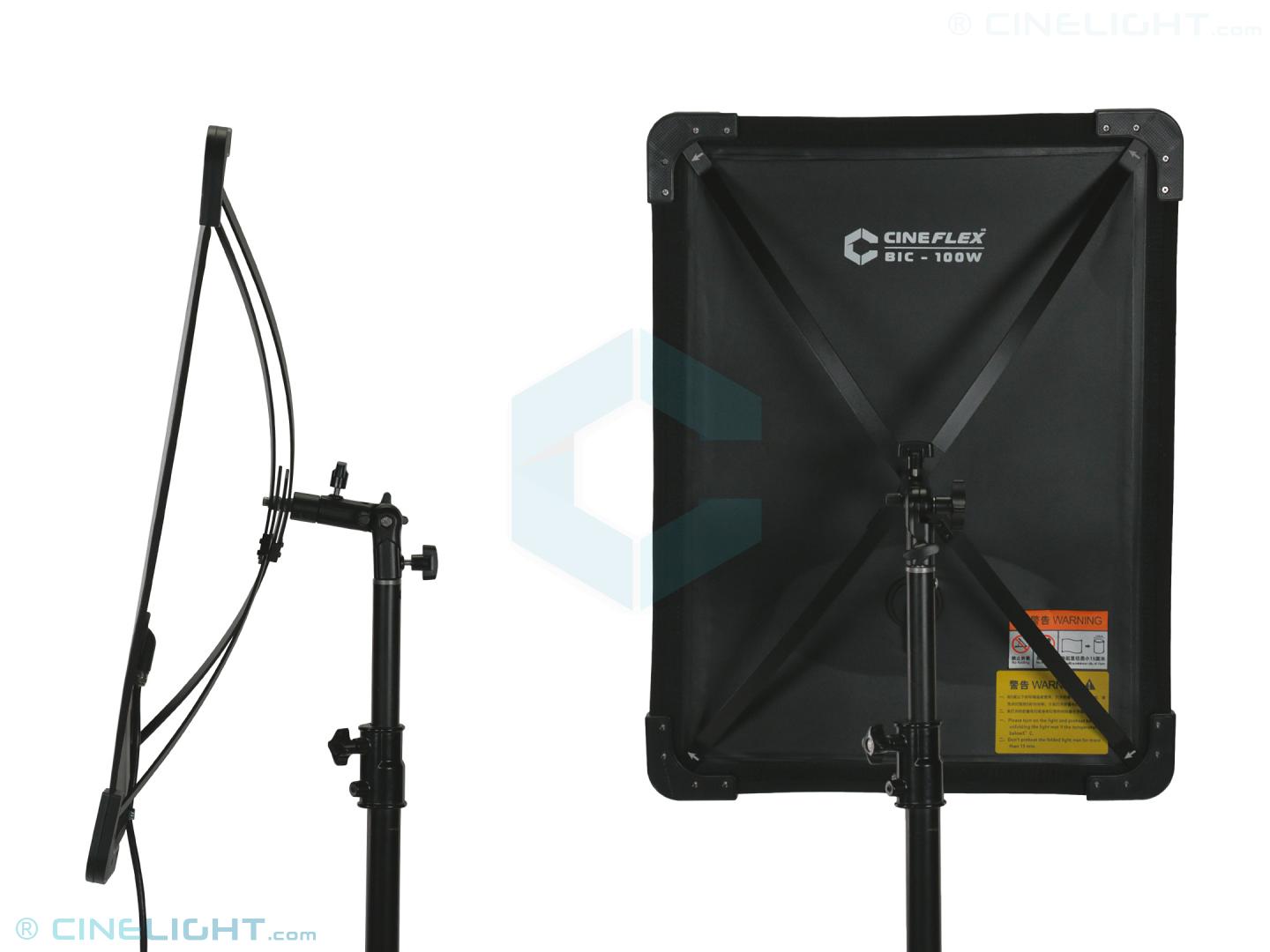

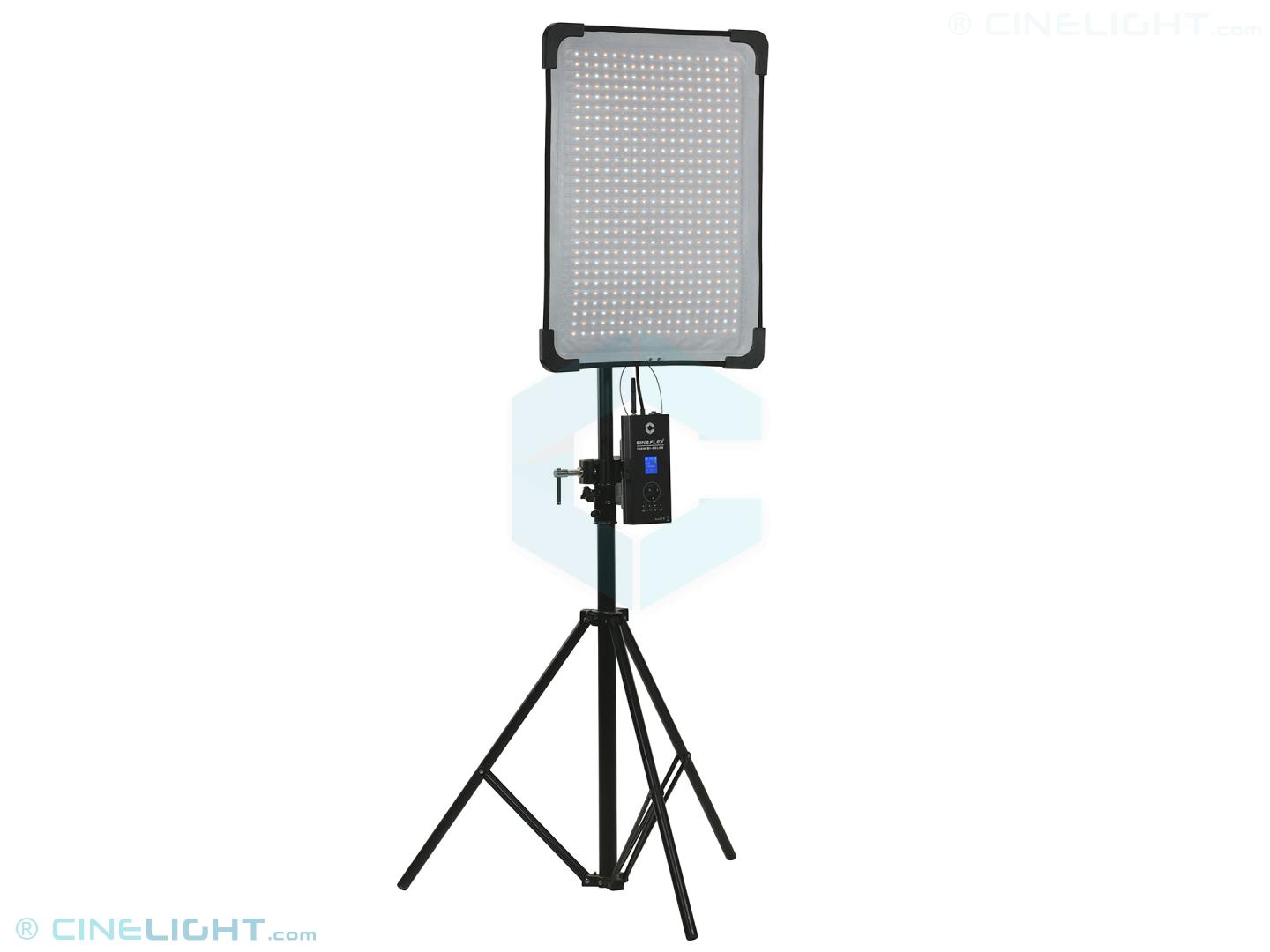

X-Cross back frame with tilting mounting bracket for light stands
The CineFLEX can be mounted on a light stand using the included X-cross back frame with built-in tilting mounting bracket with bottom standard spigot 16 mm receiver. This mounting system allows the panel to be tilted up and down, panned to the sides or 360 degree rotated for convenient use.

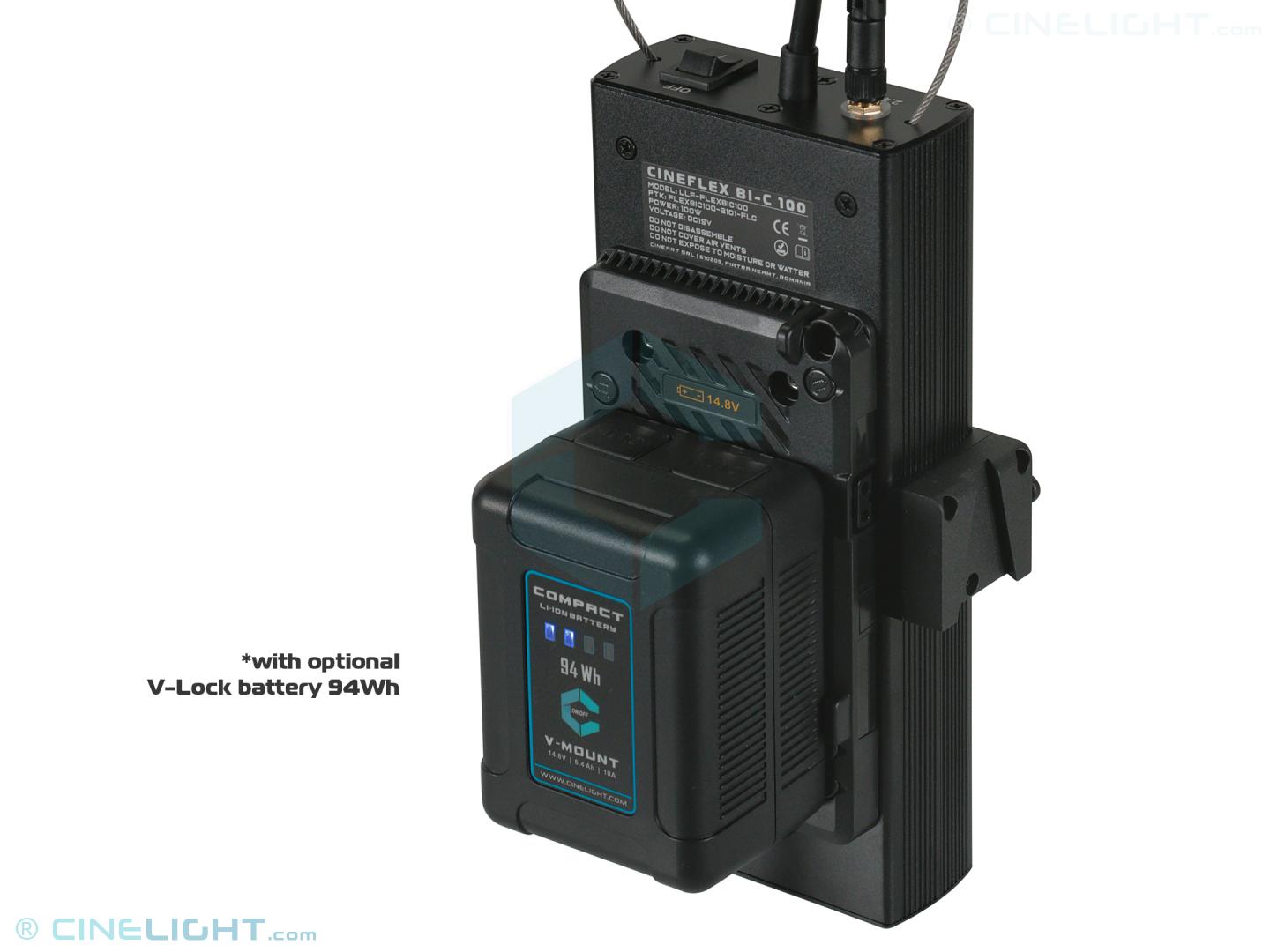

AC & Battery powering
The unit can be powered either from a 100V-240V AC wall socket using the included universal AC-DC power adapter or from a V-mount battery hooked on the V-lock plate from the back of the controller. This makes the CineFLEX suitable for both studio and location applications.
Please check our range of optional V-Mount batteries which can power the CineFLEX 100W for up to 3h on maximum intensity.

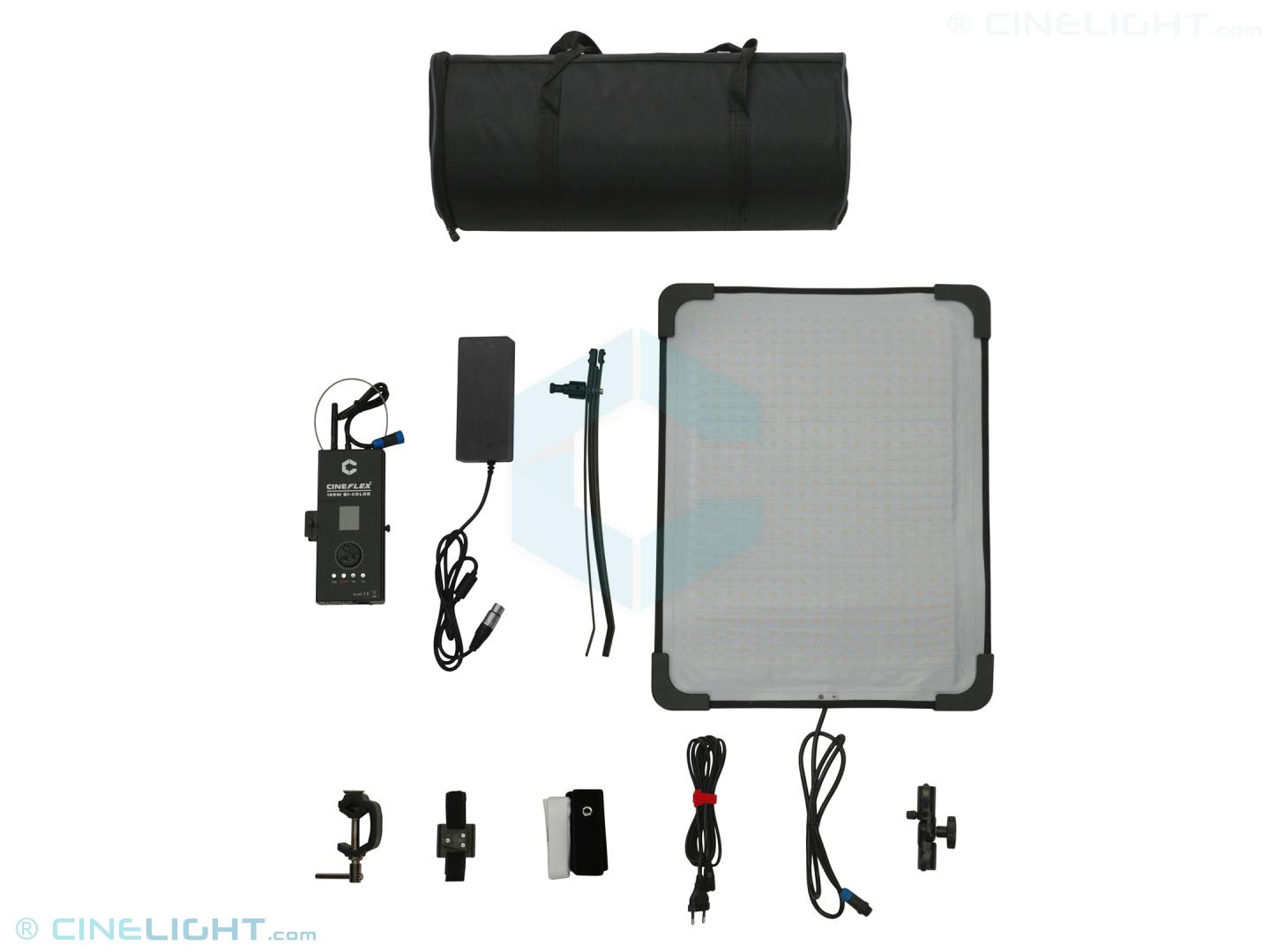

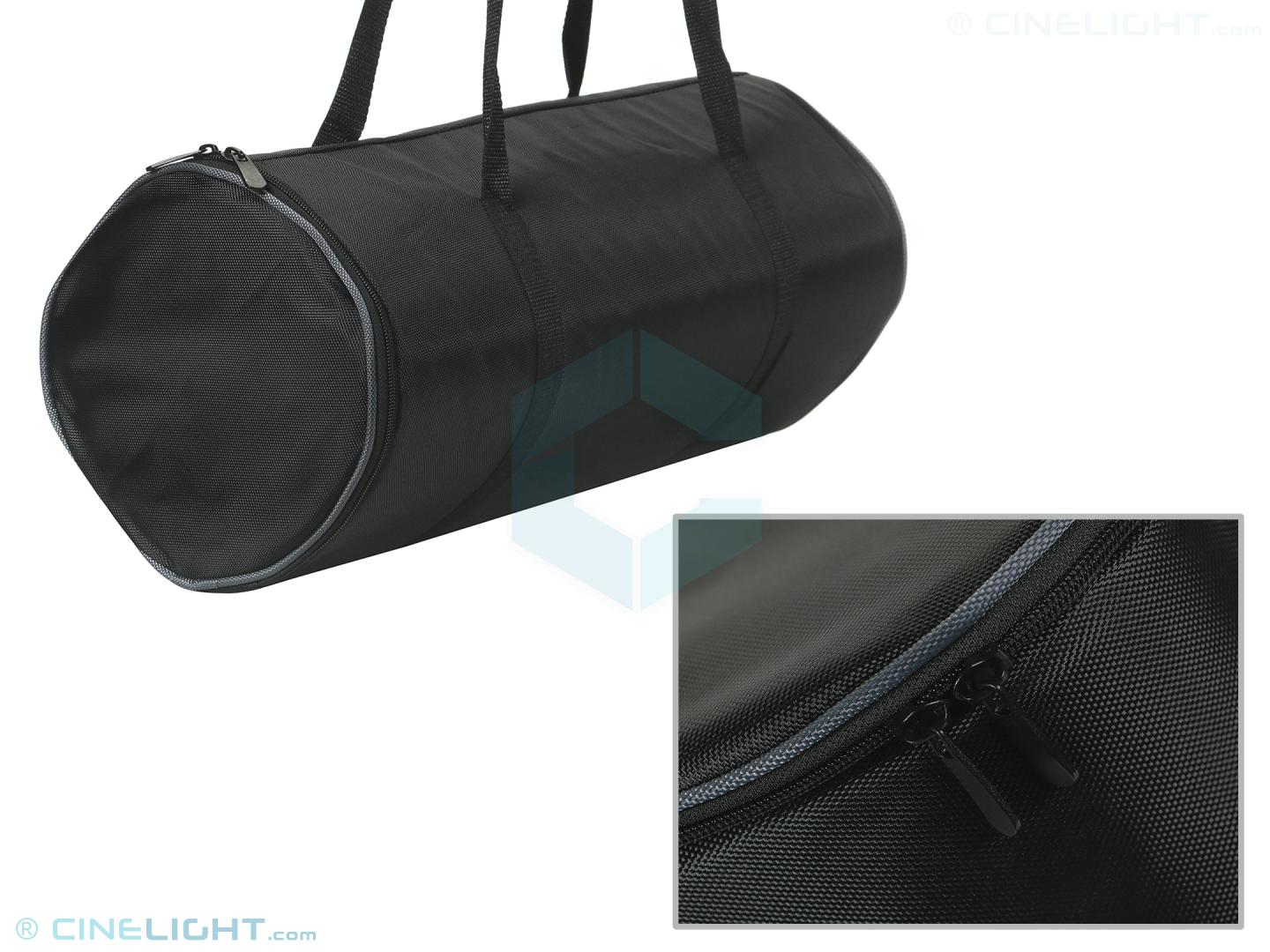

Includes transport bag for easy storage and carrying
Having a slim and foldable design, the panel can be easily folded and rolled for storage and transportation. The package includes a transport bag to fit inside the CineFLEX panel with all its accessories, making this type of lighting instrument an obvious solution for travelling photographers and filmmakers.
Specifications
LED Panels - Fixture
LED type | Bi-Color |
LED no | 504 |
Beam angle | 120° |
Beam type | flood |

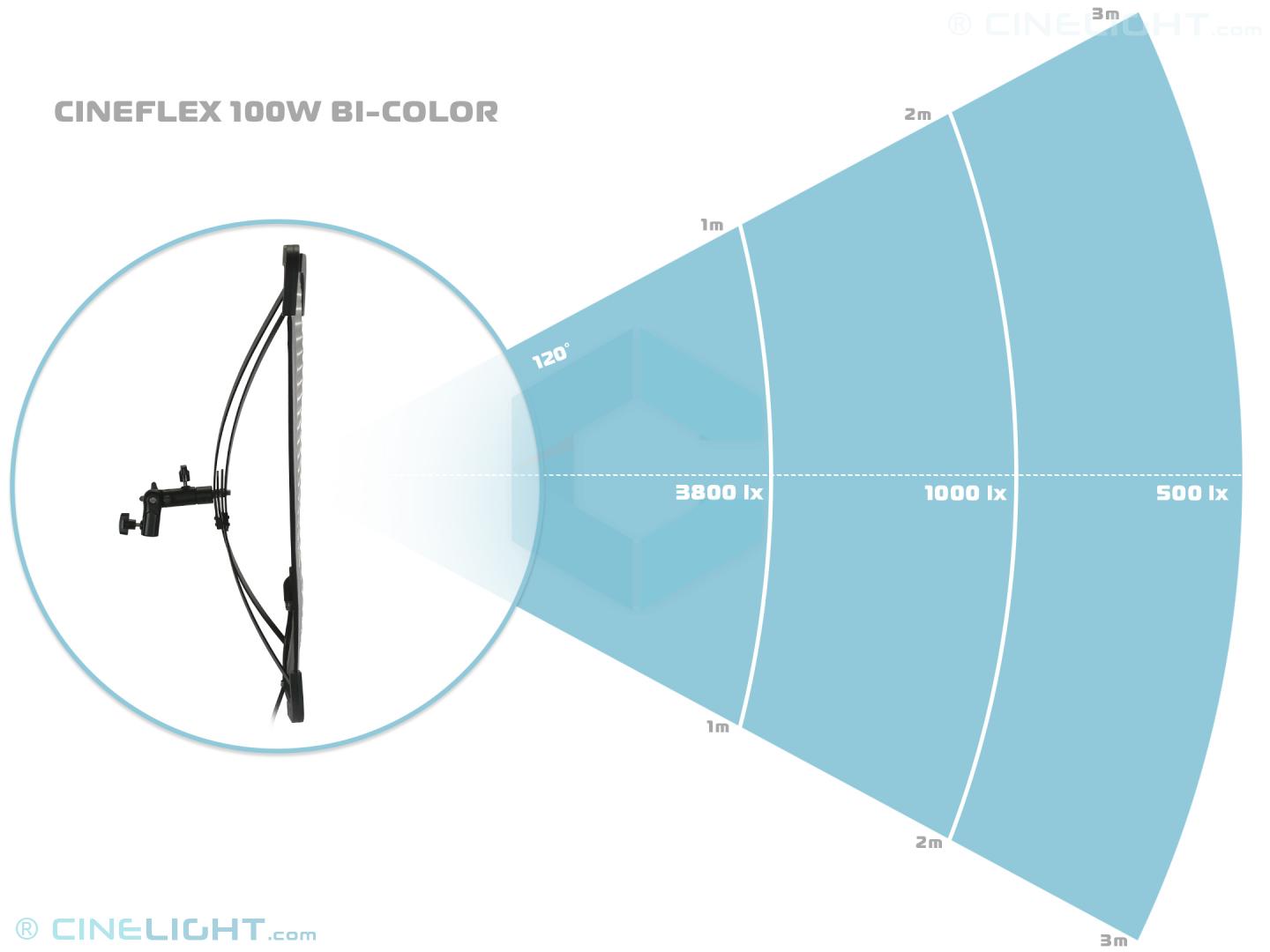

Photometrics | 1m: 3800 lx | 2m: 1000 lx | 3m: 500 lx |
Color temperature | 3000K-5600K |
TLCI rating | 99 |
CRI rating | 98 |
Dimming range | 100%-0% |
Cooling system | Passive |
Display type | Complex - monochrome |
LED surface dimensions | 39 x 51 cm |
LED Panels - Controls
Local functions control | Analog |
DMX control | Yes |
DMX connectors type | mini XLR-3P |
Bluetooth / WIFI APP control | No |
Radio remote control | Yes |
LED Panels - Powering
Rated power | 100 watts |
Voltage input | 100-240V 50 / 60 Hz |
Power source | External, AC 100-240V 50 / 60 HZ |
Battery | Yes |
Battery mount | V-Lock |
Plug in connector type | XLR-4P - male |
Power cord total length | 5.0 m |
Power connector type | CEE 7/7 |
LED Panels - Physical
Yoke mount | Spigot 16mm receiver |
Housing material | Plastic |
Housing color | Black |
IP rating | X8 |
Lamp head dimensions | 47 x 62 cm |
Lamp head weight | 1 kg |
Controller dimensions | 22 x 11 x 6 cm |
Controller weight | 0.8 kg |
Accessories & Bundles
- Includes front diffusion & honeycomb
- Front diffusion for smooth shadows
- Honeycomb grid for directional soft light
- Softbox size: 65 x 50 x 13 cm
- Extension cable for CineFLEX 100-150-250 Bi-Color
- Adds between power controller & lamphead
- Length: 6m
- Color display showing battery info
- Ports: USB 5V and D-tap 14.8V
- High Capacity: 310 Wh / 21 Ah
- Dimensions: 161 x 97 x 73 mm
- Weight: 1450 g
- Remote control for CineFLEX Bi-Color (G5)
- Digital display with intuitive controls
- Adjusts color temperature & brightness
- Selects light effect & DMX channel
- Effective control distance is up to 50 m
- Controls up to 999 devices simultaneously
- XLR-3P male cable plug
- mini XLR-3P male cable plug
- 100 cm length
