Note: This model is discontinued and replace by CineLED GEM series.

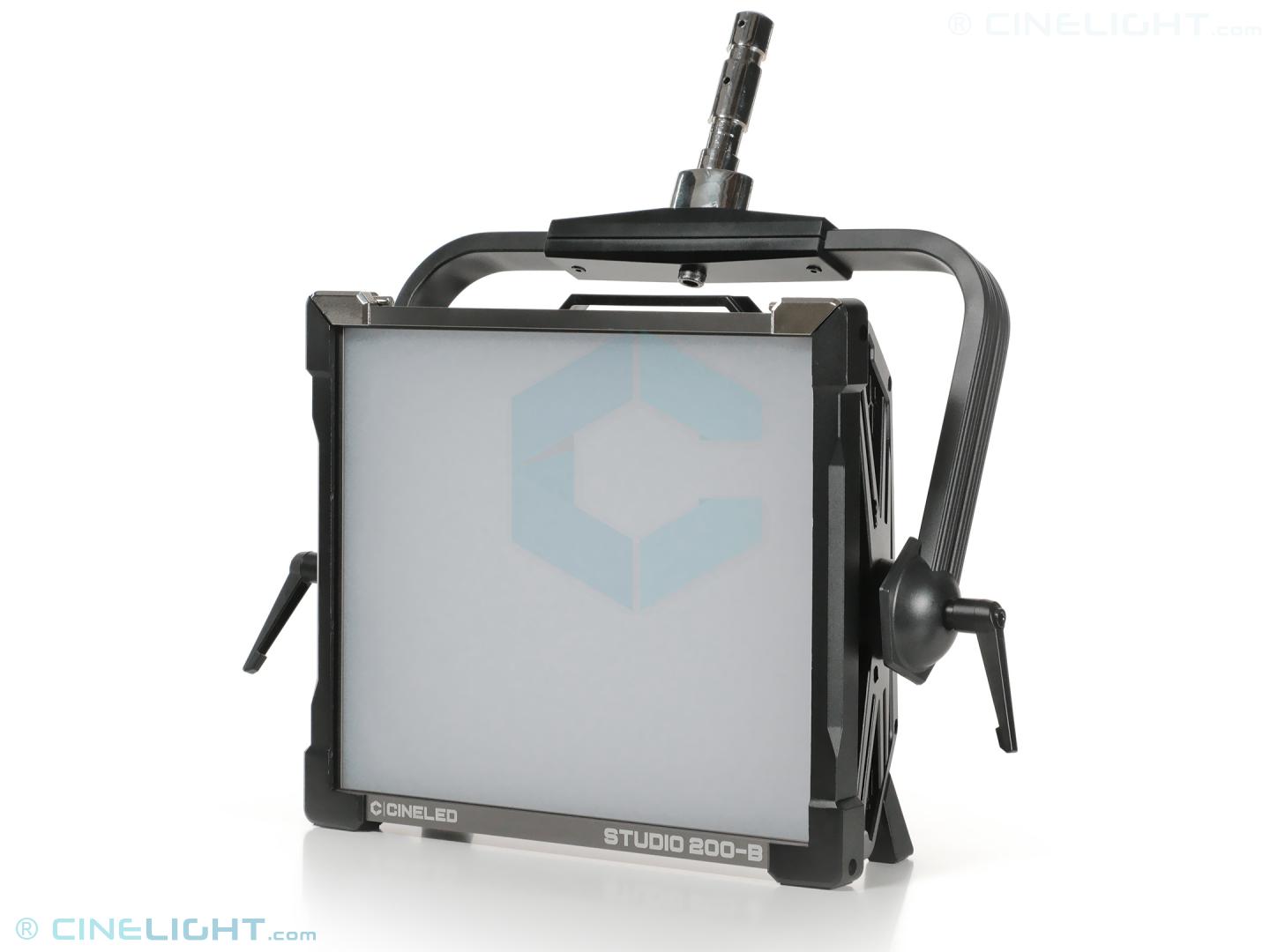

Powerful studio LED panel

     The new CineLED Studio series LED panel is a powerful light source that employs nowadays high lumen SMD LED's to produce bright, wide effective beam spread.

     The CineLED S-line is designed to meet the technical requirements of studio installations like TV news and entertainment productions sets.

True soft light source

     The CineLED studio 200W delivers a smooth, even light beam field through the combination of latest wide beam, true-tone SMD LED’s and the diffusion panel. The large surface area of this panel produces bright, wrap around output with clean, soft shadows and acts like a beauty light over the subject.

Natural & accurate color rendering

      Adopting the True-Tone SMD's specially developed for photo and video applications, the CineLED Studio panels outperform many of it's competitors by reaching high scores for color fidelity (CRI 98+ / TLCI 99; TM-30 Rf 97 & Rg 101) which ensure rendering color on cameras with high accuracy demanded by professionals.

     The color temperature of the panel can be adjusted from 3200K to 5600K and the brightness can be dimmed from 100% to 0% with no flicker or color shift.

Solid construction & practical design

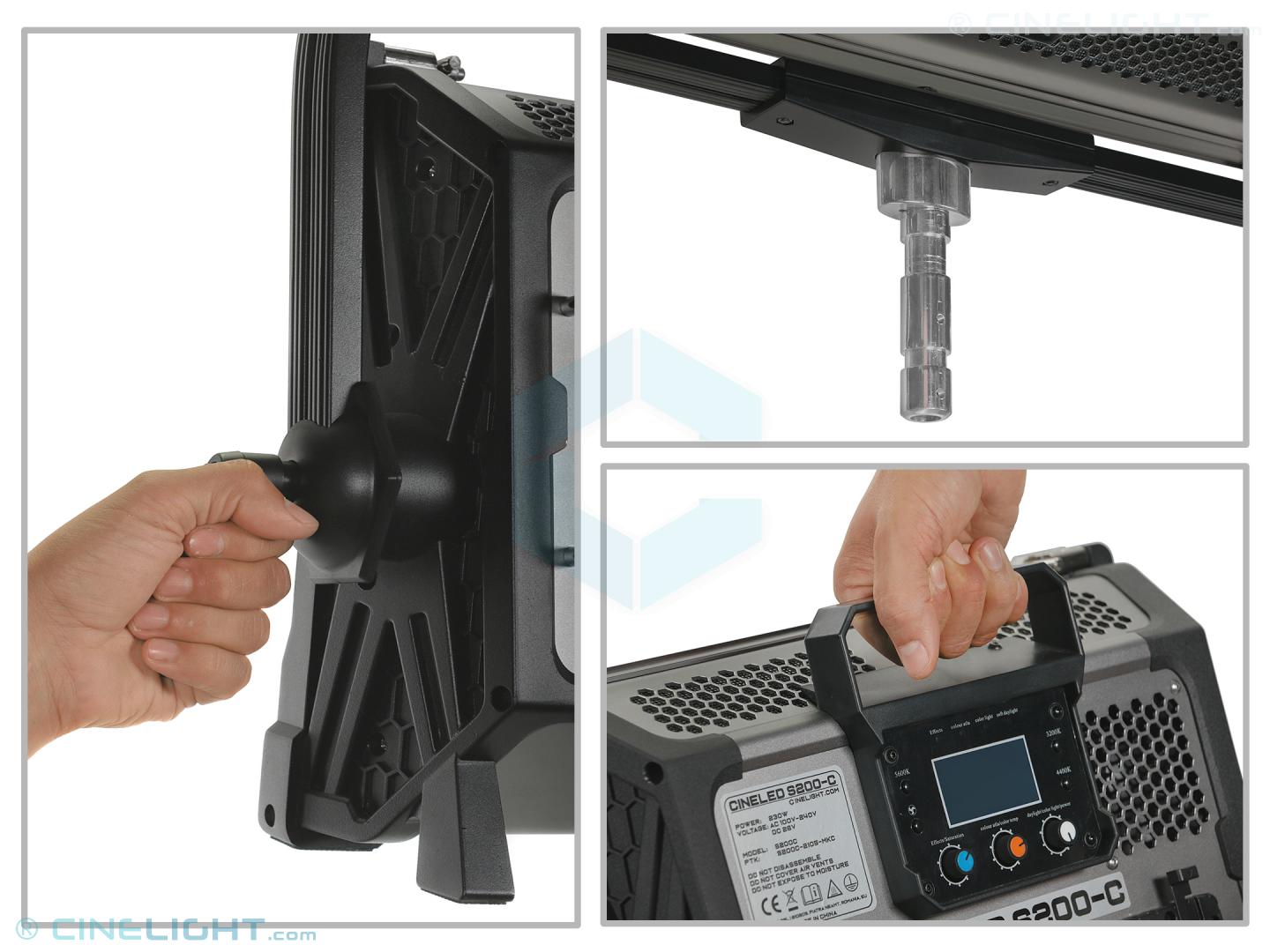

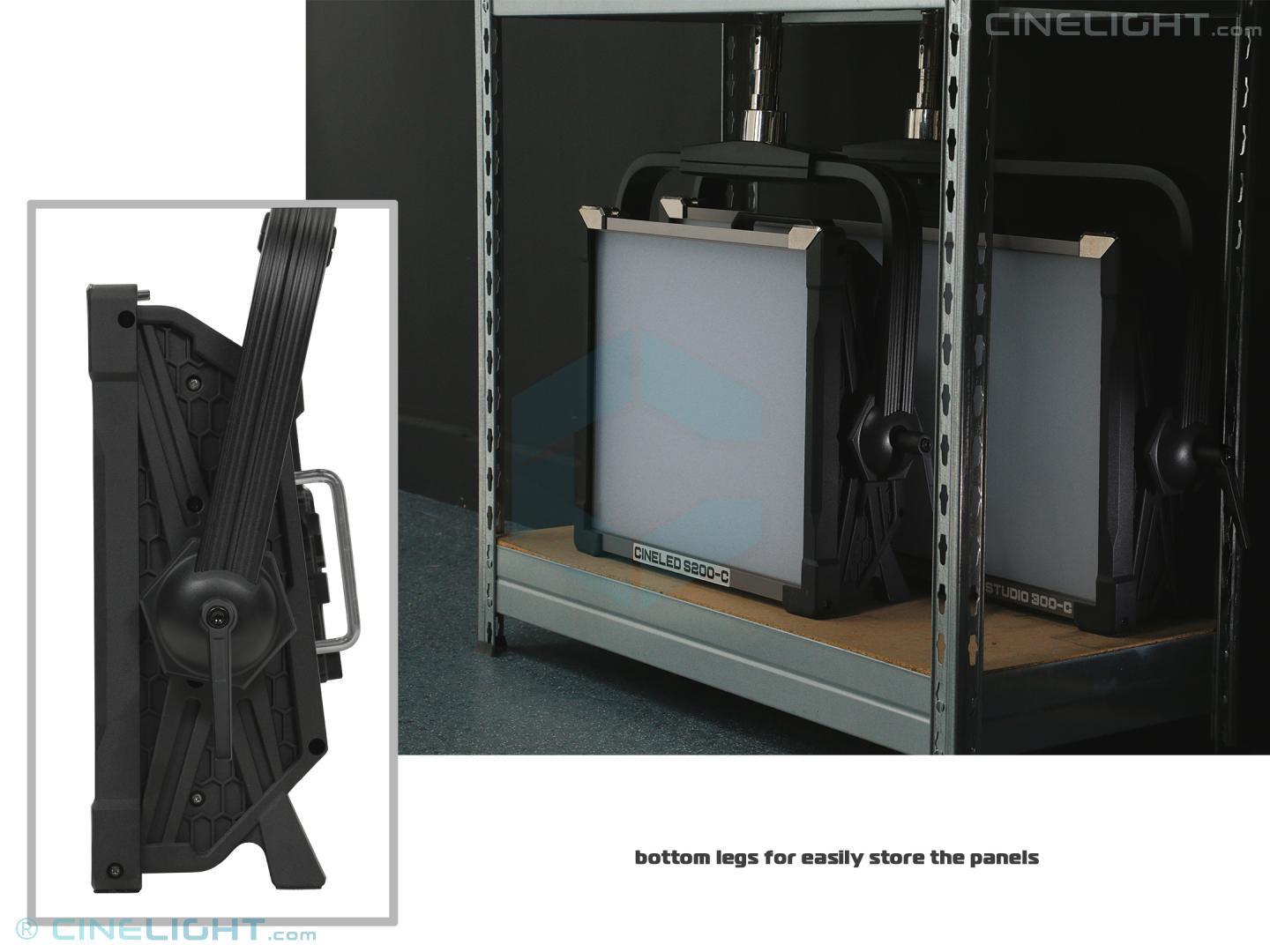

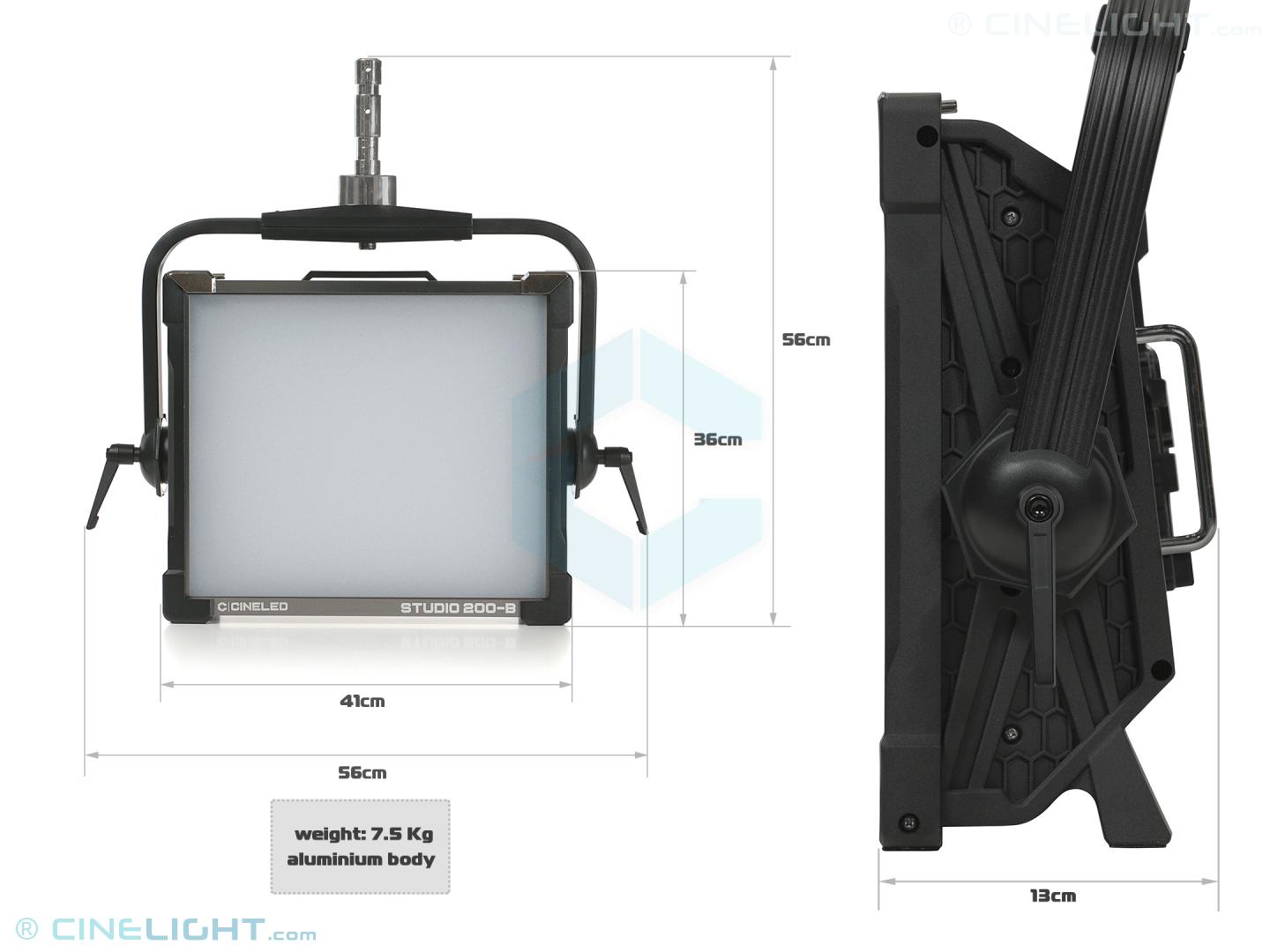

     Having a robust, full aluminum structure, the panel can withstand intensive, daily use on busy sets. The solid housing has a functional design with built-in top handle and bottom legs to easily manipulate, mount and store the panel.

     The perforated aluminum shell design and the active cooling system ensures an efficient heat dissipation to maintain a stable performance and extended lifespan of the LED panel.

Wired DMX512 & Wireless control

     Using the built-in industry standard DMX-512 controlling function, the CineLED S-200 panel can be integrated into more complex studio installations such as news sets, talk-shows or entertainment productions where a standardized remote controlling method is required. The unit is equipped with two XLR-5P DMX ports (in / out – loop) allowing the panel to be connected to a DMX lighting console.

     The CineLED S-200 can be ordered with a built-in wireless DMX receiver module to enable wireless communication between a DMX lighting console and the LED panel. A wireless DMX sender it is required to be added in the DMX network. The DMX sender and can be ordered from accessory page.

     Additionally the CineLED Studio line incorporates the 2.4GHz radio technology, enabling remote operation of the fixture. The included wireless remote is effective from a distance up to 50 meters away from the panel. Up to 99 panels can be controlled individually or simultaneously by using a single wireless remote, without the need to manually reach every panel, saving considerable time and effort.

Intuitive user interface

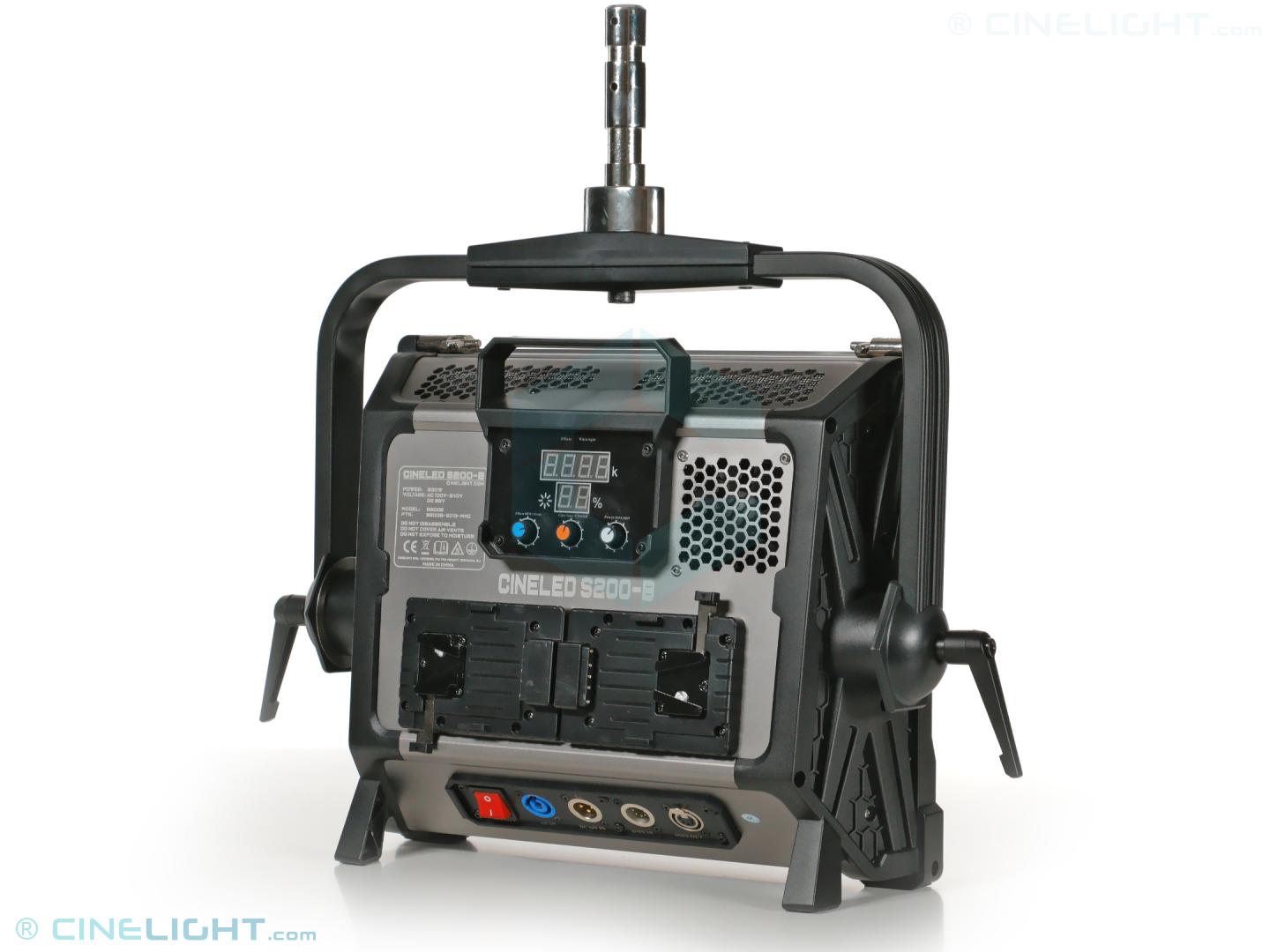

     The back panel digital display shows useful information like brightness, color temperature and the DMX channel number the panel is set on. Having this information easily accessible for the user comes in handy especially when multiple LED panels need to match in the same scene. Three large selector knobs can be easily handled (even with gloves on) to fine tune the desired values.

Lighting effects

     The CineLED S-200 comes with 9 pre-programmed lighting effects with adjustable parameters, as follows: paparazzi, lightning, candle, welding, explosion, strobe, pulsing, TV, flashing.

Variety of light modifiers

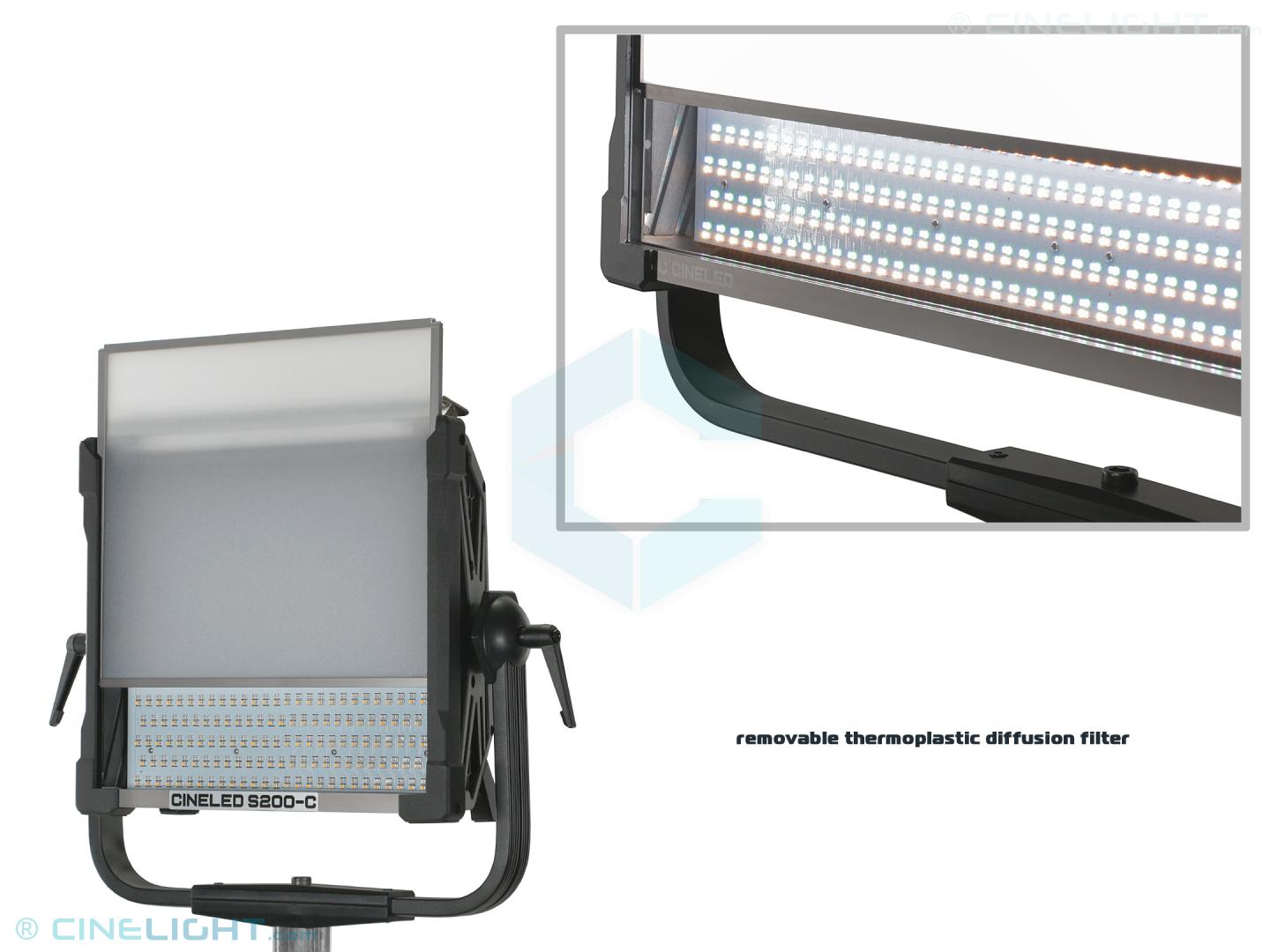

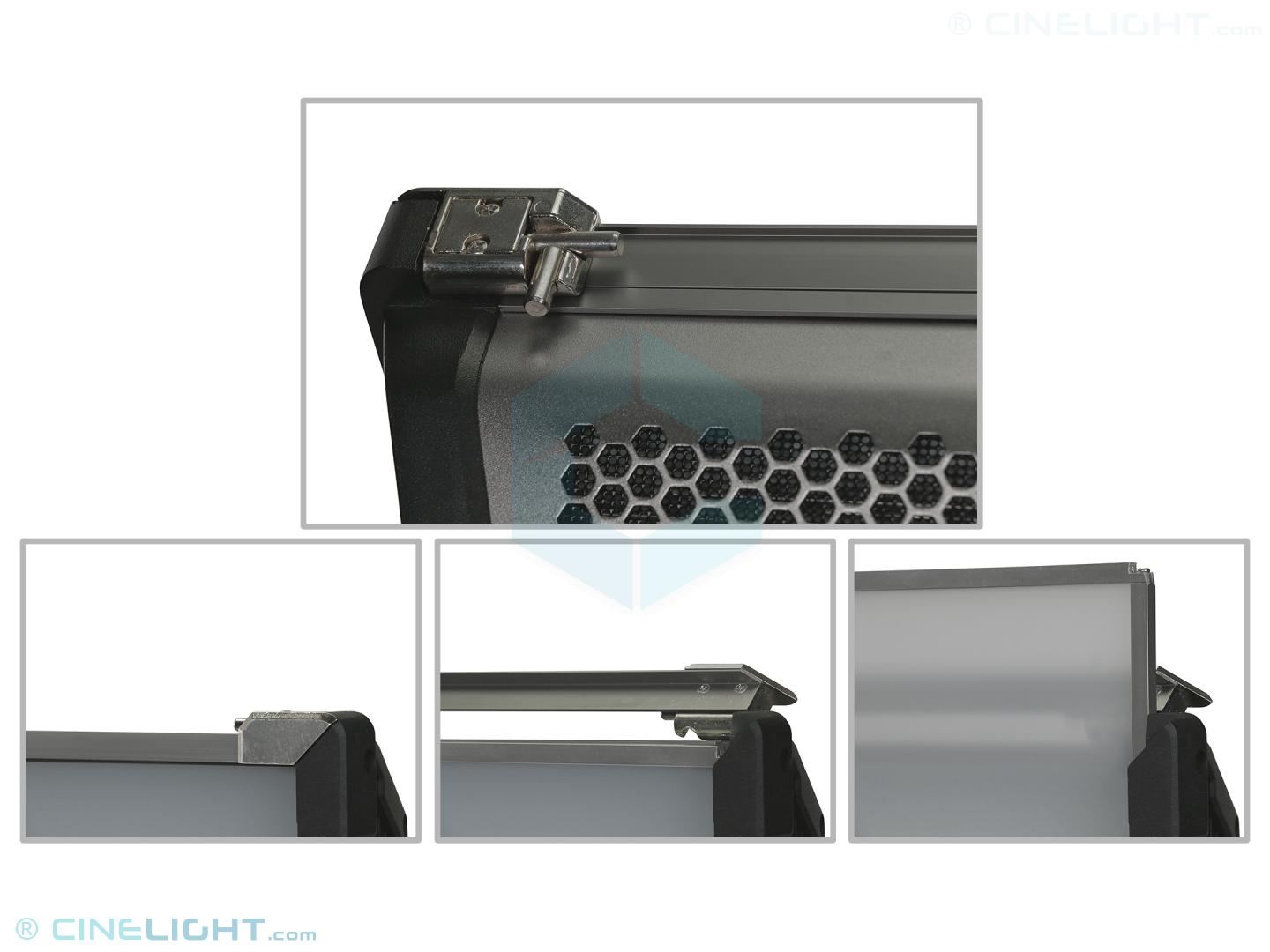

    The removable thermoplastic diffusion filter softens the light beam and smooths down the shadows.

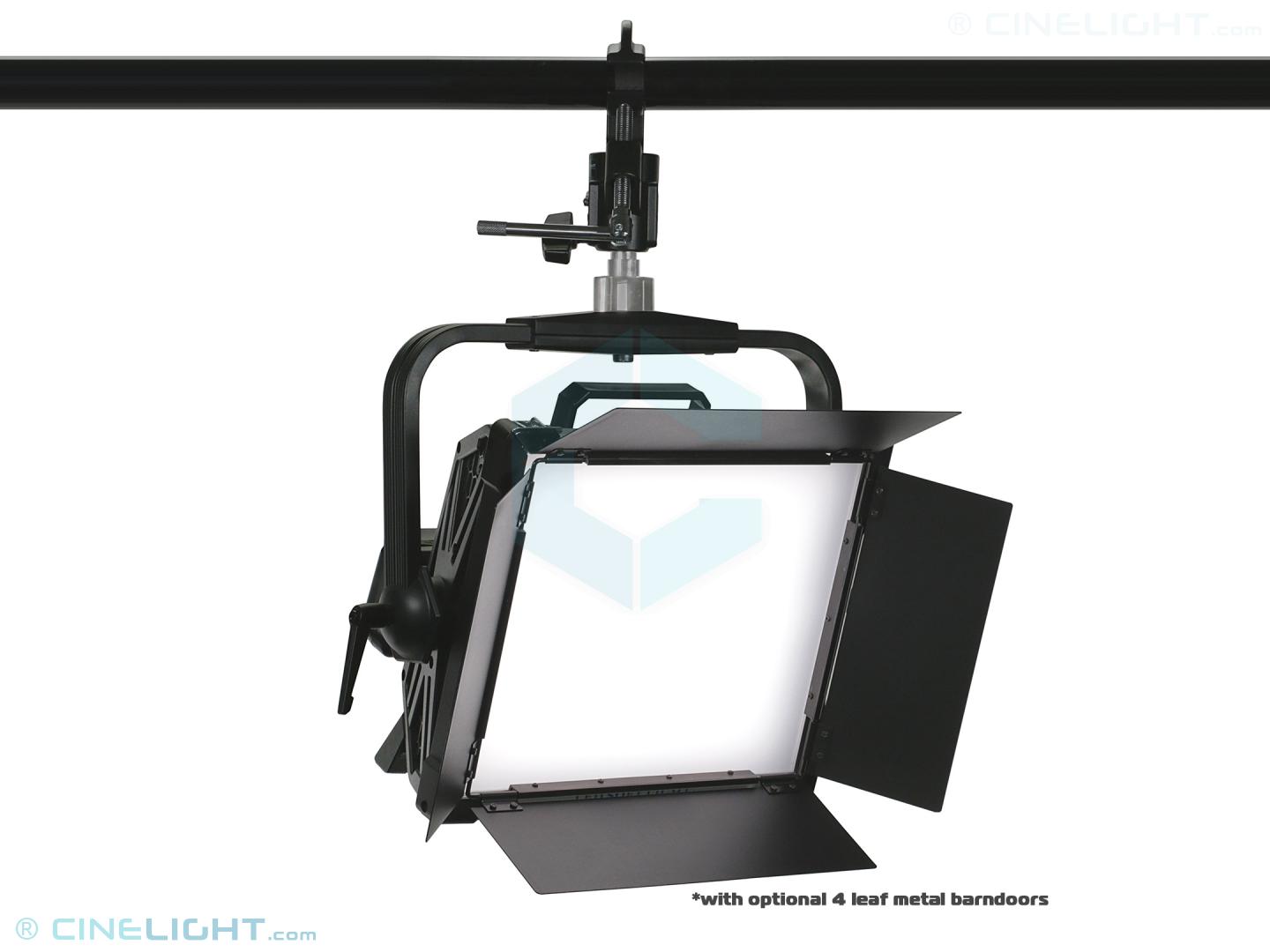

    Optional 4-leaf barndoors are available to control the light spread and reduce the light spill.

    The optional softbox with silver interior can be used to intensify the panel's output. By adding the front diffusion on the softbox, the panel becomes a broader soft light source. The honeycomb front layer can be used to narrow down the beam angle and reduce the spill.

    Additionally 3rd party accessories designed for ARRI S-30 panels can be also used with the CineLED S-200 (intensifiers, various density filters, grids & louver).

Multiple powering options

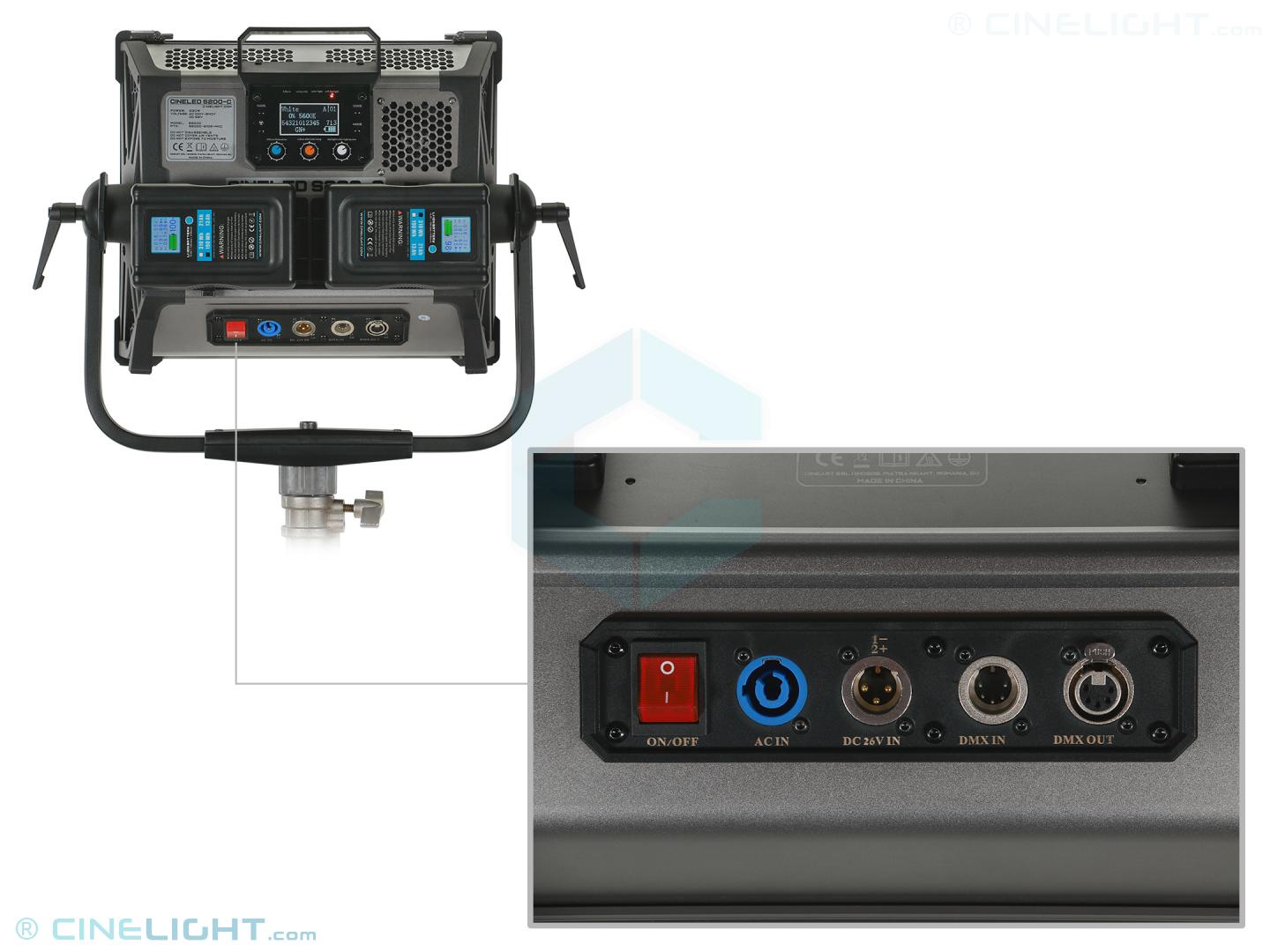

     The CineLED studio 200W can be feeded directly from an AC 100-240V power outlet or by two optional V-Mount batteries hooked on the V-Lock mounts from the back of the panel. Additionally, a 26V XLR-3P port is available for external DC powering.

Transport case included

     The CineLED studio 200W panel along with all its main components can be proper organized and protected inside the included foam padded bag for convenient transport and safe storage.
