SKU: PBC-VLOCKCH1CH
- For 14.8V Li-Ion Batteries (V-Mount & AB)
- Input voltage: AC 100V-240V
- Output voltage: 16.8V
- Charging Current: 2A
- Size : 12 x 6.8 x 3.6 cm | 0.4 kg

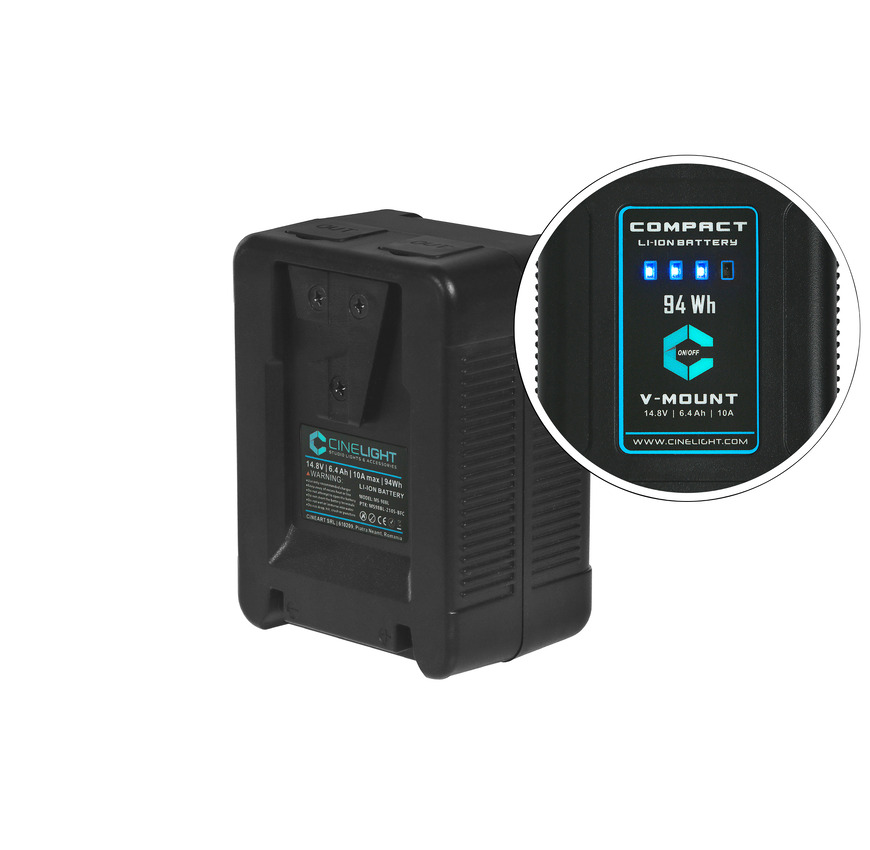

V-Lock Battery 94Wh 14.8V - Mini
- Compact V-Mount battery
- Capacity: 94Wh / 6.4Ah
- Allowed on air-travelling
- Dimensions: 97 x 72 x 54 mm
- Weight: 490g
€14900
Optionals
Recommended Accessories
- For 14.8V Li-Ion Batteries (V-Mount & AB)
- Input voltage: AC 100V-240V
- Output voltage: 16.8V
- Charging Current: 2A
- Size : 12 x 6.8 x 3.6 cm | 0.4 kg
- Simultaneously charges two batteries
- Fast & independent charging process
- For all V-Mount Li-Ion 14.8V batteries
- Input: 100V-240V | Output: 16.8V / 2x6A
- Robust metal housing | Silent operation
- Size: 24 x 17.5 x 6.5 cm | 1.9 kg
Compact & lightweight 94Wh (6.4Ah) V-Mount battery for powering camcorders, monitors, LED lights & other studio electronic equipment working with V-Lock batteries. Able to support up to 10A (150W) current draw.
Equipped with two D-Tap ports for powering external equipment via D-Tap cable.
Having a capacity under 100Wh, this battery is allowed in carry-on bags on most airlines.
Measuring 97 x 72 x 54 mm and weighing only 490 g, this travel-friendly battery is suitable for light, handheld gear setups or other applications which require a lightweight and compact battery powered solution.
Specifications
Batteries
| Battery mount | V-Lock |
| Battery cell type | LG Grade A |
| Battery nominal voltage | 14.8V |
| Battery capacity (watts) | 94 Wh |
| Battery capacity (Ah) | 6.4 Ah |
| Max discharge current | 10A |
| Working ambiental temp | - 15°C to + 50°C |
| Display type | N/A |
| D-Tap port | Two |
| USB powered port | N/A |
| Overall size | 9.7 x 7.2 x 5.4 cm |
| Weight | 0.4 kg |
Accessories & Bundles
SKU: PBC-QZ2BL
- Simultaneously charges two batteries
- Fast & independent charging process
- For all V-Mount Li-Ion 14.8V batteries
- Input: 100V-240V | Output: 16.8V / 2x6A
- Robust metal housing | Silent operation
- Size: 24 x 17.5 x 6.5 cm | 1.9 kg
Q & A ( 3 )
U
From Une
05/22/2022
Can this be charged via a DTap input to battery from a DTap charger?
Answer
Hi Une,
Yes, the battery can be charged through it's D-Tap port.
In fact our optional Single Channel Charger uses this port for charging.
L
From Lukas
03/03/2022
I would like to know what is max charging amp rate for this battery.
Your cinelight vmount charger says that it can charge 2 batteries at 6 amps each at the same time.
Does that mean, that this battery will charge fully in about 1 hour? Thanks
Answer
Hi Lukas, Yes, the charger will charge the 94Wh battery in approx. 1h
P
From Philip
12/15/2021
Hi,
Can I carry these batteries in my luggage while travelling by airplane?
Regards,
Phill.
Answer
Hi Phil,
Yes, since this batteries are under 100Wh you can carry them in your hand luggage on most airlines.
However we recommend to always check this in advance with your airline because some may have more strict rules.
