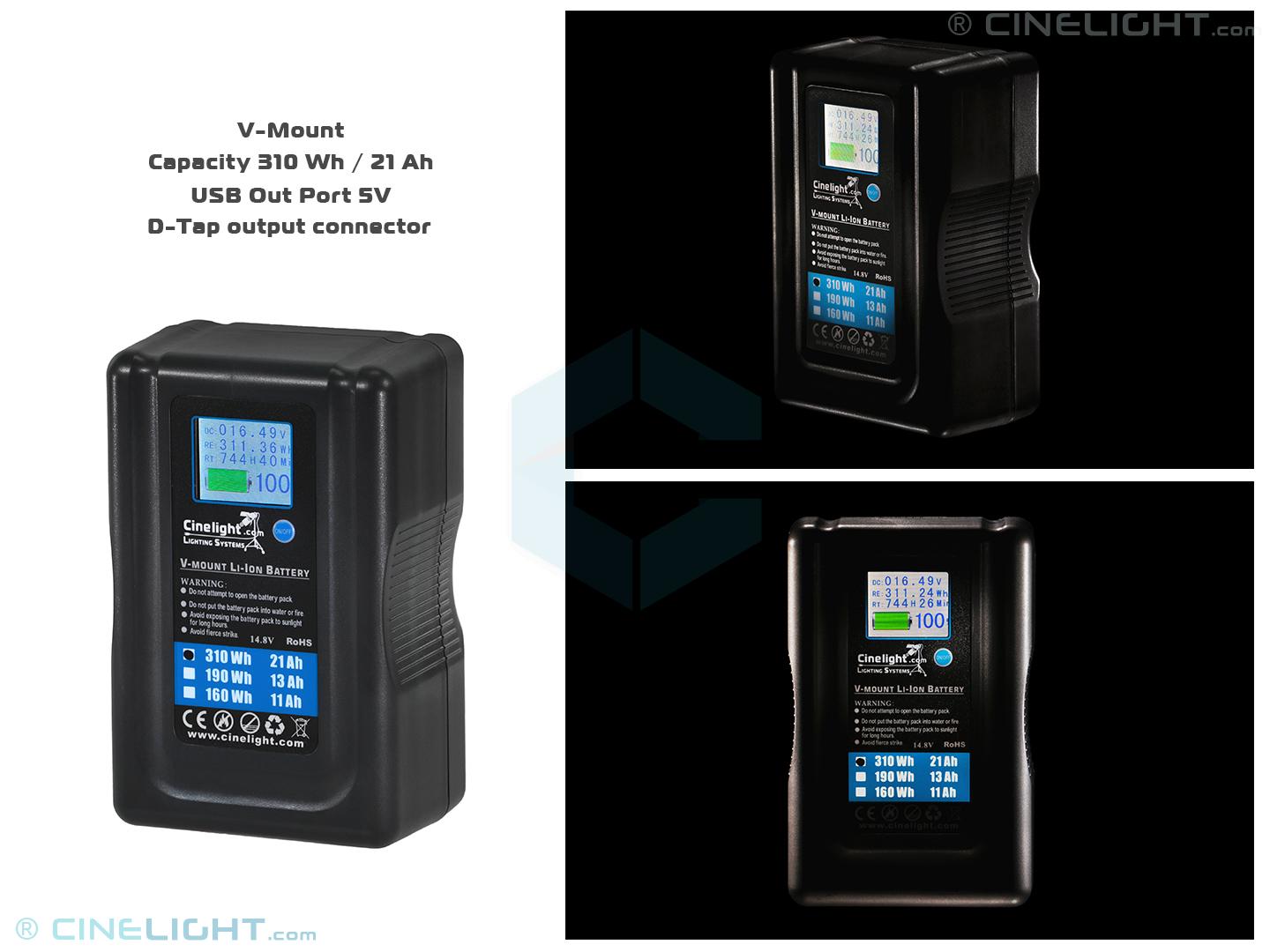

V-Lock Battery 310Wh 14.8V Digital Display
- Color display showing battery info
- Ports: USB 5V and D-tap 14.8V
- High Capacity: 310 Wh / 21 Ah
- Dimensions: 161 x 97 x 73 mm
- Weight: 1450 g
€29900
Maximum quantity available in stock for reached
Recommended Accessories


- For 14.8V Li-Ion Batteries (V-Mount & AB)
- Input voltage: AC 100V-240V
- Output voltage: 16.8V
- Charging Current: 2A
- Size : 12 x 6.8 x 3.6 cm | 0.4 kg


- Simultaneously charges two batteries
- Fast & independent charging process
- For all V-Mount Li-Ion 14.8V batteries
- Input: 100V-240V | Output: 16.8V / 2x6A
- Robust metal housing | Silent operation
- Size: 24 x 17.5 x 6.5 cm | 1.9 kg

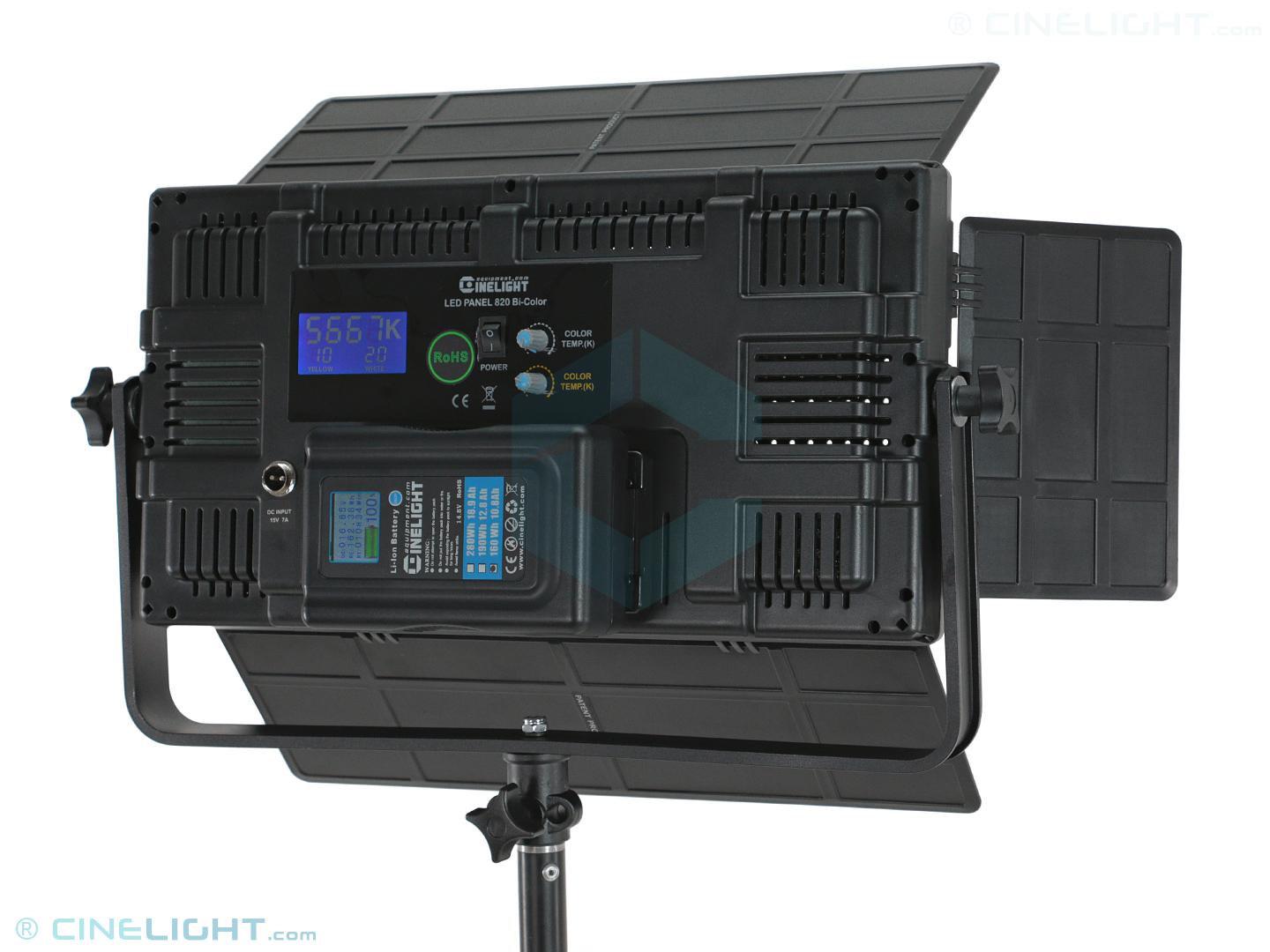

V-Lock Li-Ion battery with capacity of 310Wh and nominal voltage 14.8V DC for LED panels and professional camcorders.
Features a color digital display showing user useful information like: voltage, remaining energy (W/h), approximate run time (hours and minutes), graphic symbol for charging level and percentage display 100%-0%.
The integrated microprocessor ensures protection against overcharging, over discharging, overcurrent and short-circuit.

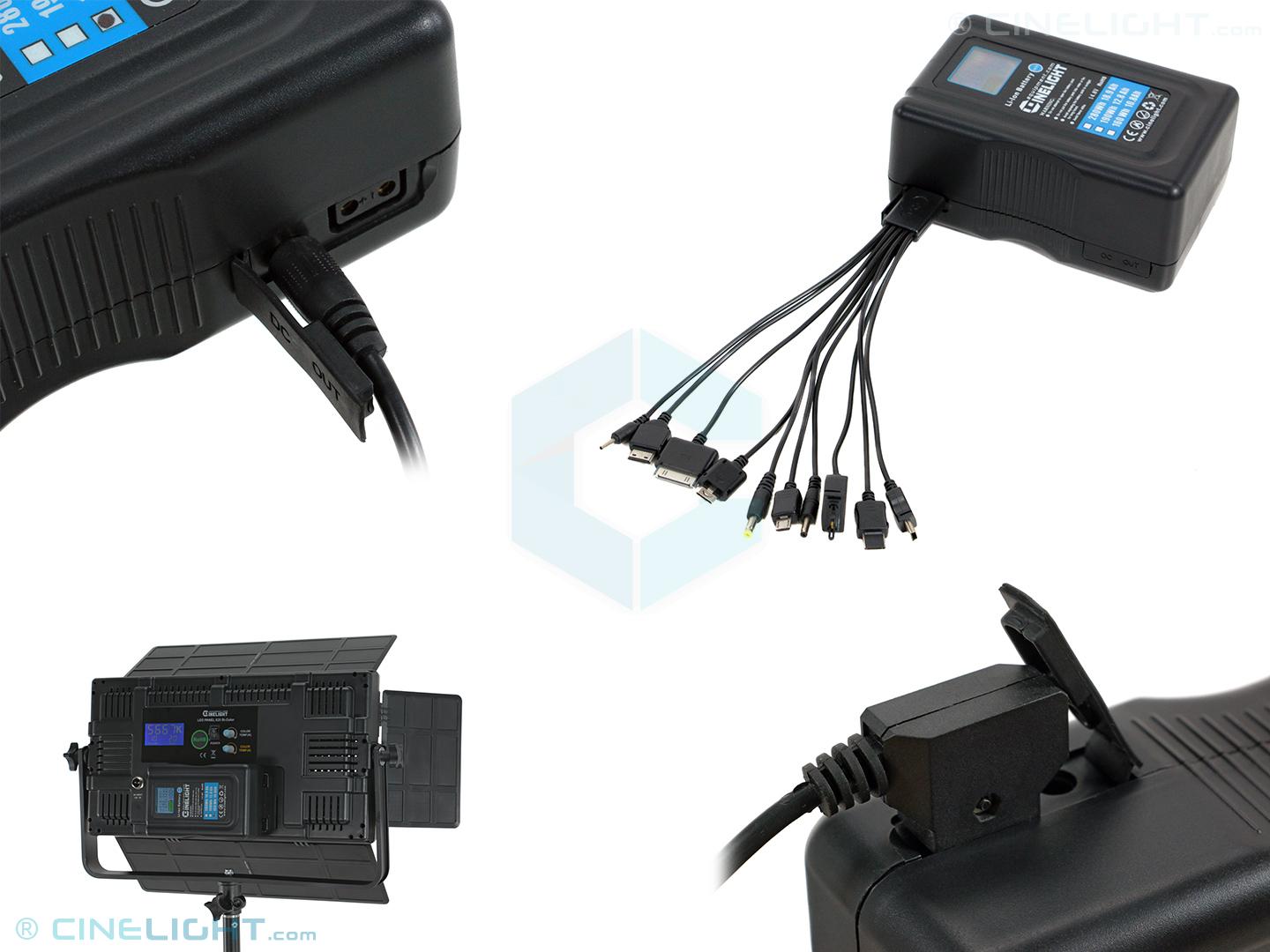

The battery comes with D-Tap connector 14.8V DC output to power external devices, a USB port 5V / 2A for charging different accessories and a secondary port for charging cylindrical 2.5 mm DC IN.
The battery supports a max discharge current up to 12A meaning that it can safely power devices up to 150 watts.
Specifications
Batteries
Battery mount | V-Lock |
Battery cell type | Sanyo A Grade |
Battery nominal voltage | 14.8V |
Battery capacity (watts) | 310 Wh |
Battery capacity (Ah) | 21 Ah |
Max discharge current | 12A |
Working ambiental temp | - 10°C to + 45°C |
Display type | Complex - color |
D-Tap port | Yes |
USB powered port | Yes |
Overall size | 16.1 x 9.7 x 7.3 cm |
Weight | 1.45 kg |
